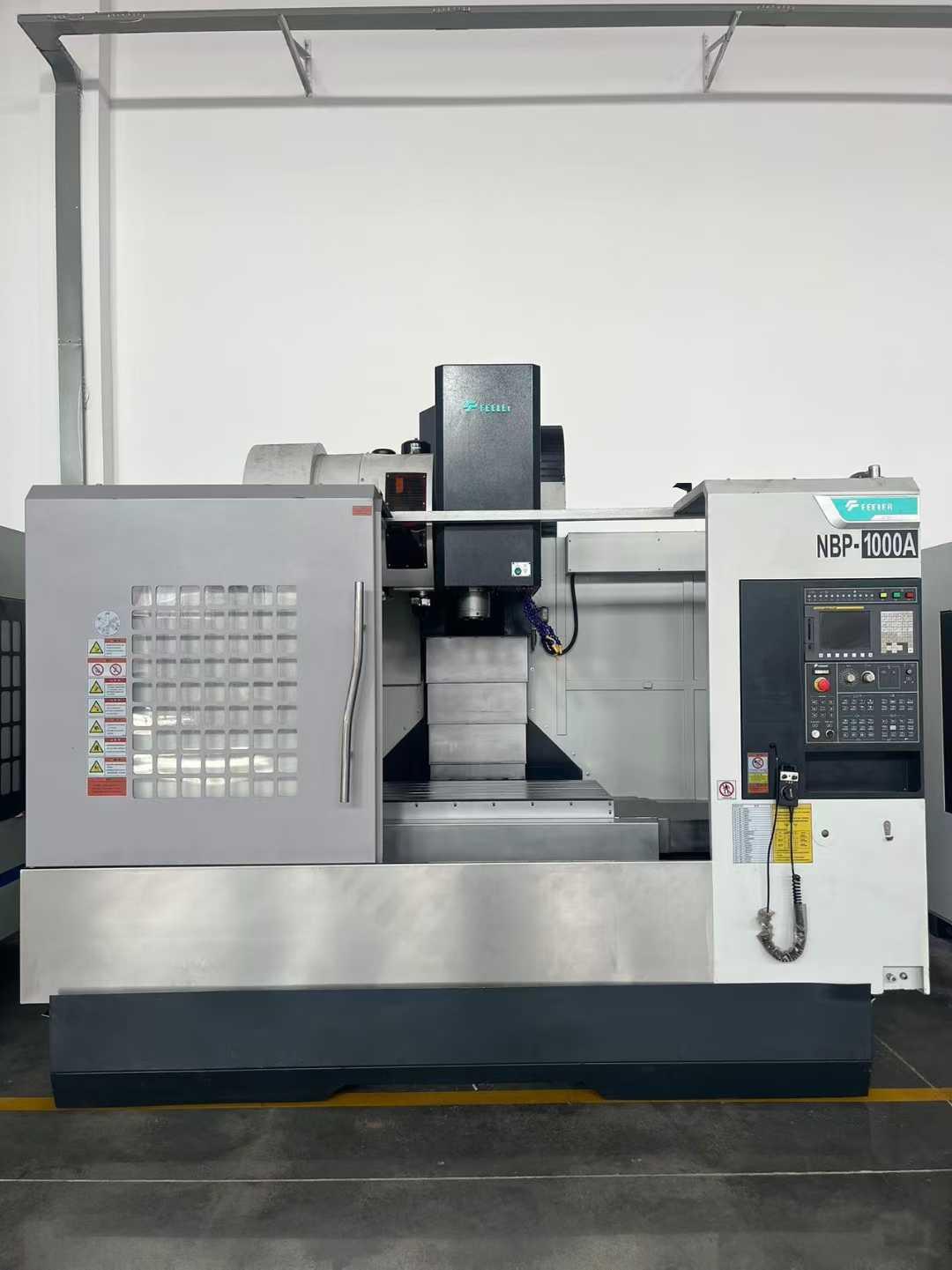

FEELER NBP-1000 Vertical Machining centre

Worktable size: 1150*600mm
Three-axis travel: 1000*600*600mm
Worktable load: 1000kg
Distance from spindle nose to Worktable surface: 110-710mm
Distance from spindle center to the column rail surface: 660mm
Distance from the center of Worktable to the rail surface of the column: 965mm
T-slot: 18*5*100mm
Spindle speed: 8000rpm
Spindle taper: BT40
Spindle diameter: 70mm
Main motor power: 7.5-11kw
