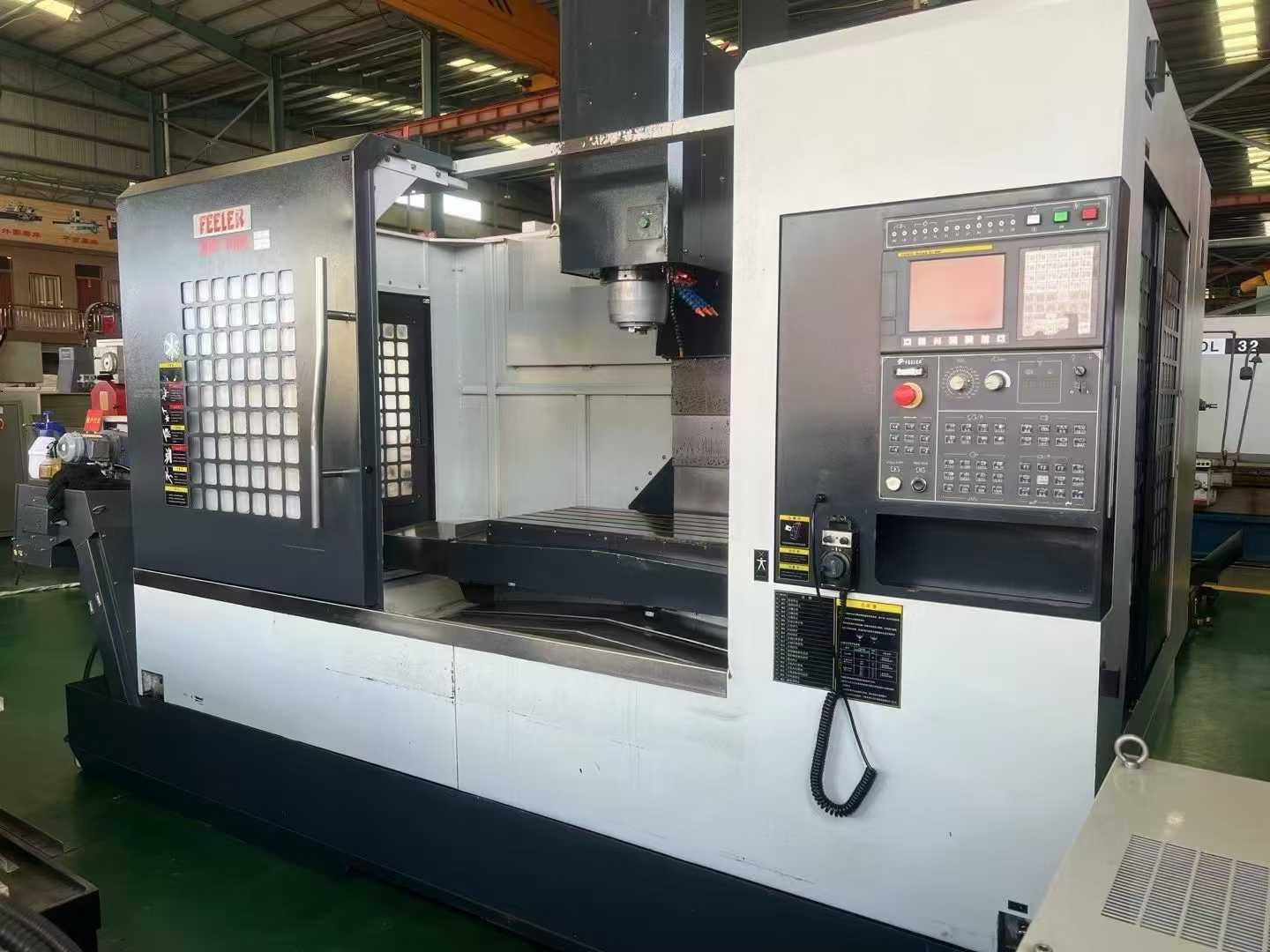

FEELER NBP-1000 Vertical Machining centre

WorkWorktable size: 1150*600mm

travel of X*Y*Z axis: 1000*600*600mm

WorkWorktable load: 1000kg

Distance from spindle nose to workWorktable surface: 110-710mm

Distance from spindle center to the column rail surface: 660mm

Distance from the center of workWorktable to the rail surface of the column: 965mm

T-slot: 18*5*100mm

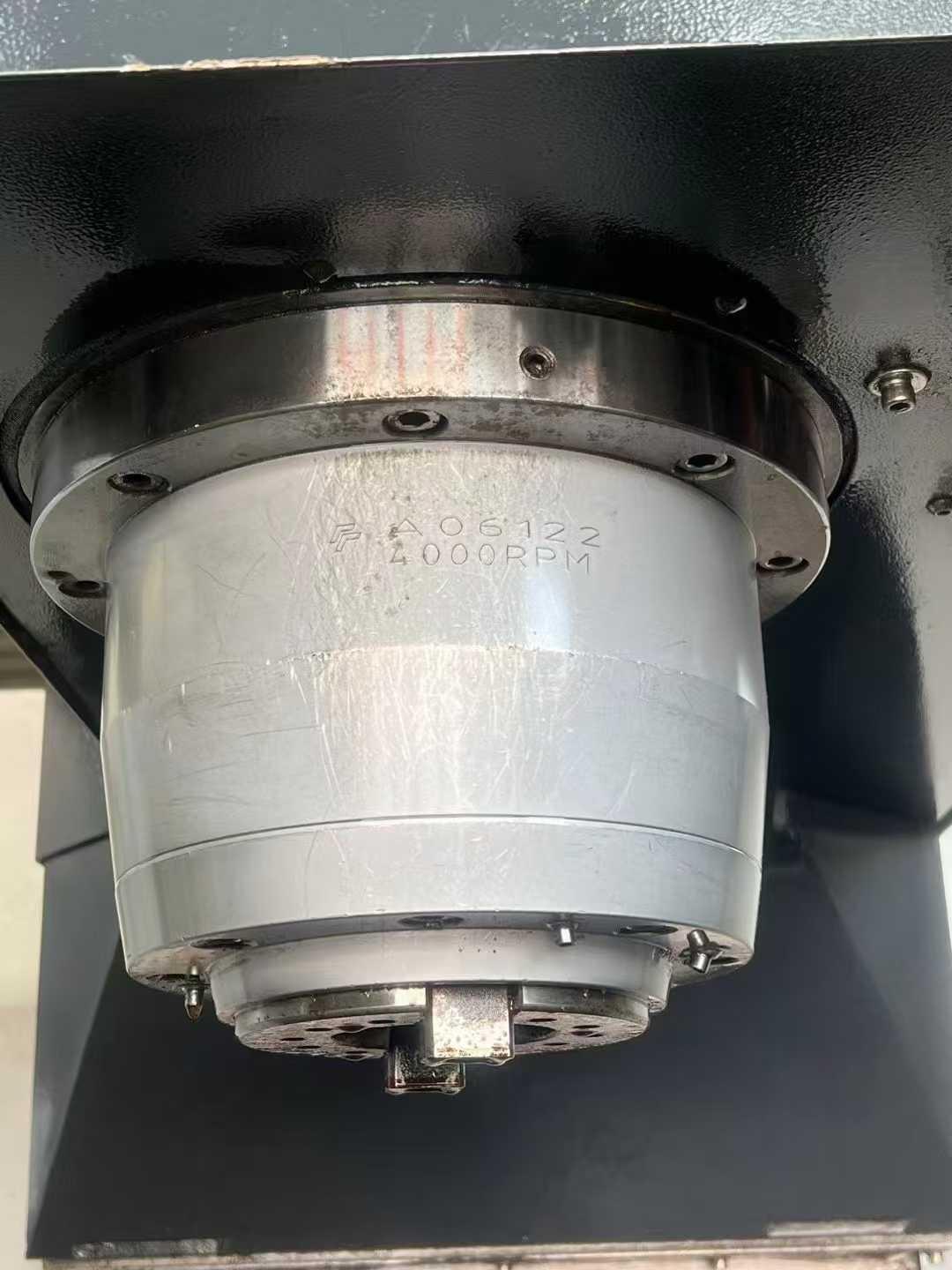

Spindle speed: 8000rpm

spindle taper: BT40

Spindle diameter: 70mm

Main motor power: 7.5-11kw

Overall Footage: 3180*2185*2900mm

machine tool weight: 7000kg
