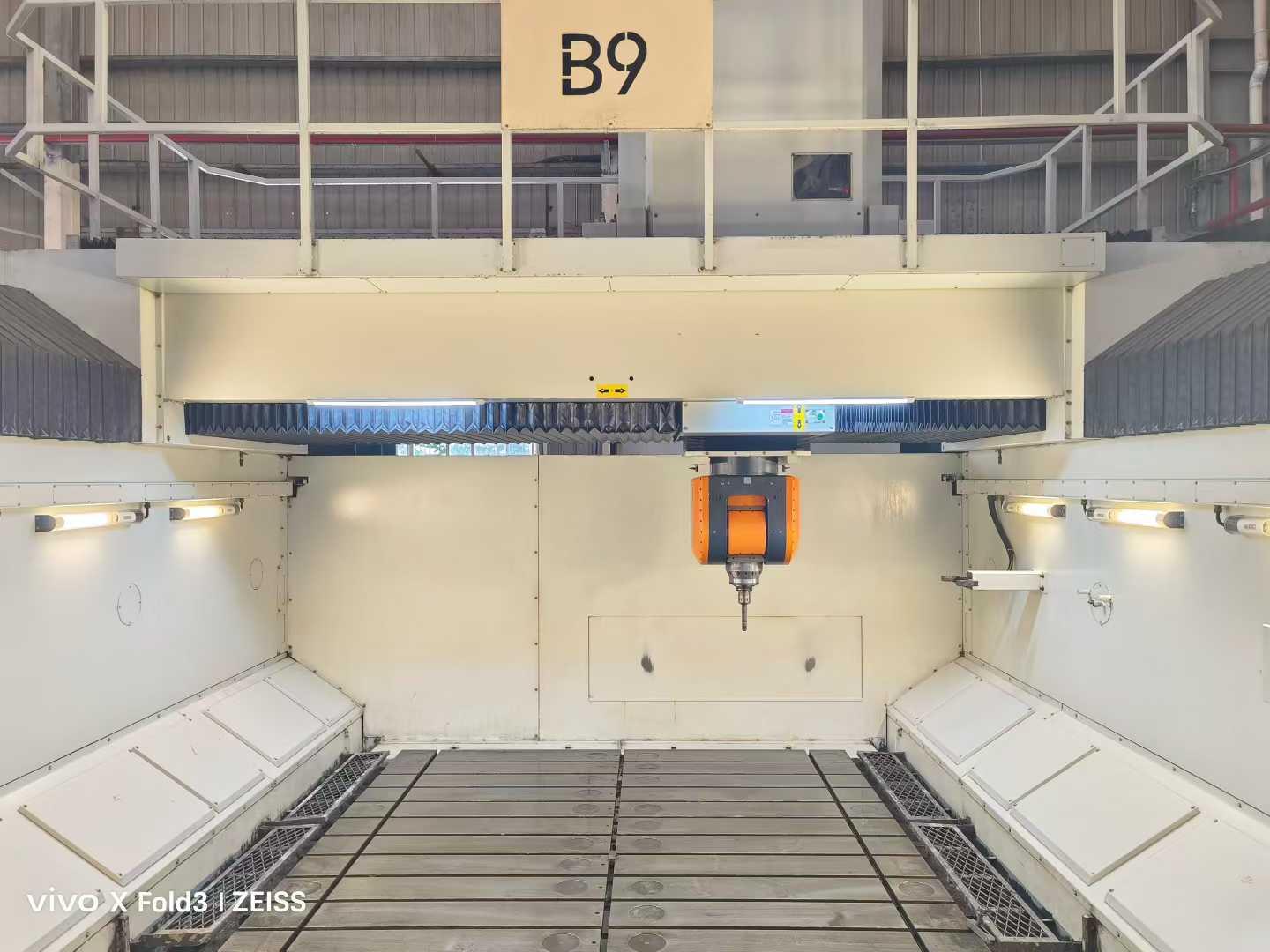

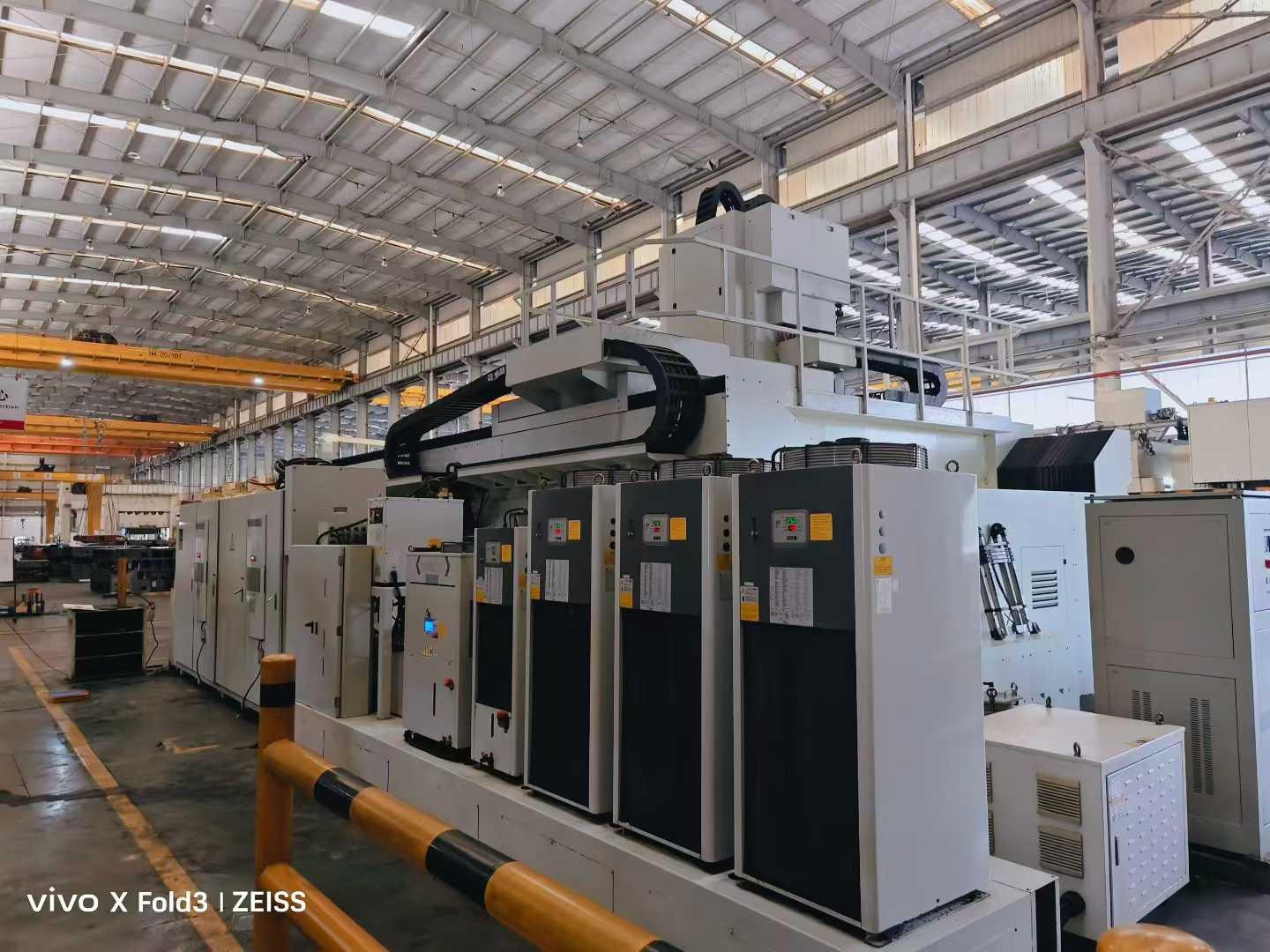

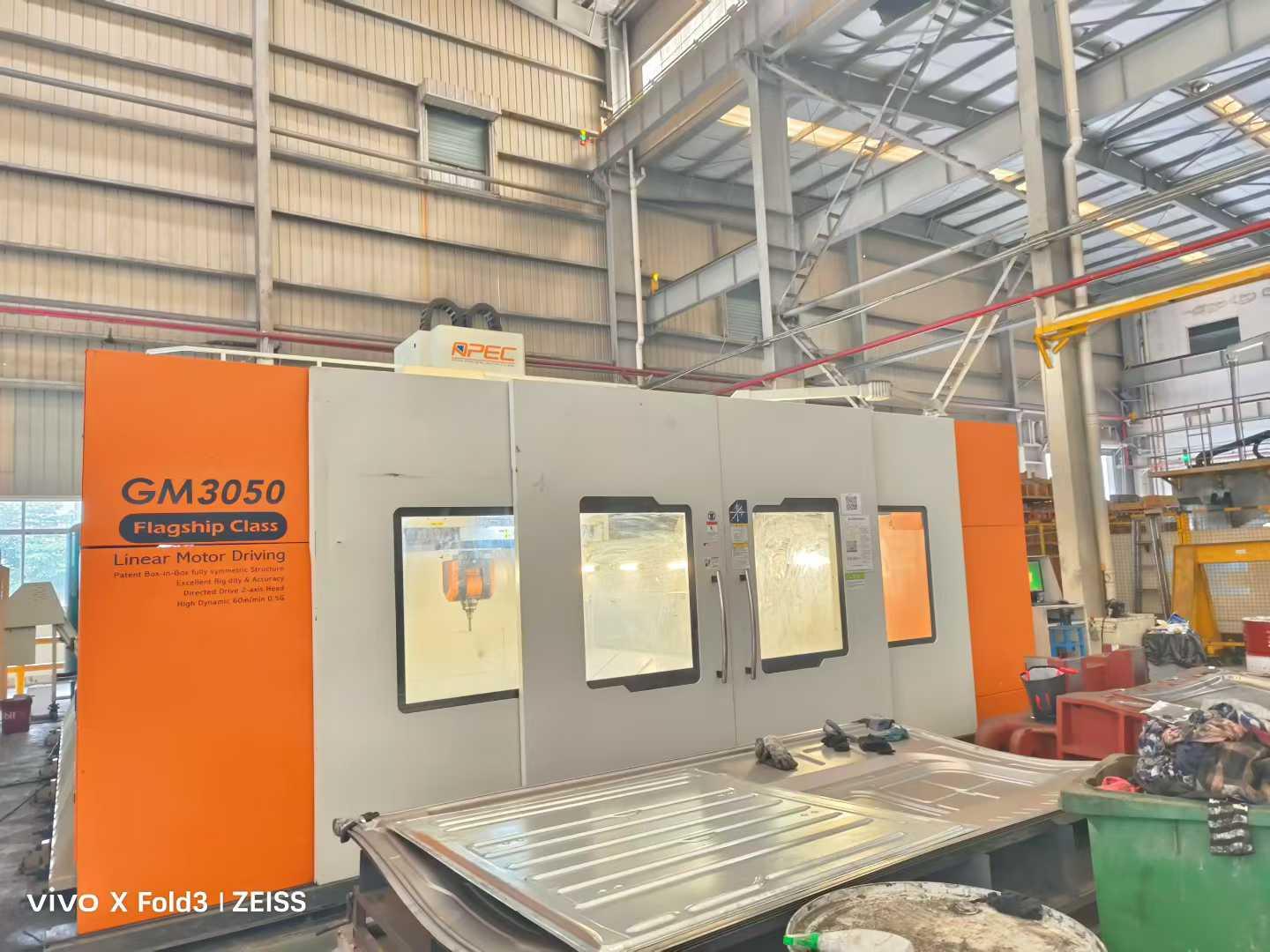

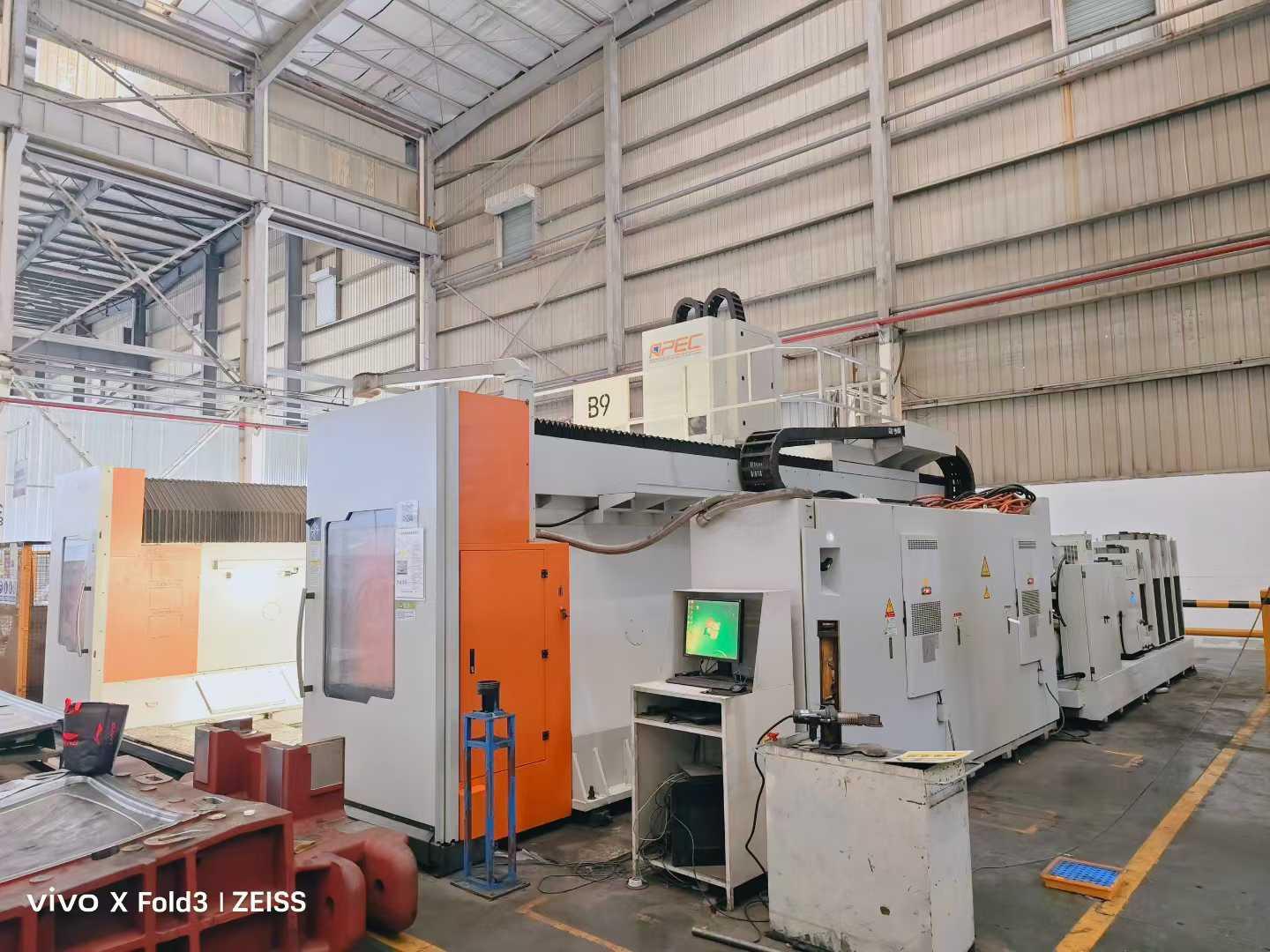

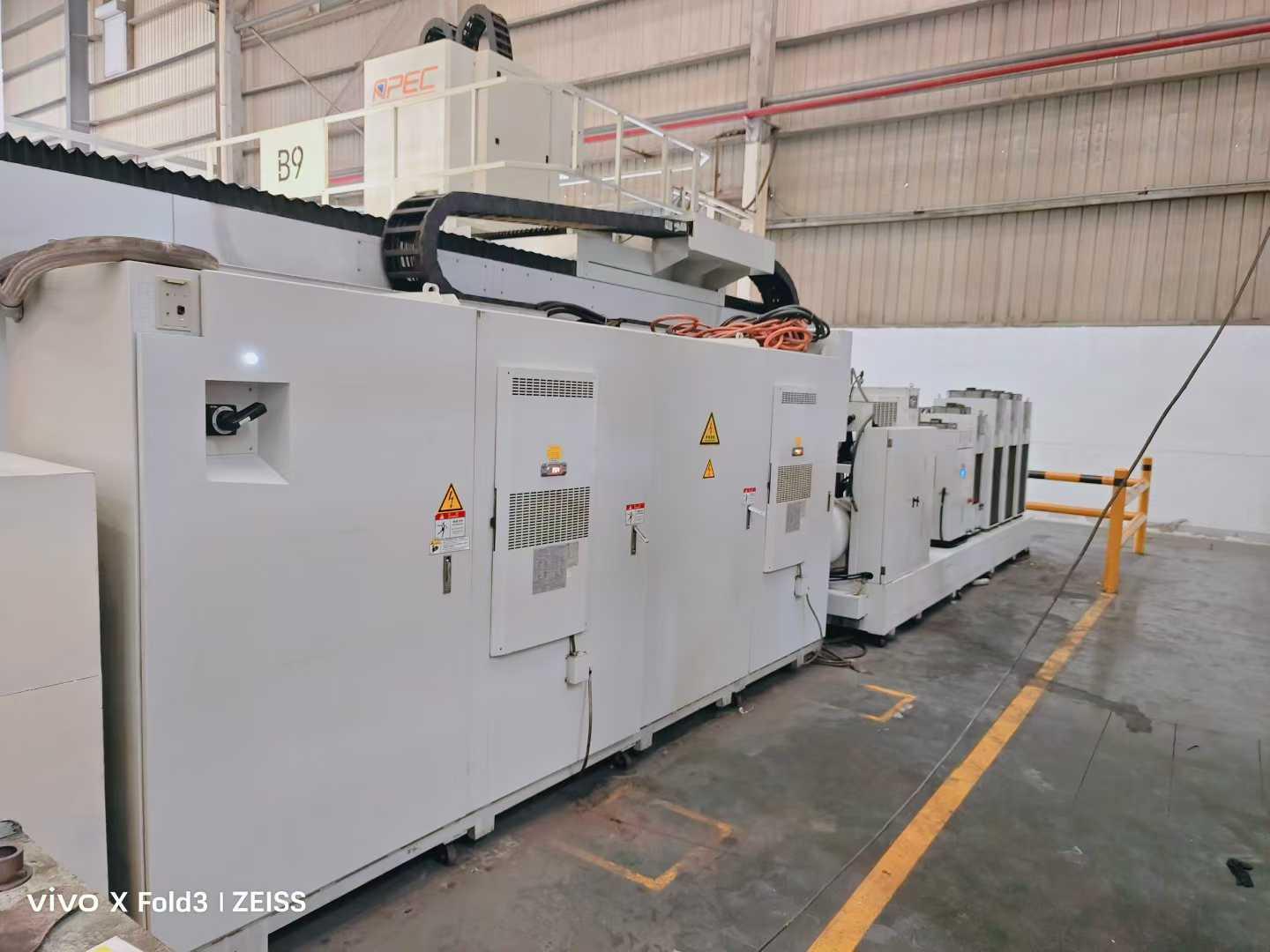

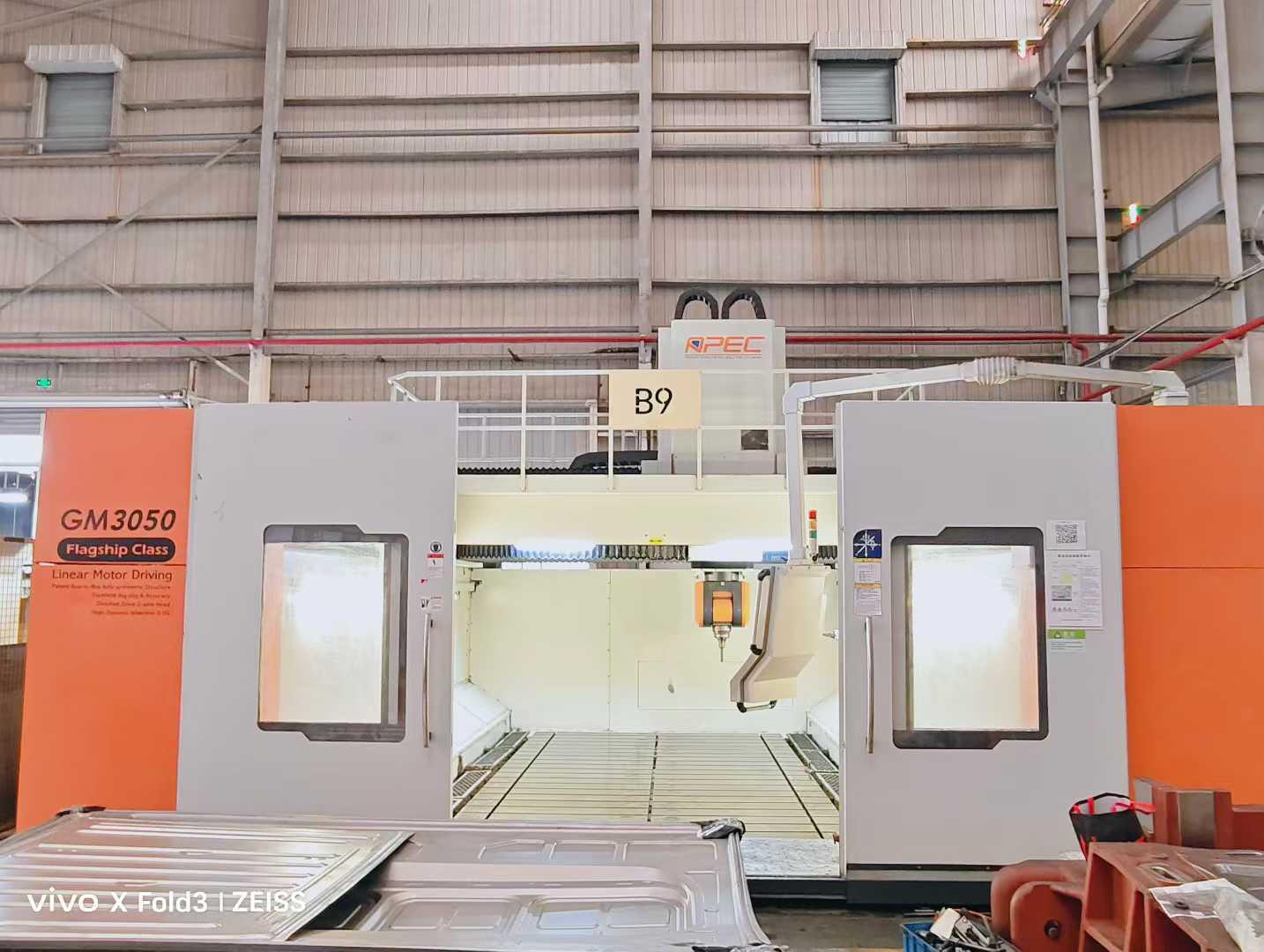

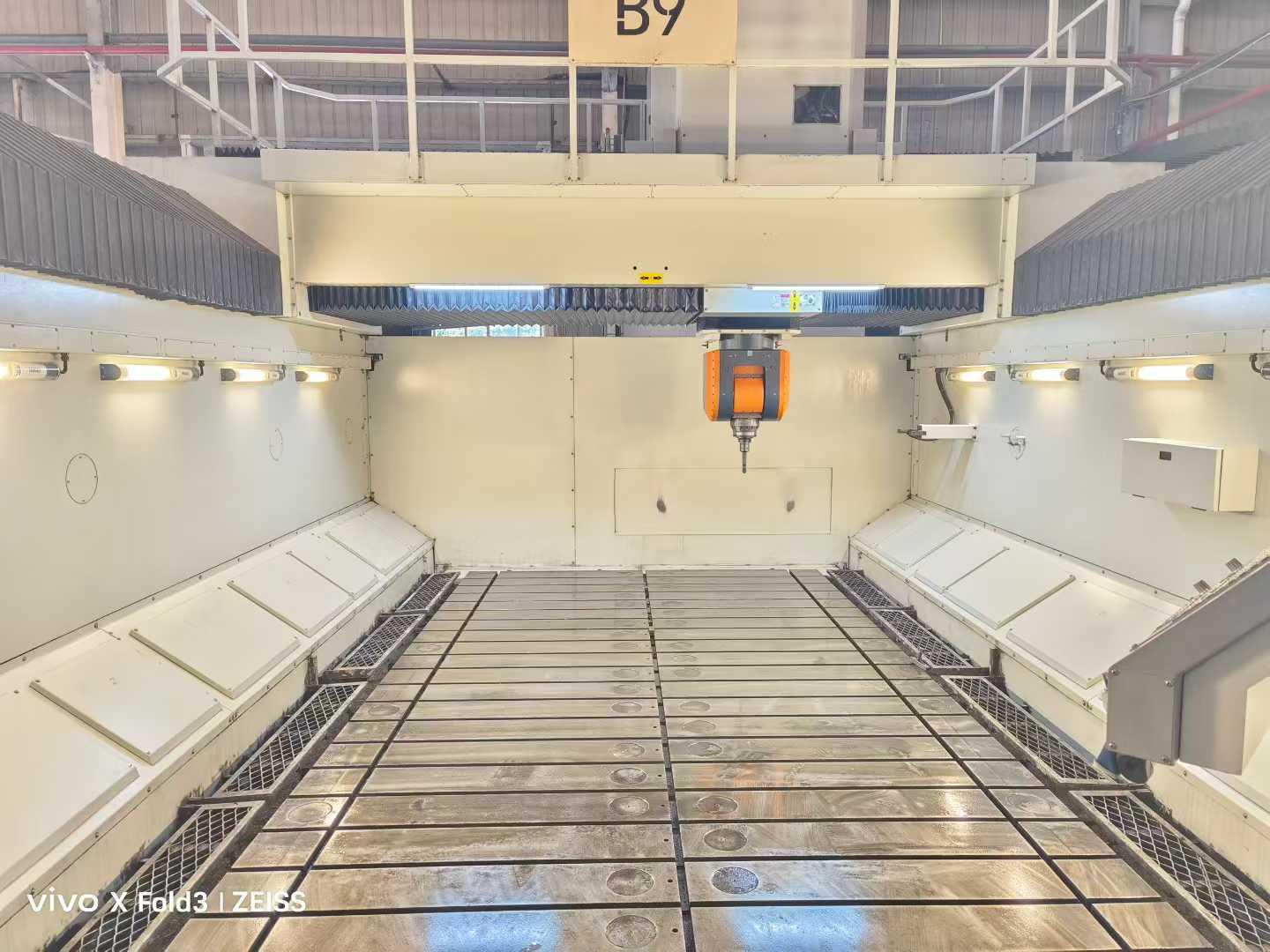

APEC GM3050-5L Gantry machining centre

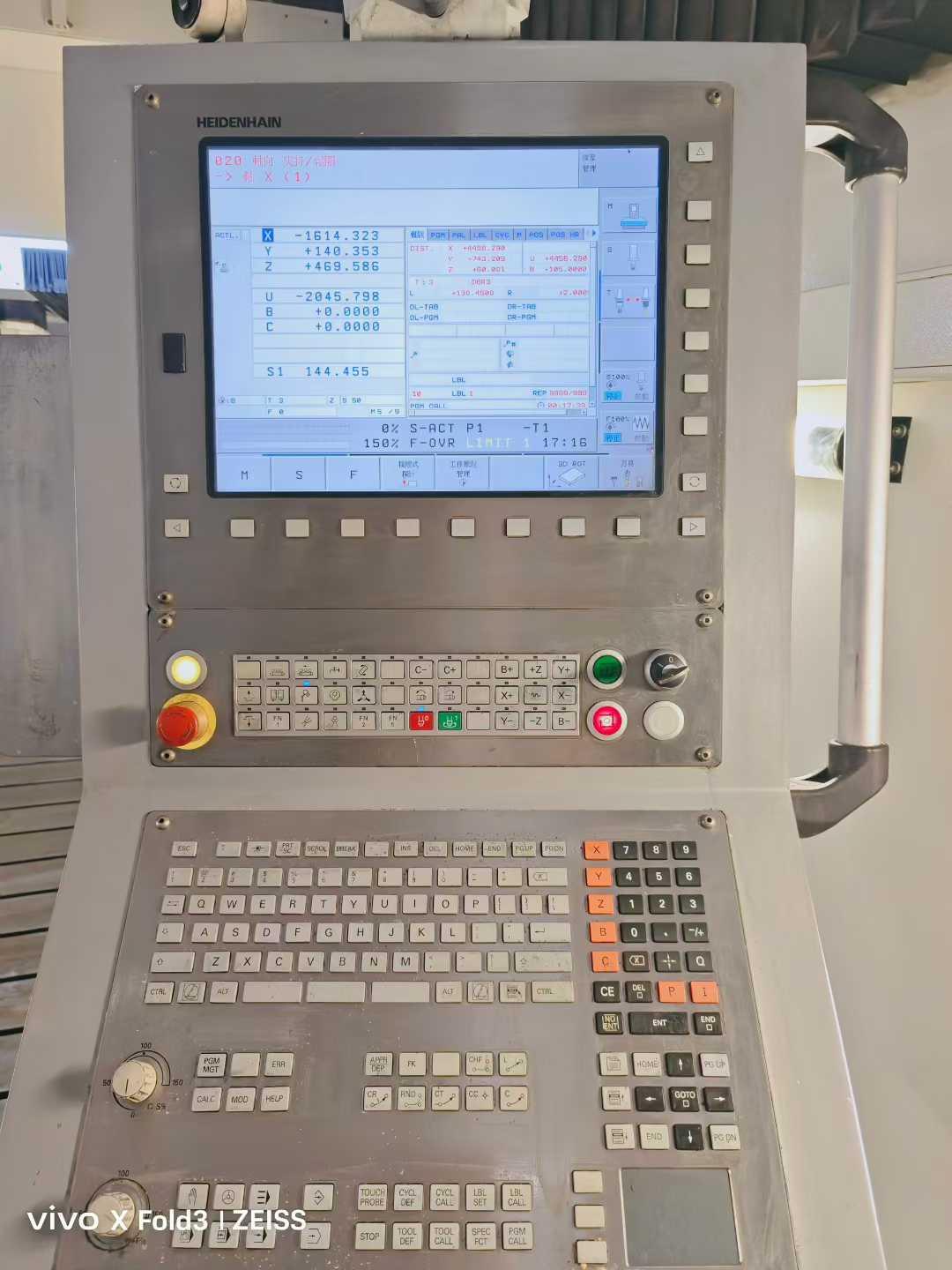

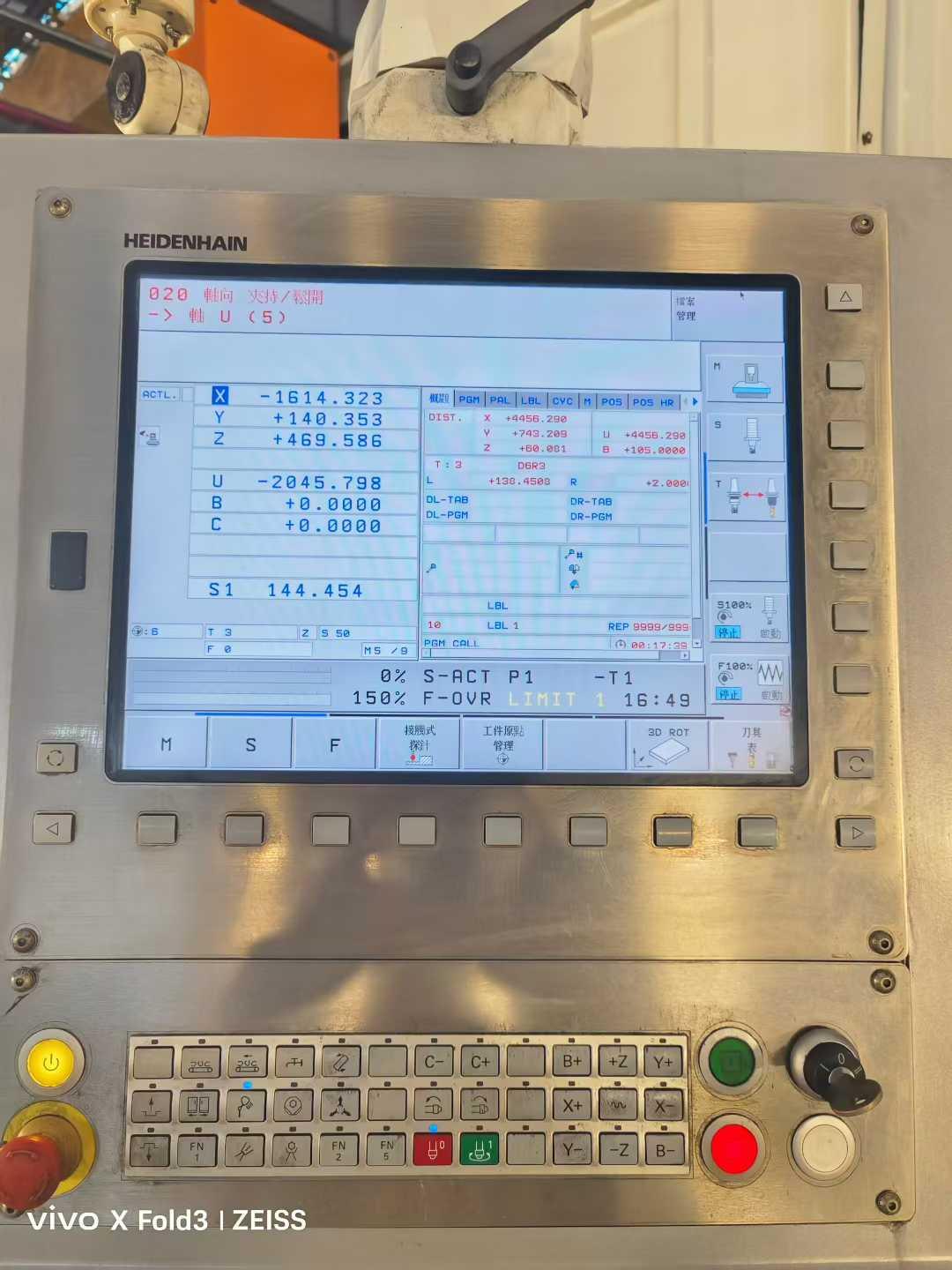

CNC System: Heidenhain iTNC530
Worktable size: 5000 x 3000mm
Three-axis travel: 5000 x 3000 x 1000mm
A-axis travel: ±125°
C-axis travel: ±360°
Tool holder: HSK100
Spindle speed: 24,000 RPM
Distance from spindle to Worktable: 300-1300mm
Rapid feed: 60m/min
Maximum length of the tools is 300mm
Maximum tool diameter - adjacent tool change: 75mm
Maximum tool diameter - no adjacent tool change: 150mm
Tools magazine capacity: 24
Configuration：
Equipped with a Tool Aligner
Spindle through-hole coolant
