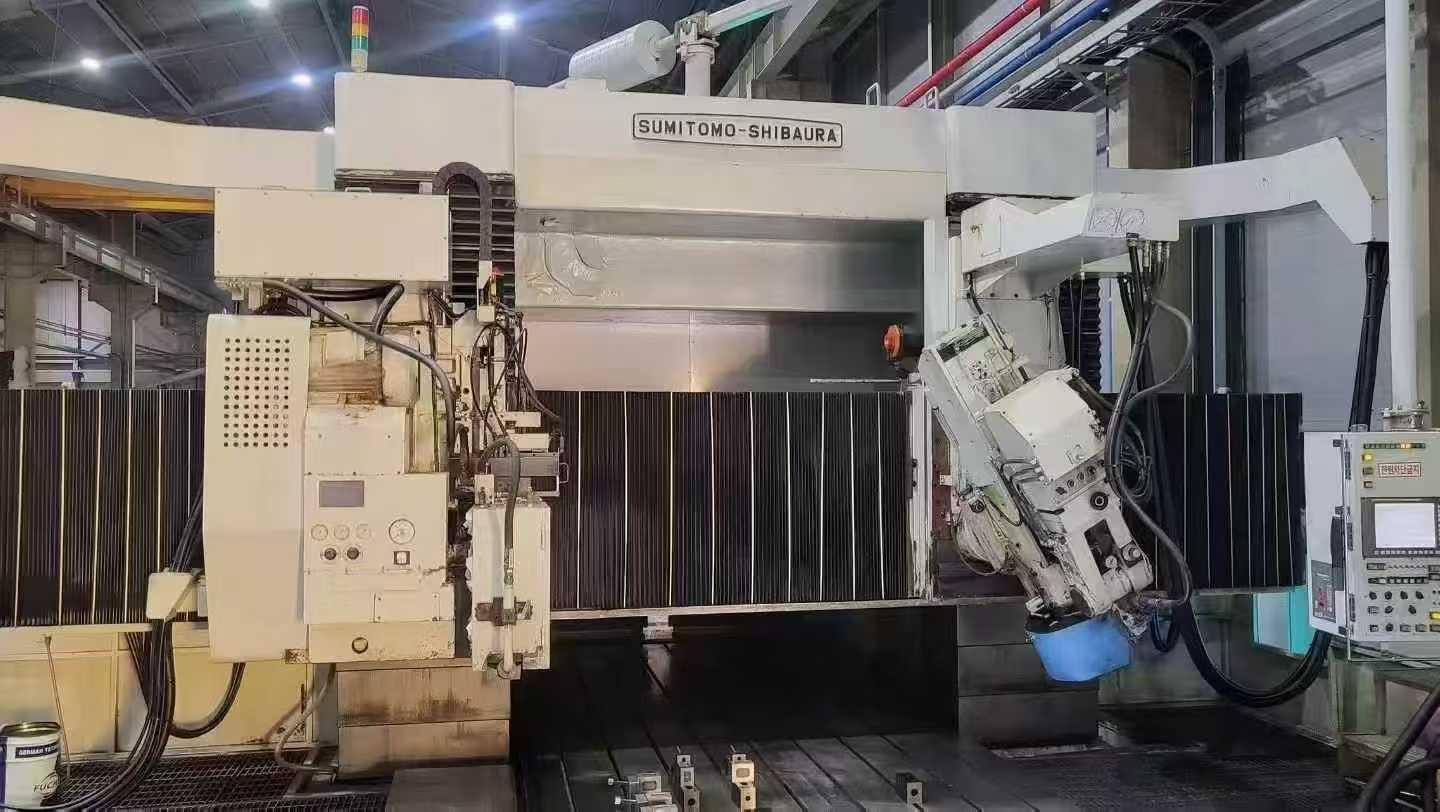

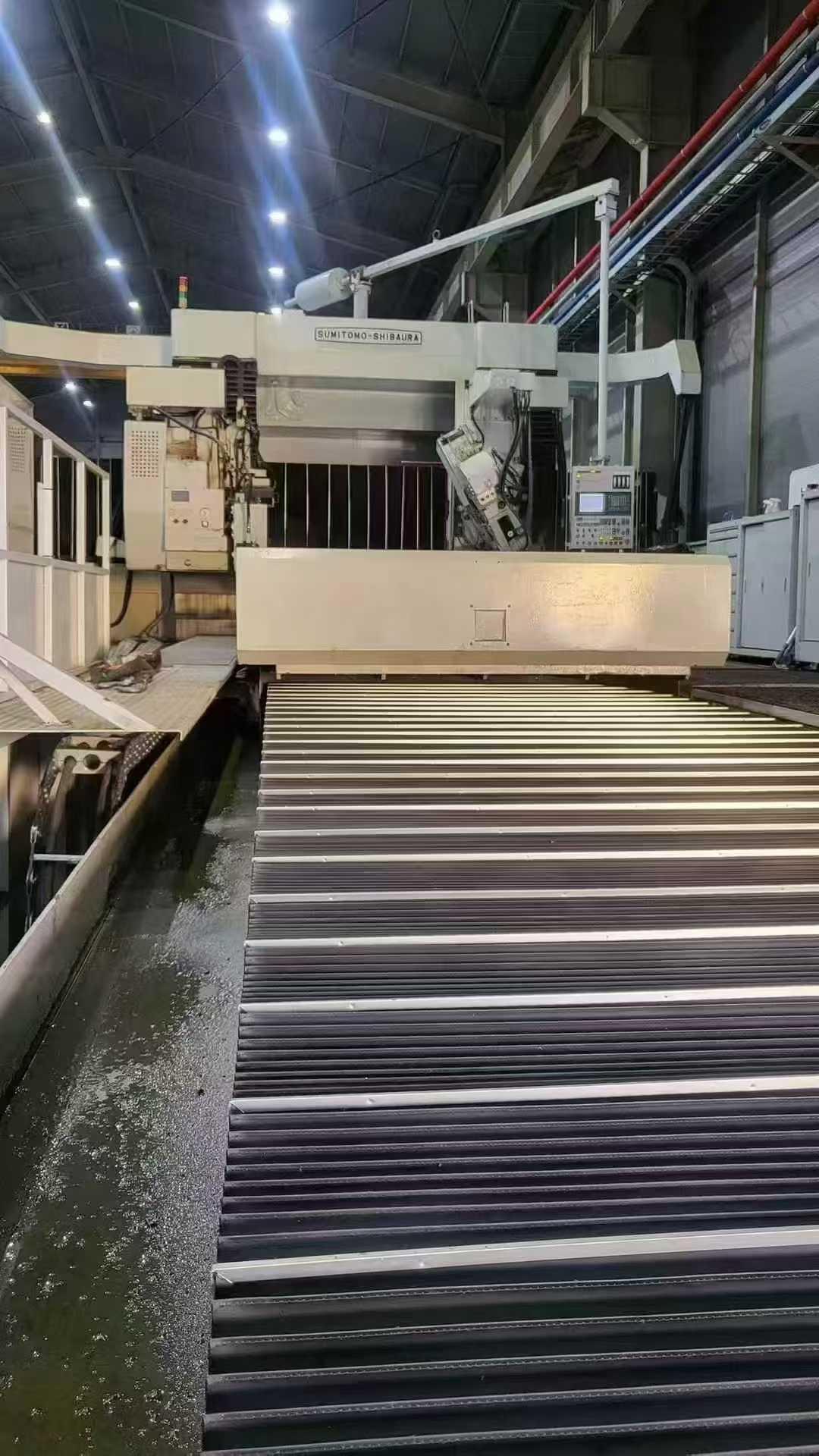

SUMITOMO KPL-2480 Grinding machines

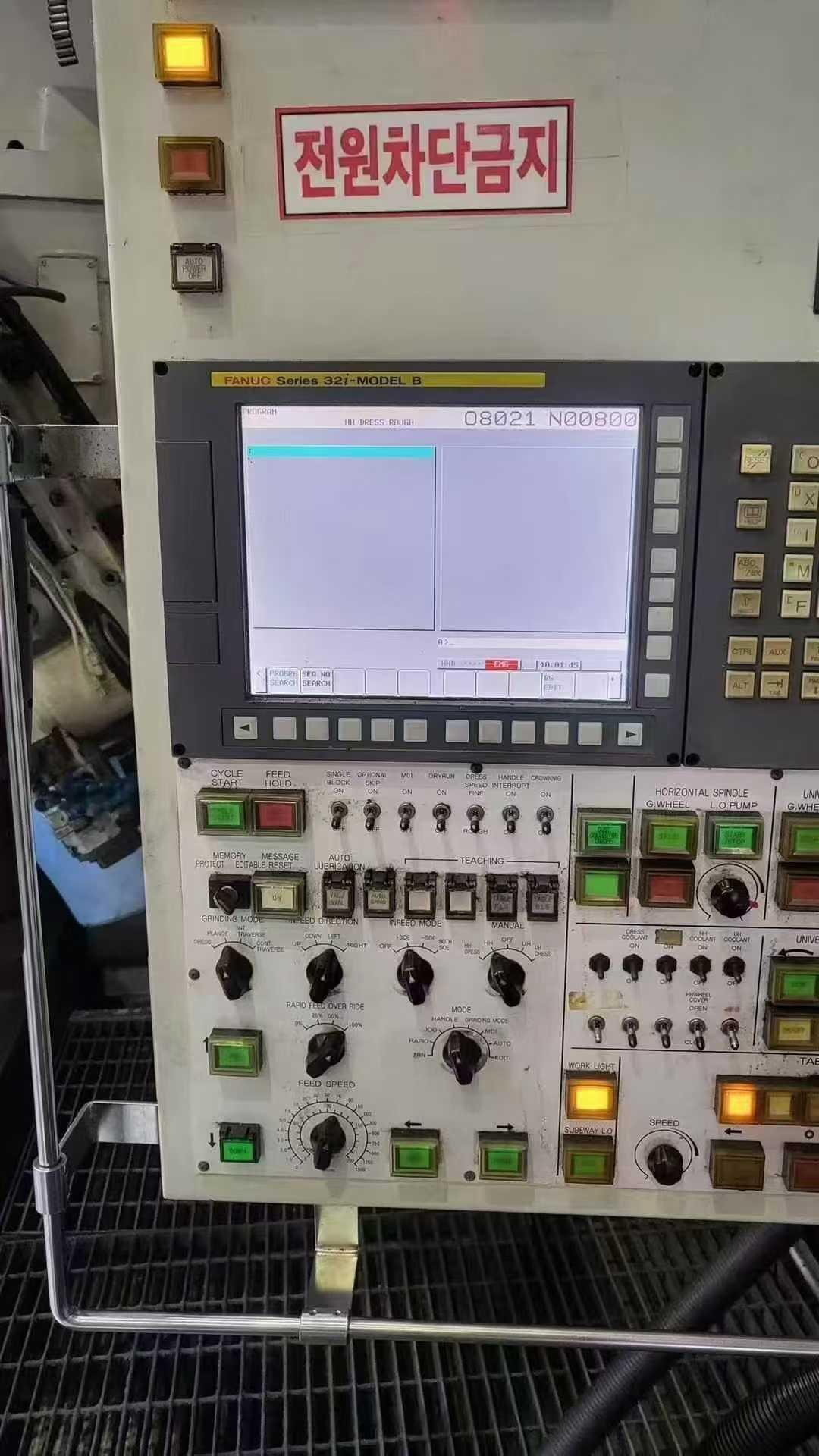

CNC System: FANUC 32i-MB

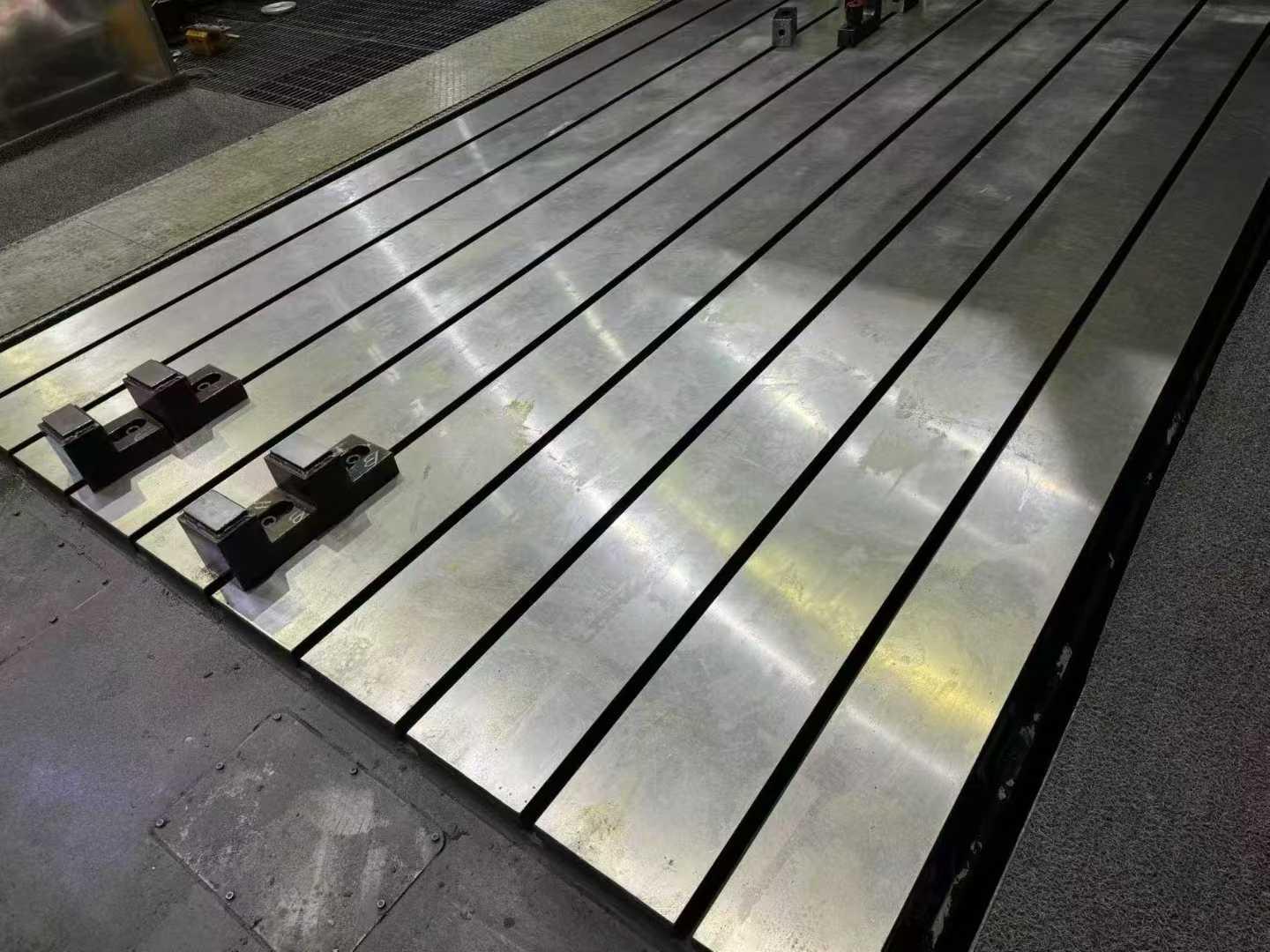

Worktable Size: 2400 * 9000mm
Load Capacity: 16 tons
Gantry Width: 2500mm
Grinding Width: 2500m
Grinding Height: 1600mm

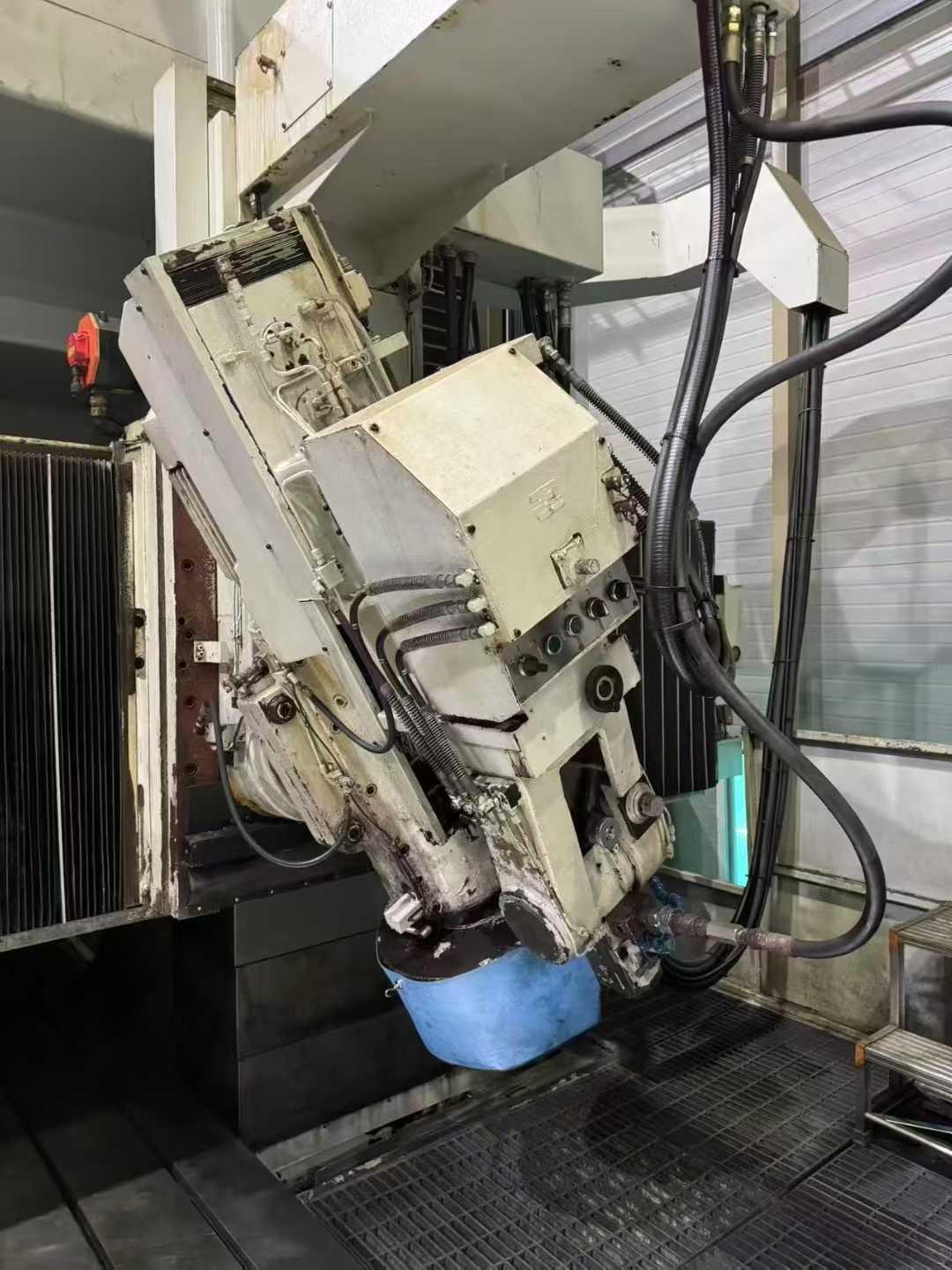

Rotating Grinding Head
Left-Right Travel: 2260/1460mm
Up and Down Travel: 700mm
Rotation Angle: ±90°
Grinding Wheel Size:
#1: 510 * 50 * 177.8mm
#6: 355 * 100 * 177.8mm
Rotational Speed: 1000 to 3000 rpm

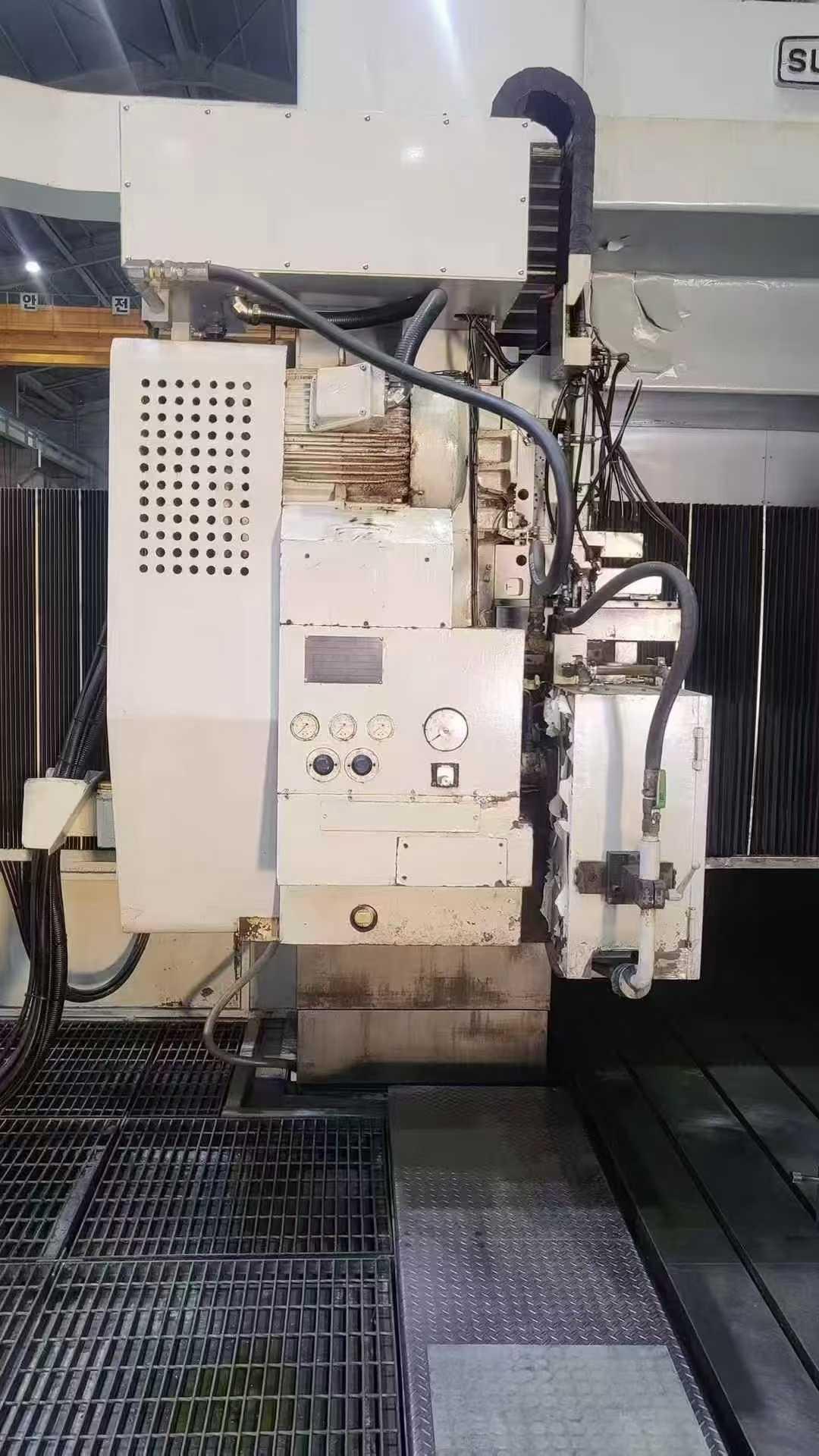

Vertical Grinding Head
Left-Right Travel: 1340/2380mm
Up and Down Travel: 250mm
Grinding Wheel Size: 710 * 150 * 304.8mm
Rotational Speed: 820 rpm
