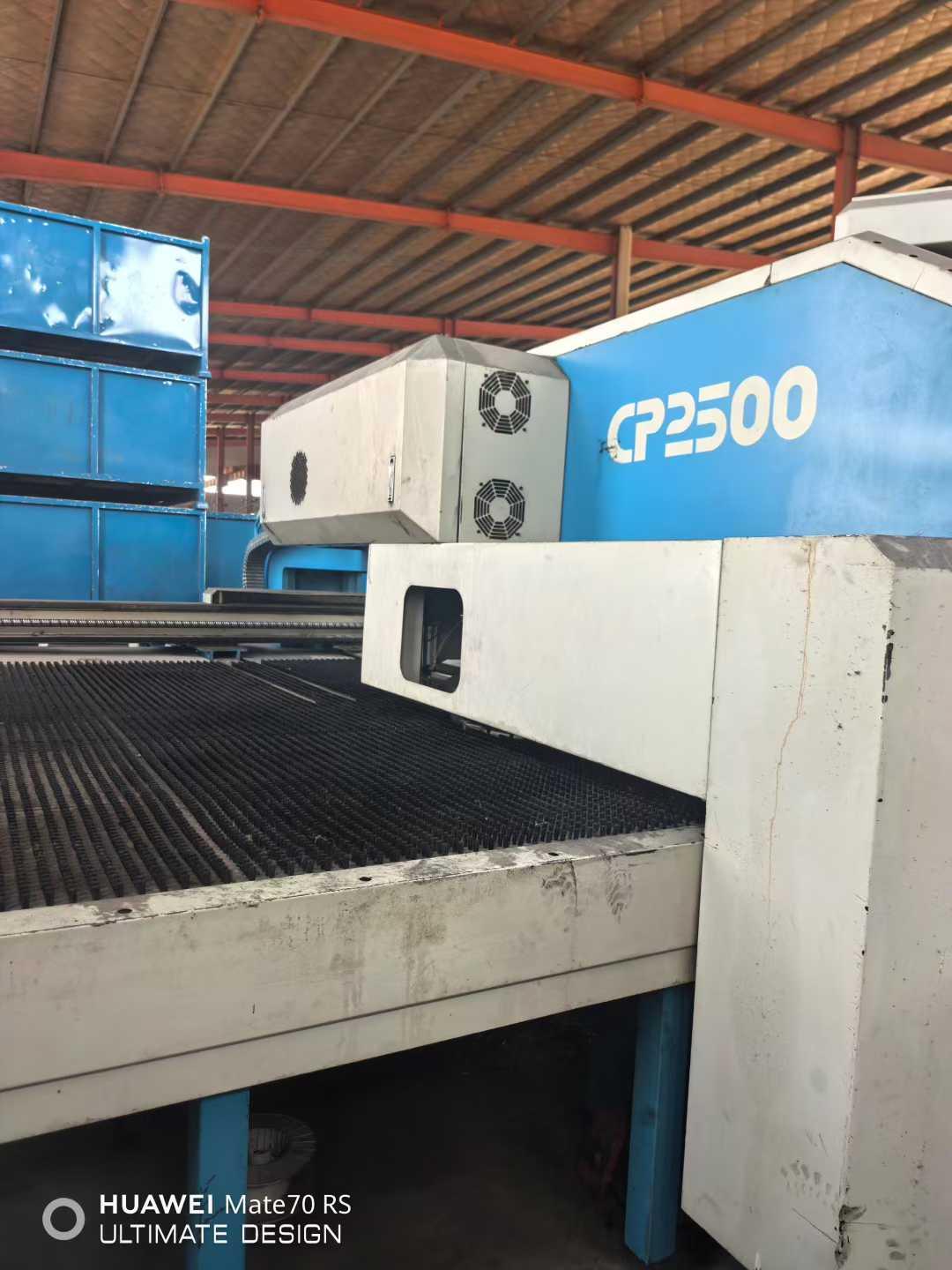

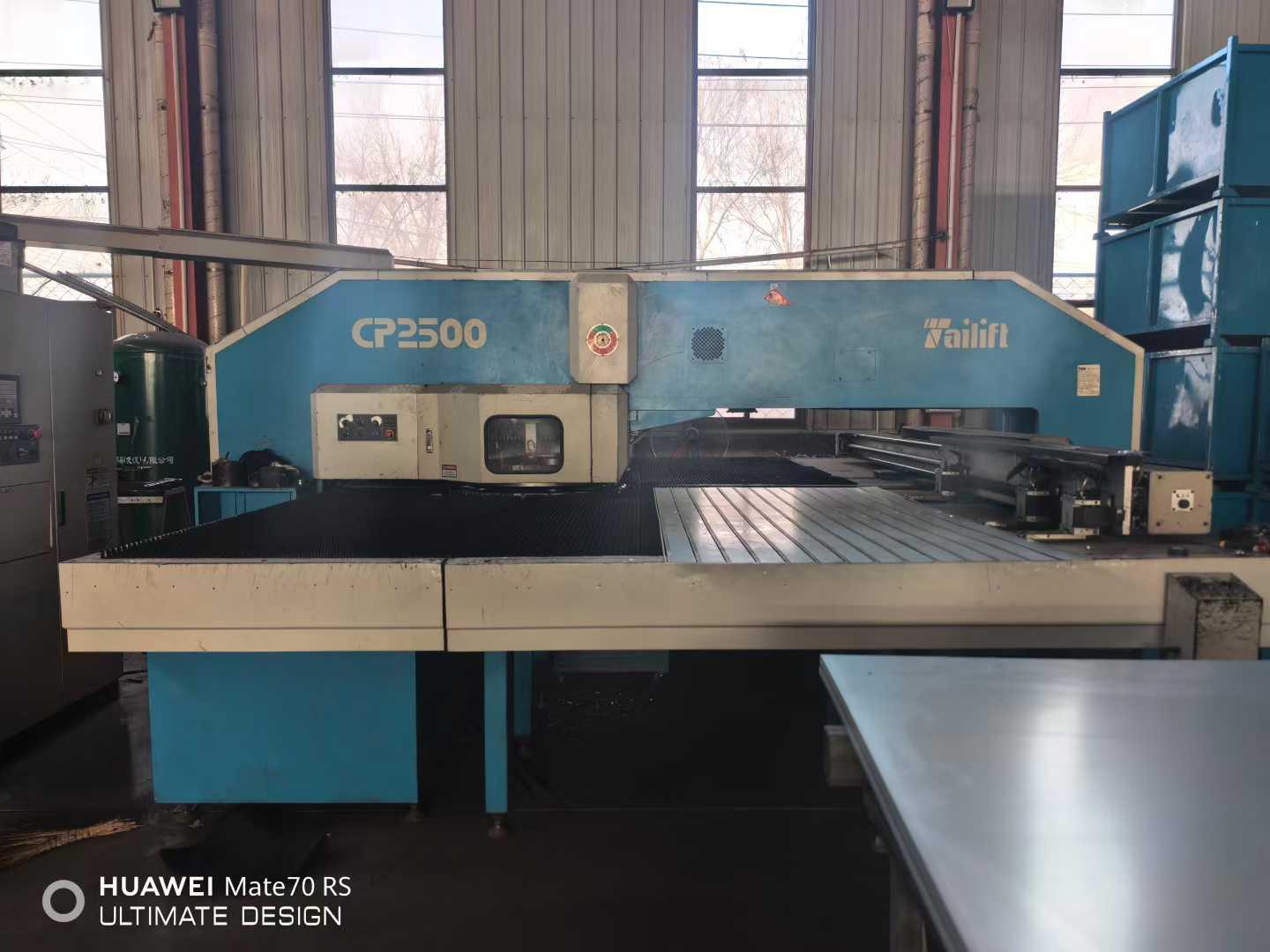

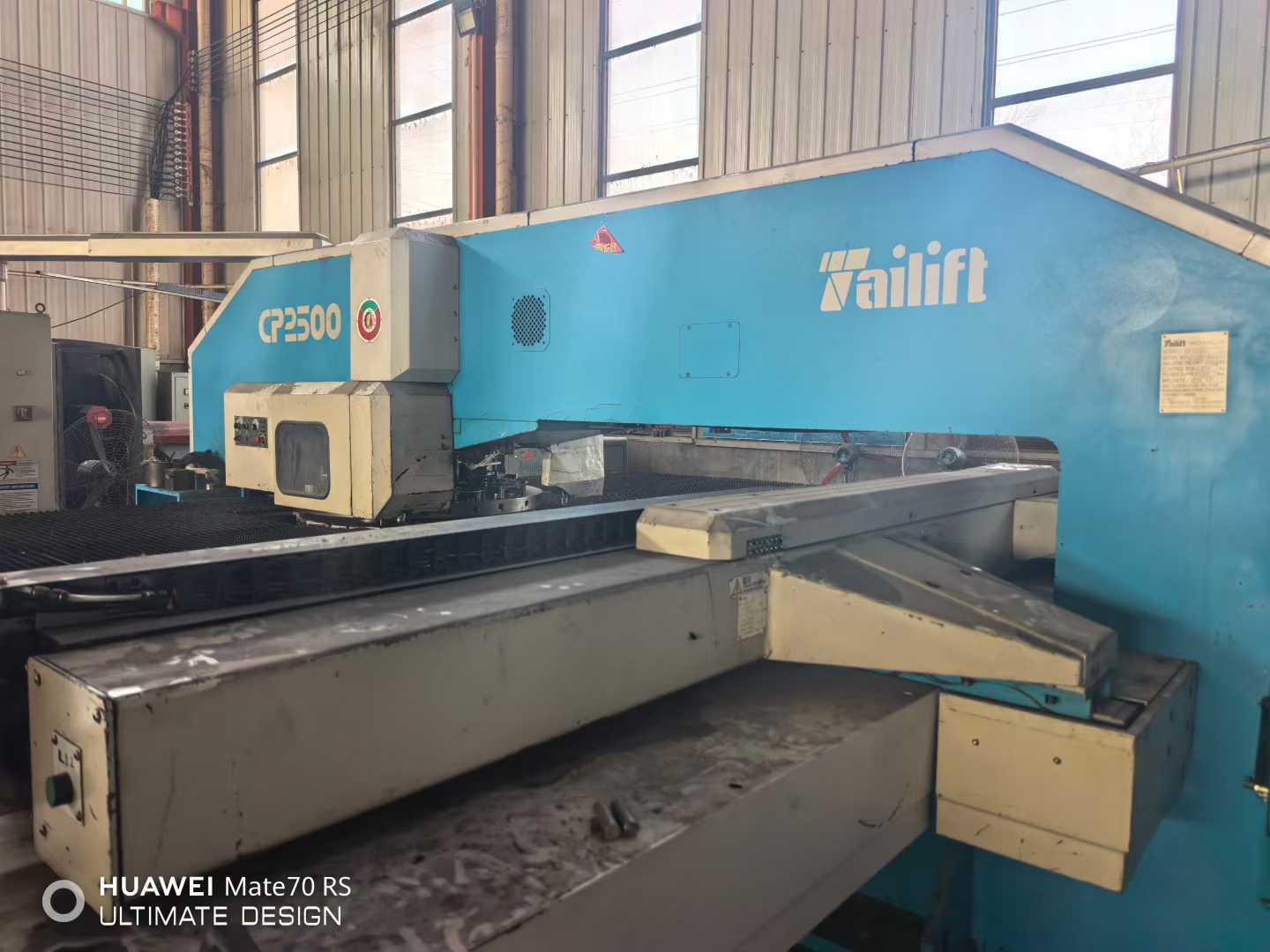

TAILIFT CP2500 Punch / press

[Product Information]:

Inventory number：810265
Brand：TAILIFT
Model：CP2500
Origin：Taiwan, China
Location：China
Year：2010
Create Time：2026-01-12

Specifications:

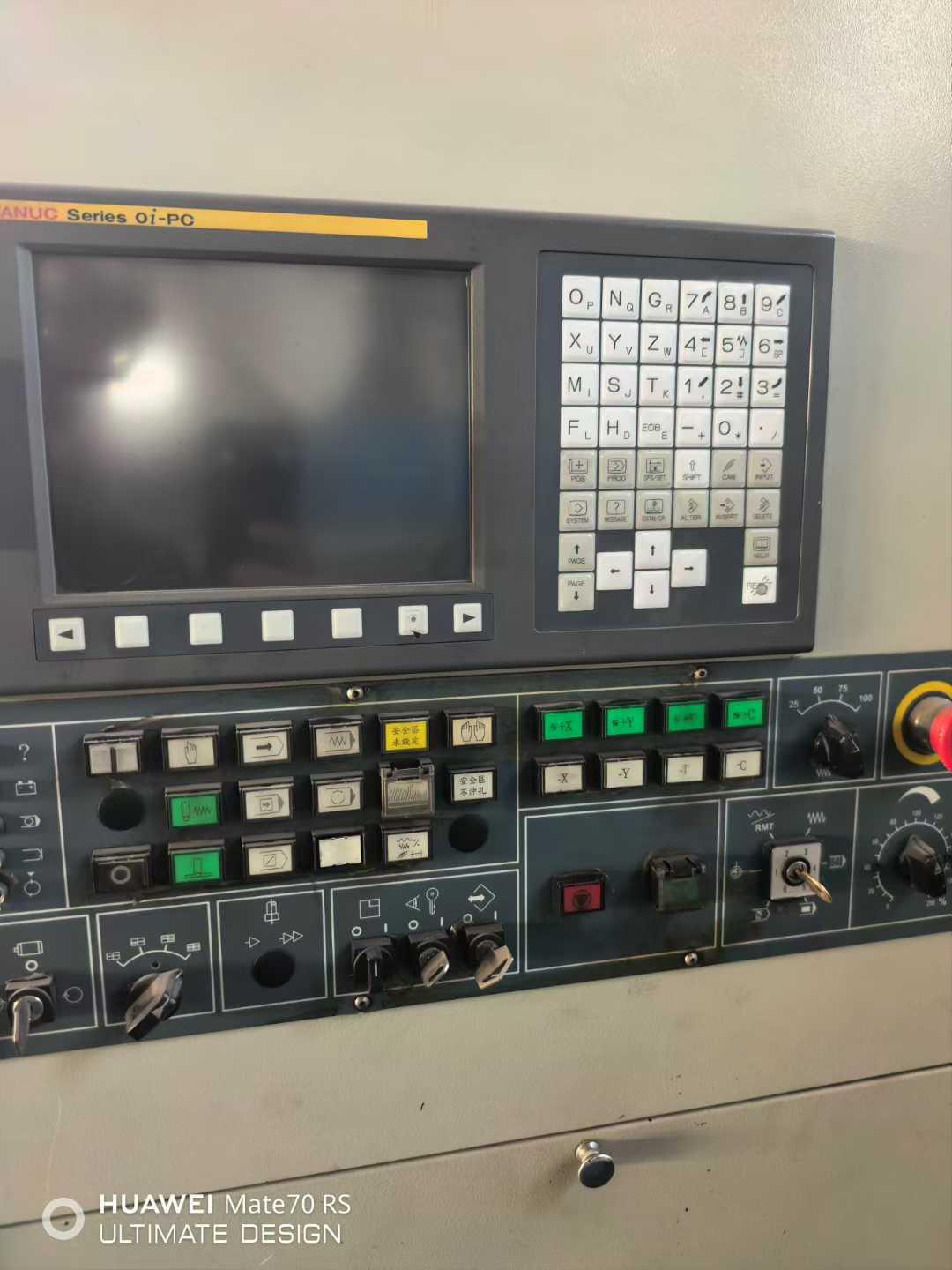

CNC System: FANUC
Stamping Capacity: 30 tons
X-axis Travel Length: 2490 ± 10 mm
Y-axis Travel Length: 1525 ± 10 mm
Maximum Plate Size: 1525 × 4980 mm
Maximum Sheet Thickness: 6.35 mm
Maximum Board Weight: 110 kg
X-axis Movement Speed: 80 m/min
Y-axis Movement Speed: 70 m/min
Maximum Movement Speed: 105 m/min
Stamping Speed (25mm Hole Spacing): 210 holes per minute
Precision Cutting (Nibbling) Speed:
Nibbling Speed (1mm Hole Pitch): 350 holes per minute
