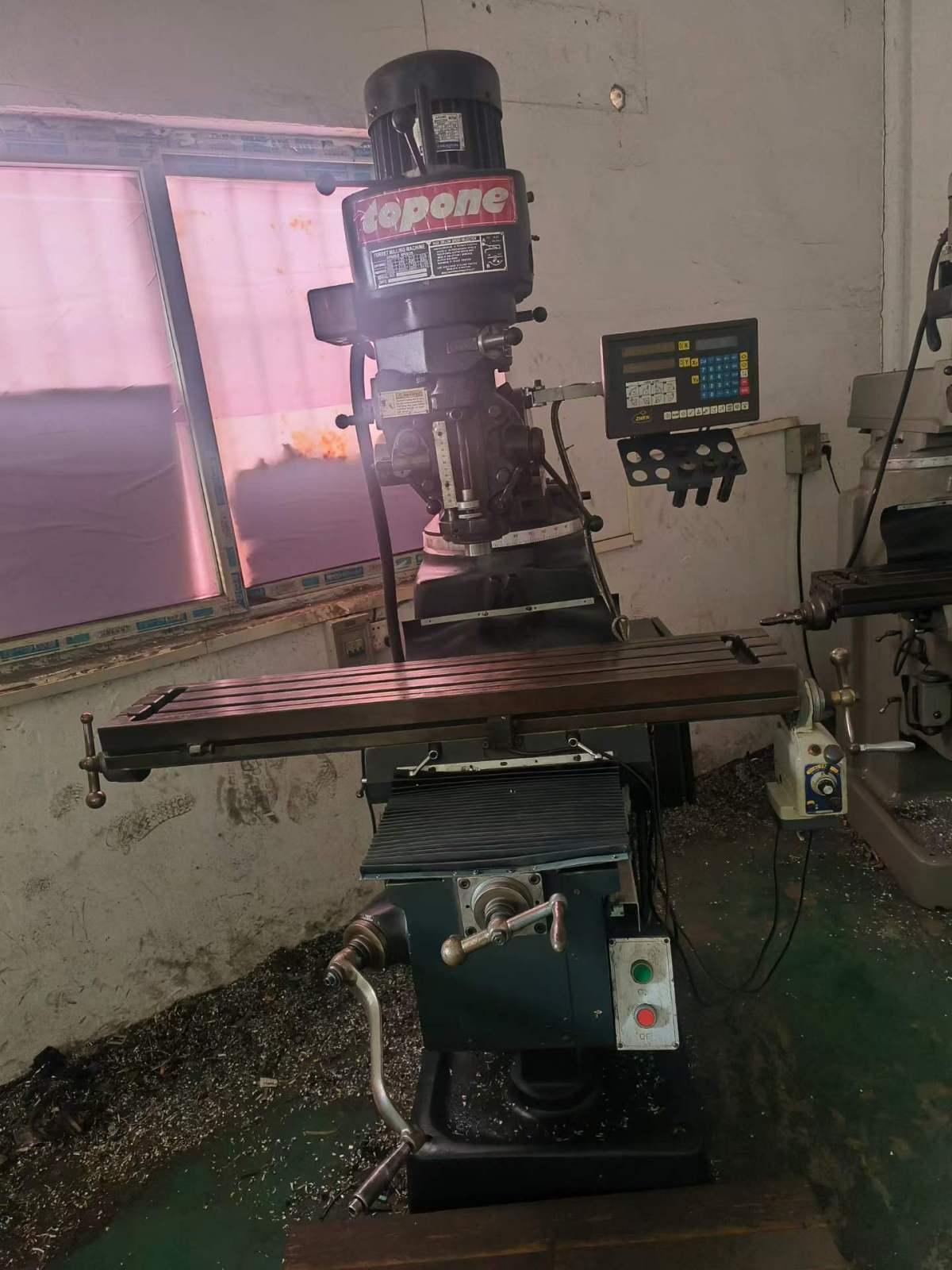

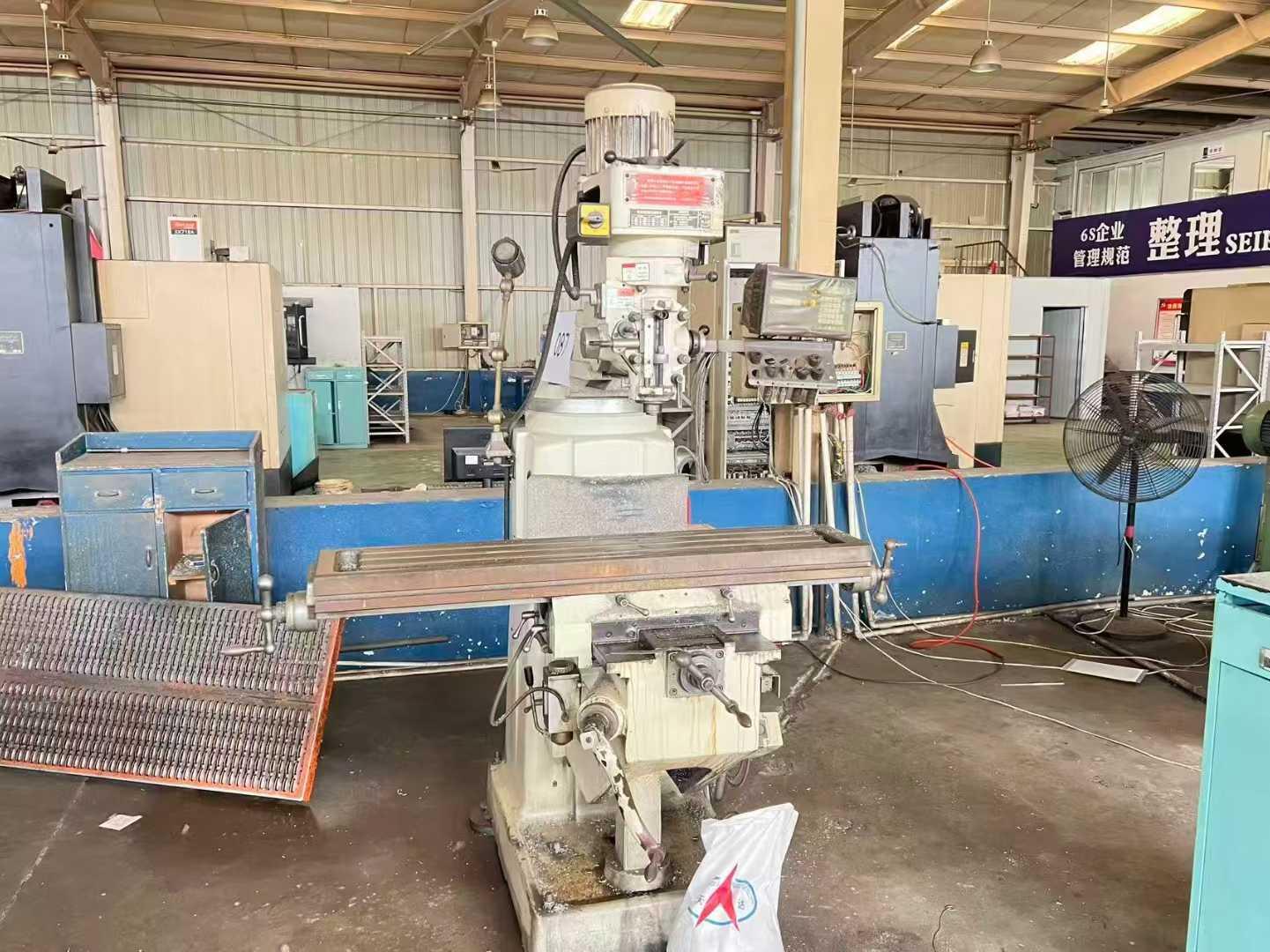

KENT KTM-4H Milling machines

Worktable Size (Width × Length): 254 × 1270 mm
Worktable Load: 300 kg
Three-Axis Travel:
No feed device installed:
X-axis Travel: 840 mm
Y-axis Travel: 390 mm
Z-axis Travel: 320 mm
With Automatic Tool Feed Installed:
X-axis Travel: 805 mm
Y-axis Travel: 360 mm
Z-axis Travel: 320 mm
Milling Head Rotation Angle: 45° (Front/Back, Left/Right)
Arm Extension Travel: 540 mm
Spindle Quill Shaft Travel: 127 mm
Spindle Automatic Feed:
0.045 mm/rev
0.086 mm/rev
0.142 mm/rev
Spindle Taper: R8, NT30
Spindle Horsepower: 3 hp
