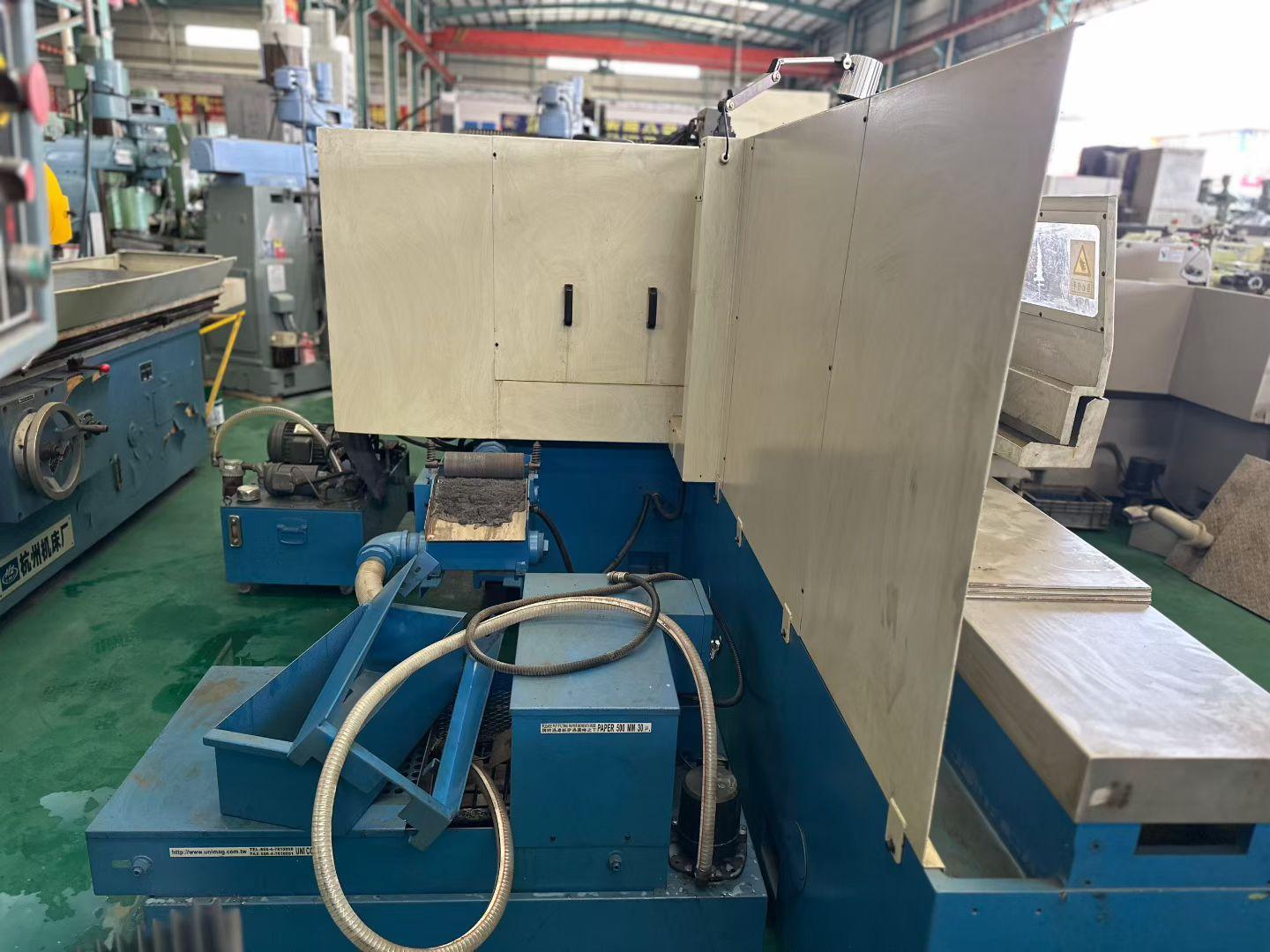

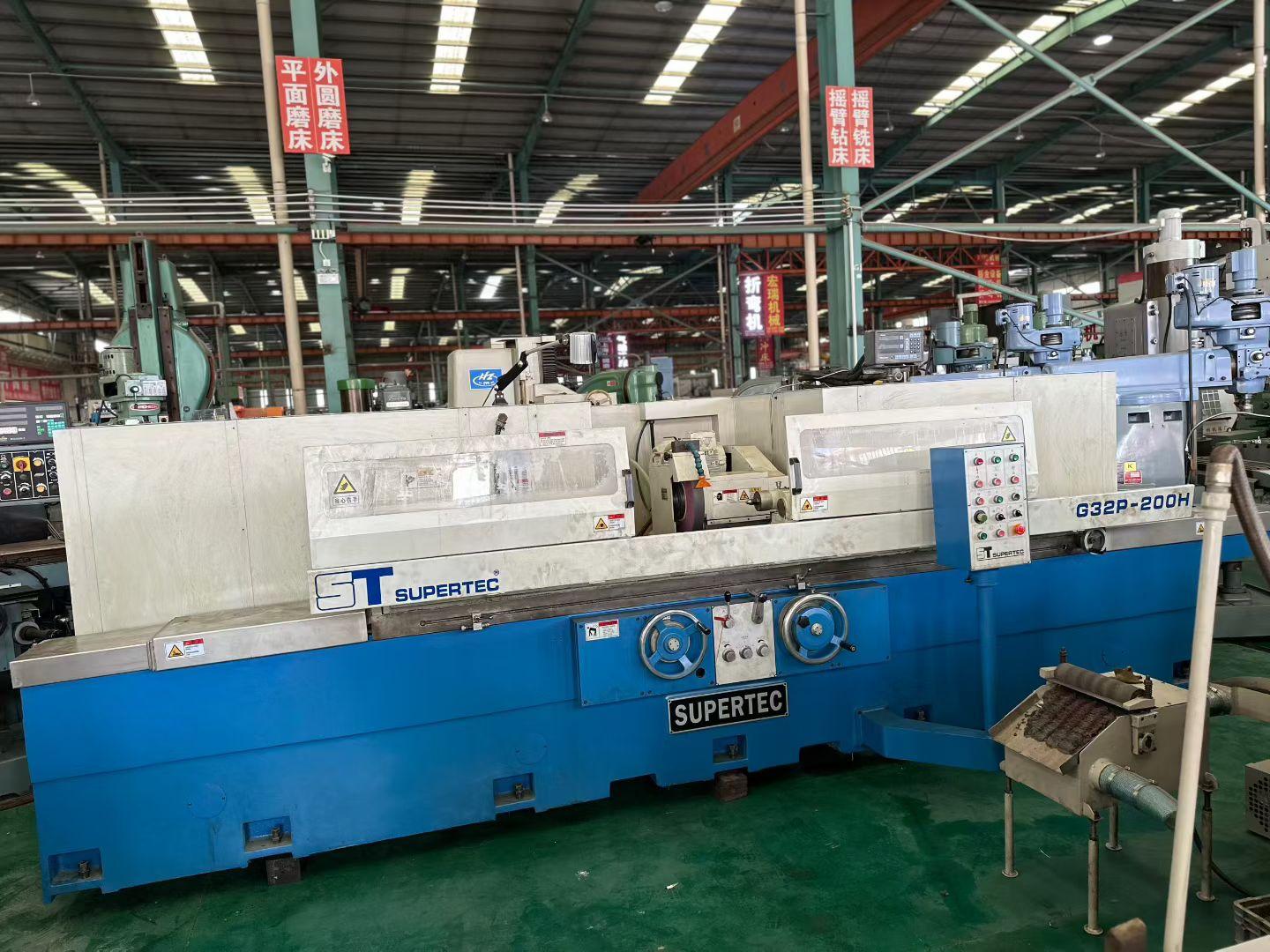

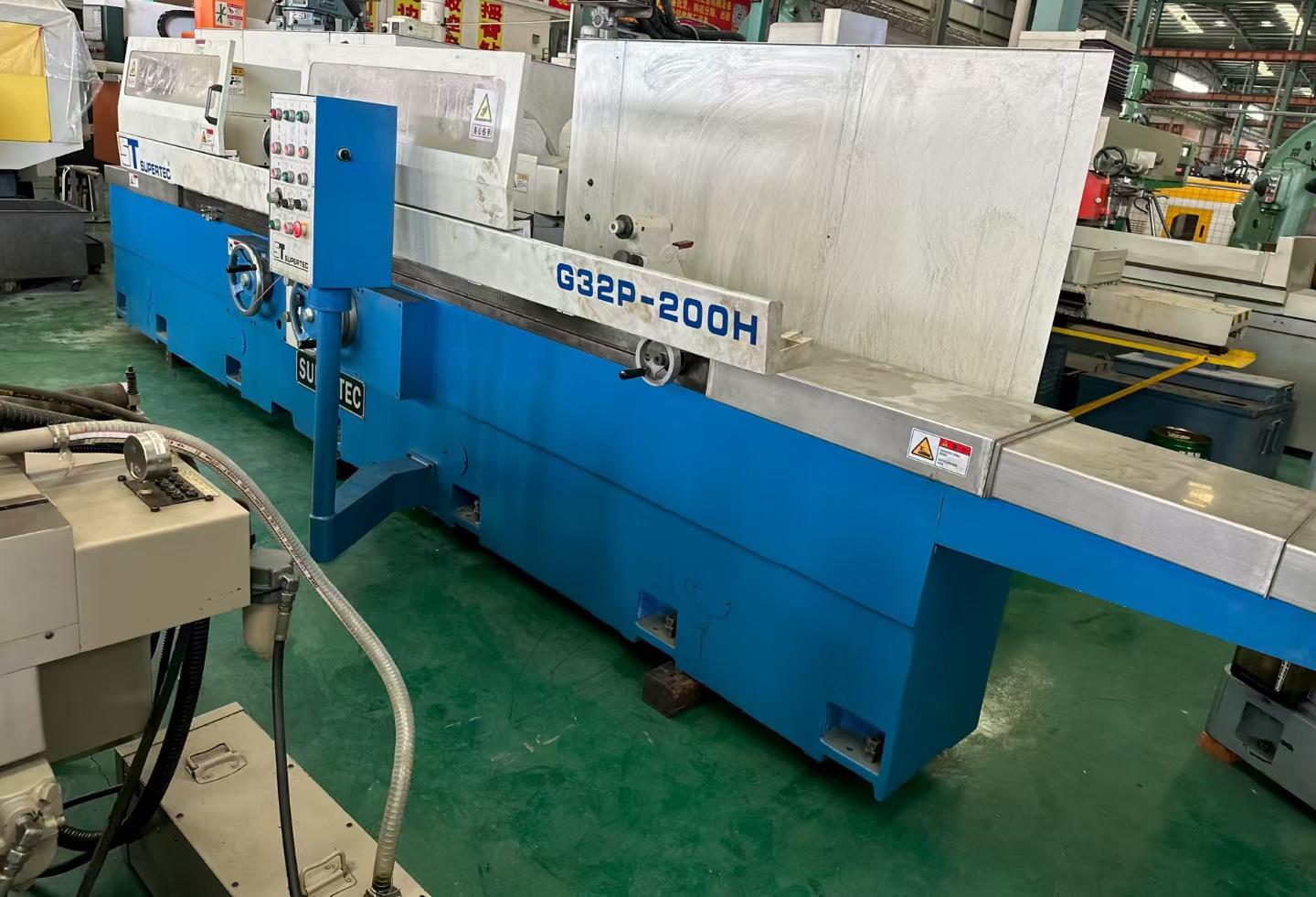

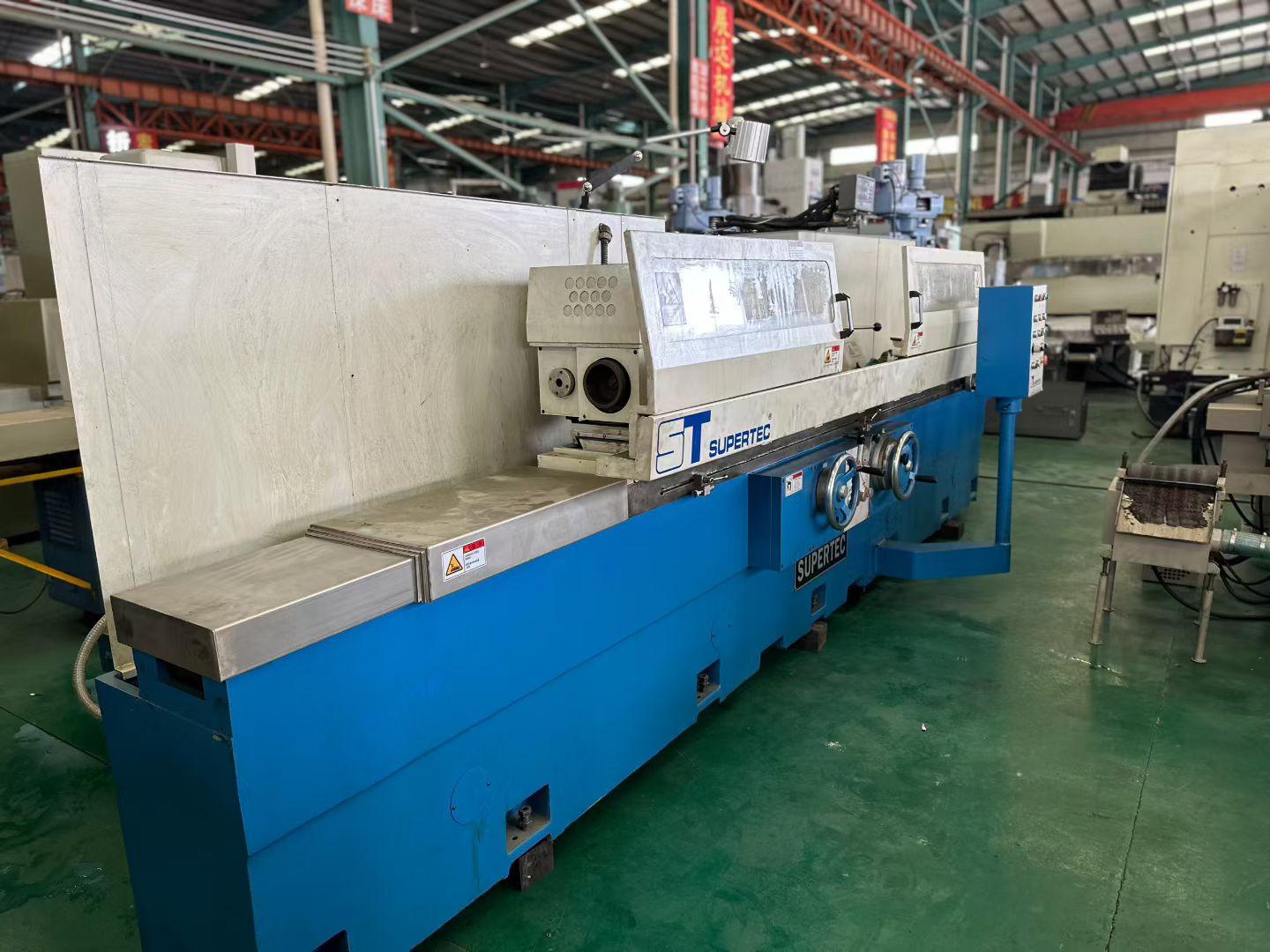

SUPERTEC G32P-200H CNC Cylindrical grinder

Worktable rotation diameter: 320 mm

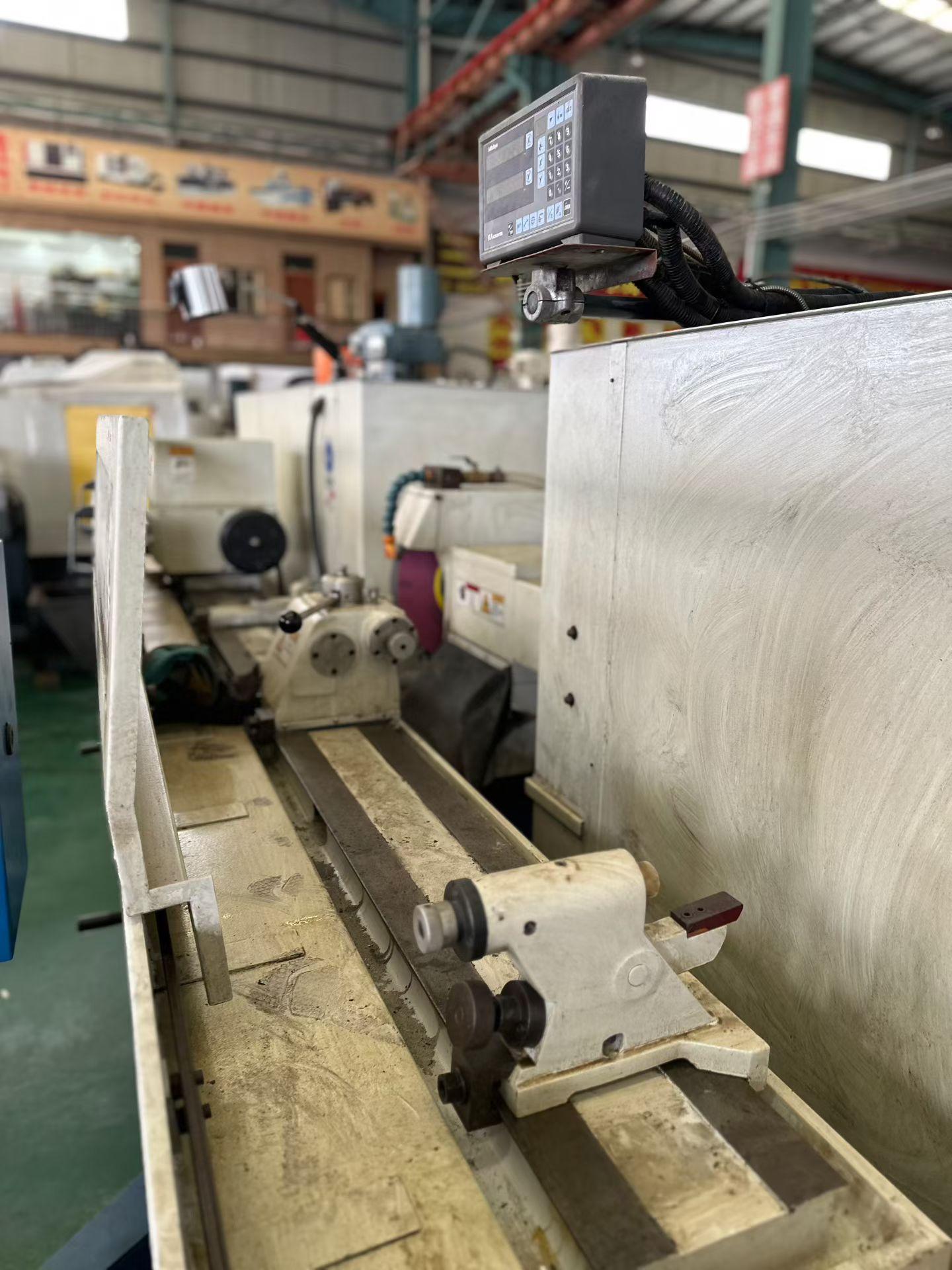

Distance between the two centers: 2000 mm
Grinding diameter: 300 mm
Load between the two centers: 150 kg

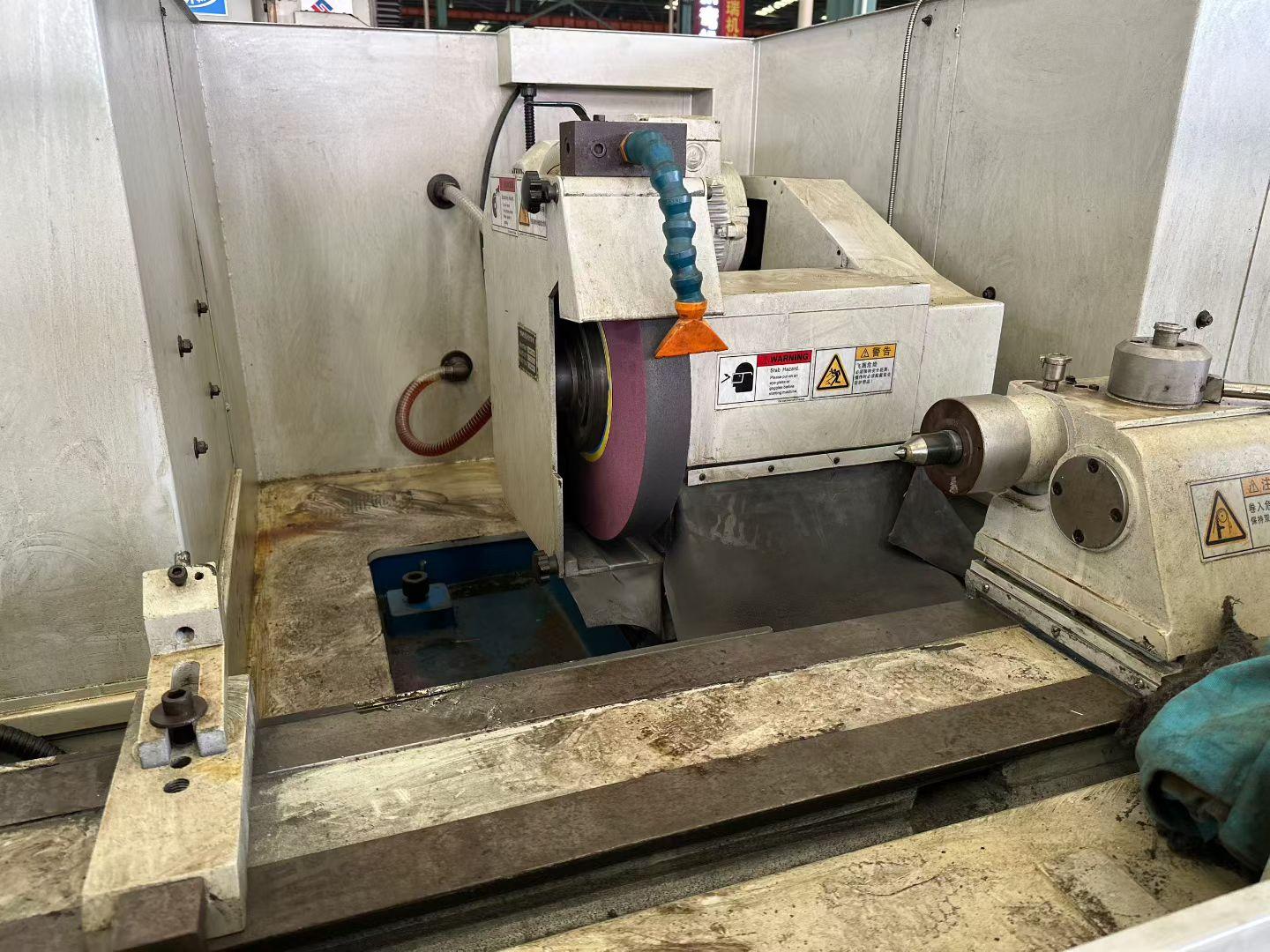

Grinding Wheel dimensions (diameter × width × hole diameter): 405 × 50 × 127 mm
Grinding wheel linear speed: 2000 m/min
Rotation angle of the grinding wheel head (X-axis): ±30°
Total feed travel: 245 mm
Rotation angle of spindle head: 90°
Pin taper: MT4
Spindle speed: 30-350 rpm
Grinding wheel drive motor power: 5 kW
Main wheel platform motor power: 1.5 kW
