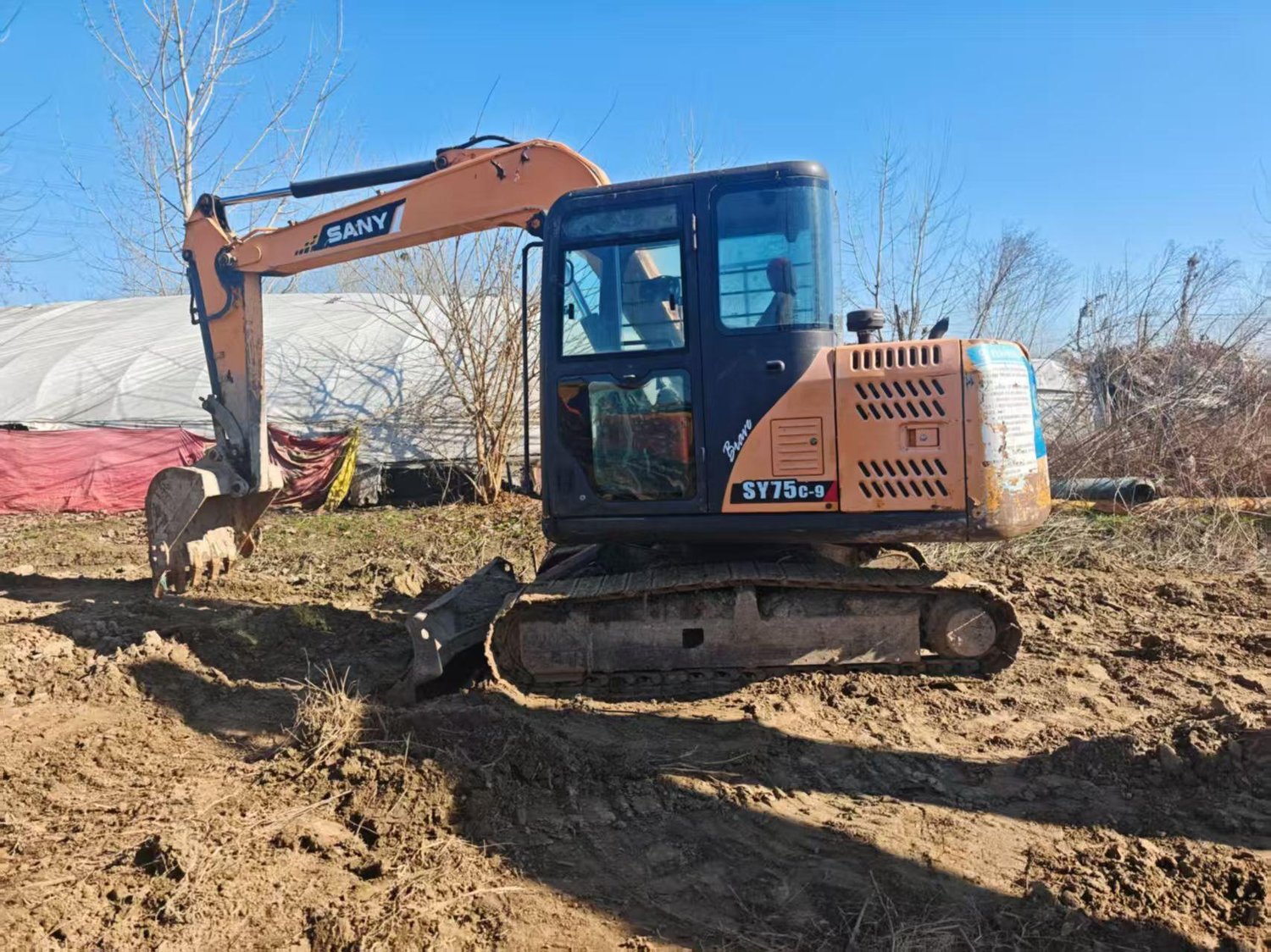

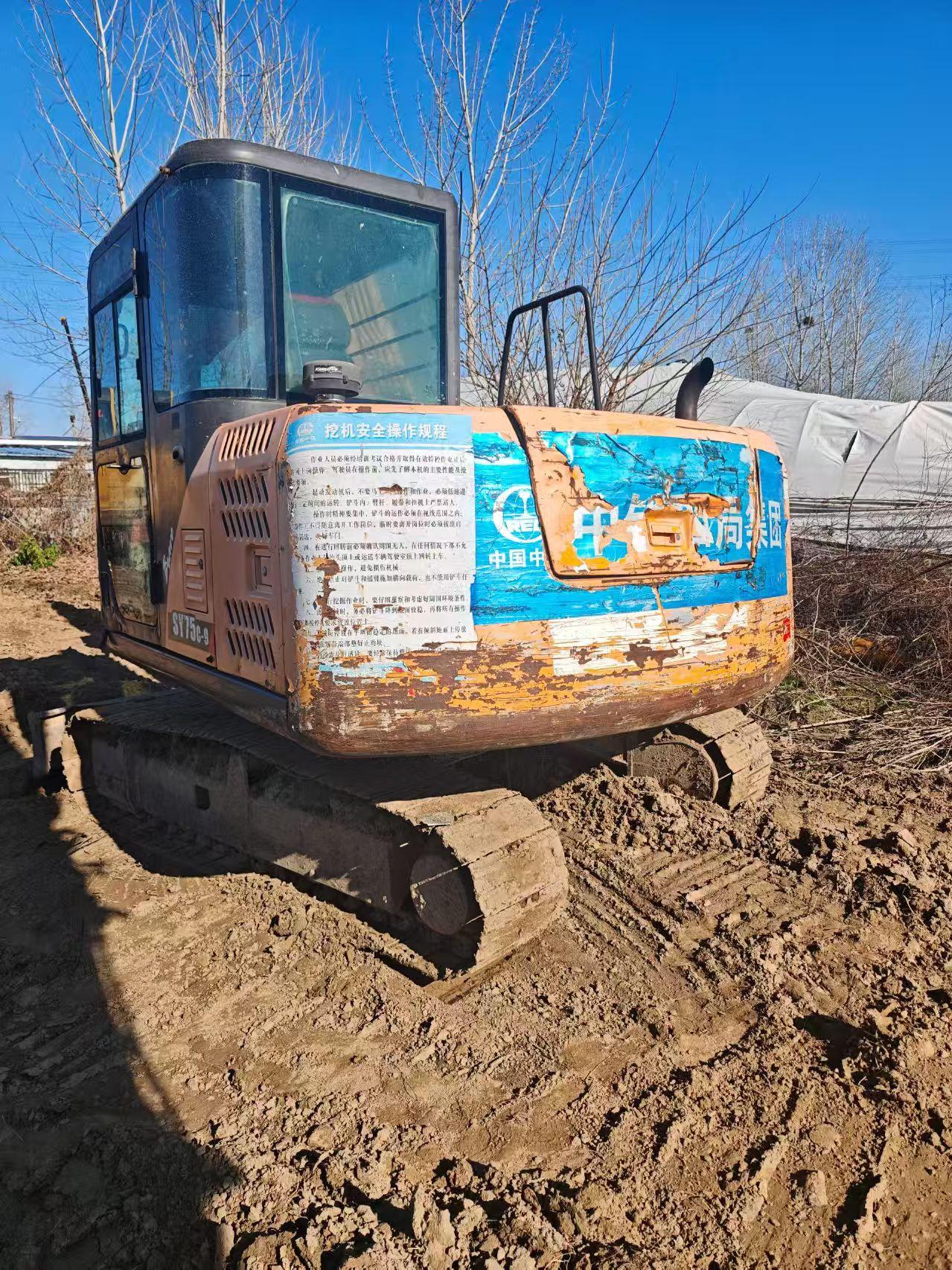

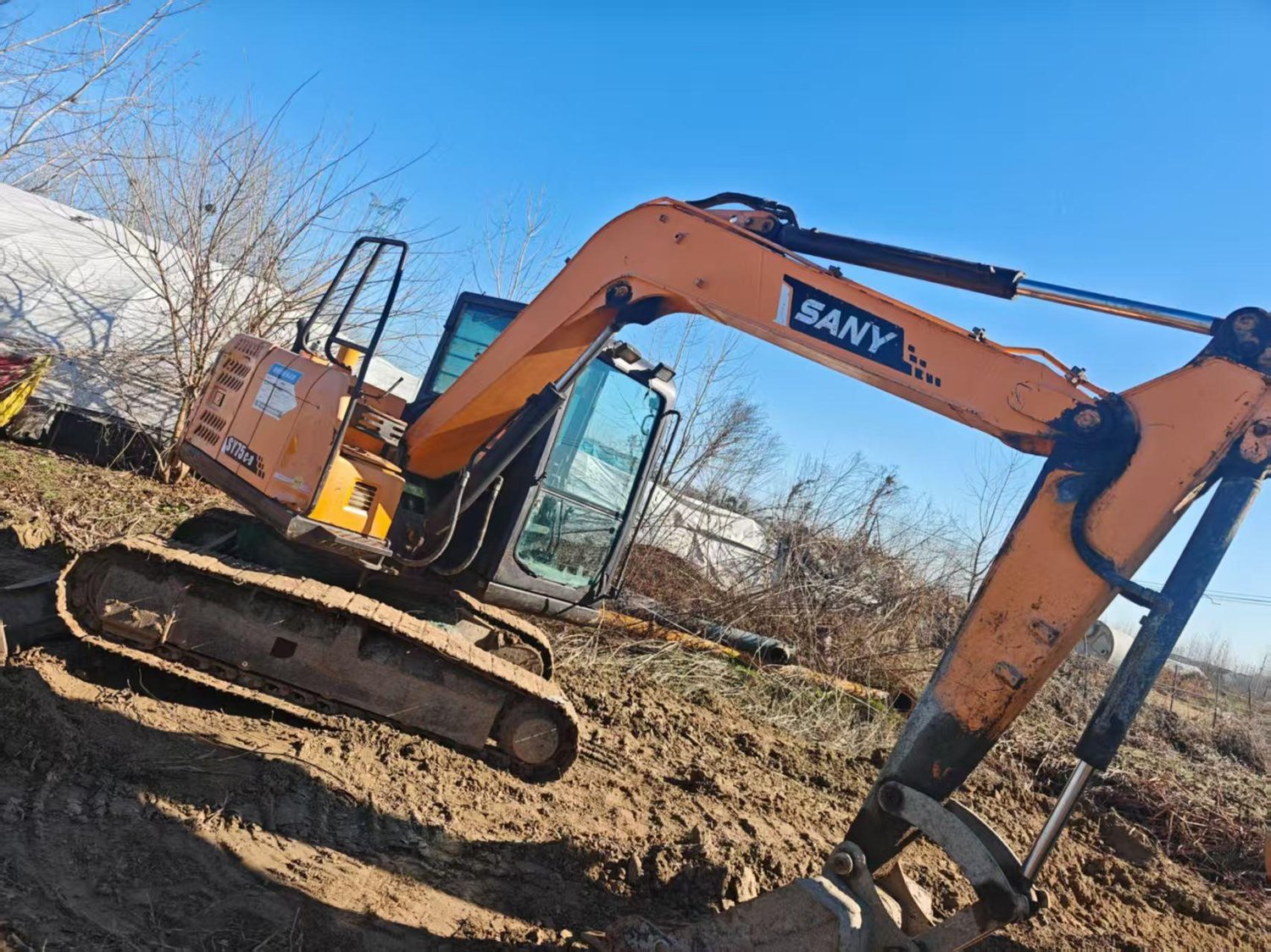

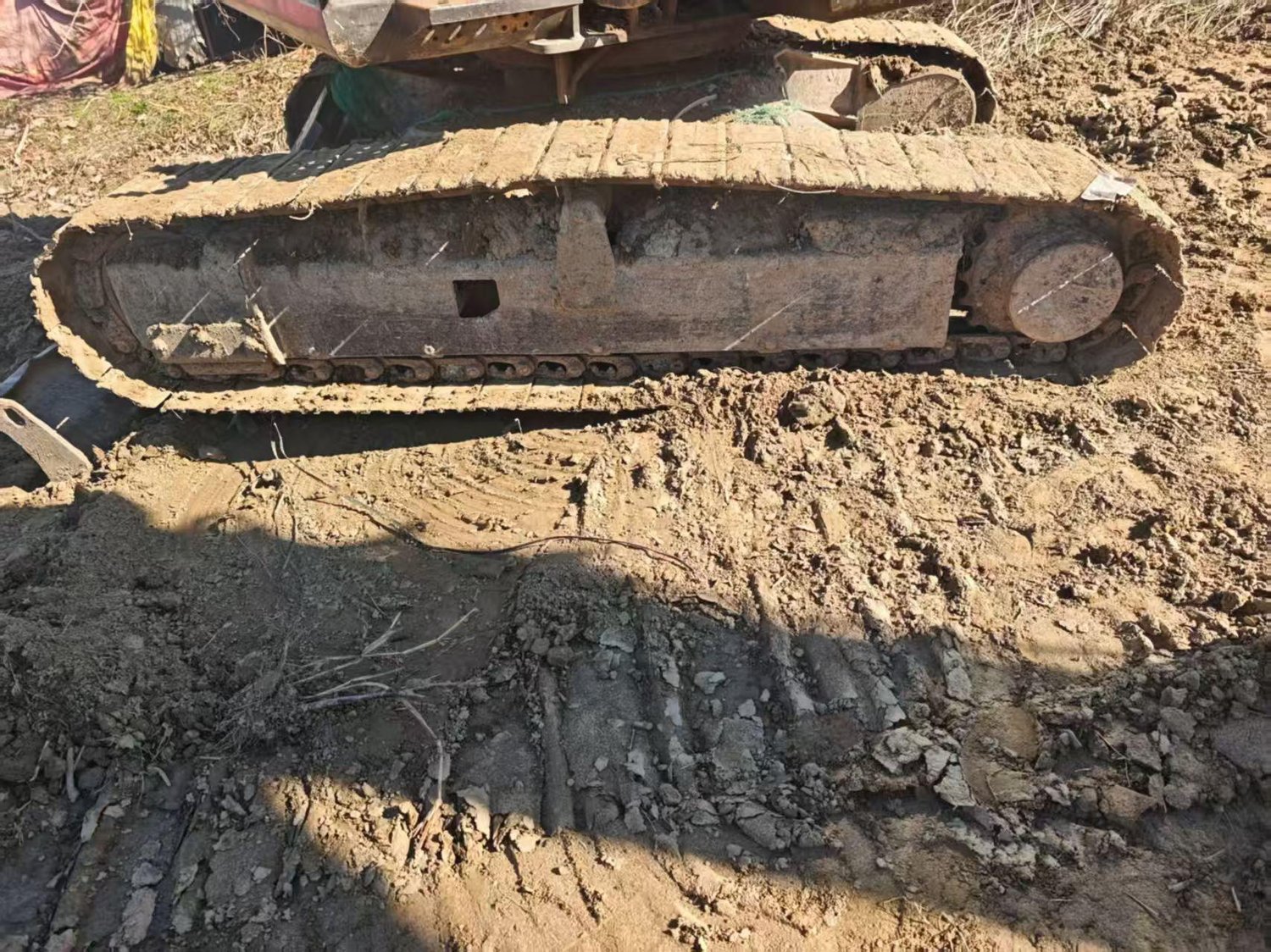

SANY SY75C-9 Automatic lathe

Rotational speed: 11.5 rpm
Walking speed (high/low): 4.4 / 2.4 km/h
Climbing ability: 70% (≈ 35°)
Ground pressure: 33 kPa
Bucket digging force: 56 kN
Bucket shaft digging force: 38 kN

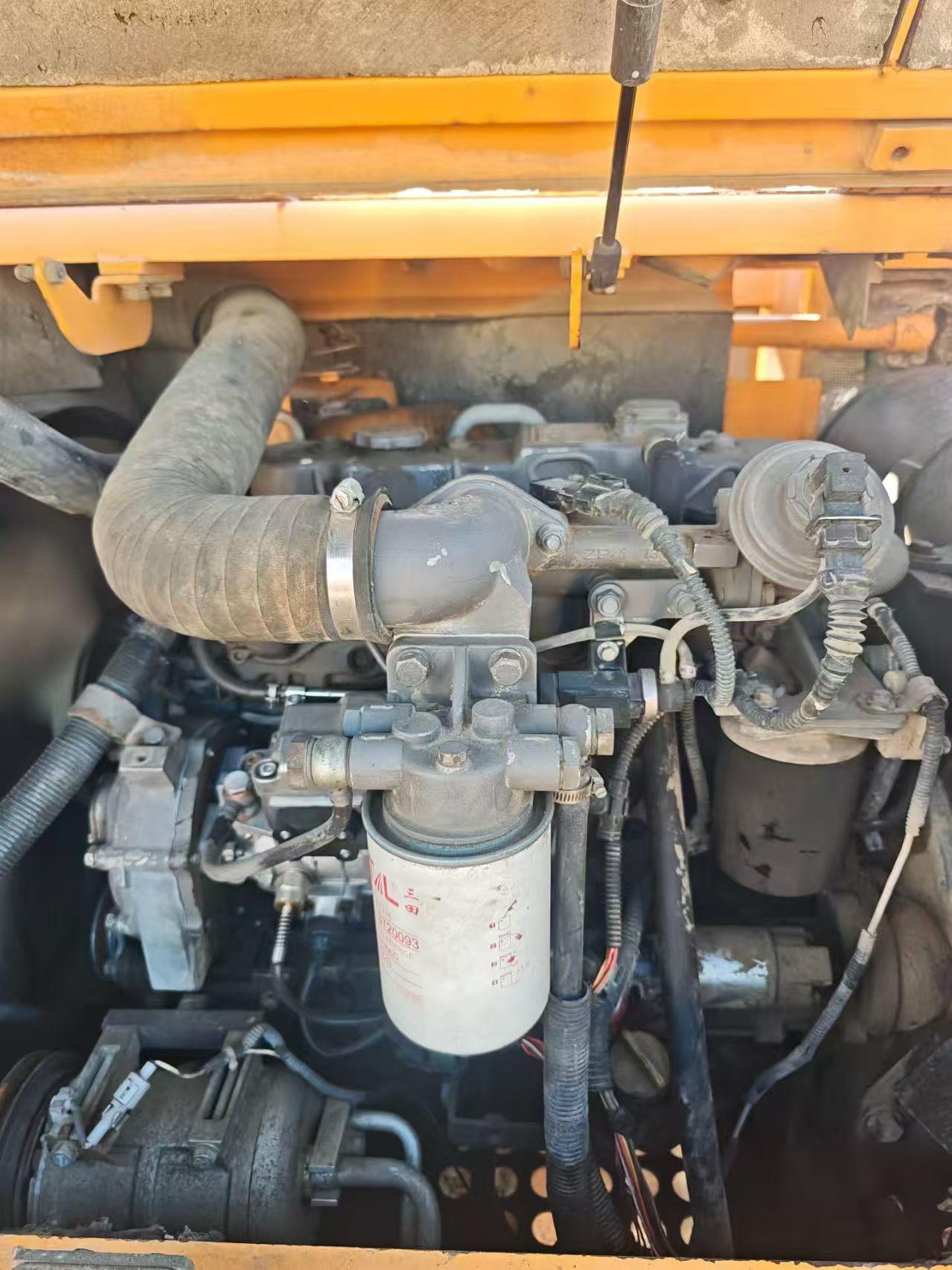

Engine Parameters
Engine model: CC-4JG1PAC
Engine type: Four-cylinder, four-stroke direct injection diesel engine
Number of cylinders: 4
Cooling method: Water cooling
Rated power: 40.9 kW / 2100 rpm

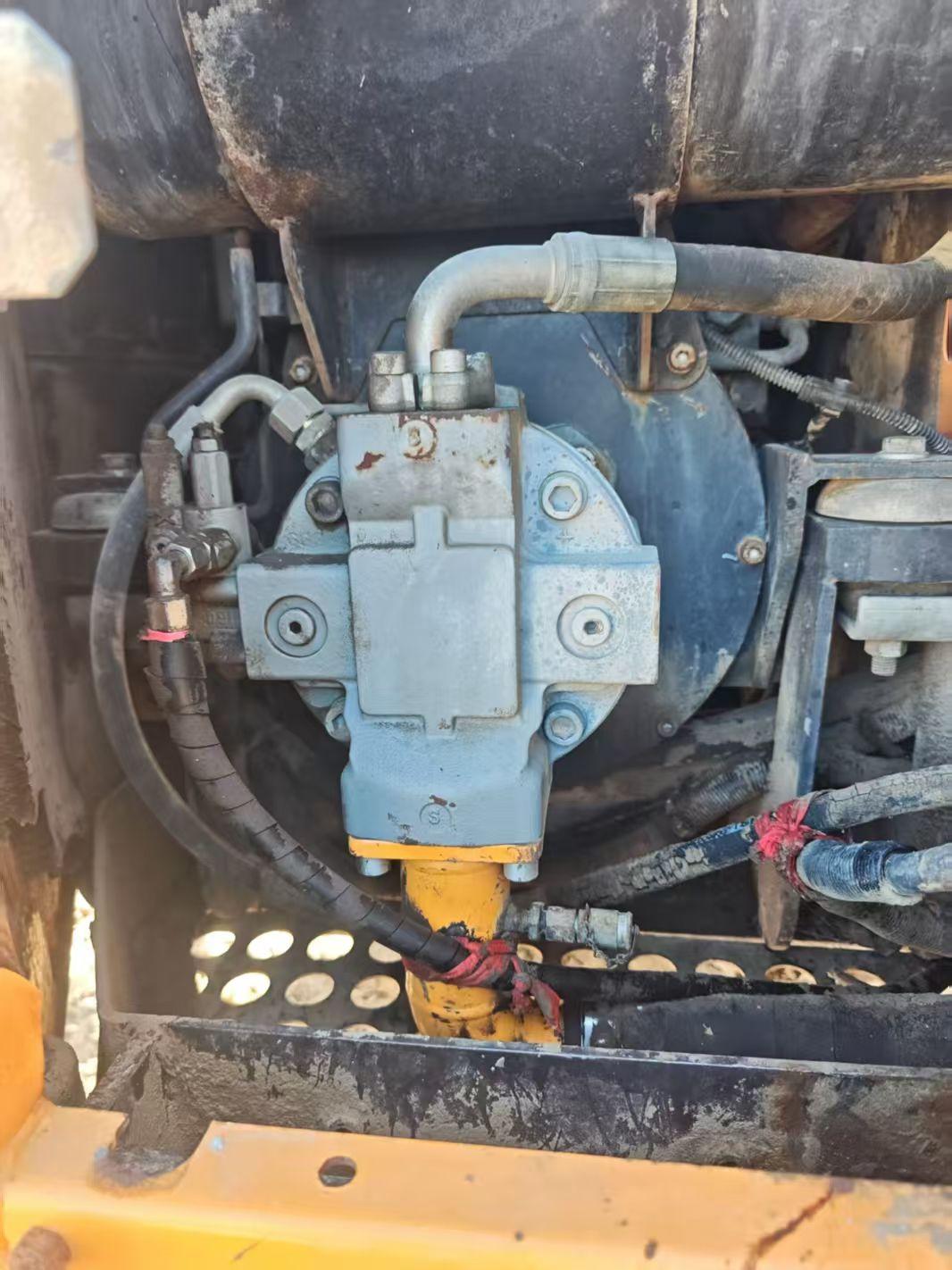

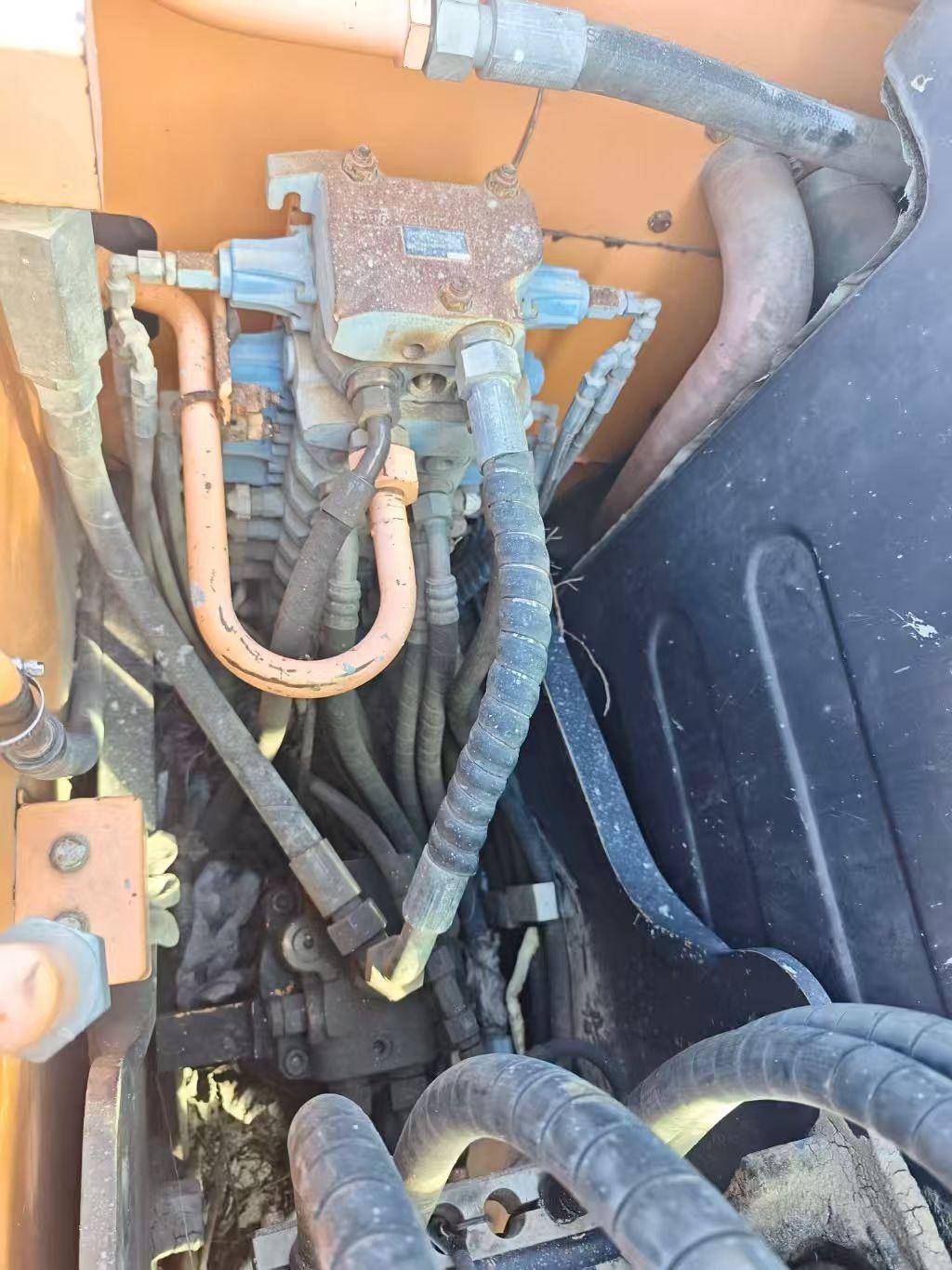

Hydraulic System
Maximum flow rate of the main pump: 149 L/min
Pressure of the walking hydraulic circuit: 26 MPa
Pressure of the rotary hydraulic circuit: 21.6 MPa
Control pressure of the hydraulic circuit: 3.6 MPa
Hydraulic crushing pipeline: Non-standard configuration
Main Body Dimensions (Transportation Status)
Total transportation length: 6,120 mm
Total transportation width: 2,220 mm
Total transportation height: 2,720 mm
Vehicle width: 2,040 mm
Total track length: 2,820 mm
Track plate width: 450 mm
Total width of the track: 2,220 mm
Track gauge: 1,750 mm
Minimum ground clearance: 380 mm
Rear end turning radius: 1,720 mm
VI. Scope of Work
Maximum excavation radius: 6,240 mm
Maximum excavation depth: 4,020 mm
Maximum excavation height: 7,060 mm
Maximum unloading height: 5,155 mm
Maximum vertical excavation depth: 3,290 mm
Parameters of the Bulldozer Blade
Height of the bulldozer blade: 405 mm
for reference only
Operating range of the bulldozer blade:
Lifting height: 350 mm
Push depth: 360 mm
