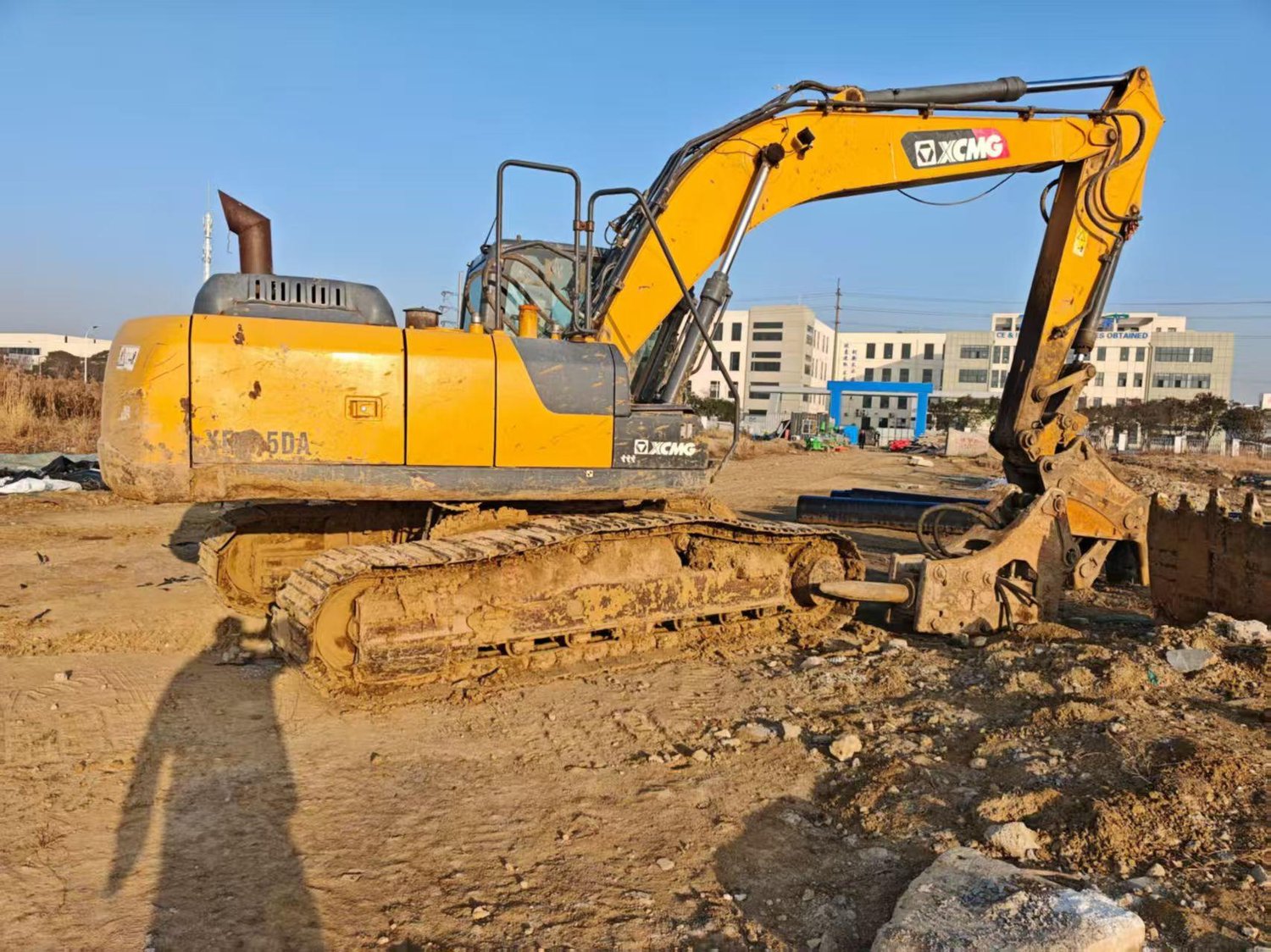

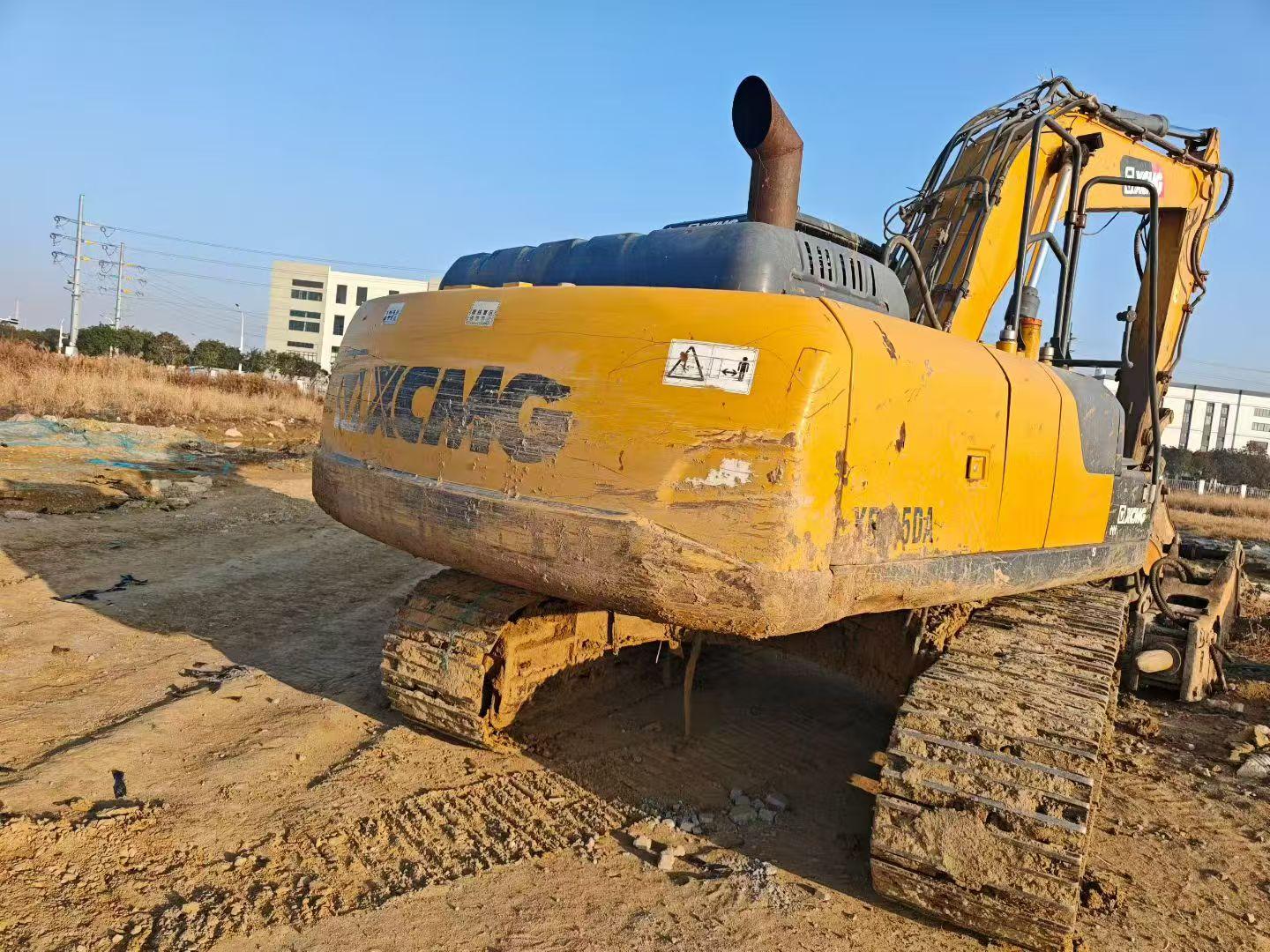

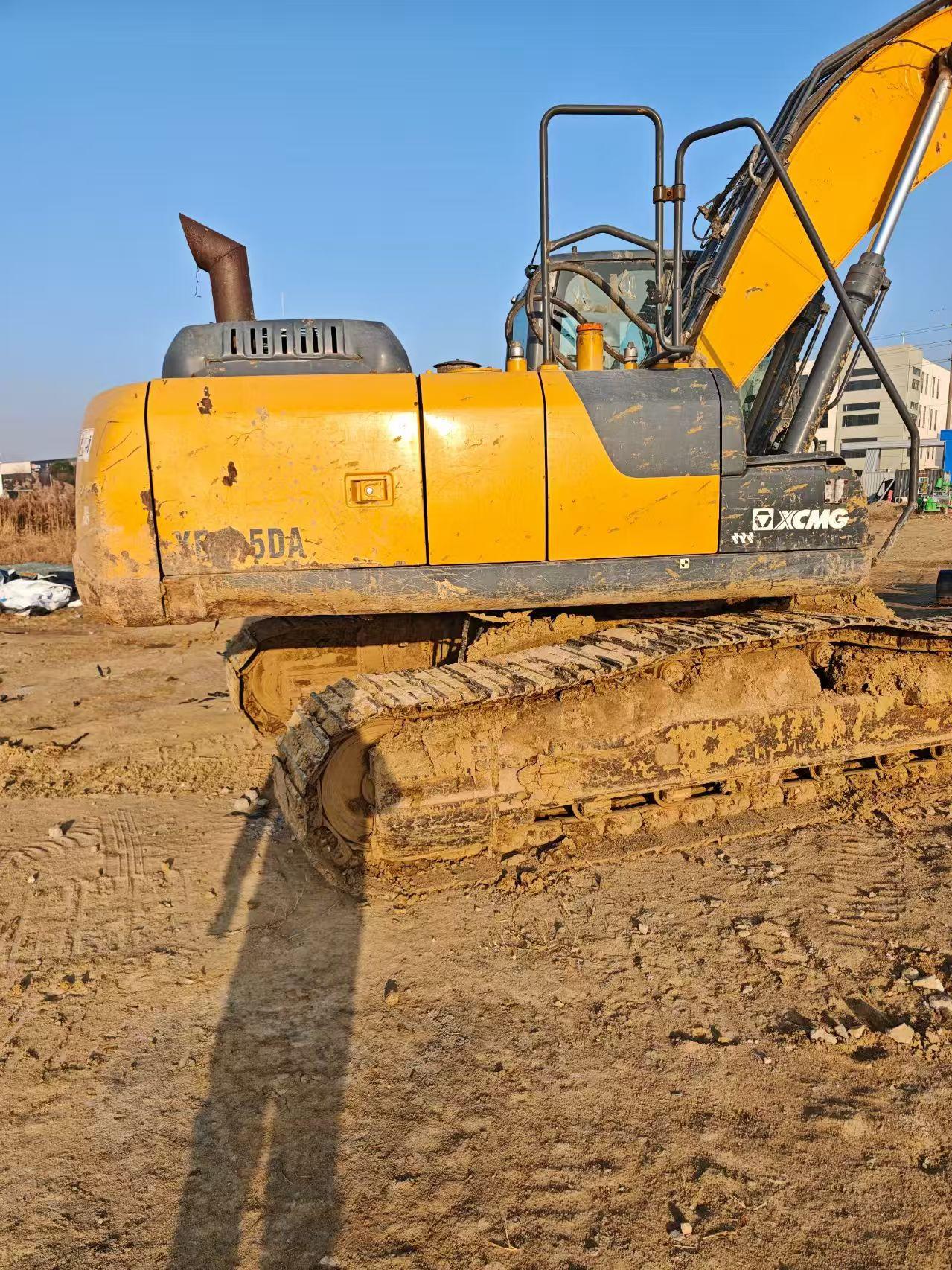

XCMG XE205DA Automatic lathe

operating weight: ≈ 21,500 kg
Bucket capacity: 0.93-1.2 m³
Engine rated power: 135 kW / 2050 rpm
Mining Performance
Bucket digging force: ≈ 157 kN
Bucket shaft digging force: ≈ 121 kN
Scope of Work
Maximum excavation depth: 6,660 mm
Maximum excavation height: 9,680 mm
Maximum unloading height: 6,815 mm
Maximum excavation radius: 9,790 mm
Walking and Stability
Walking speed (high/low gear): 5.3 / 2.9 km/h
Rotational speed: ≈ 11.6 rpm
Climbing ability: 35%
Ground pressure: 46.9 kPa
II. Power & Hydraulic System

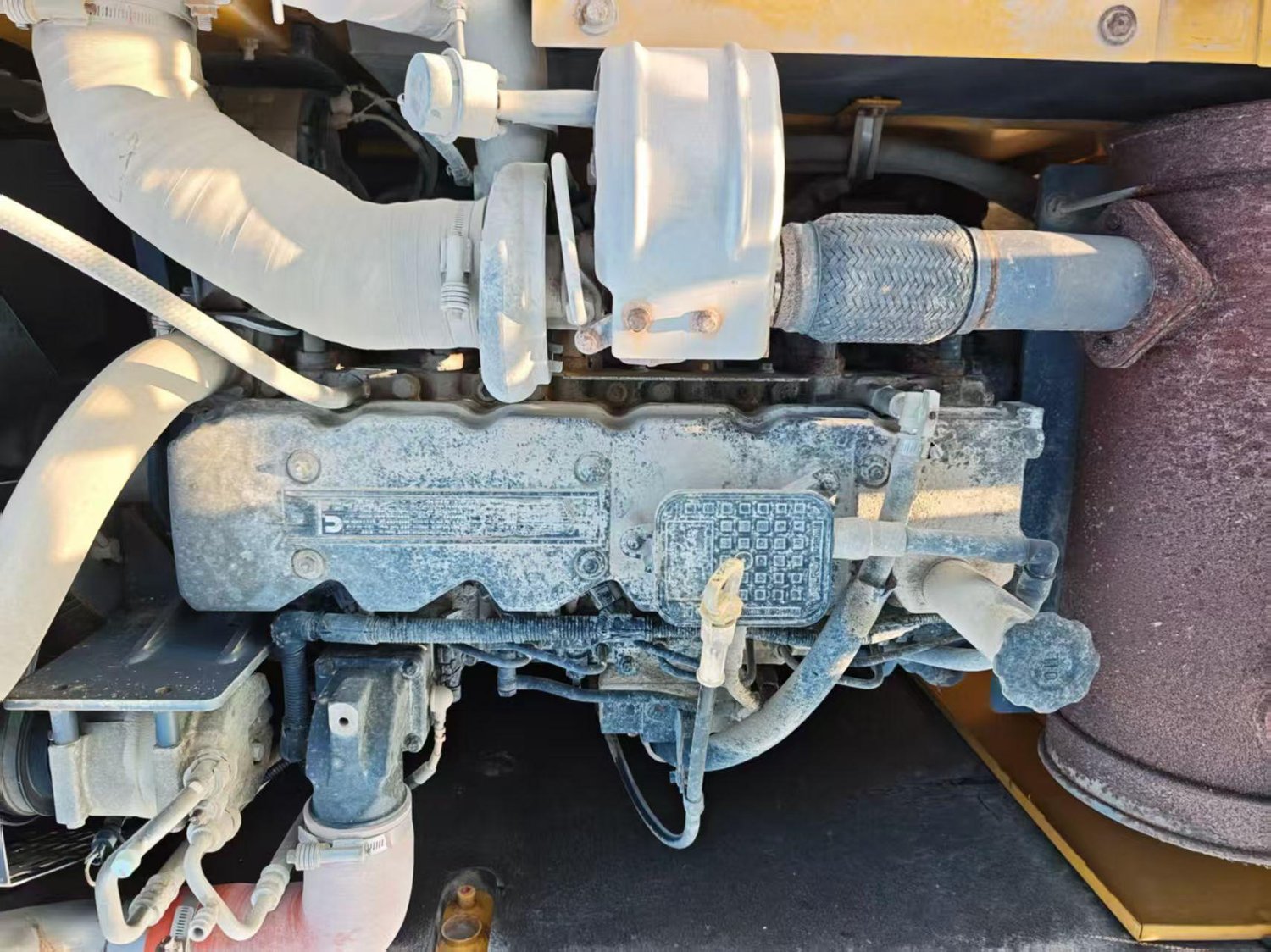

Engine model: Cummins QSB7
Type: Inline six-cylinder diesel engine
Displacement: 6.7 L
Rated power: 135 kW / 2050 rpm
Maximum torque: 740 N·m / 1250 rpm
III. Overall Machine Dimensions and Passability
Total length (in transport mode): 9,625 mm
Total width of the machine: 2,900 mm
Total height of the machine: 3,100 mm
Minimum ground clearance: 486 mm
Counterweight ground clearance: 1,050 mm
IV. Oil Capacity
Fuel tank capacity: 400 L
Hydraulic oil tank capacity: 220 L
Engine oil change volume: 24 L
