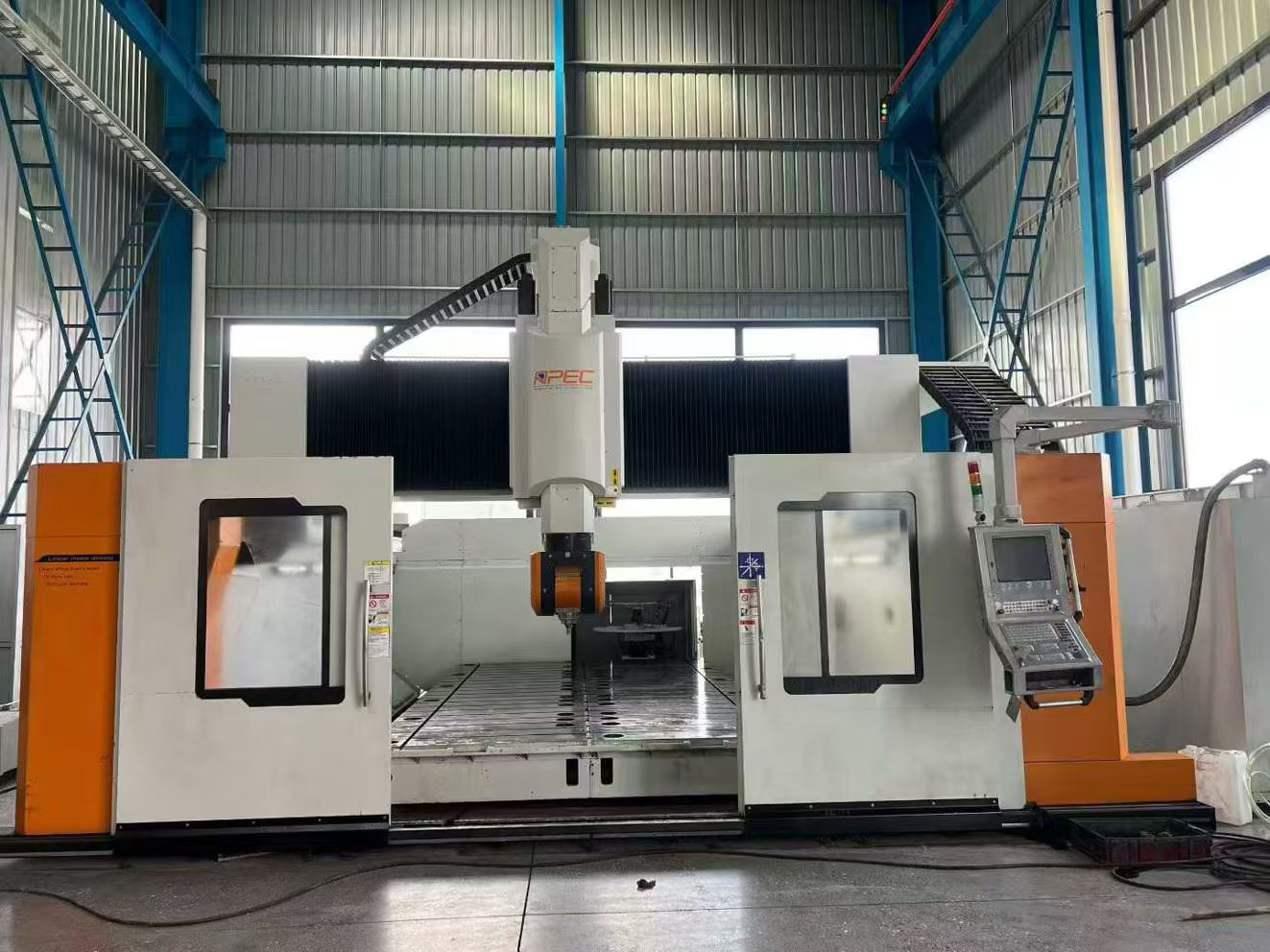

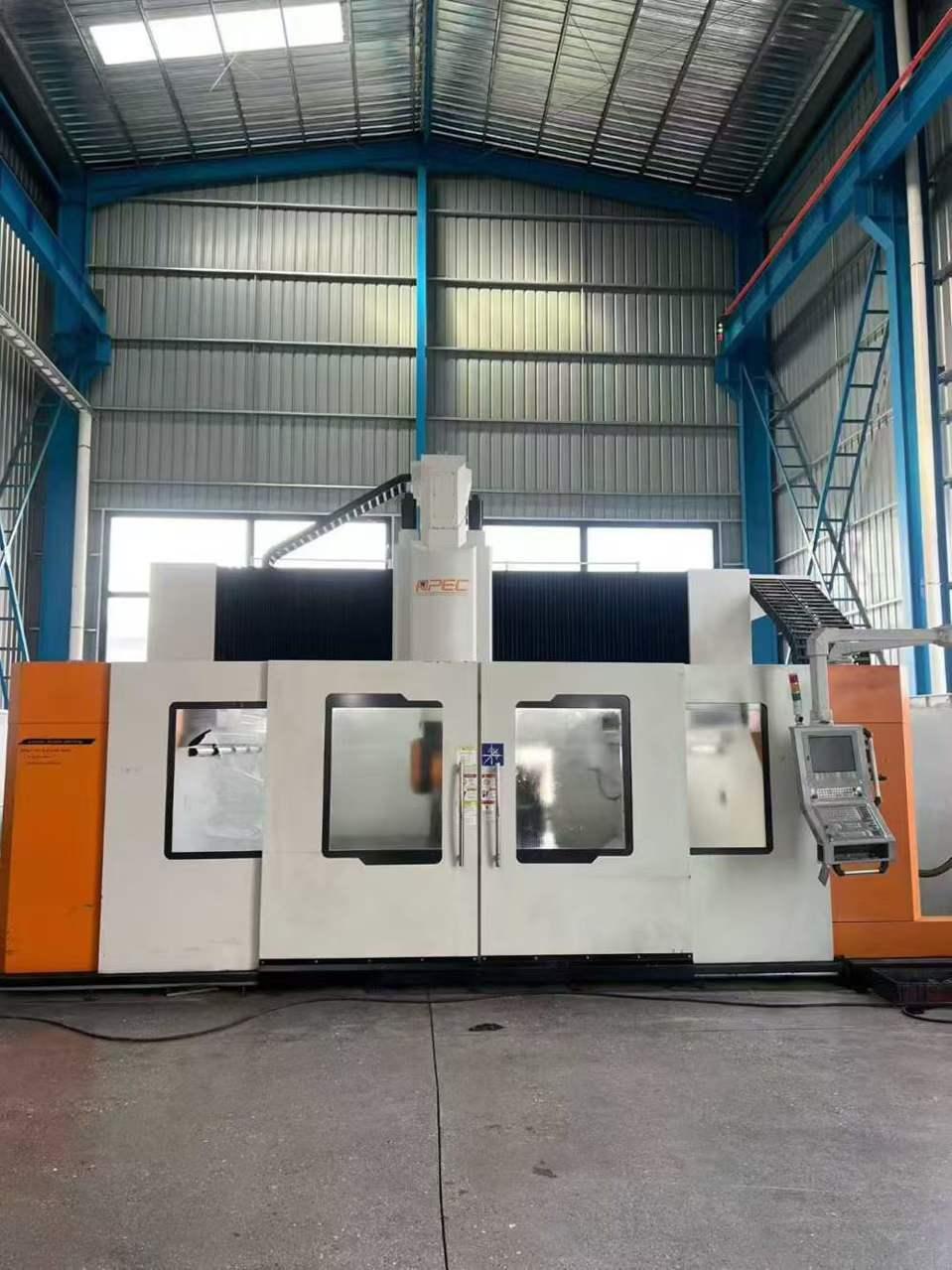

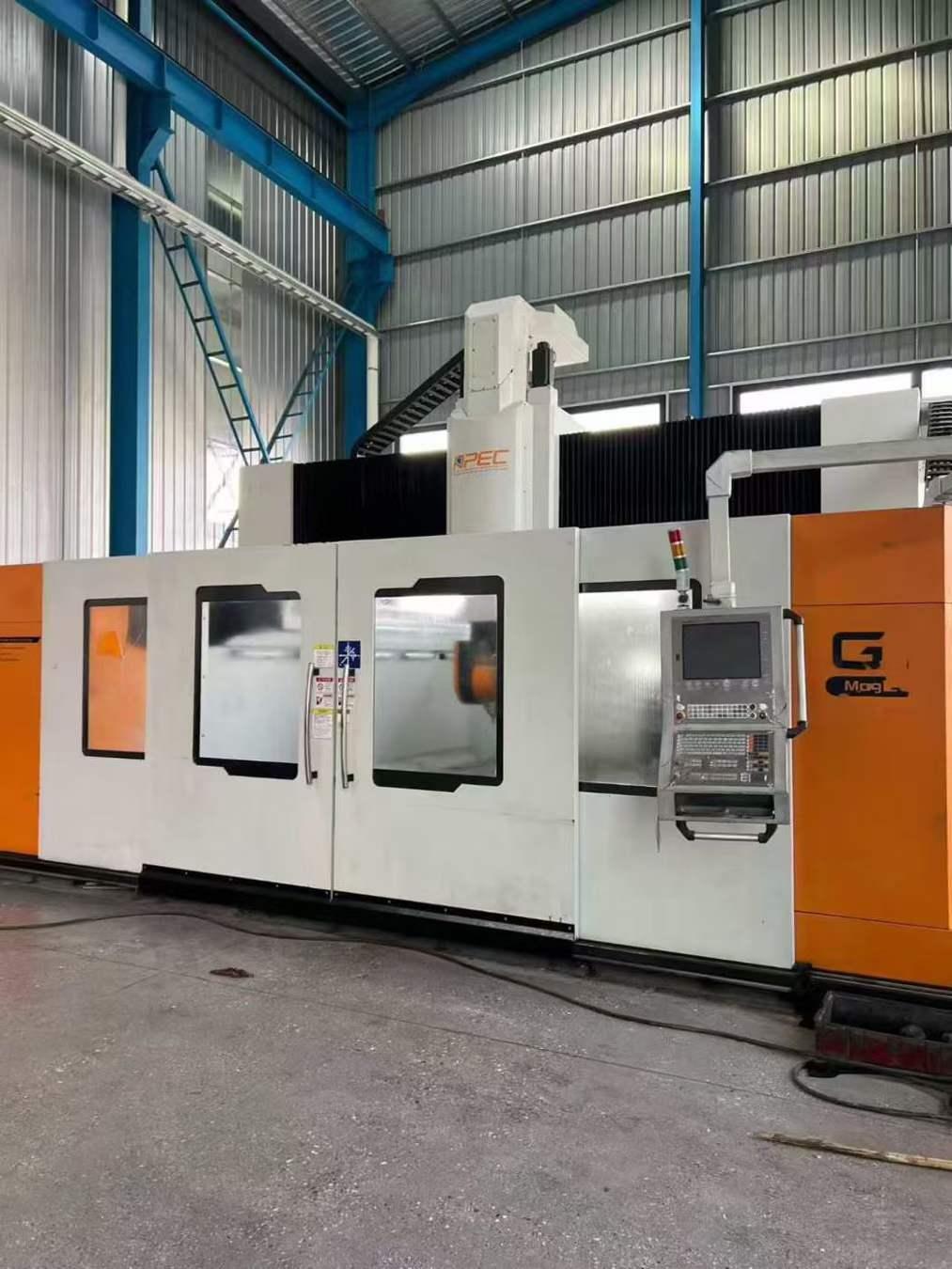

APEC G3050-5L 5 axis machining centre

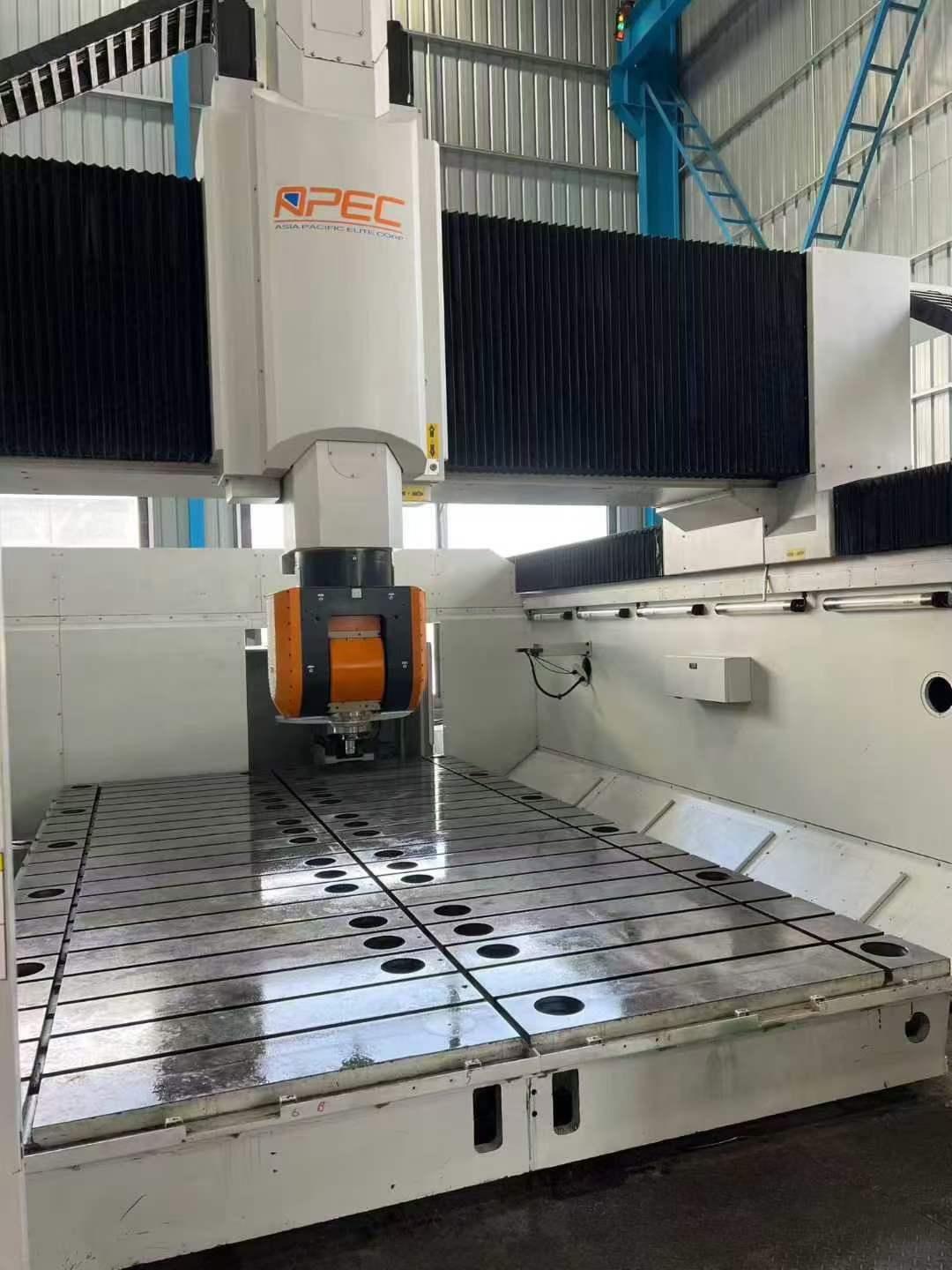

Worktable size: 5000*3000mm
Three-axis travel: 5000*3000*1000mm
Drive System: Linear motor Type: linear motor
Model: HSK-63

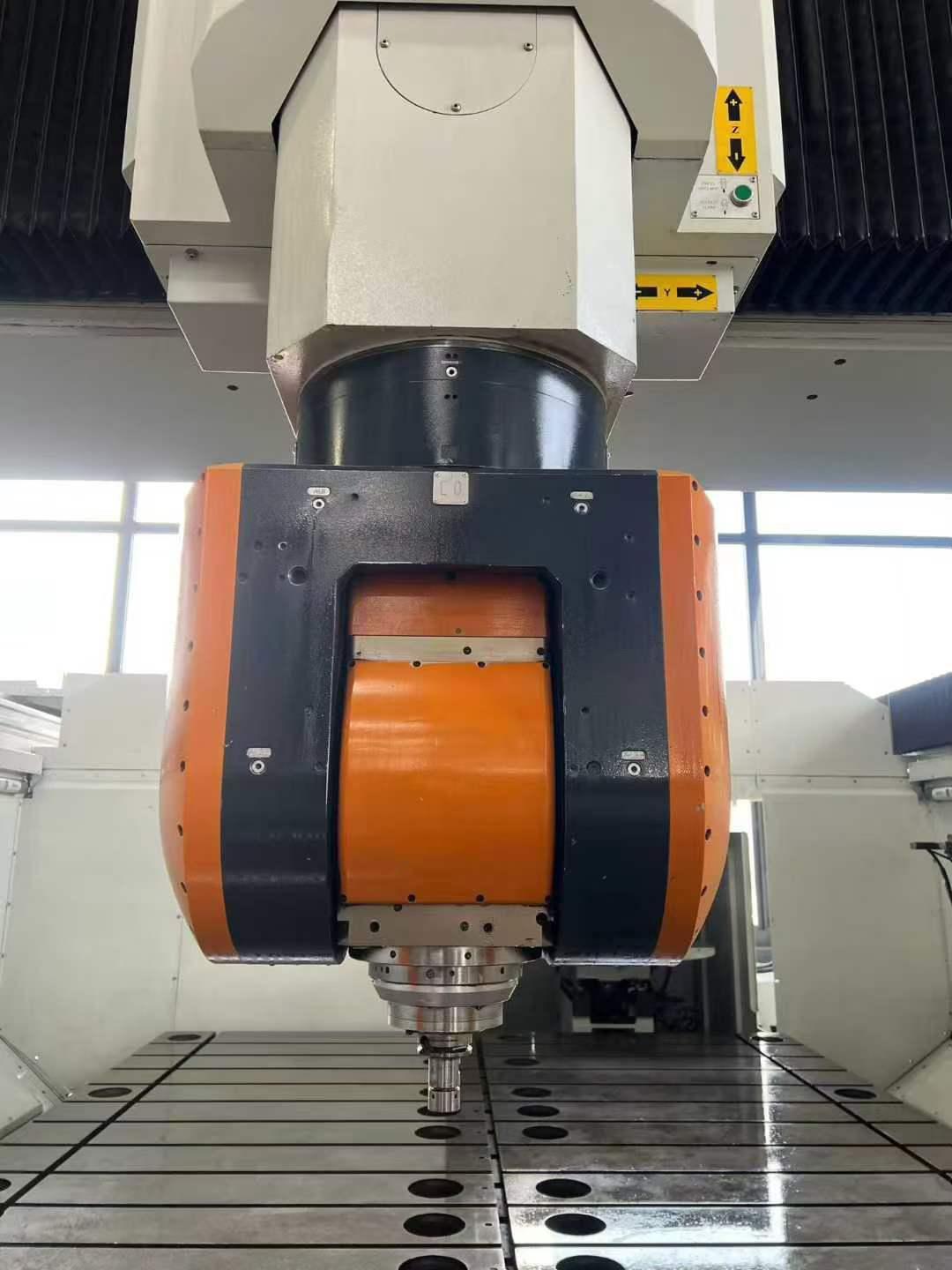

Spindle speed: 24,000 rpm
Rotational axis travel:
A-axis: ±125°
C-axis: ±360°
Distance from spindle nose to WorkWorktable: 300-1300mm
X*Y*Z axis feed rate: 60*60*40m/min
Tool length: 300 mm
Tool diameter (near tool change) : Ø75 mm
Tool diameter (without adjacent tool change) : Ø150 mm

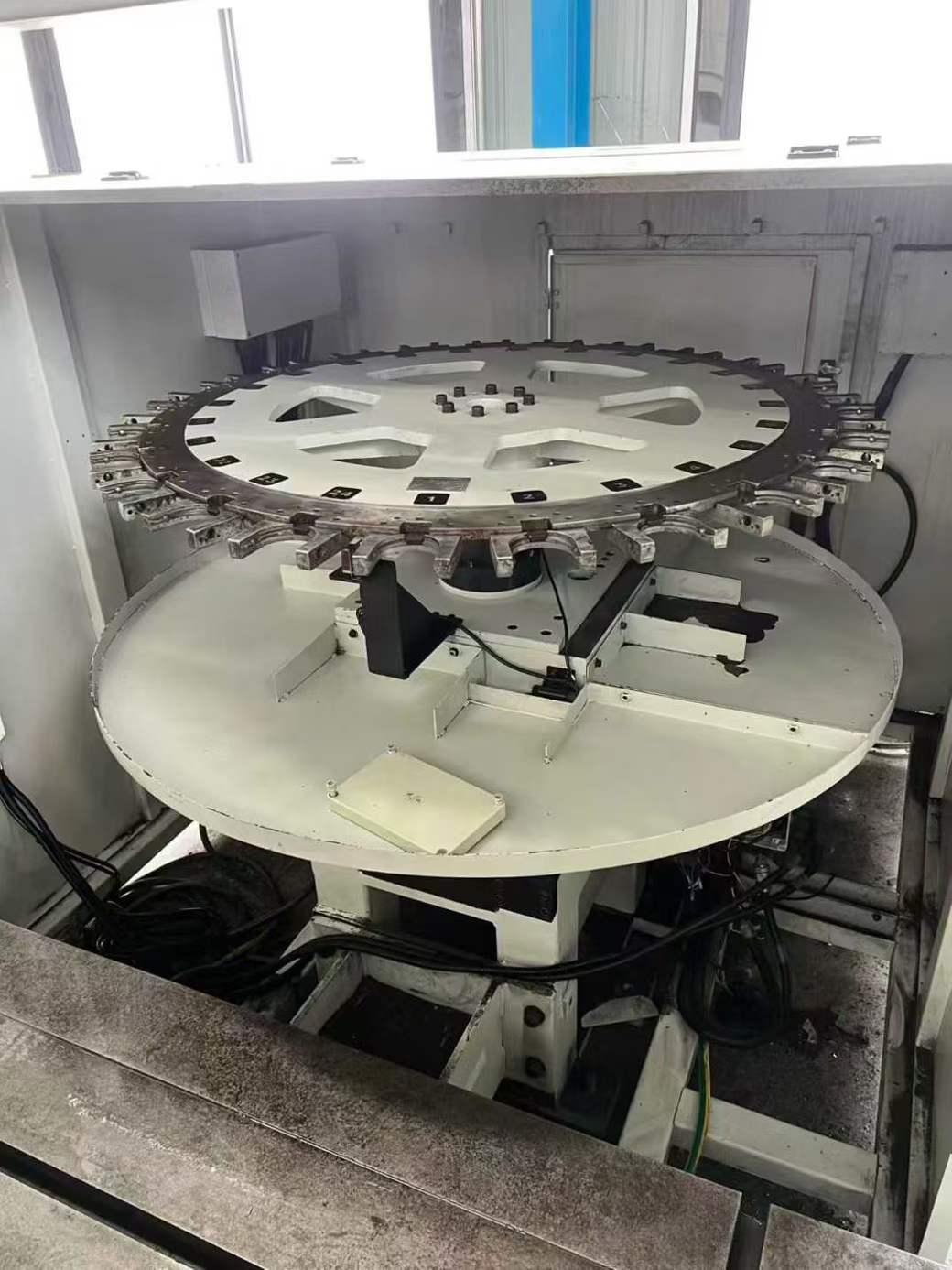

magazine capacity: 24
Standard: Tool Aligner
Spindle power (rated/Max.) : 37/46 kW
