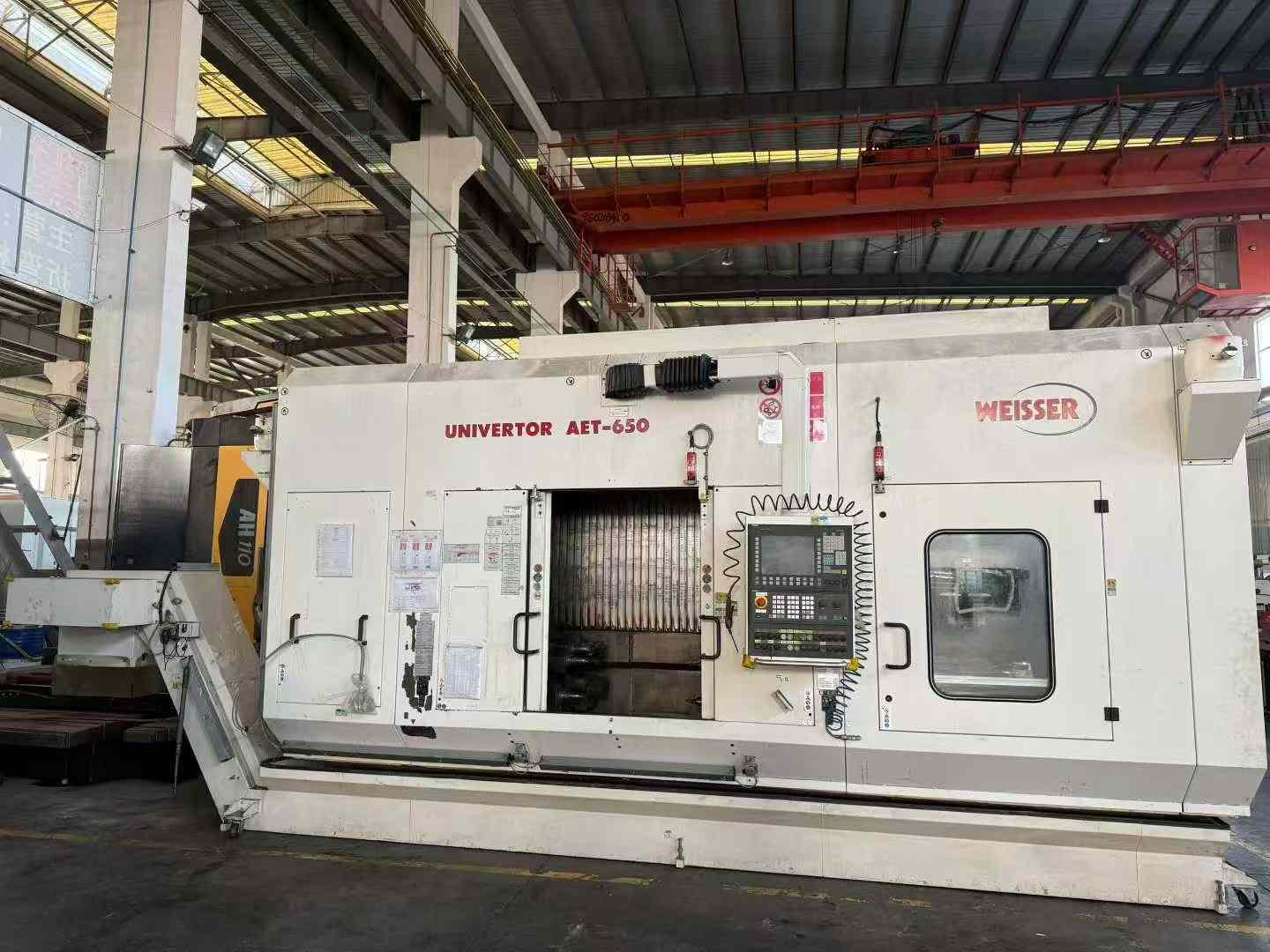

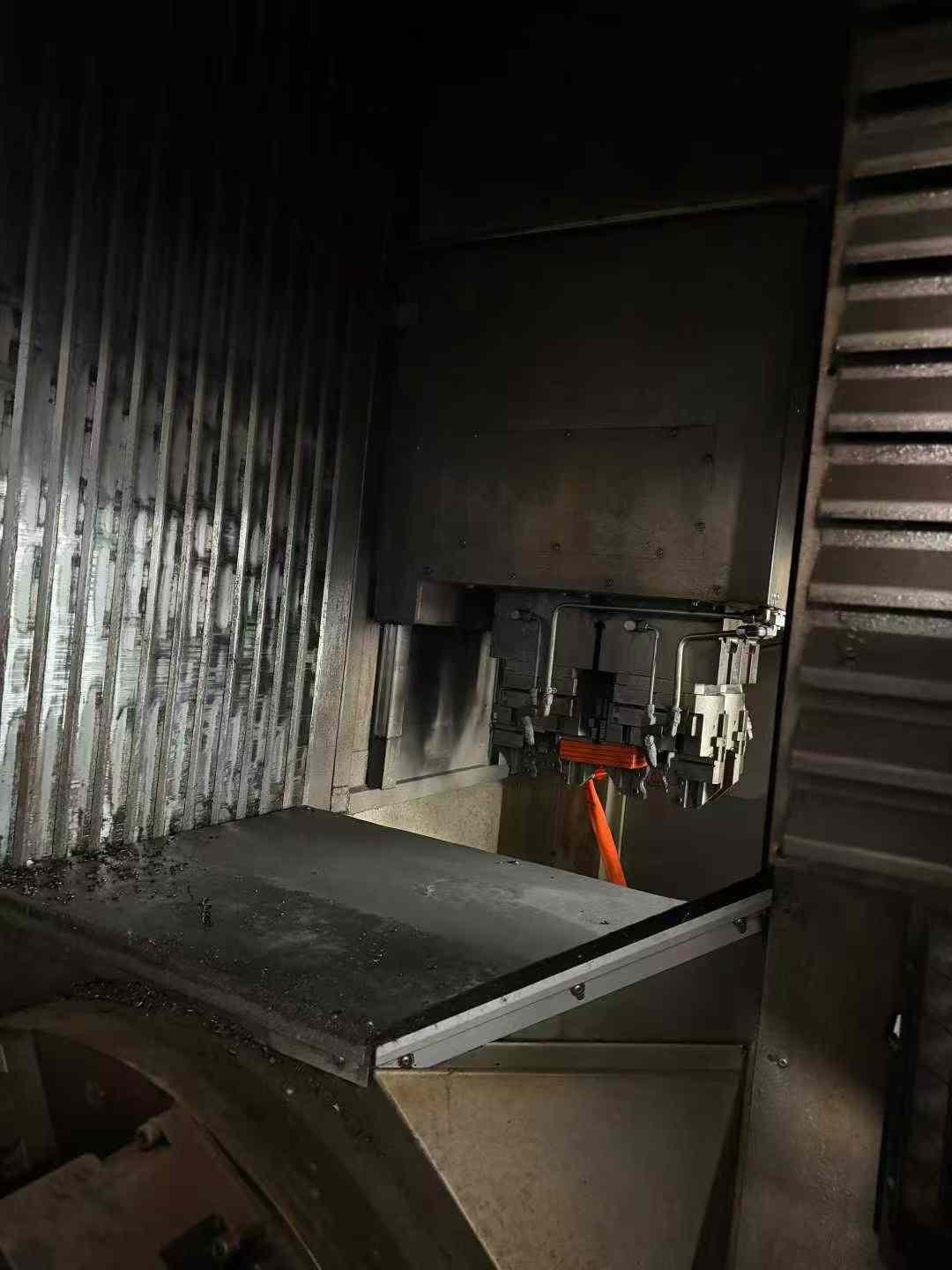

WEISSER UNIVERTOR AET650L Turn Mill Machining Centre

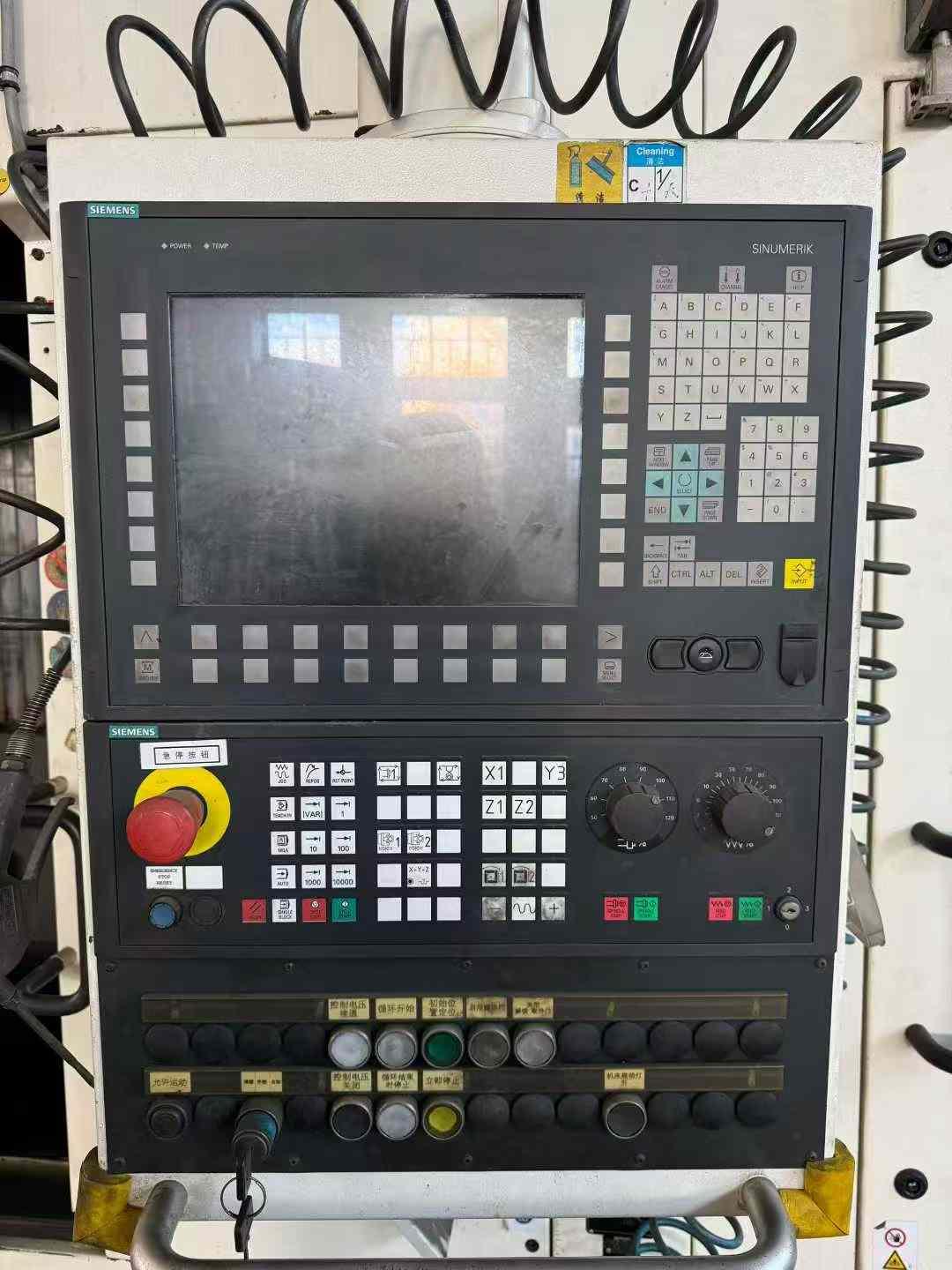

CNC System: Siemens

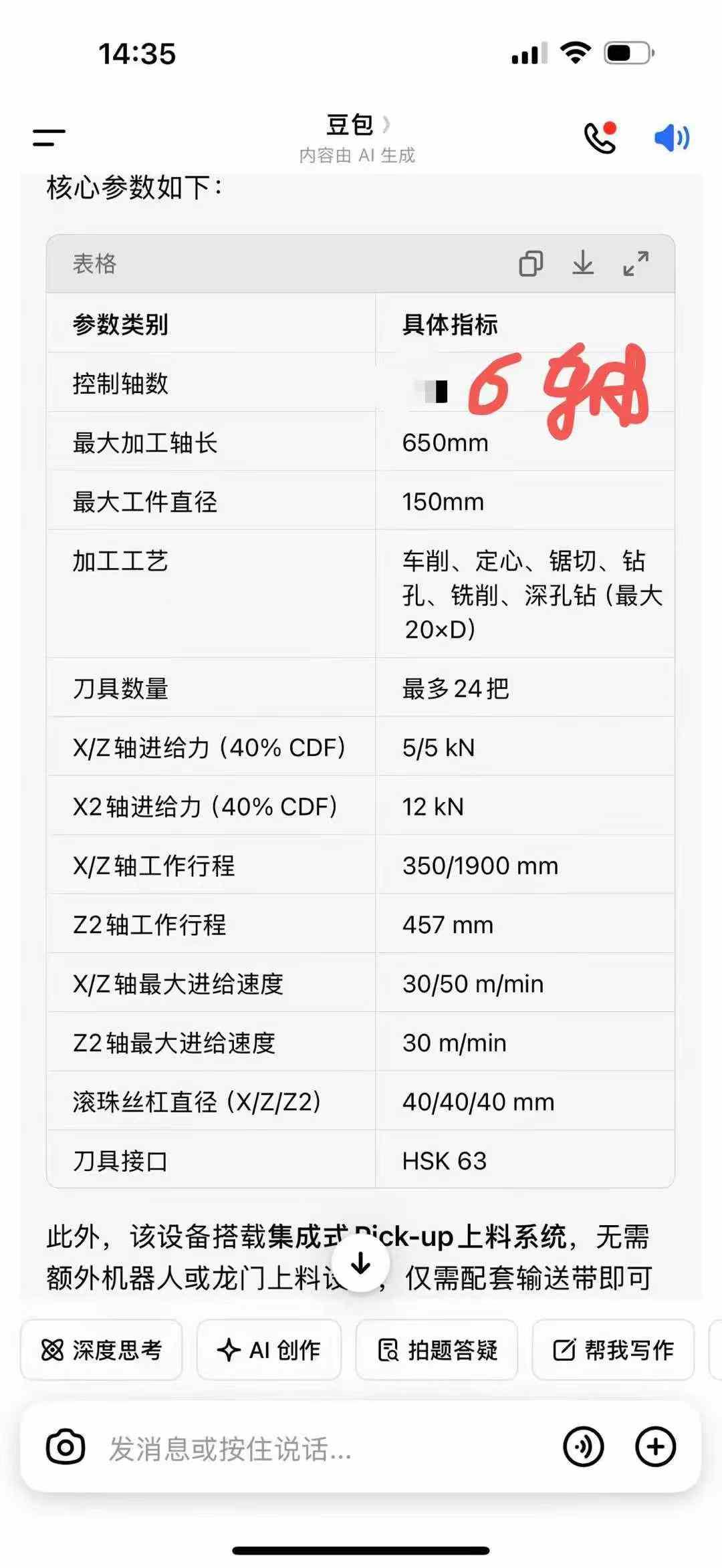

Machining Range
Maximum machining shaft length: 650 mm
Maximum workpiece diameter: 150 mm

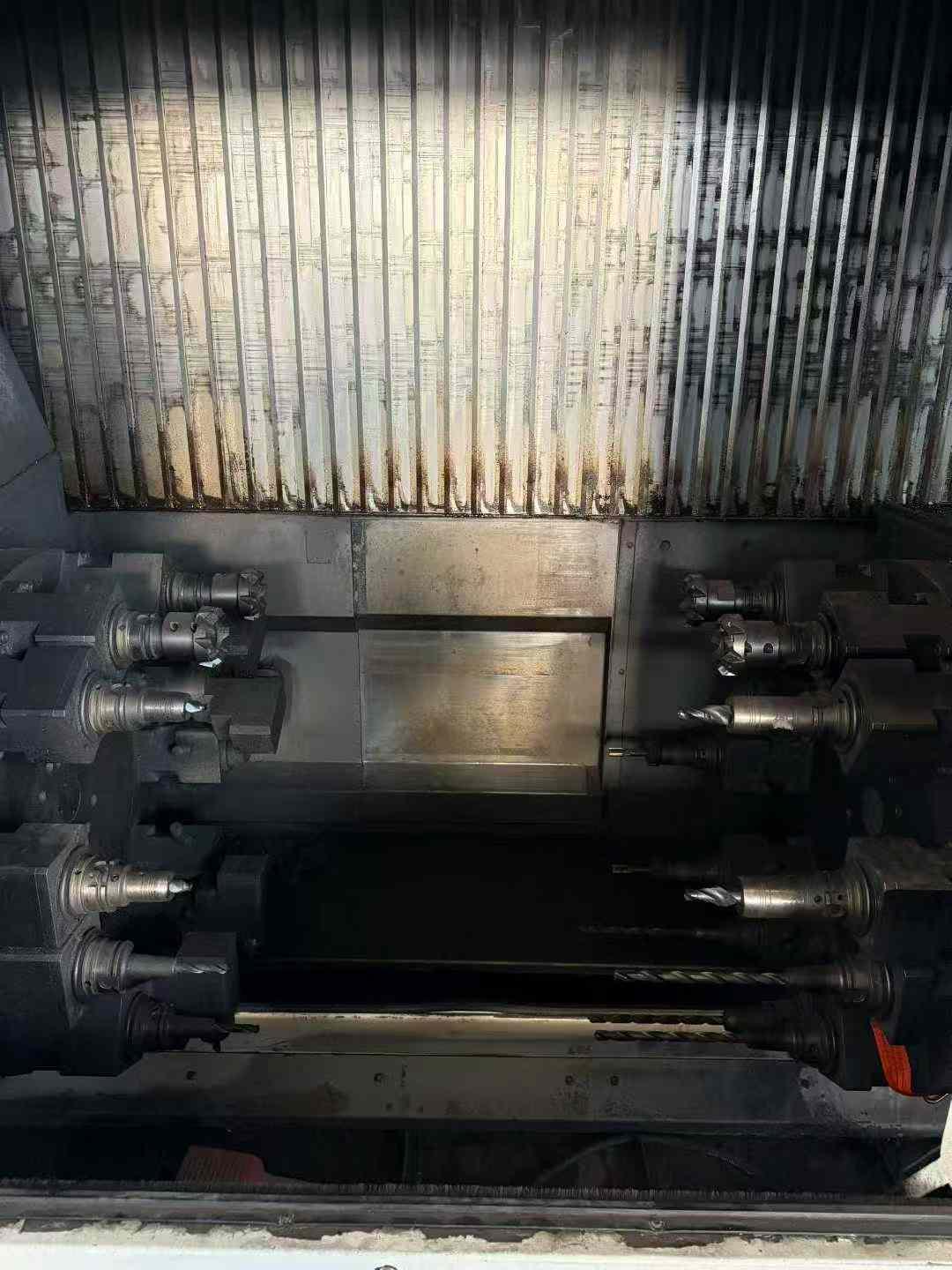

Tool System
Maximum number of tools: 24
Tool interface: HSK 63
Axial Feed Force (40% CDF)
X-axis: 5 kN
Z-axis: 5 kN
X2-axis: 12 kN
Axis Travel
X-axis working travel: 350 mm
Z-axis working travel: 1900 mm
Z2-axis working travel: 457 mm
Maximum Feed Rate
X-axis: 30 m/min
Z-axis: 50 m/min
Z2-axis: 30 m/min
Ball Screw Specifications
Ball screw diameter (X/Z/Z2): 40 / 40 / 40 mm
