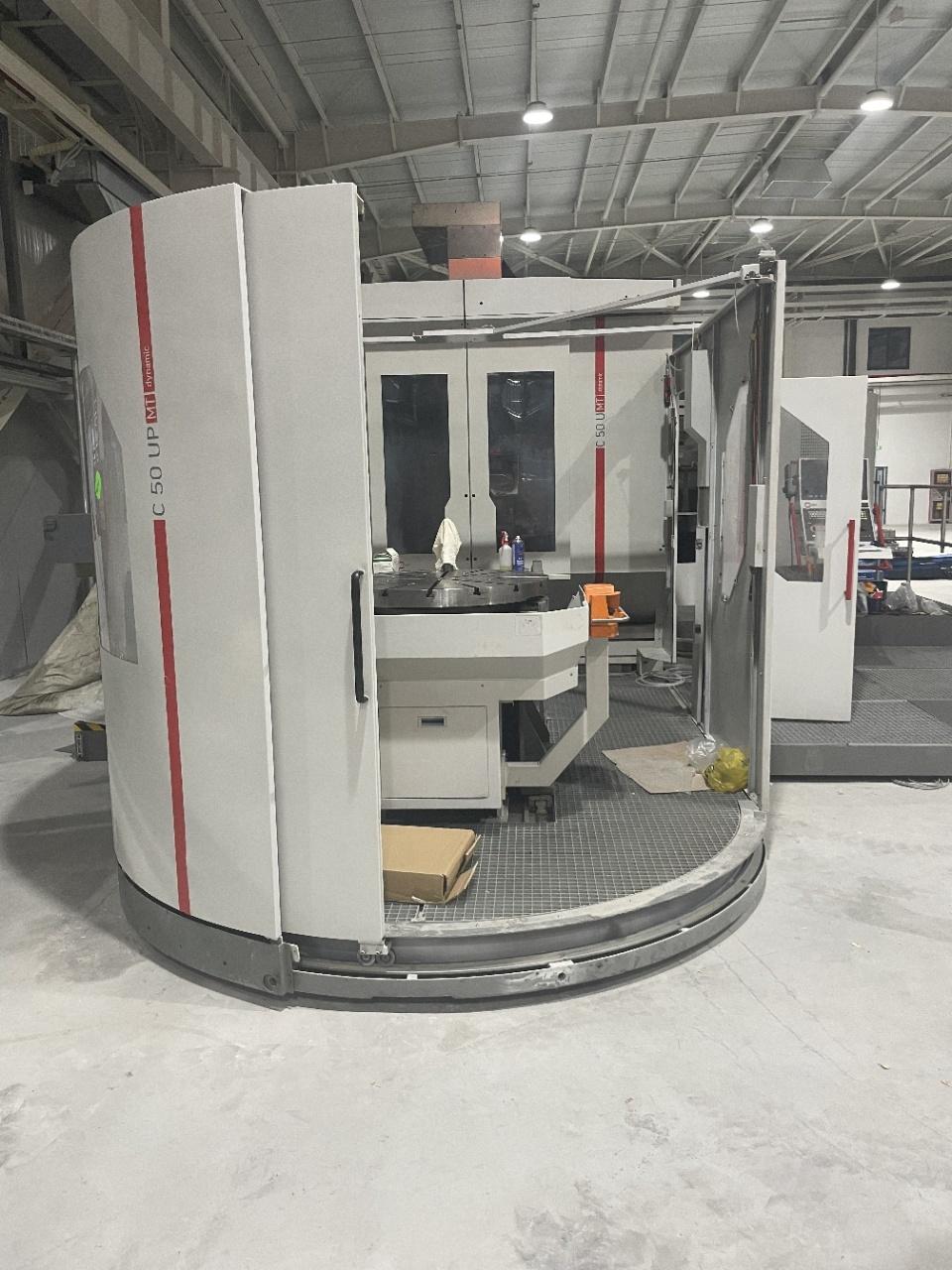

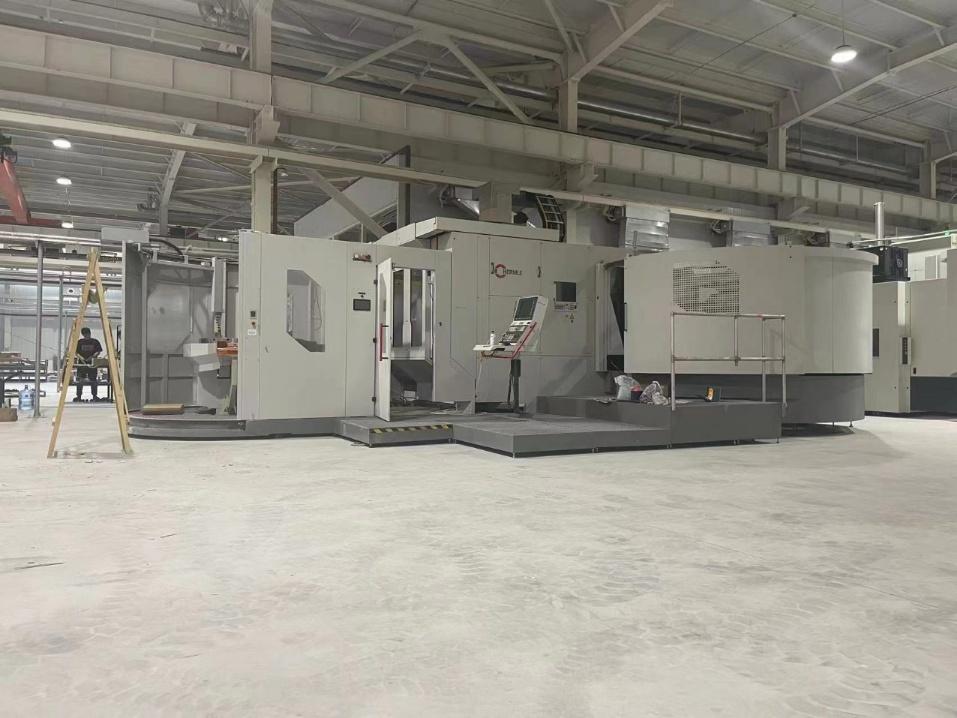

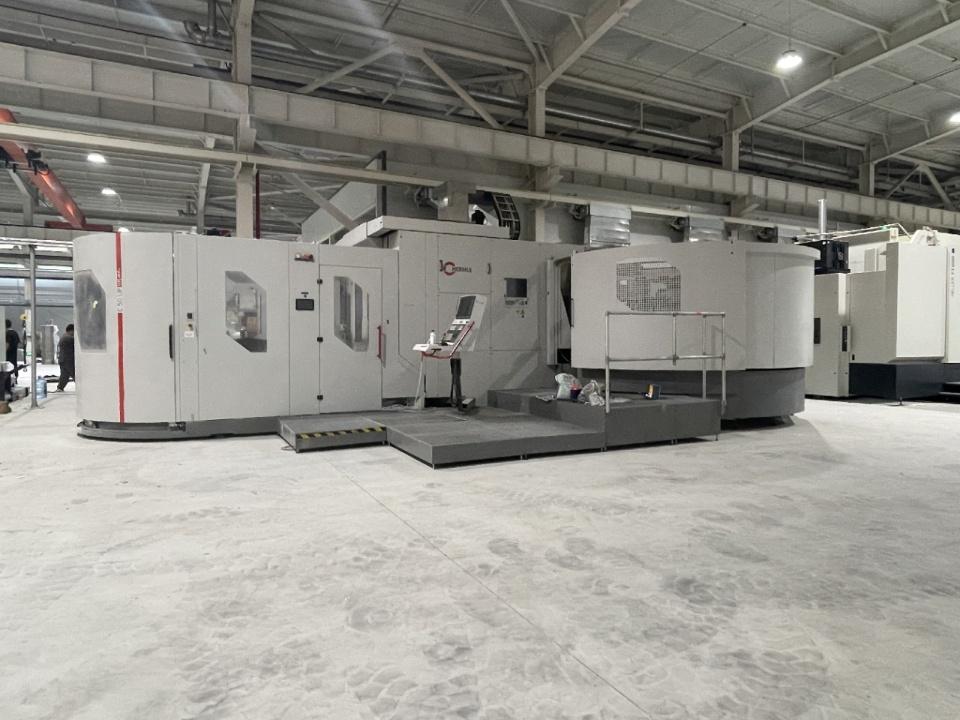

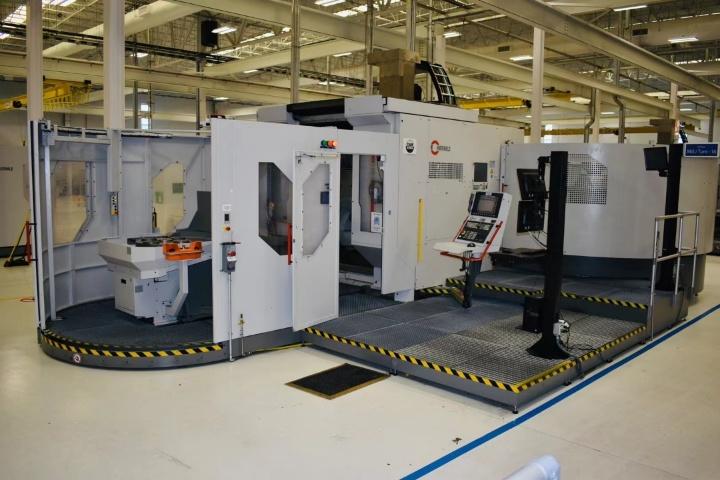

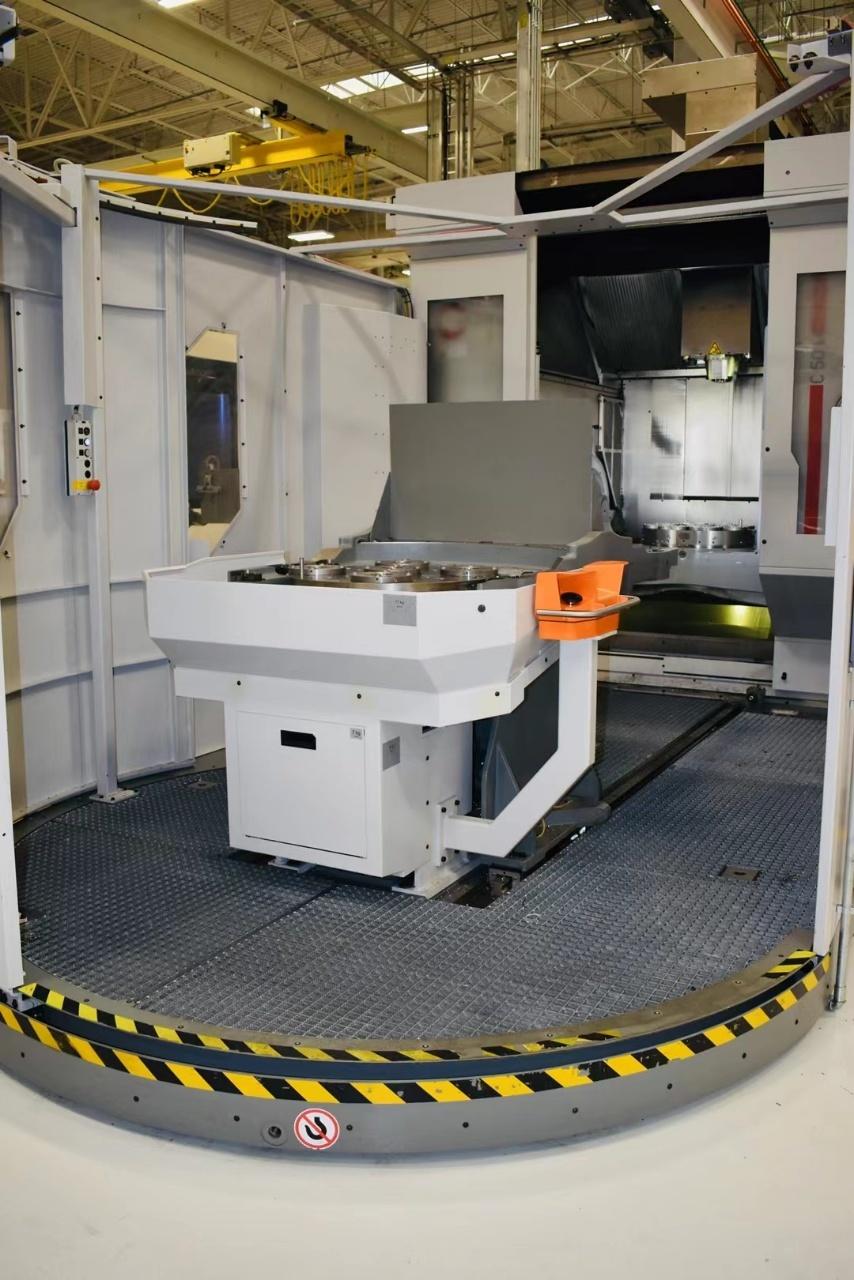

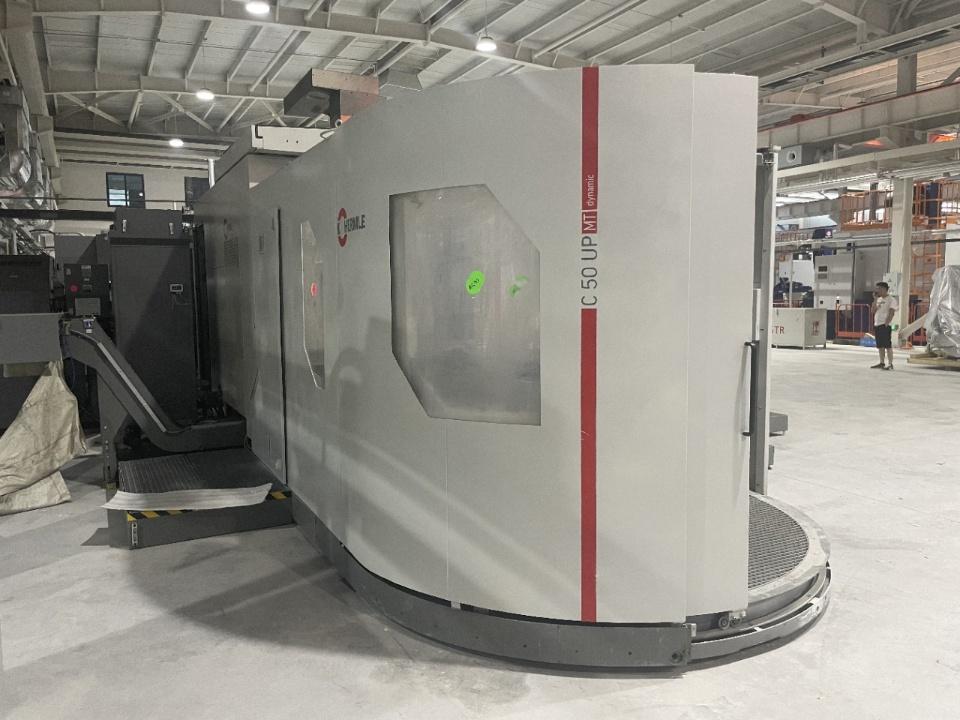

HERMLE C50U MT 5 axis machining centre

Worktable Size: 1000mm x 810mm
Maximum Worktable Load (Turning): 1000kg
Maximum Worktable Load (Milling): 2000kg
Travel:
X-axis: 1000mm
Y-axis: 1100mm
Z-axis: 750mm
Spindle:
Spindle Speed: 12,000 rpm
Spindle Tool Holder: HSK-T100
Maximum Spindle Torque: 356Nm

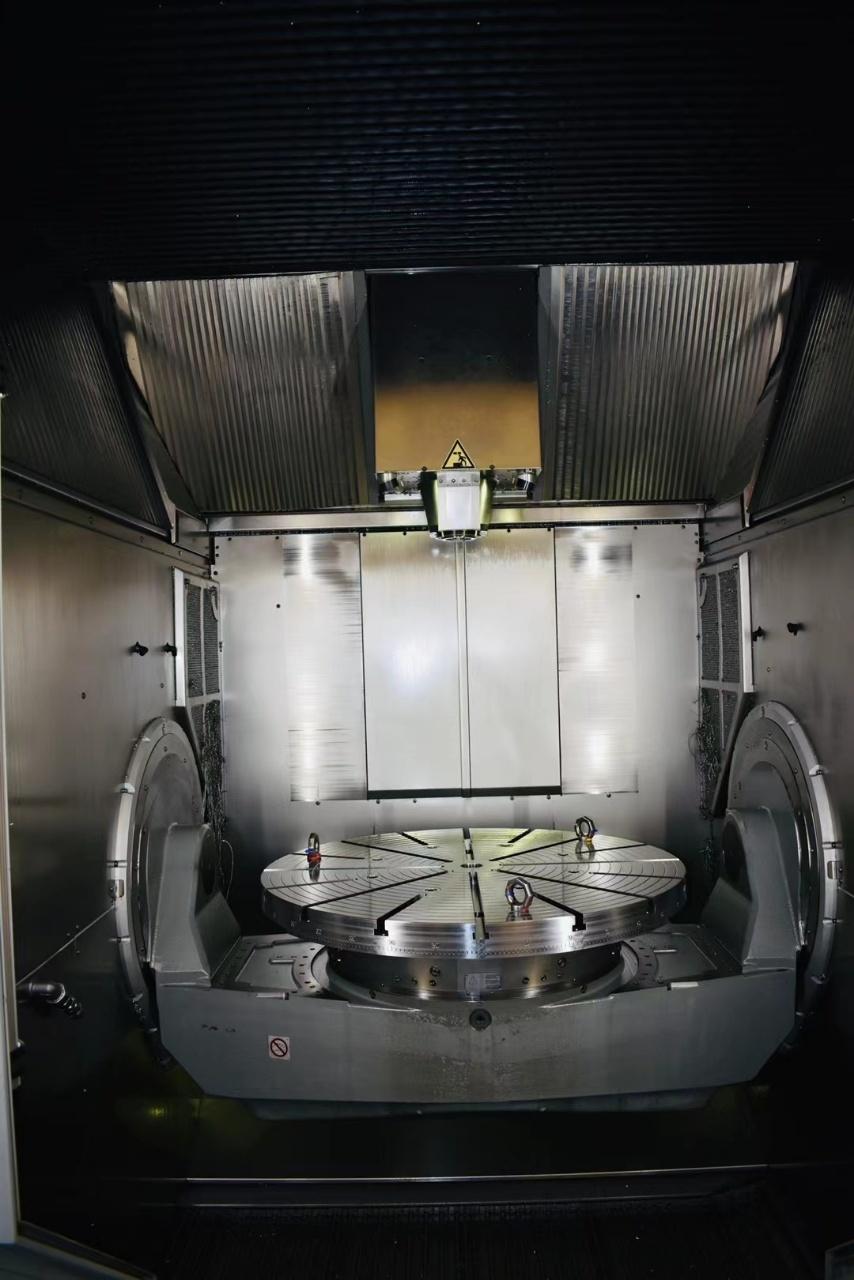

Rotary Worktable:
Rotation Angle Range: +100° / -130°
Linear Axis Rapid Movement Speed:
X-axis: 60m/min
Y-axis: 60m/min
Z-axis: 55m/min
Tool Magazine:
Magazine Capacity: 162 tools (External additional tool magazine)
Tool Changing Speed: 7 seconds per change
Total Net Weight of Equipment:
21,500 kg (47,399 pounds)
Configuration:
HYFRA Pedia Refrigeration Machine
Handte Filtering System
Lubrication and Cooling System
