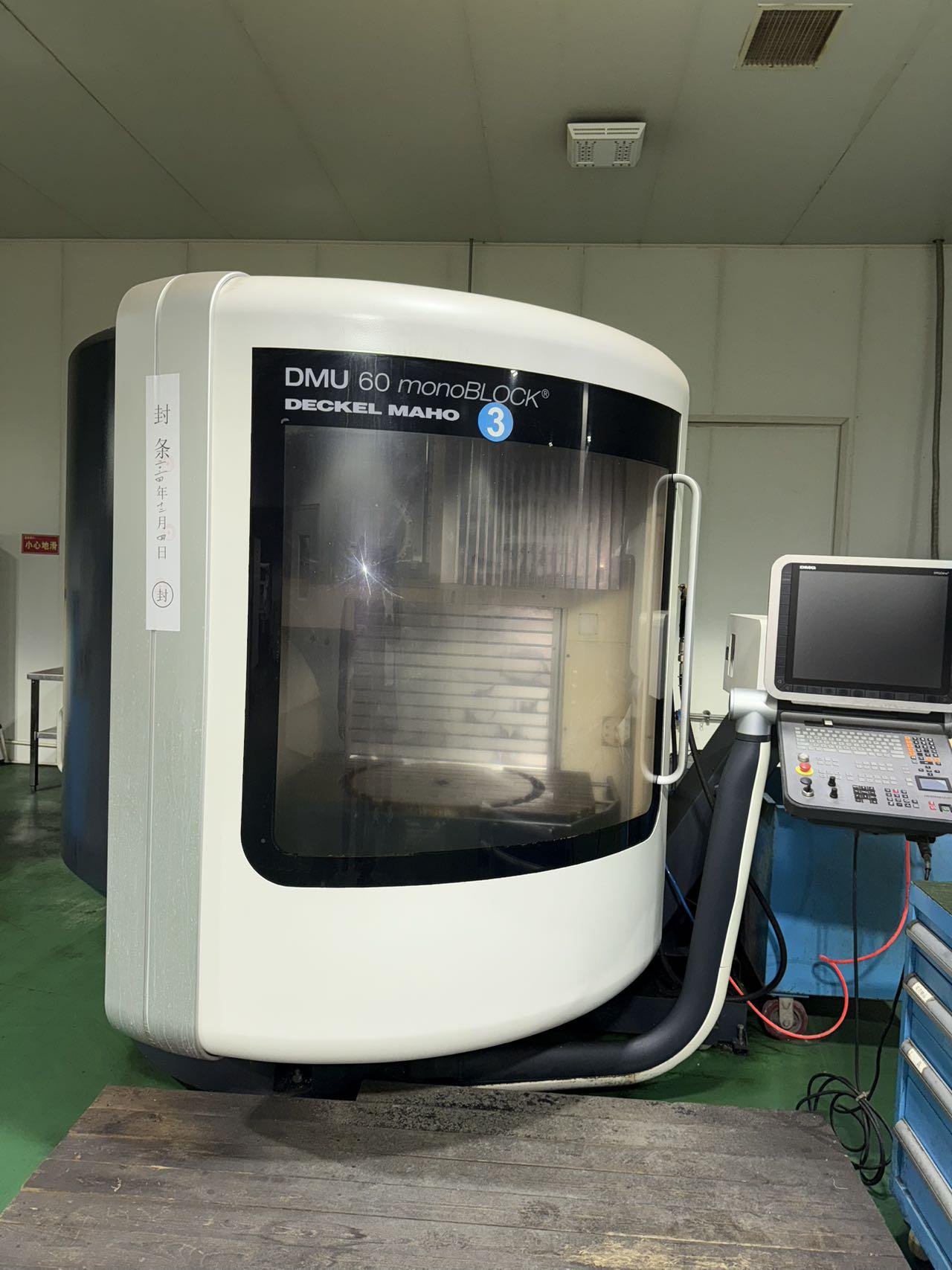

DMG DMU 60 monoBLOCK 5 axis machining centre
[Product Information]:
- Inventory number：466862
- Brand：DMG
- Model： DMU 60 monoBLOCK
- Origin：Germany
- Location：China
- Year：2011
- Create Time：2026-01-03
Specifications:
Equipment weight: Approximately 6,800. kg
Maximum spindle speed: 18,000. rpm
spindle tool holder form: SK40
spindle torque
40% load cycle: approximately 119. Nm
100% load cycle: approximately 85. Nm
X-axis travel: 730 mm
Y-axis travel: 560 mm
Z-axis travel: 560 mm
B axis (Milling head swing) : -120° to +30°
C-axis (workWorktable rotation) : 360° (indexing precision 0.001°)

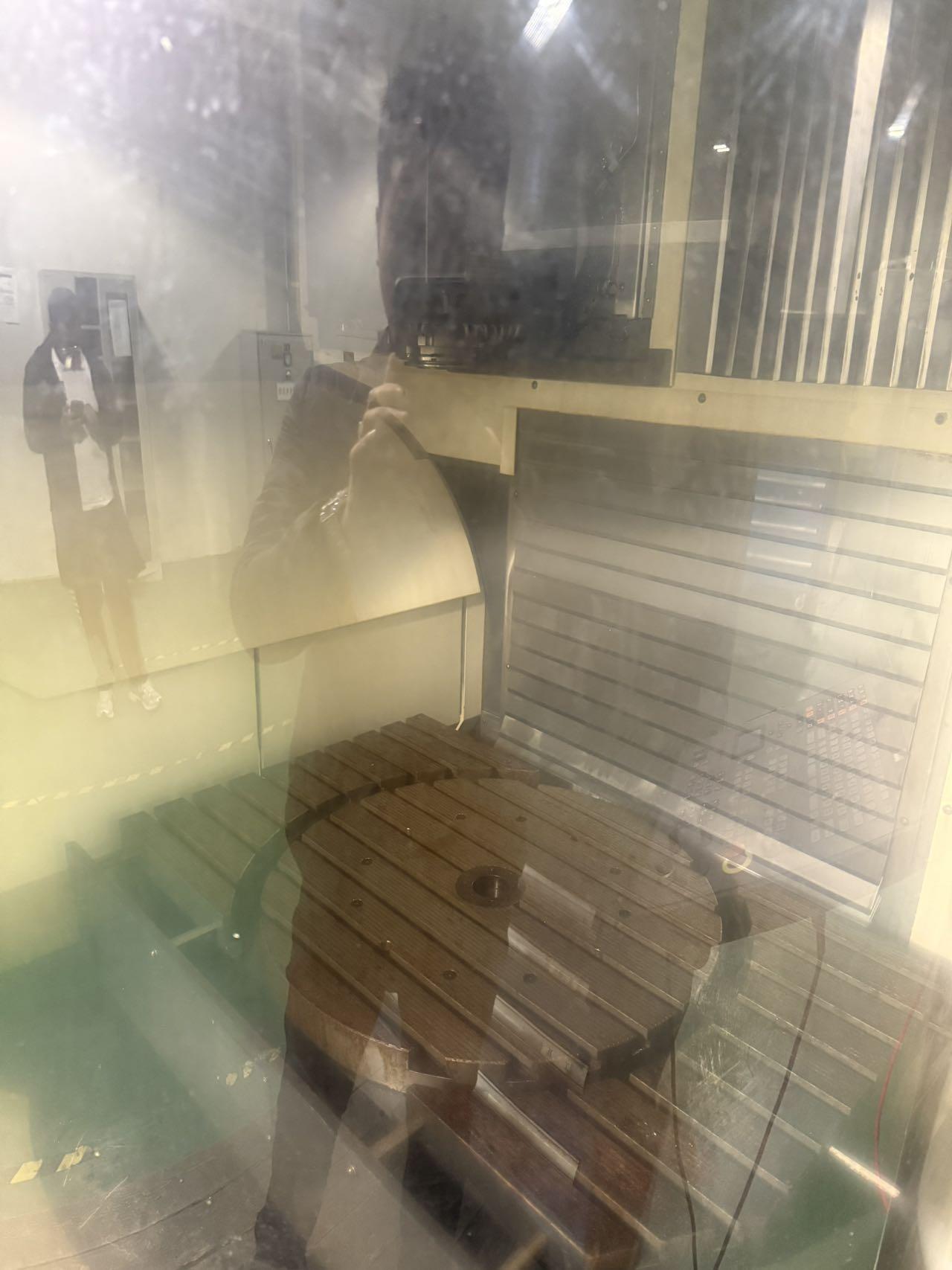

WorkWorktable size: 1000 mm × 600 mm
Maximum load of workWorktable: 500. kg
T-slot specification: Slot width 14. mm, slot spacing 63. mm

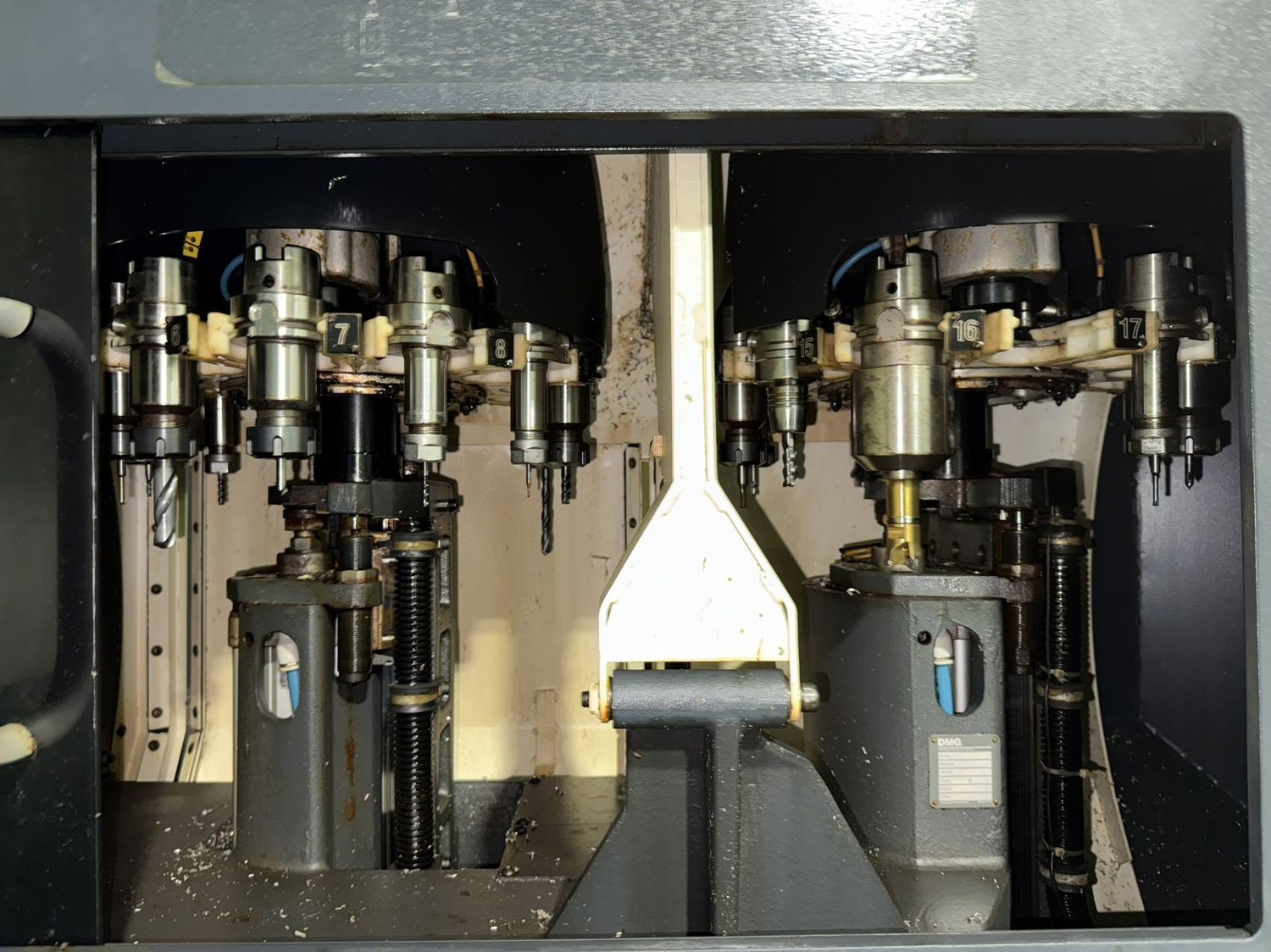

magazine capacity: 24 pieces
Maximum Tool diameter:
Neighboring tools: 80 mm
There are neighboring Tools: 130 mm
Maximum Tool length: 315 mm
Maximum Tool weight: 8. kg

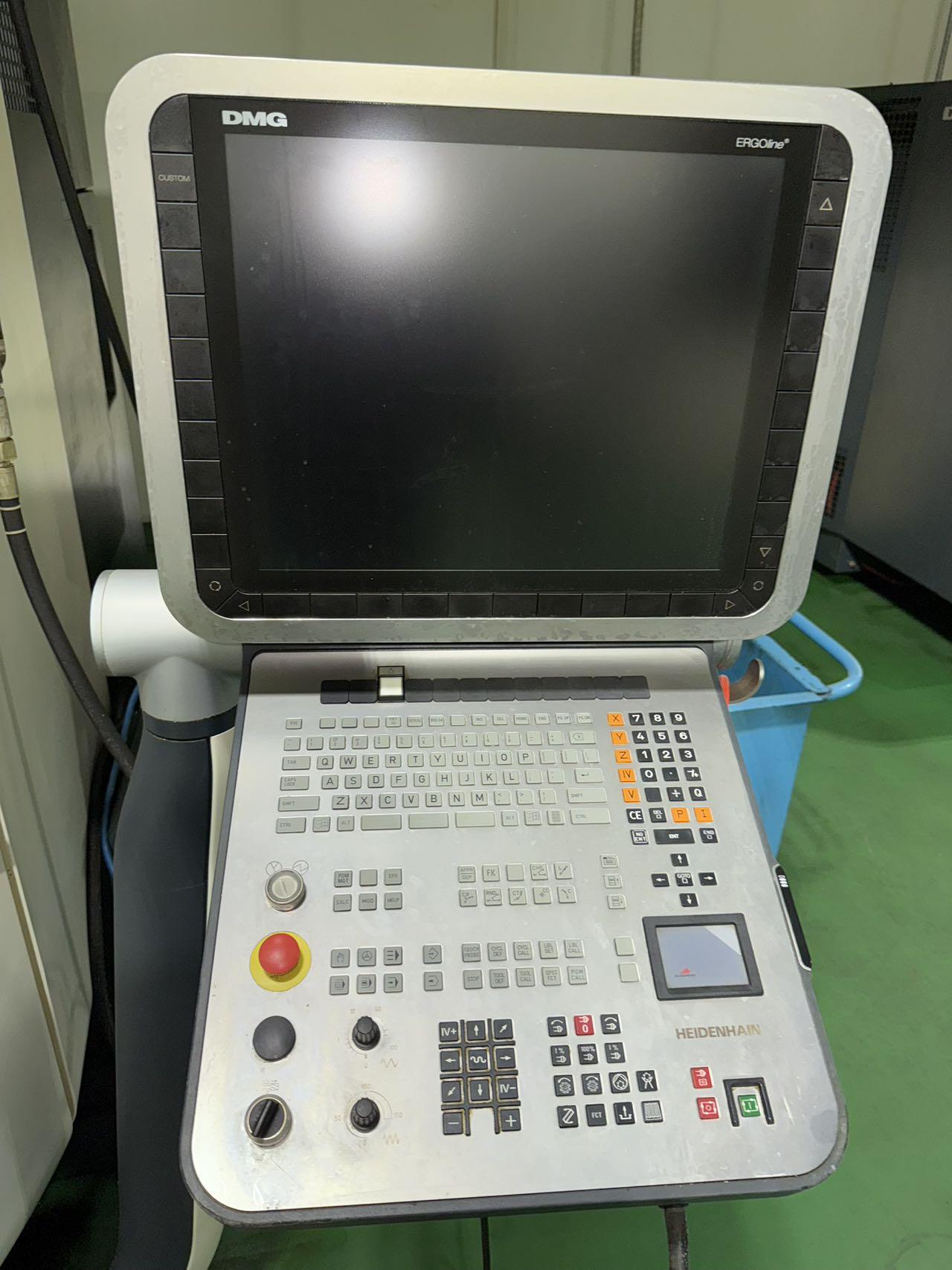

CNC System: Heidenhain iTNC 530
