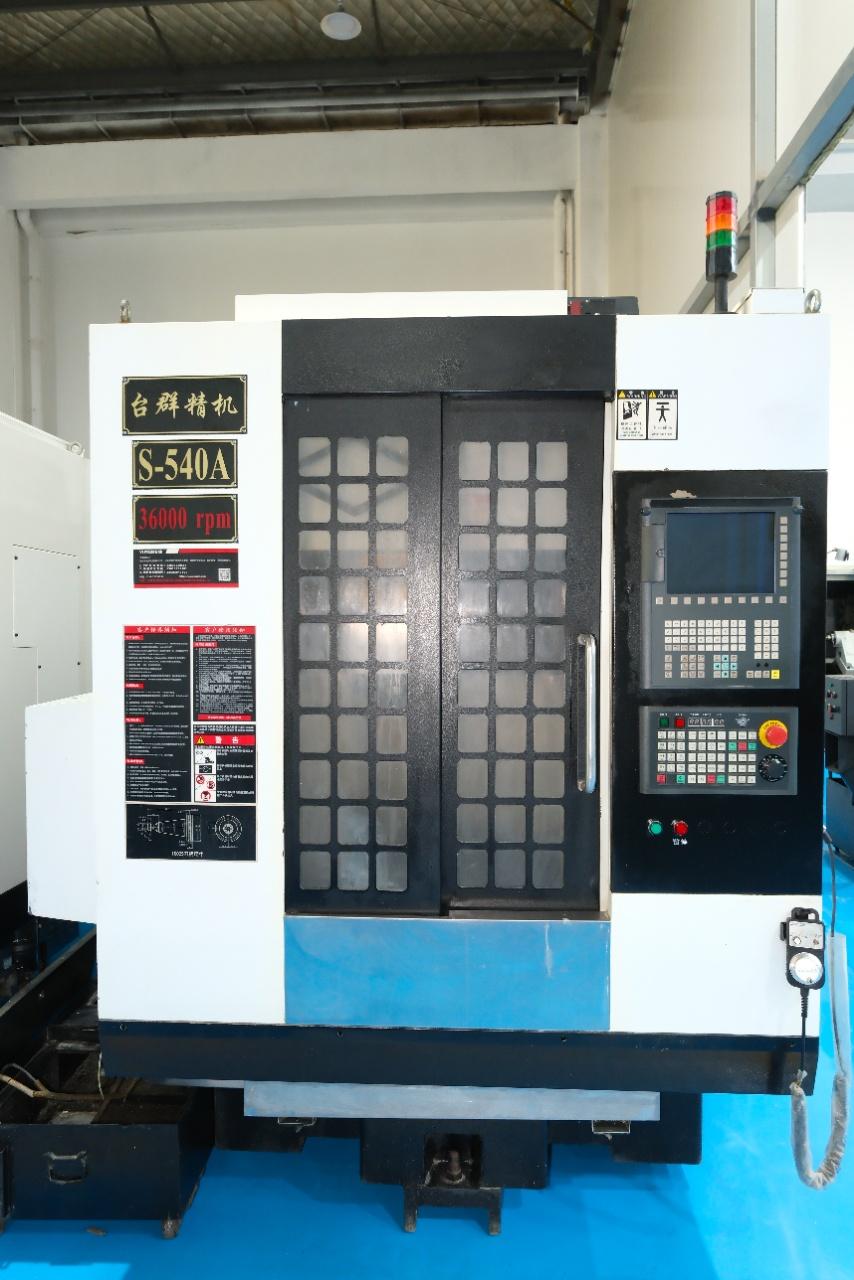

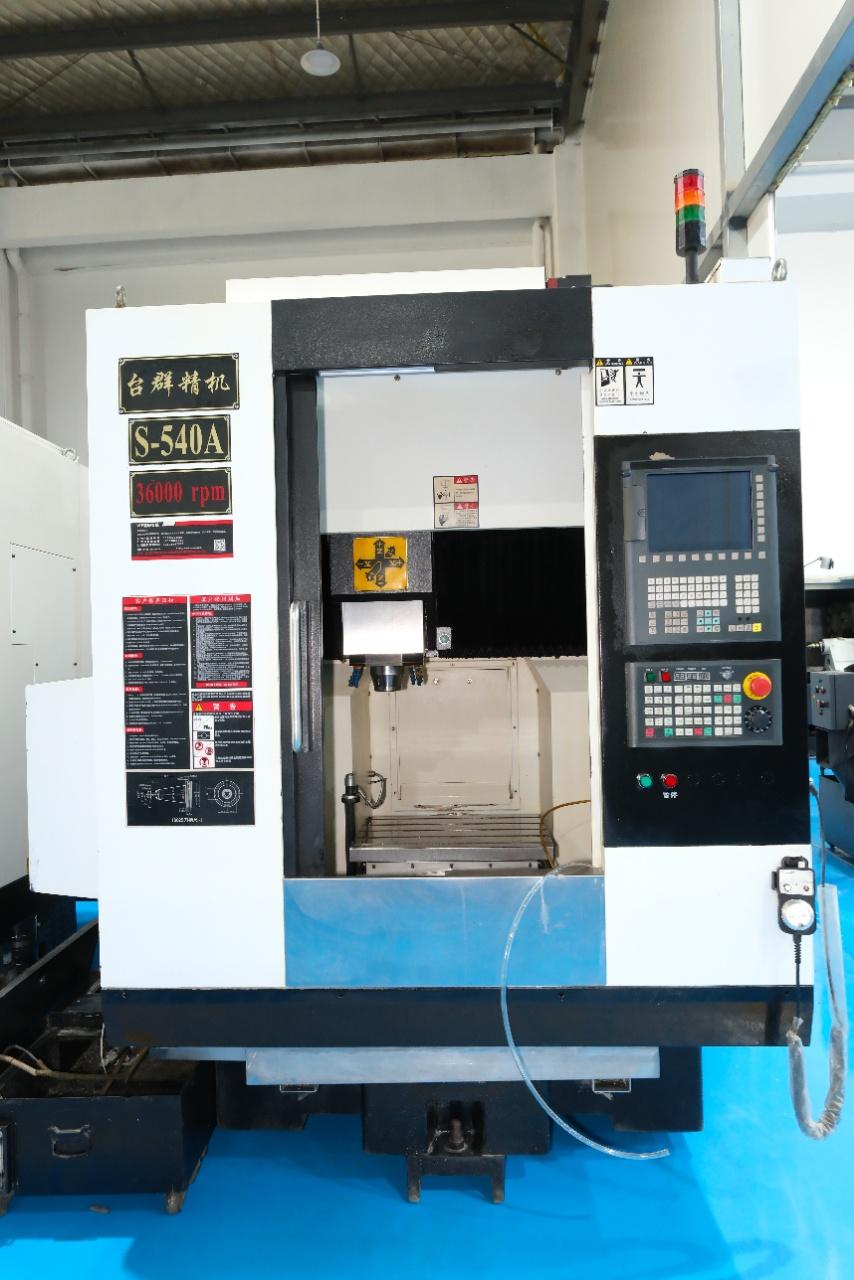

Taikan S-540A Automatic lathe

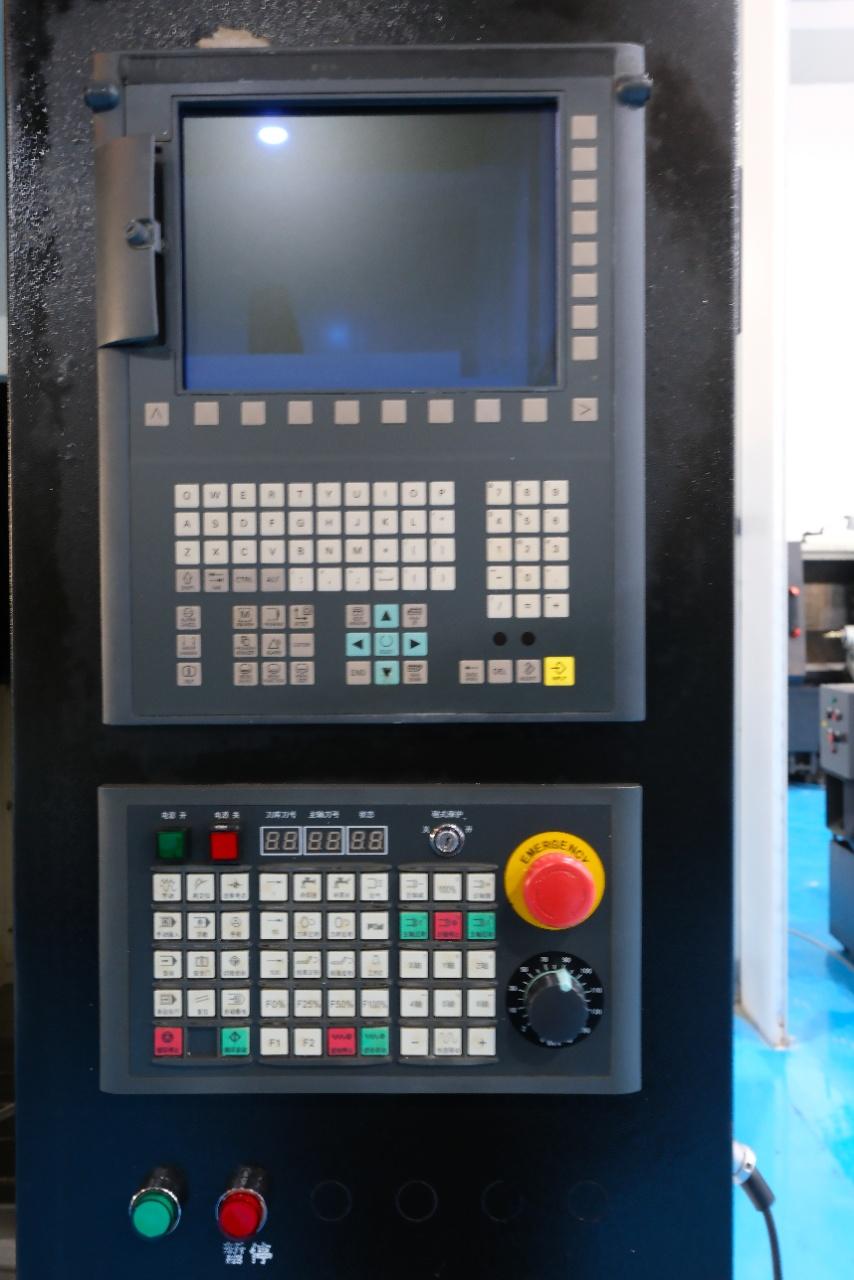

CNC System: Siemens 828D
Three-axis Travel: 500mm x 400mm x 238mm

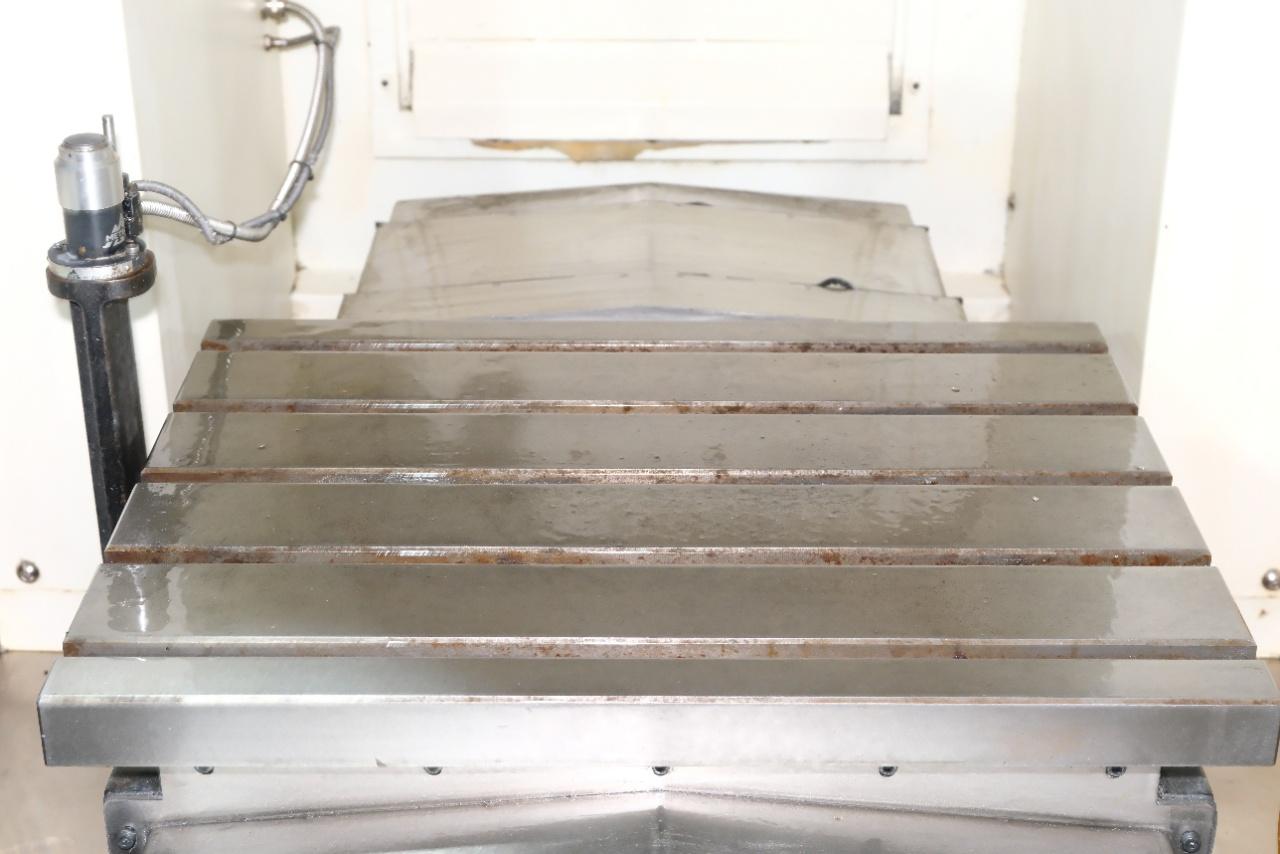

Worktable Size: 520mm x 400mm
Maximum Worktable Load: 200kg
Repeat Positioning Accuracy (X, Y, Z): 0.005mm x 0.005mm x 0.005mm
Spindle Speed: Up to 36,000 rpm
Spindle Interface: ISO25

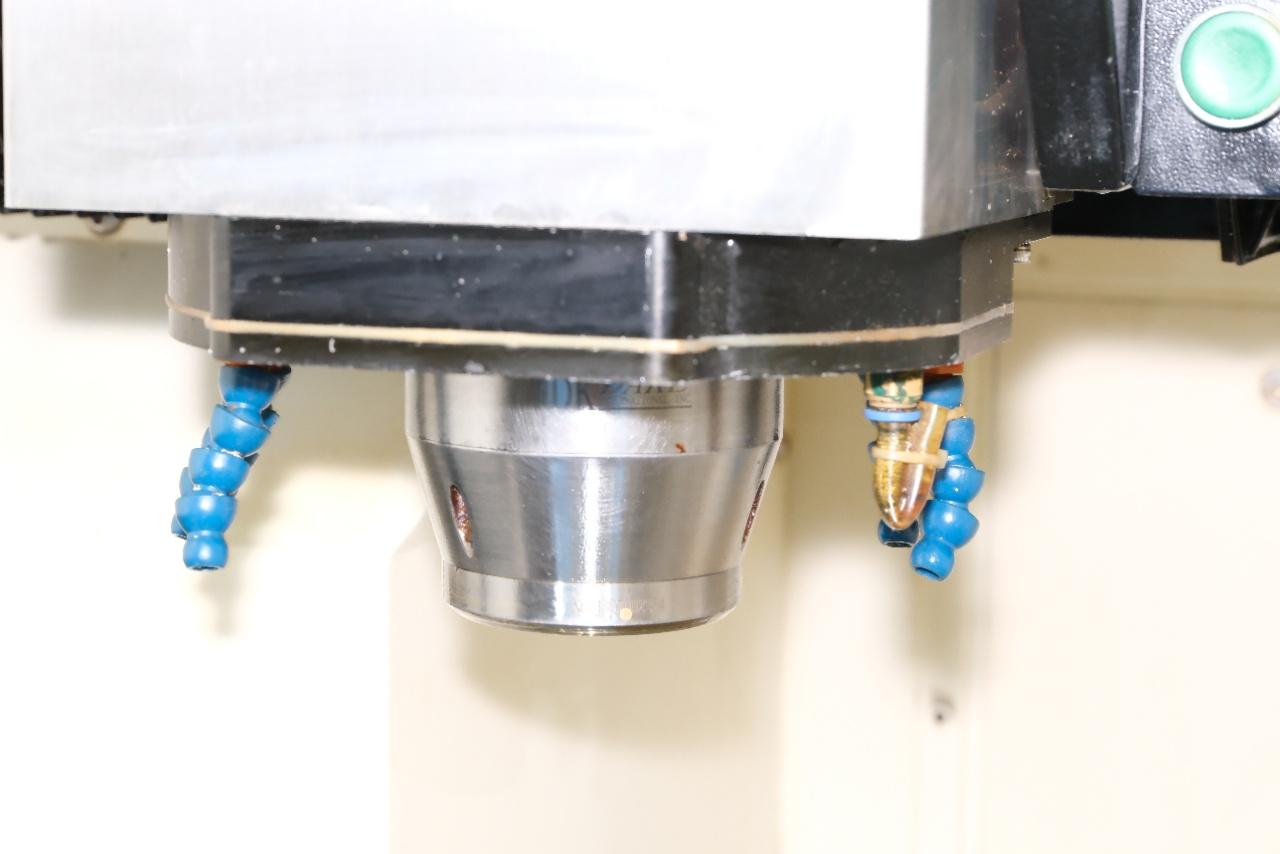

Spindle Type: 36,000 RPM Electric Spindle

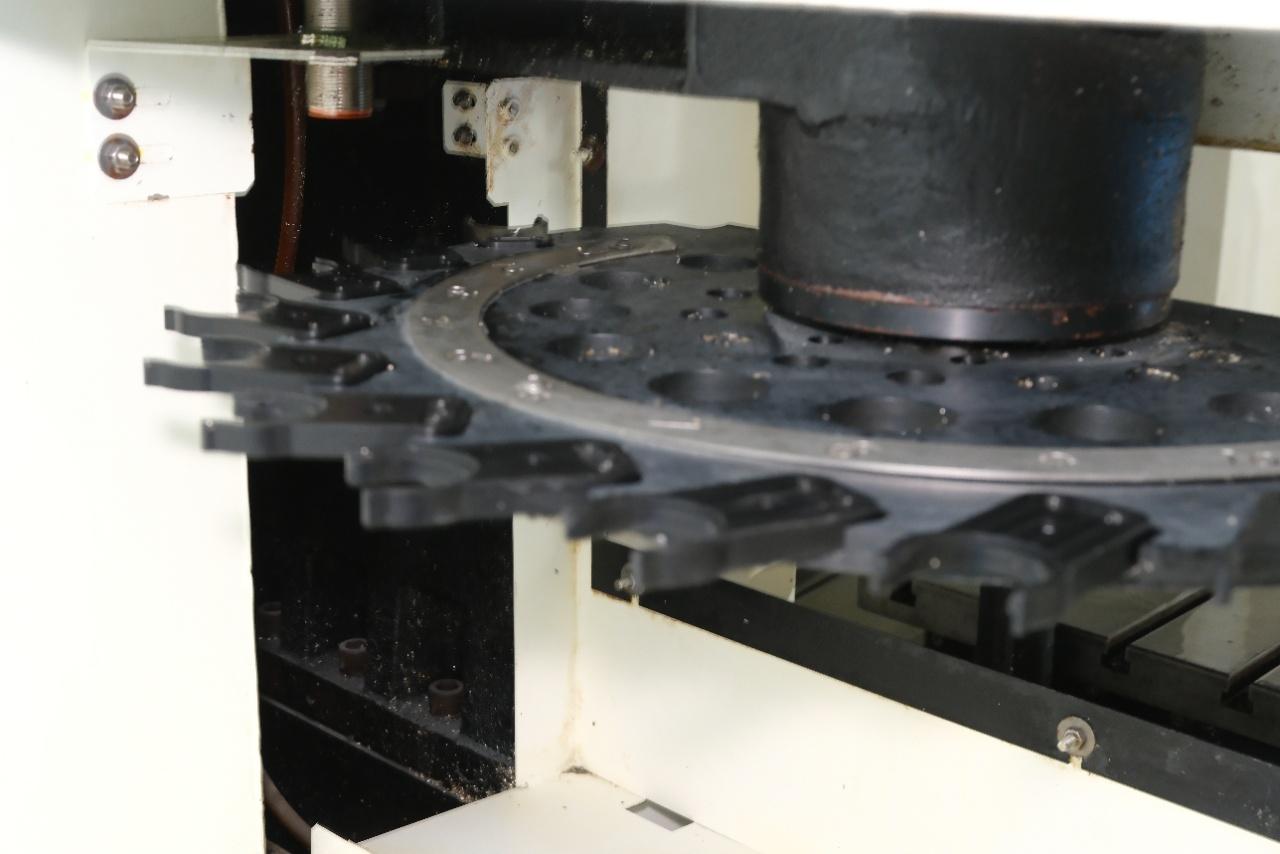

Tool Magazine Type: Inline Tool Magazine
Tool Quantity: 13-position Servo Tool Magazine
Machine Dimensions (L x W x H): 1800mm x 1500mm x 2200mm
Weight: 2800kg
