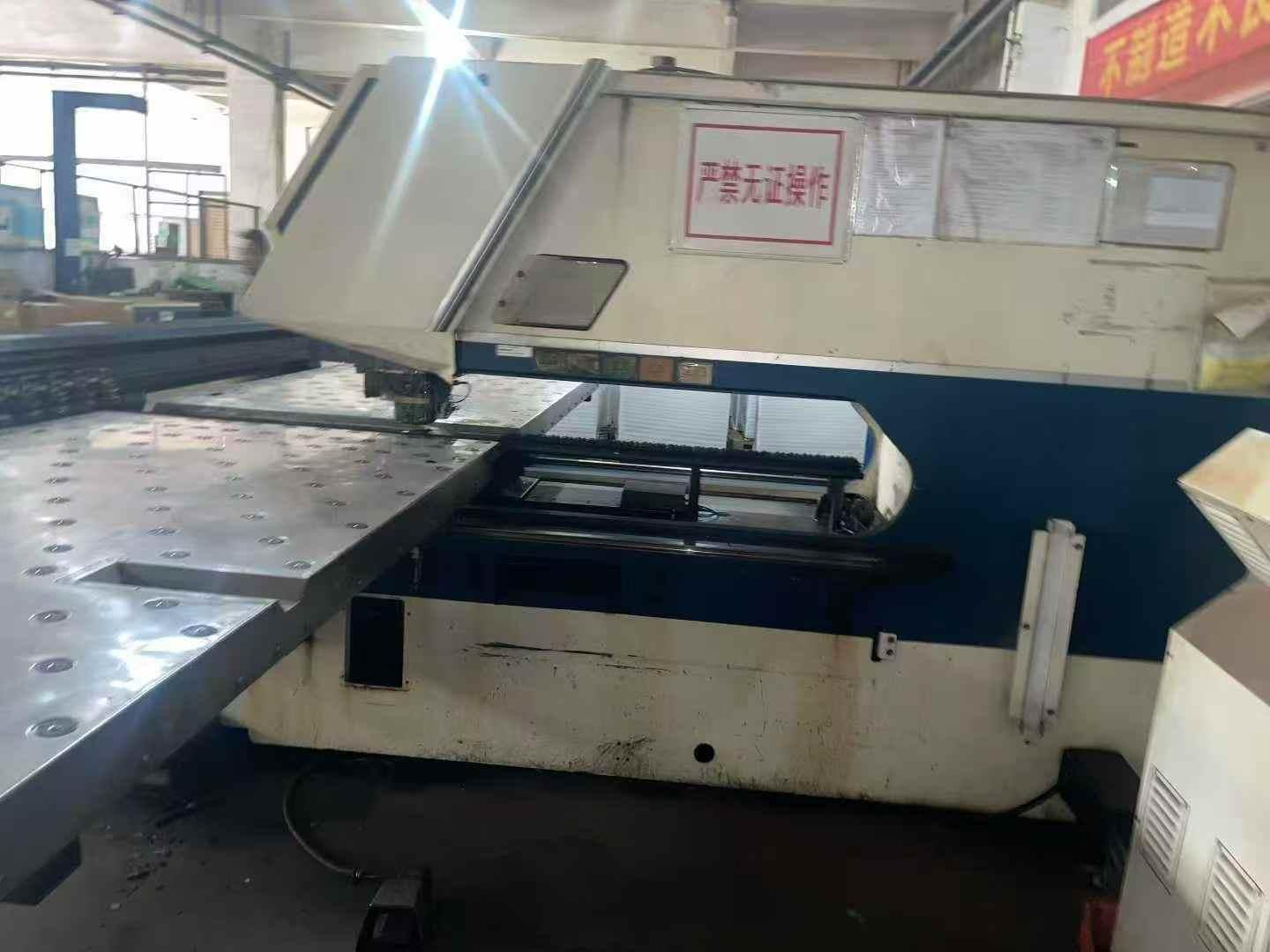

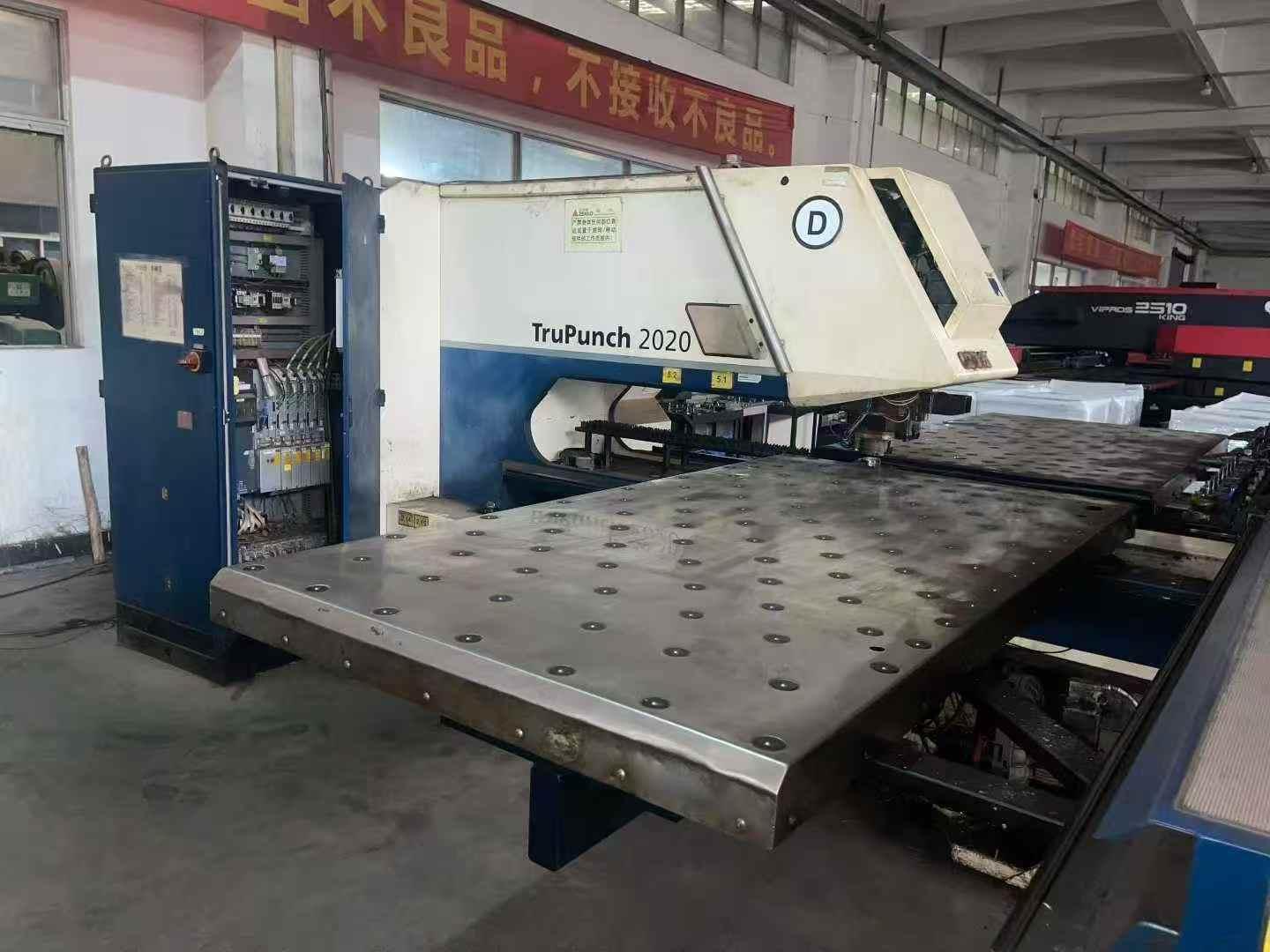

TRUMPF TruPunch 2020 Punch / press

Maximum Sheet Thickness: 6.4mm
Maximum Stamping Capacity: 180,000 N
Maximum Workpiece Weight: 150 kg
Maximum Workpiece Weight (Automation Unit): 2720 kg
Maximum Stacking Height (Automation Unit): 130mm
Maximum Headroom: 38mm
Programmable Foot Pressure: 4000-17000 N
X-axis Speed: 90 m/min
Y-axis Speed: 60 m/min
X/Y-axis Combined Movement Speed: 108 m/min
Stamping Stroke Speed: 900 S.P.M
Marking Stroke Speed: 420 S.P.M
Stamping Stroke (Marked) Speed: 2200 S.P.M
C-axis Rotation Speed: 3 rev/s
Linear Tool Magazine: 19 tools
Tool Rotation Angle: 360°
