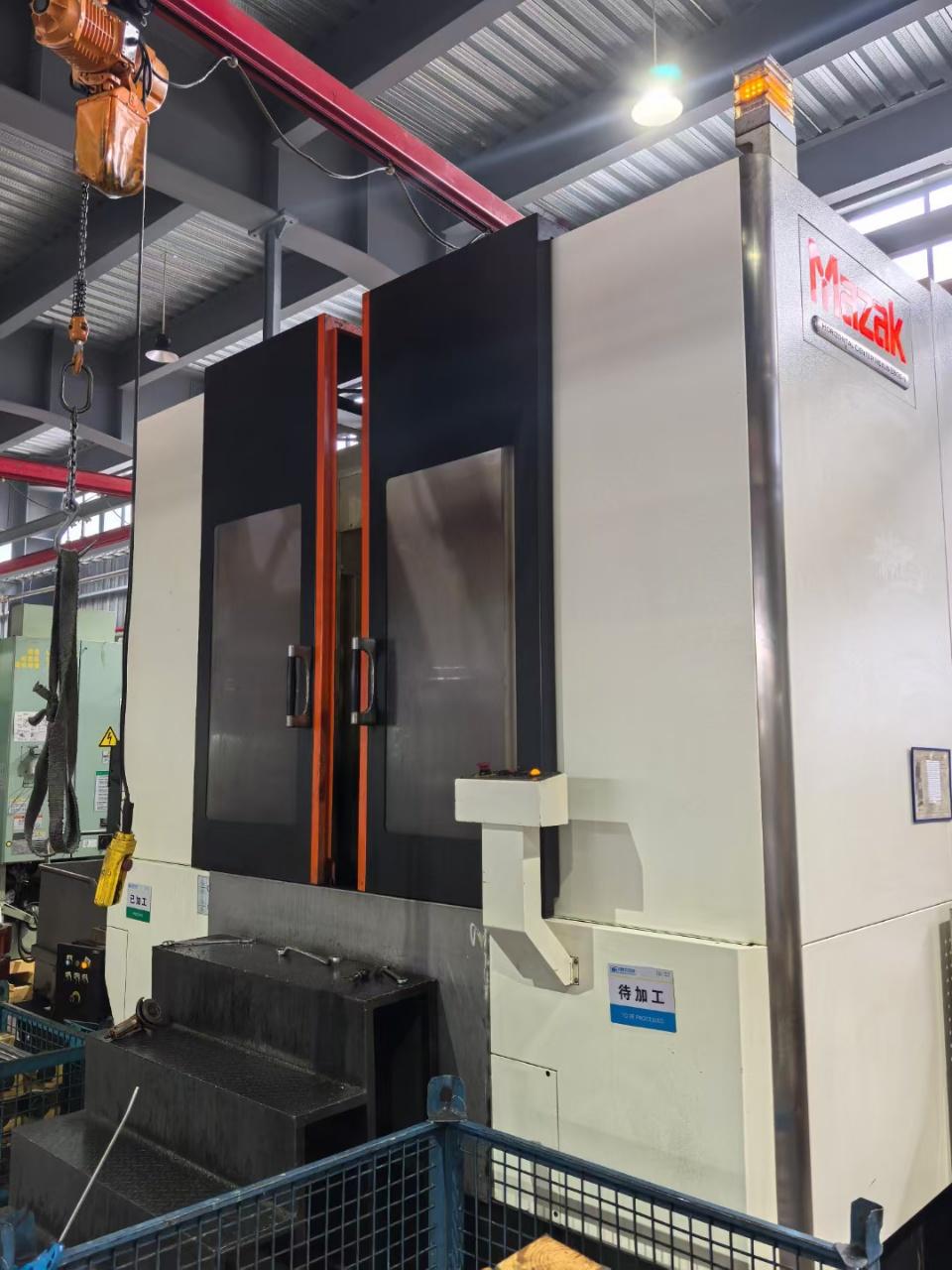

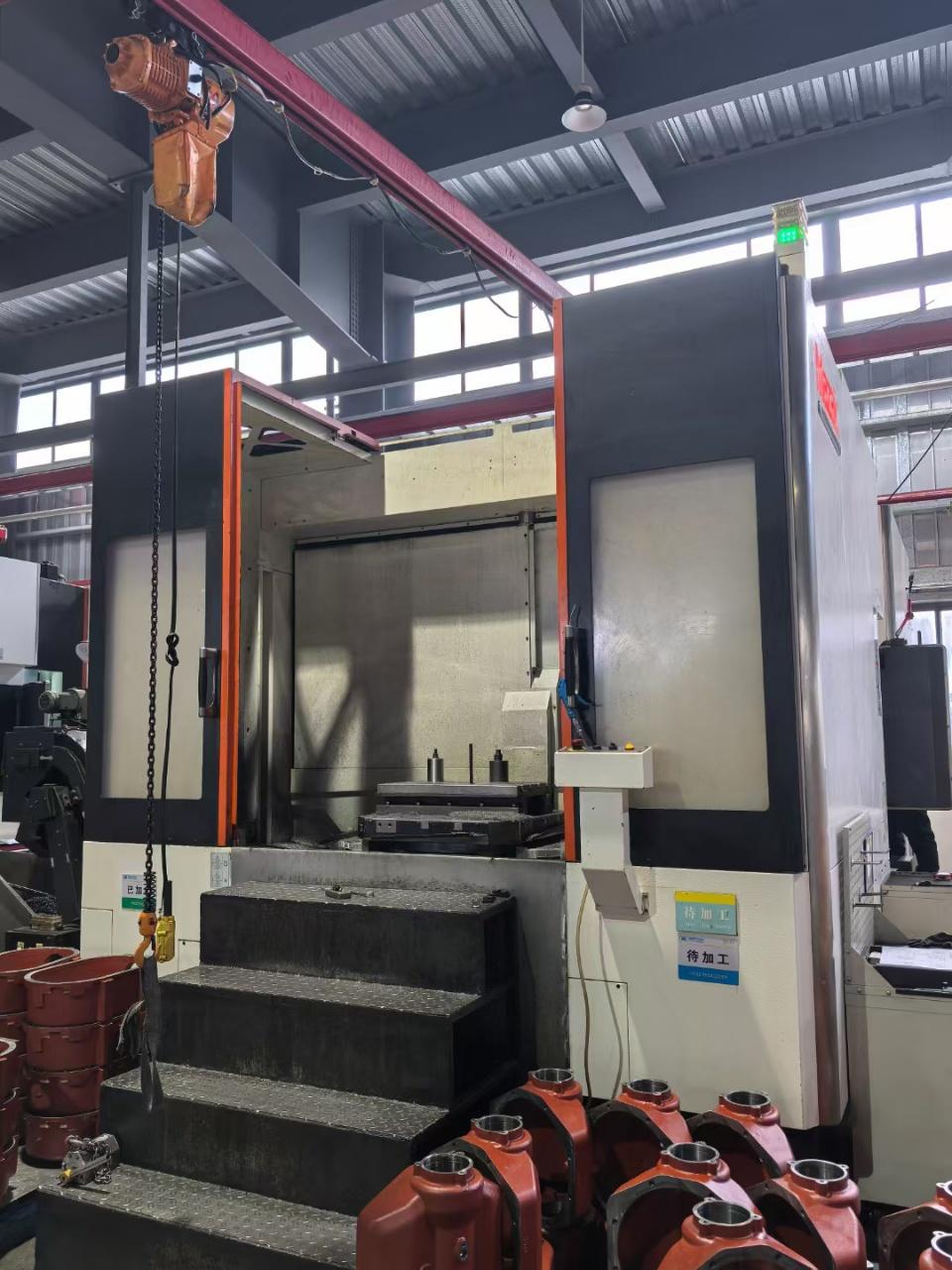

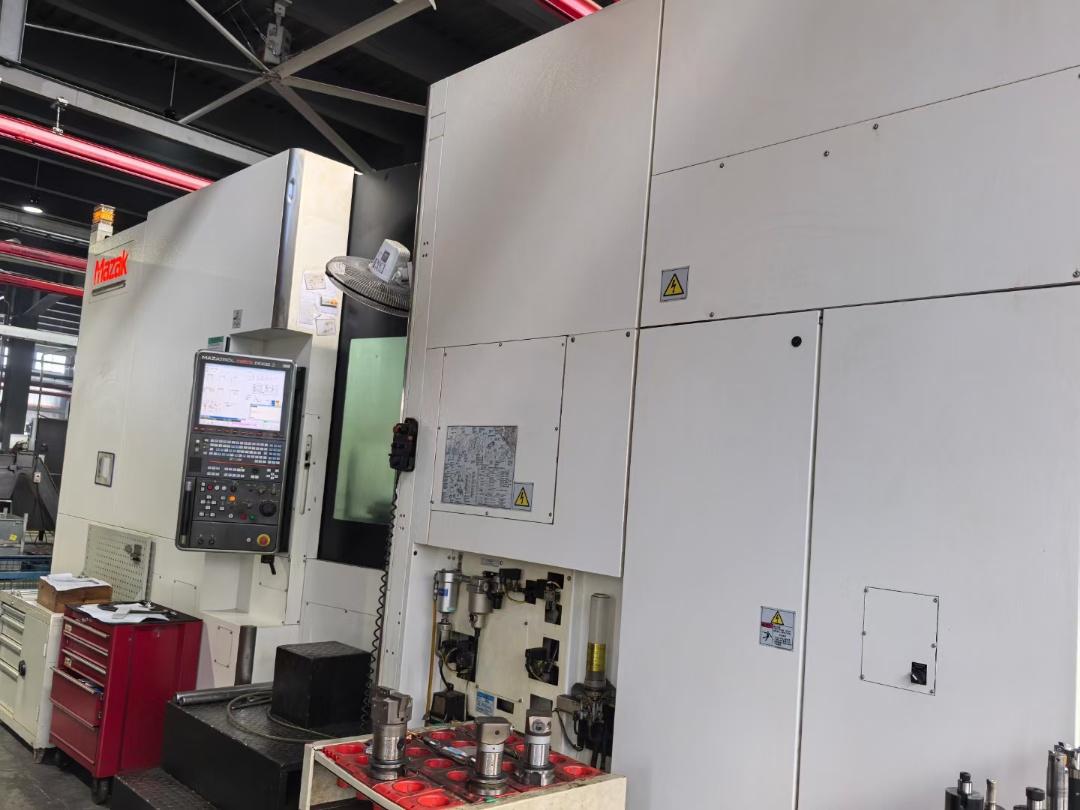

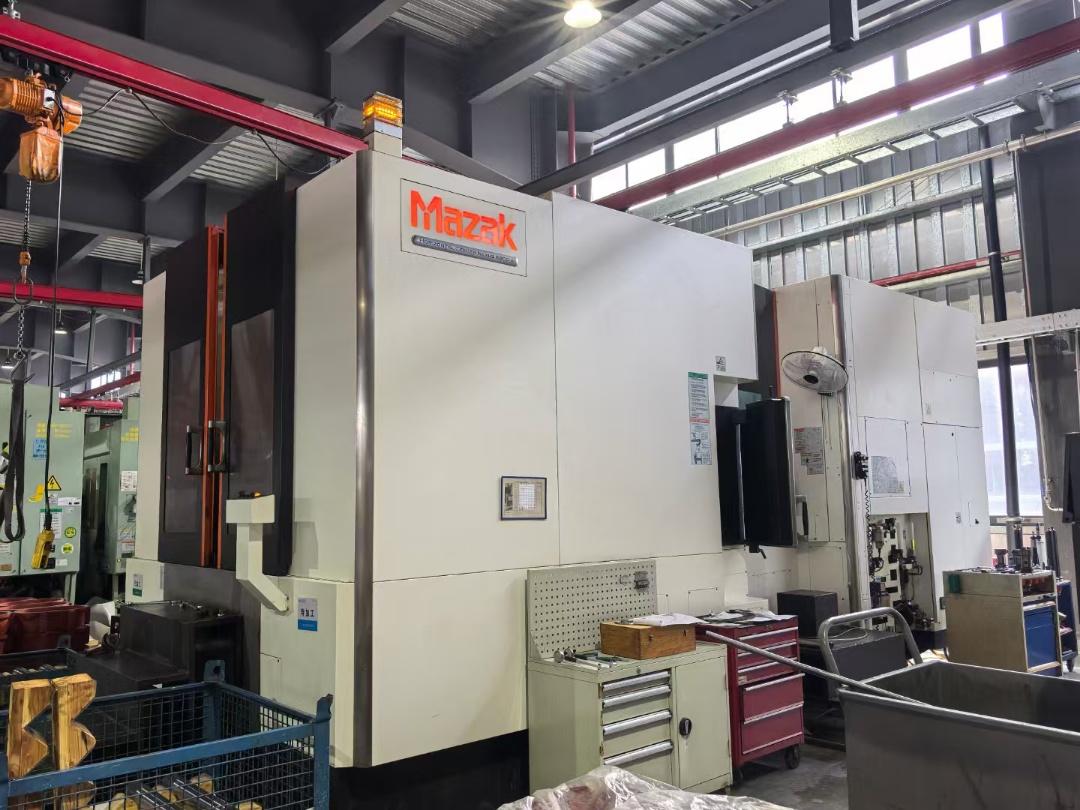

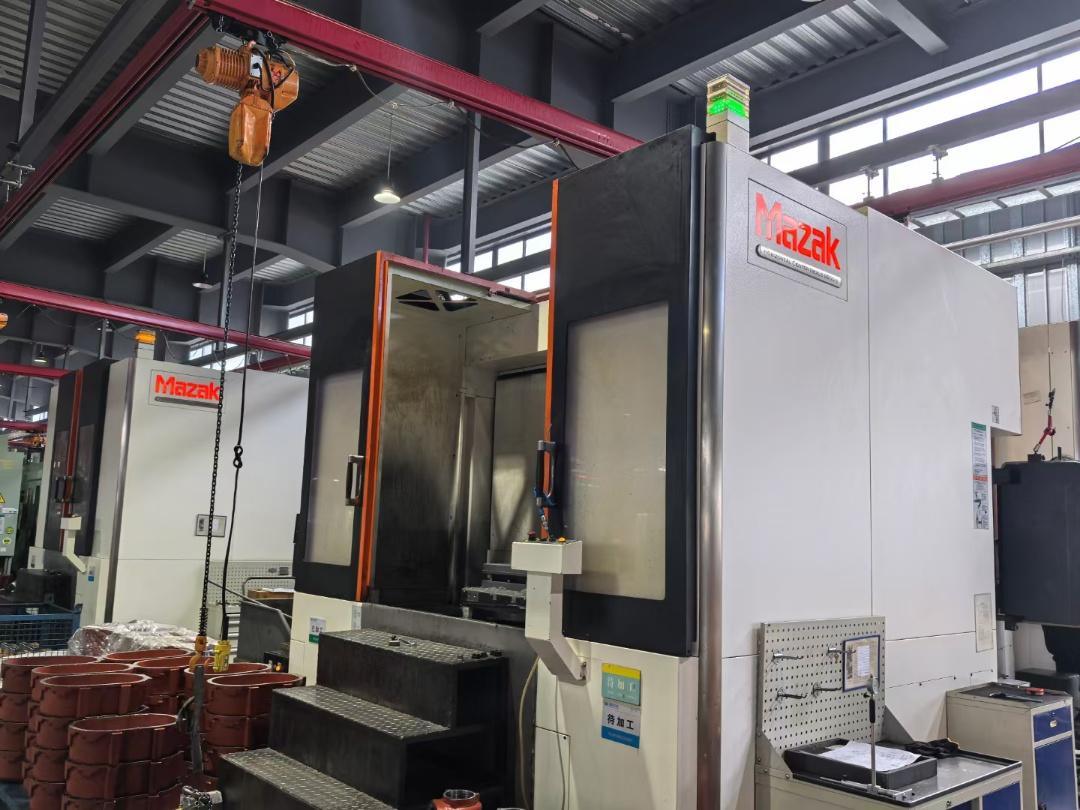

MAZAK HCN8800-II Horizontal Machining centre

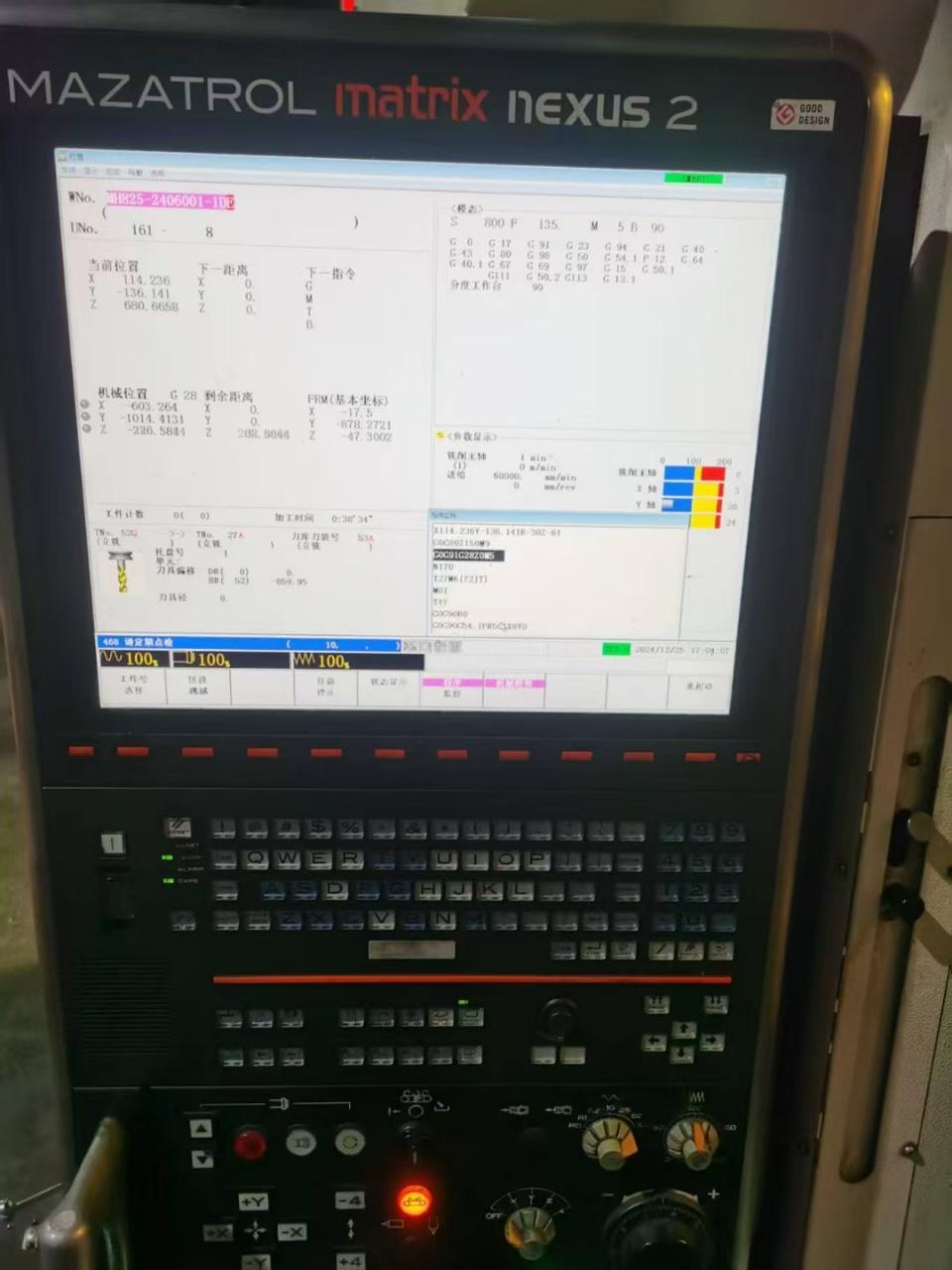

CNC System: MAZATROL MATRIX NEXUS2
X/Y/Z-axis Travel: 1400*1200*1325mm

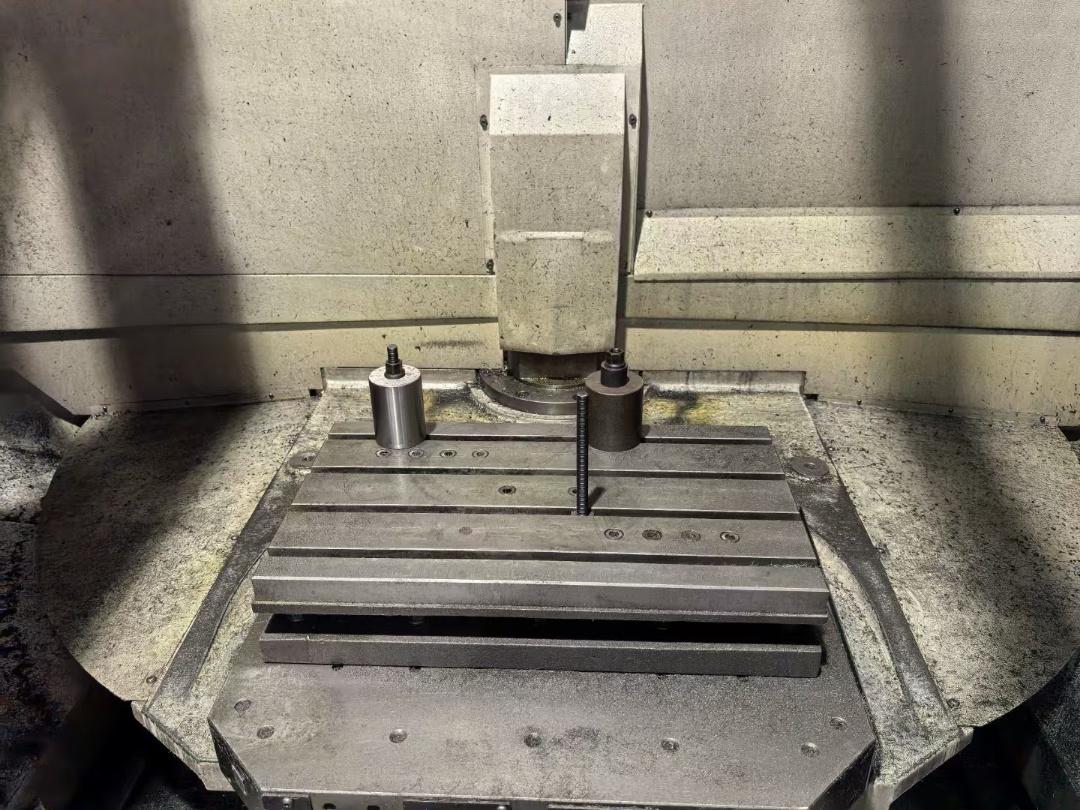

Worktable size (dual stations) : 800*800mm
Worktable load: 2200KG
Distance from spindle to Worktable: 100-1275mm
Maximum rotational diameter: 1450mm
Maximum machining height: 1450mm
Worktable is indexing resolution of 0.001deg
Spindle speed: 10,000 rpm
Tool holder form: BT50
Tools magazine capacity: 60
Maximum tool length: 800mm
Maximum tool weight: 30KG
Fast moving rate of X*Y*Z axis: 60,000 * 60,000 * 60,000 mm/min
