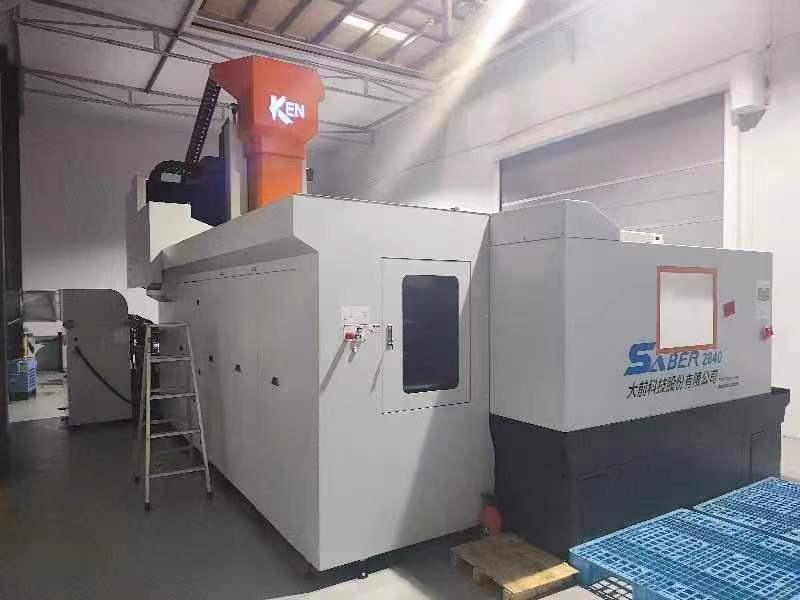

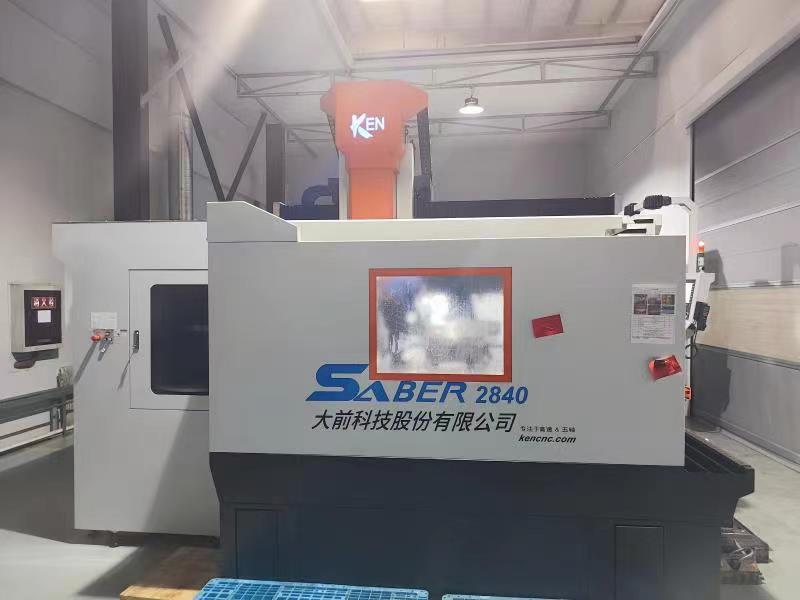

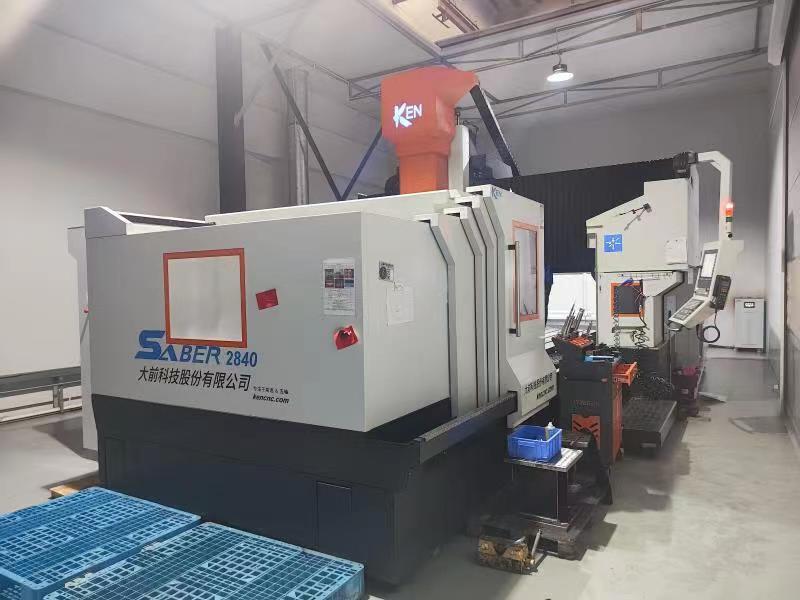

KENT SABER-2840 Gantry machining centre

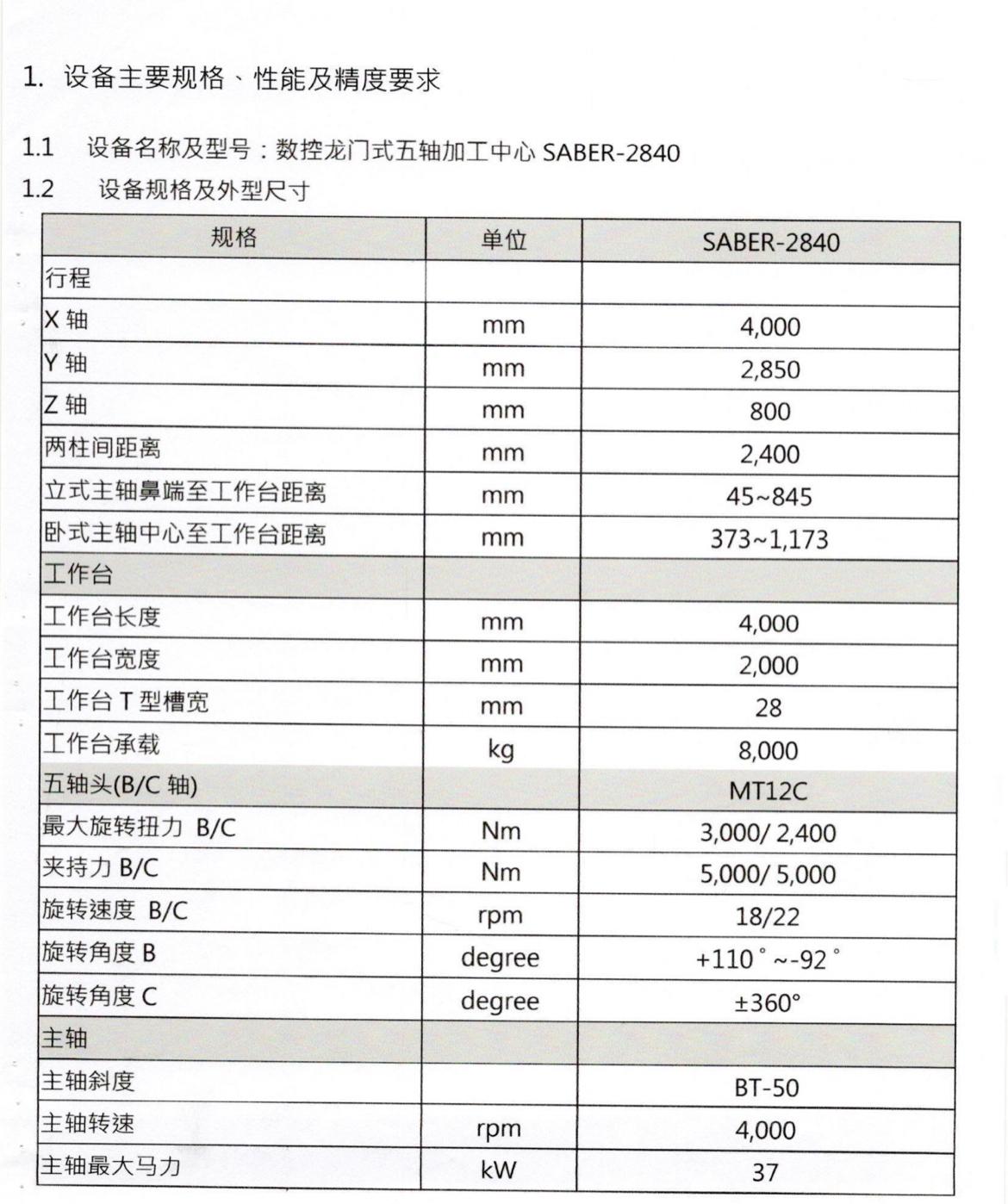

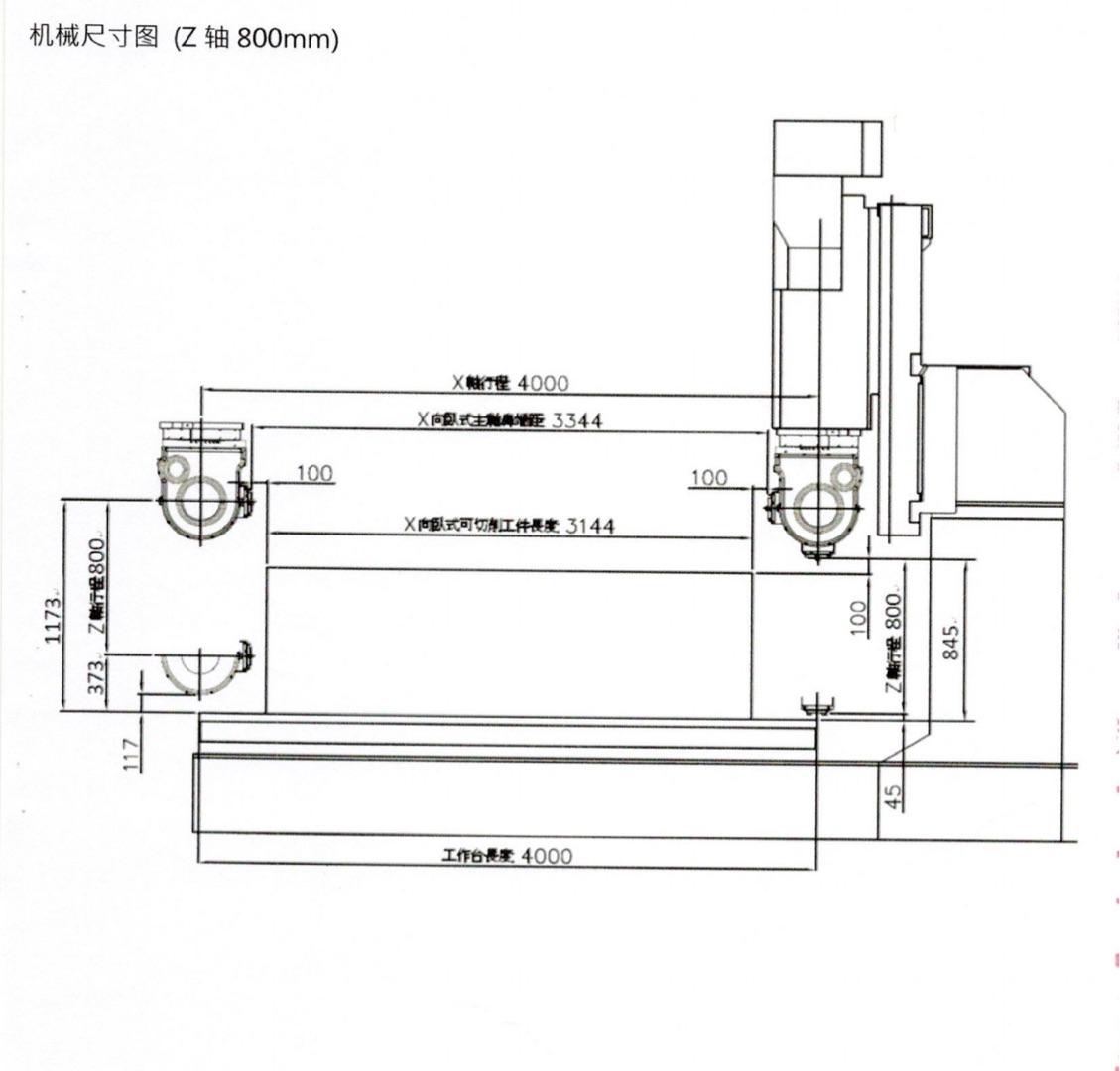

X-axis travel: 4,000mm

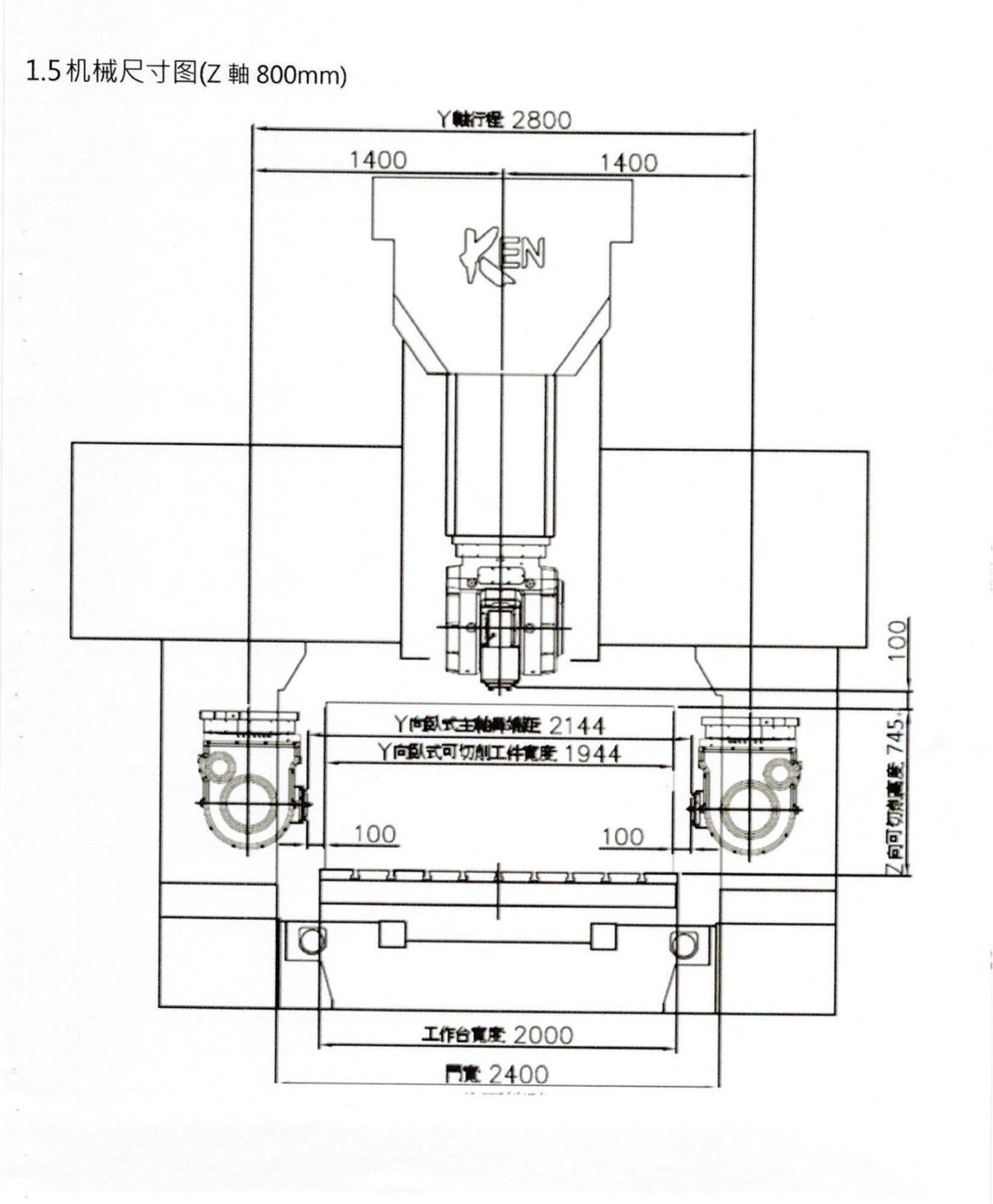

Y-axis travel: 2,850mm

Z-axis travel: 800mm

Distance between the two columns: 2,400mm

Distance from the nose end of the Vertical spindle to workWorktable is 45 to 845mm

Distance from the center of the horizontal spindle to workWorktable is 373 to 1,173mm

WorkWorktable length: 4,000mm

WorkWorktable width: 2,000mm

The width of the T-slot on workWorktable is 28mm

WorkWorktable load: 8,000kg

Maximum rotational torsion: B/C ³,000/2,400Nm

Clamping force: B/C5,000/5,000Nm

Rotational speed: B/C18/22 RPM

Rotation Angle: B+110° to -92 'degree

Rotation Angle: C±360°degree

spindle: BT50

Spindle speed: 4,000rpm

Maximum horsepower of spindle: 37kW
