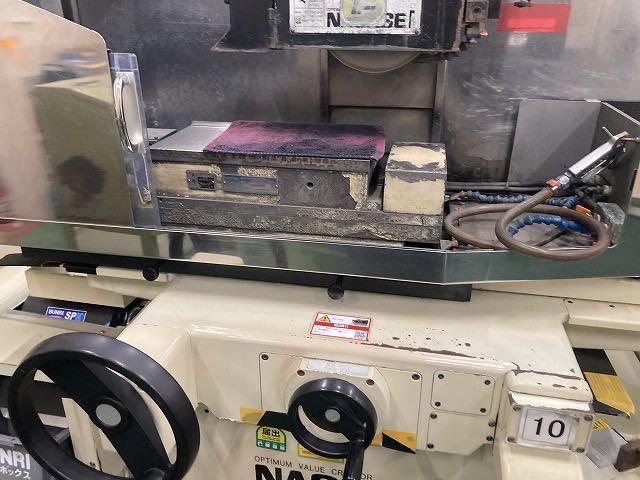

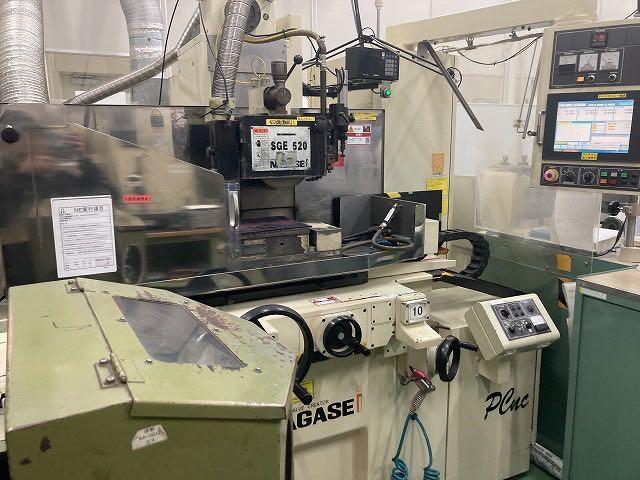

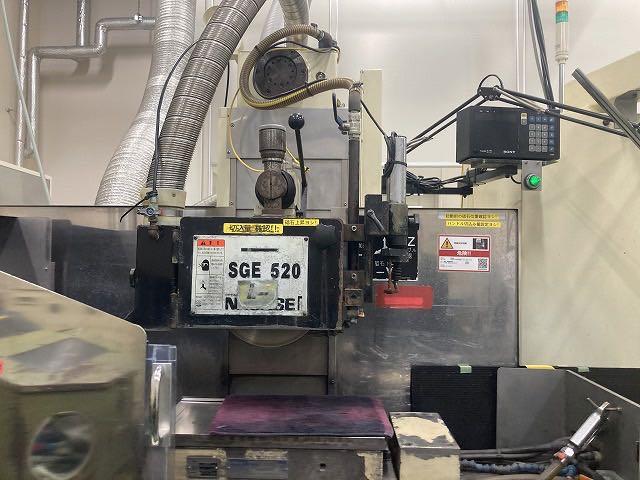

NAGASE SGE-520BLD2 Surface grinder

[Product Information]:

Inventory number：89999
Brand：NAGASE
Model：SGE-520BLD2
Origin：
Location：China
Year：2005
Create Time：2025-12-27

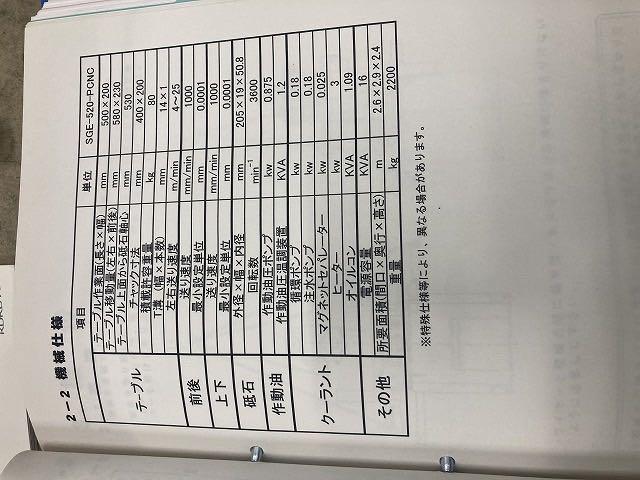

Specifications:

Worktable size (length × width) : 500 × 200 mm
Distance from the Worktable topto spindle face: 530mm
Left-right feed rates: 4-25 mm/min
Transmission speed: 1000 mm/min
Minimum setting unit: 0.0001mm
Grinding wheel Dimension (external diameter (D) × thickness (W) × hole diameter (H)) : 205 x 19 x 50.8mm
Grinding wheel speed: 3600 rpm
