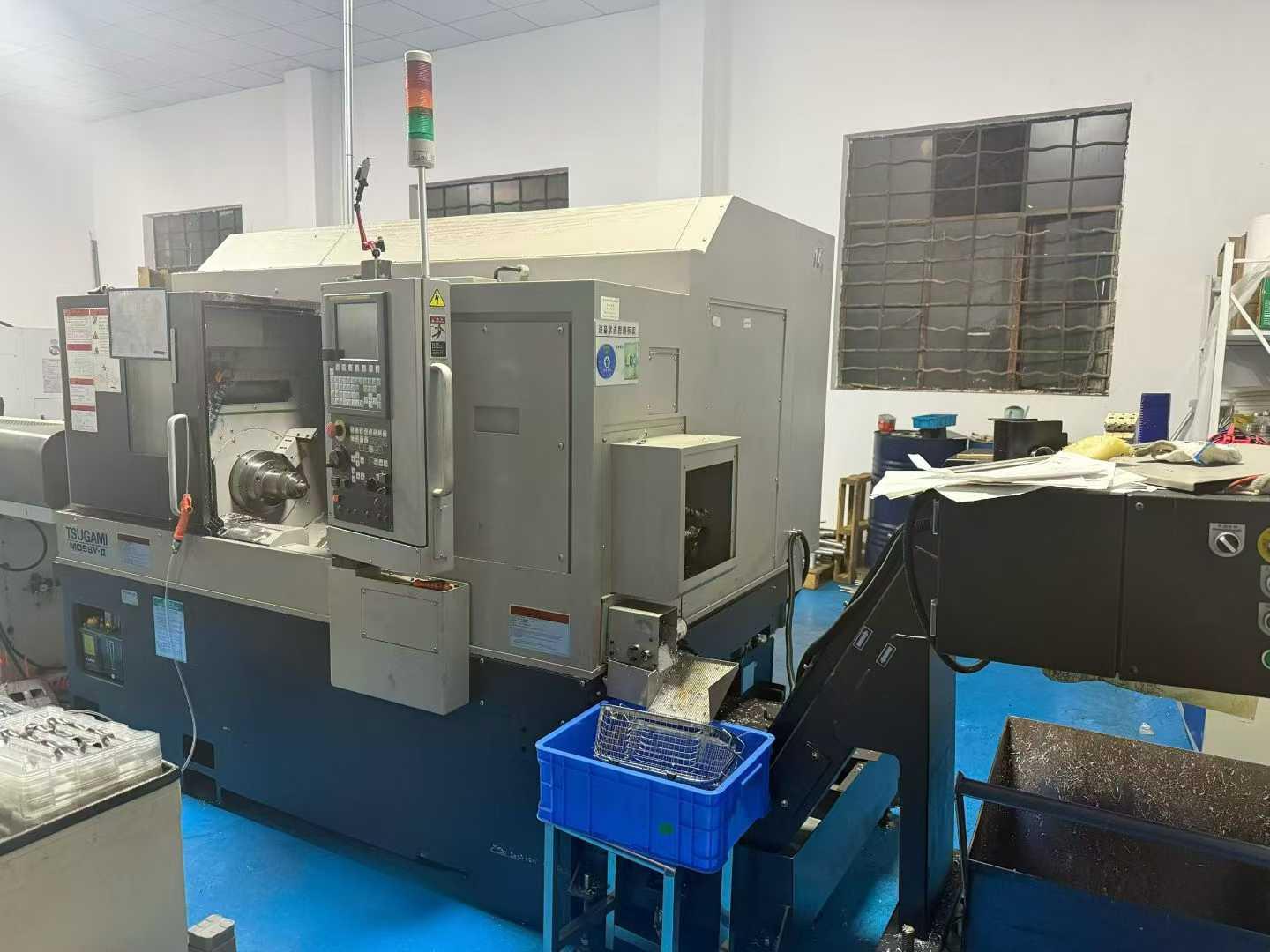

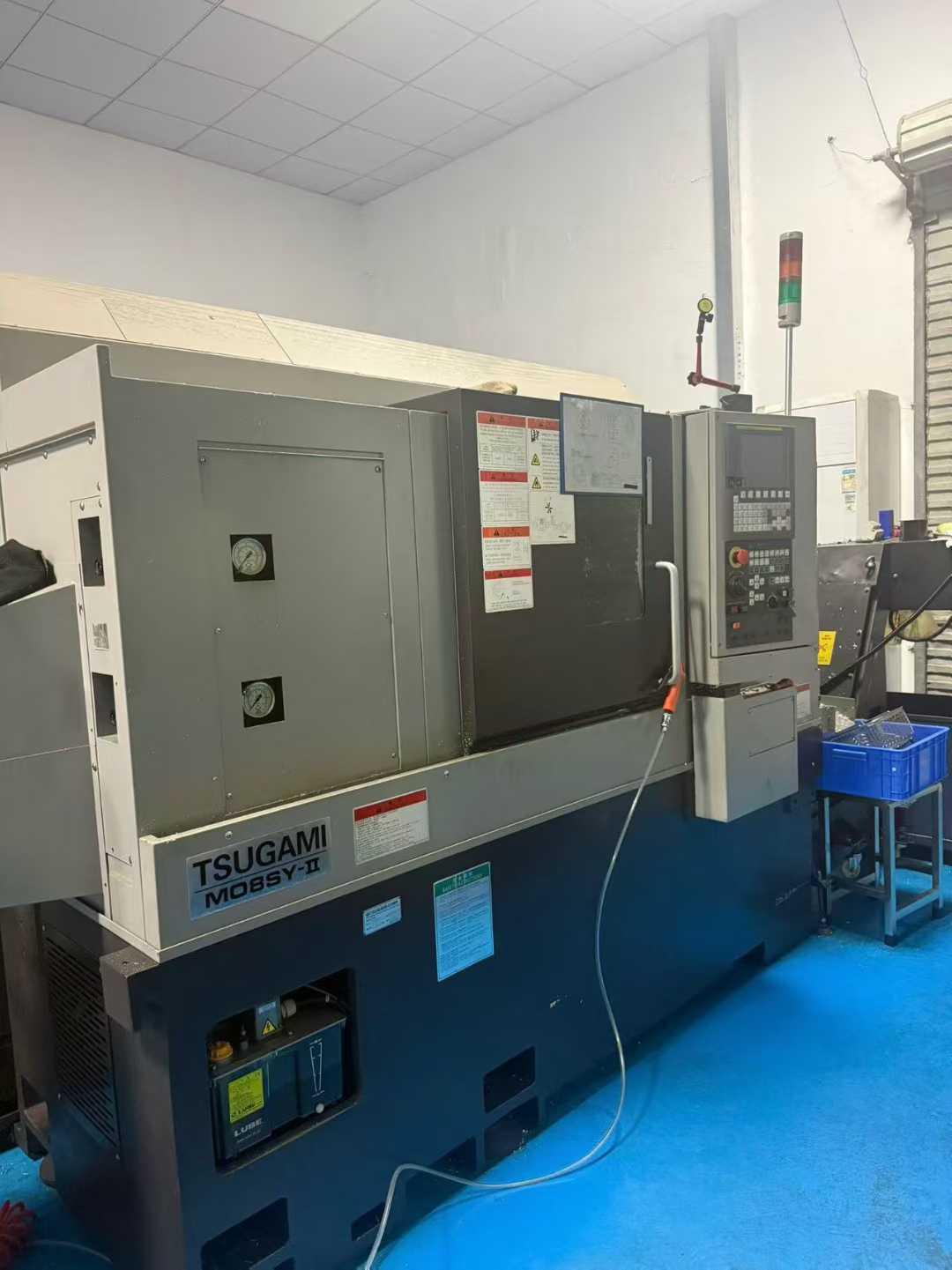

Tsugami M08SY-II Turn Mill Machining Centre

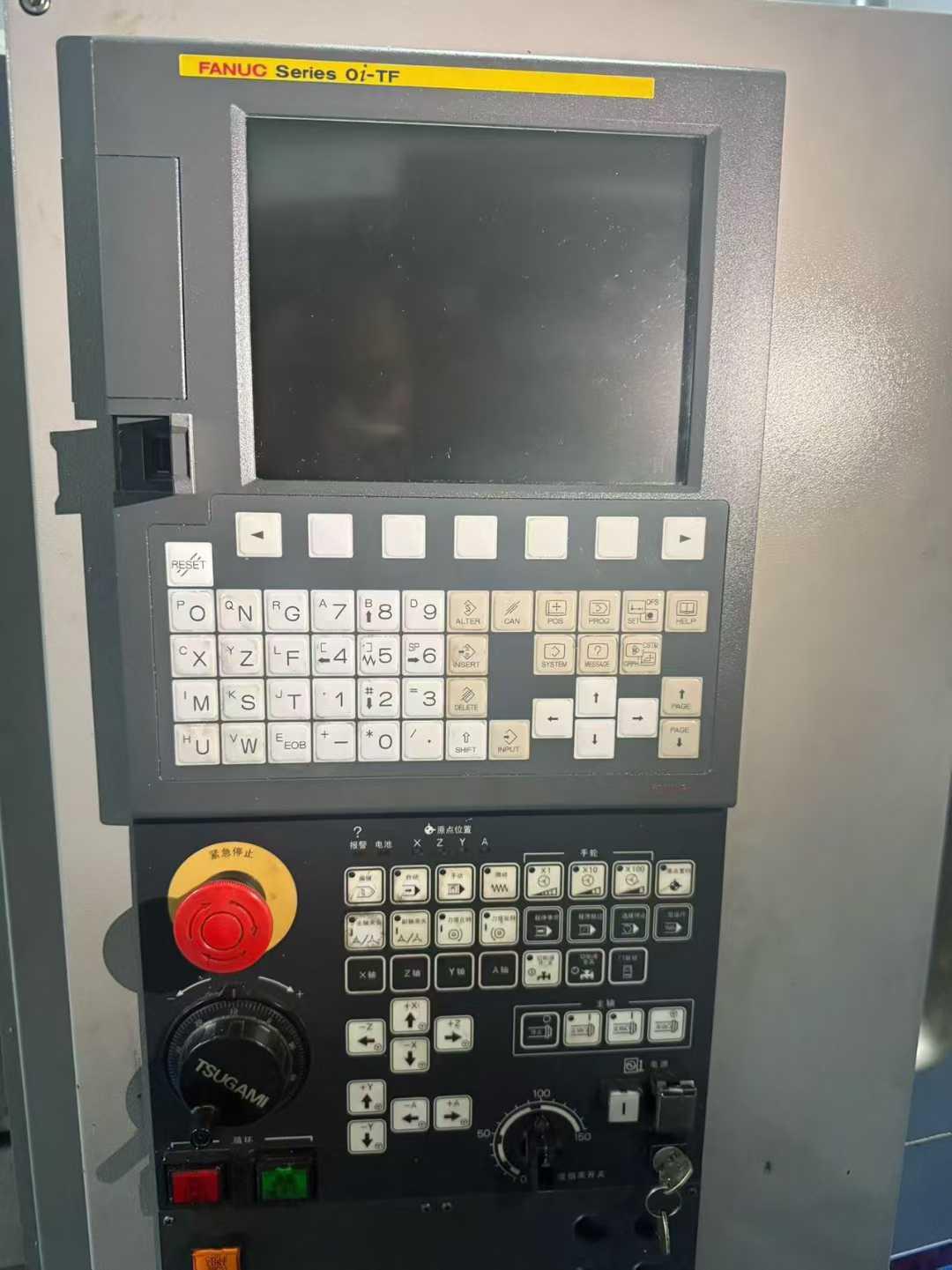

CNC System: FANUC Oi-TF Plus
X*Z*A*Y-axis Travel: 221400*506*±50mm
X*Z*A*Y-axis fast feed Rate: 2427*30*12 m/min
Through-Hole Diameter: 65mm
Spindle Motor: 7.5/11 kW
Spindle Speed: 4500 rpm

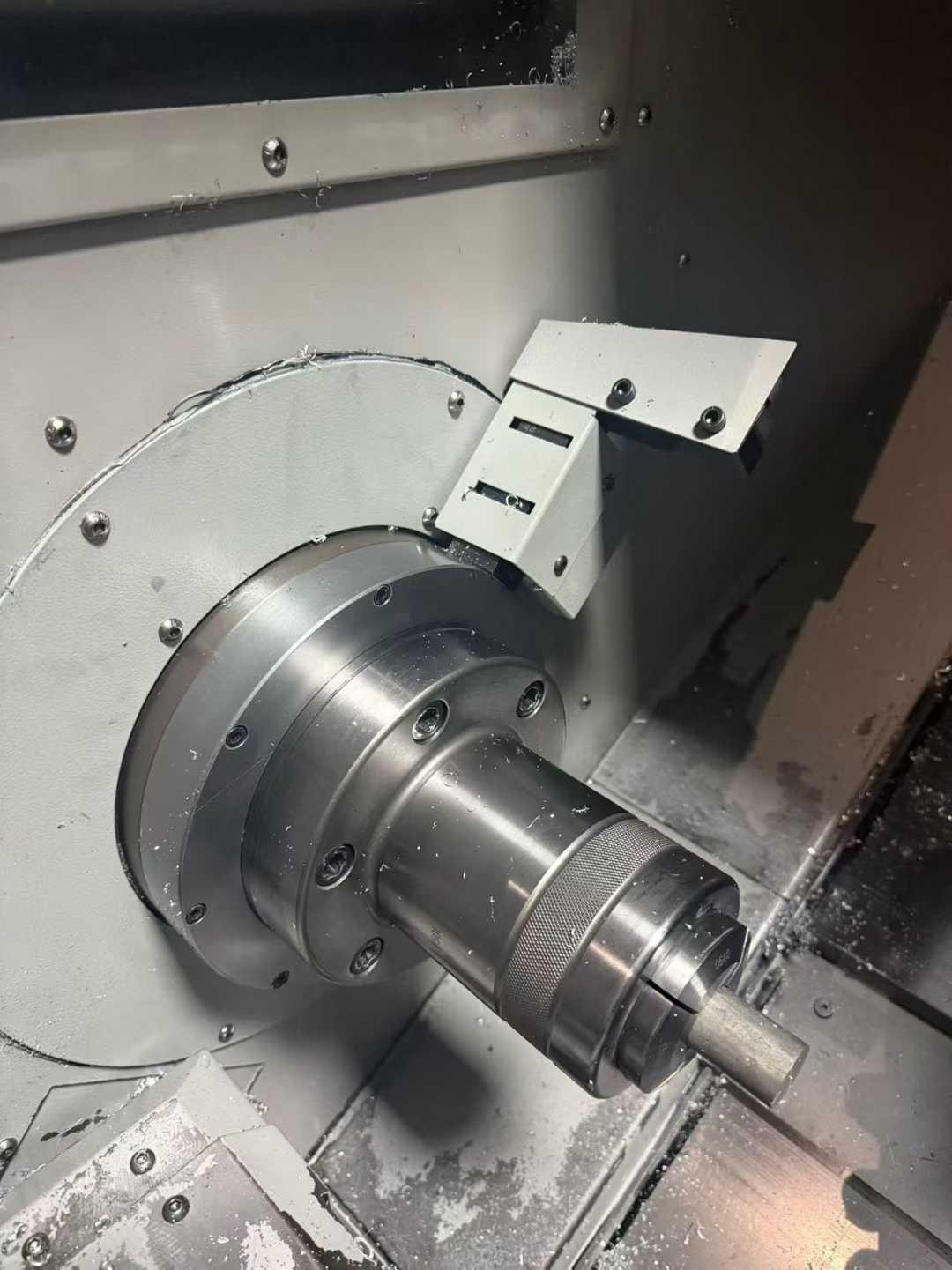

Through-Hole Diameter: 59mm
Sub-Spindle Motor: 5.5/7.5 kW
Sub-Spindle Speed: 4500 rpm

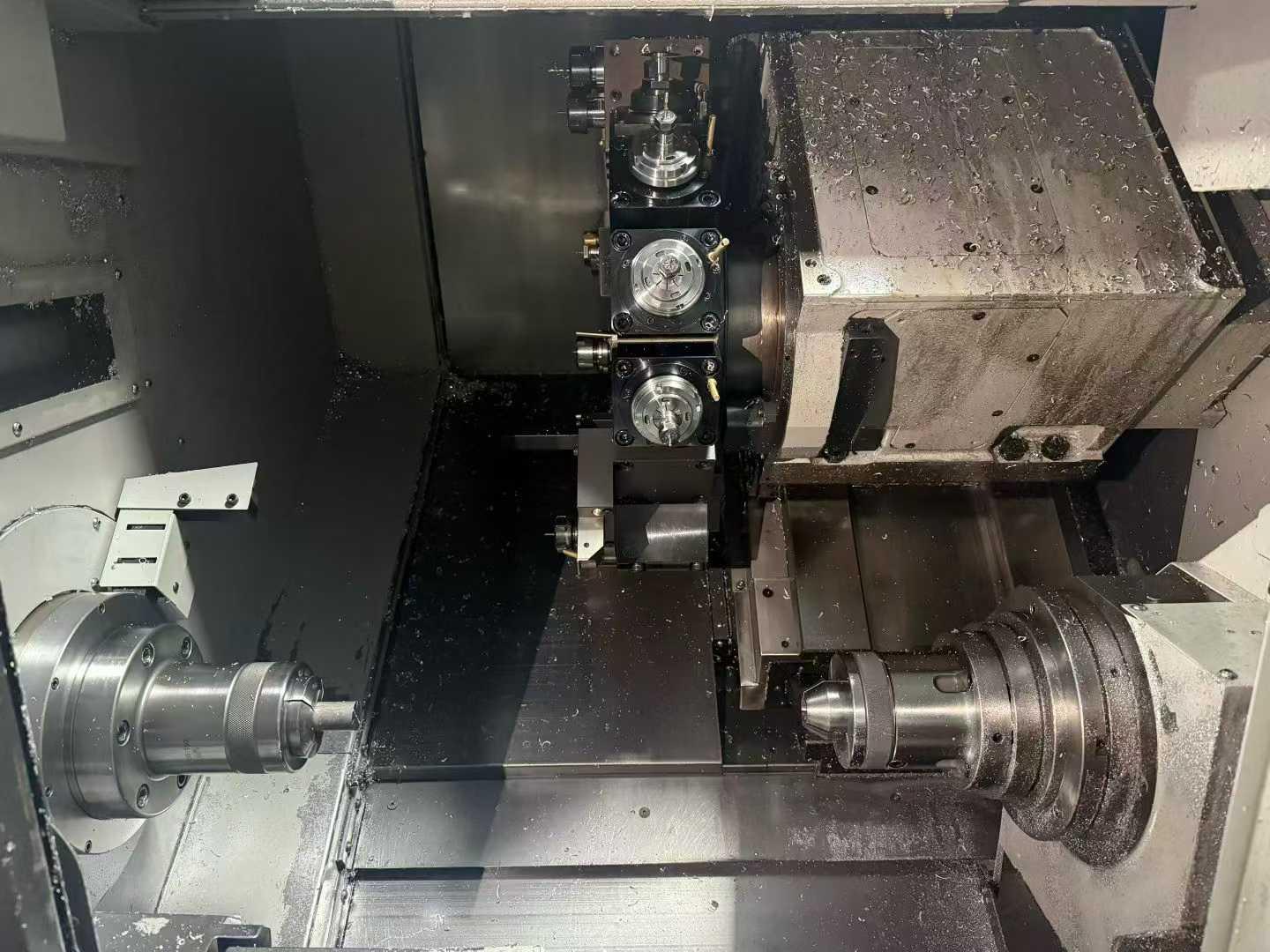

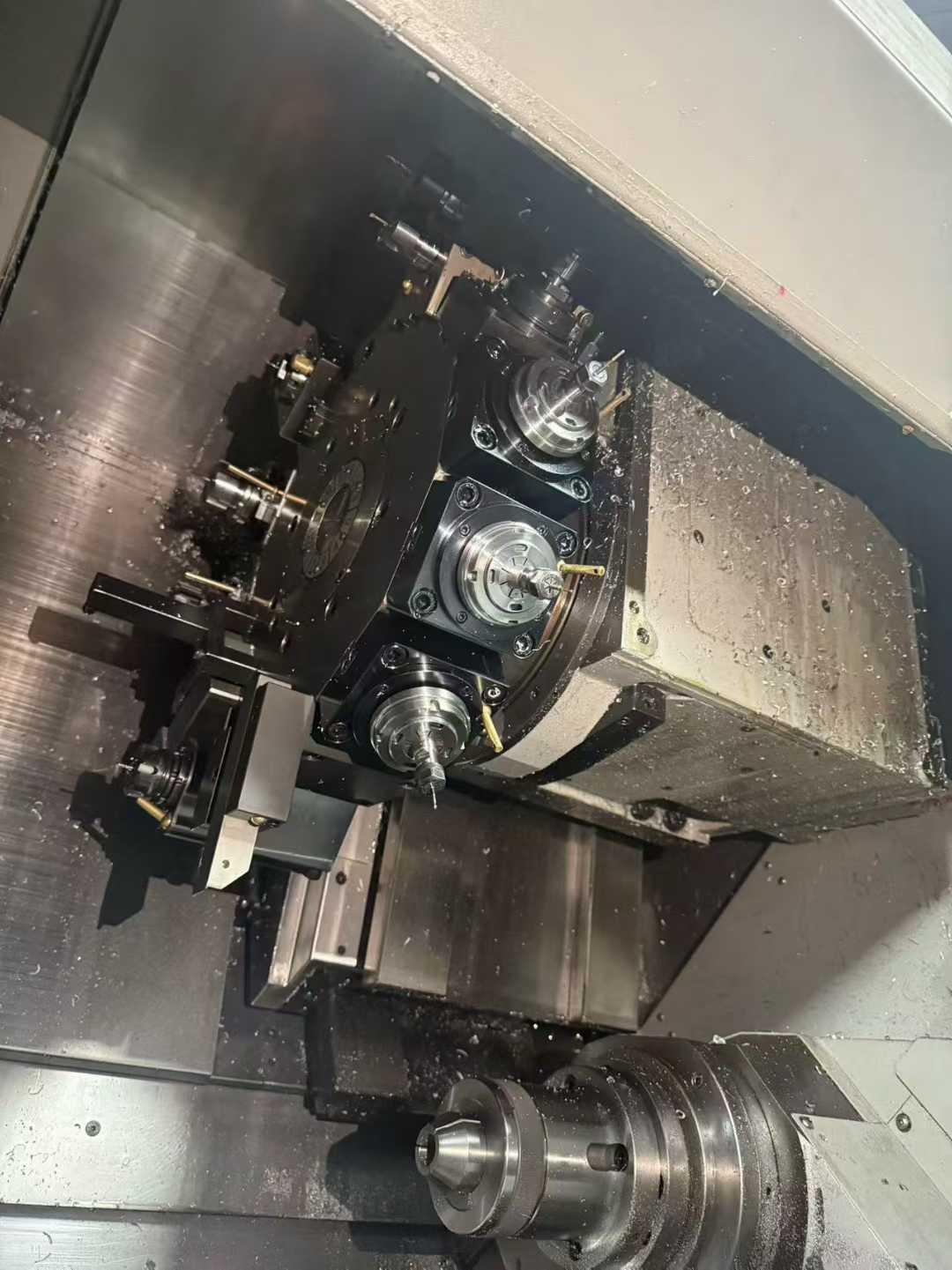

12-Position Servo Turret
Number of Turret Stations: 12
Turret Indexing Speed: 5000 rpm
External Tool Holder: 25mm
Maximum Machining Diameter: 280mm
Maximum Machining Length: 380mm
