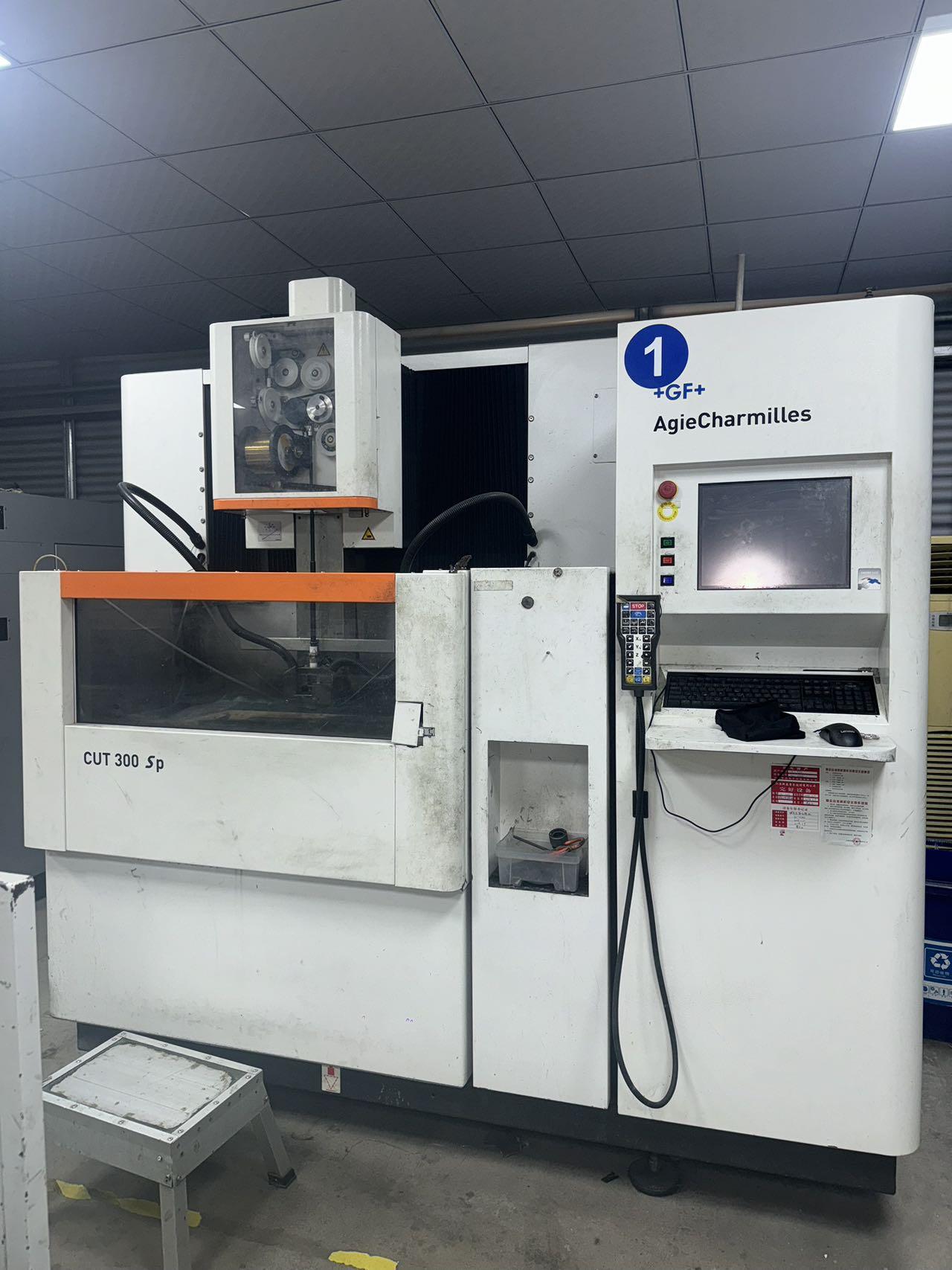

Charmilles CUT 300 Sp Wire cutting machine
[Product Information]:
- Inventory number：66860
- Brand：Charmilles
- Model：CUT 300 Sp
- Origin：Switzerland
- Location：China
- Year：2013
- Create Time：2025-12-23
Specifications:
travel of X/Y/Z axes: 300×250×250mm
U/V axis travel: ±50×±50mm
Maximum machining taper: ±30° (when the plate thickness is 50mm)
±15° (when the plate thickness is 100mm)
machining precision: ±2μm
Surface finish: Ra0.08μm (Mirror machining effect)

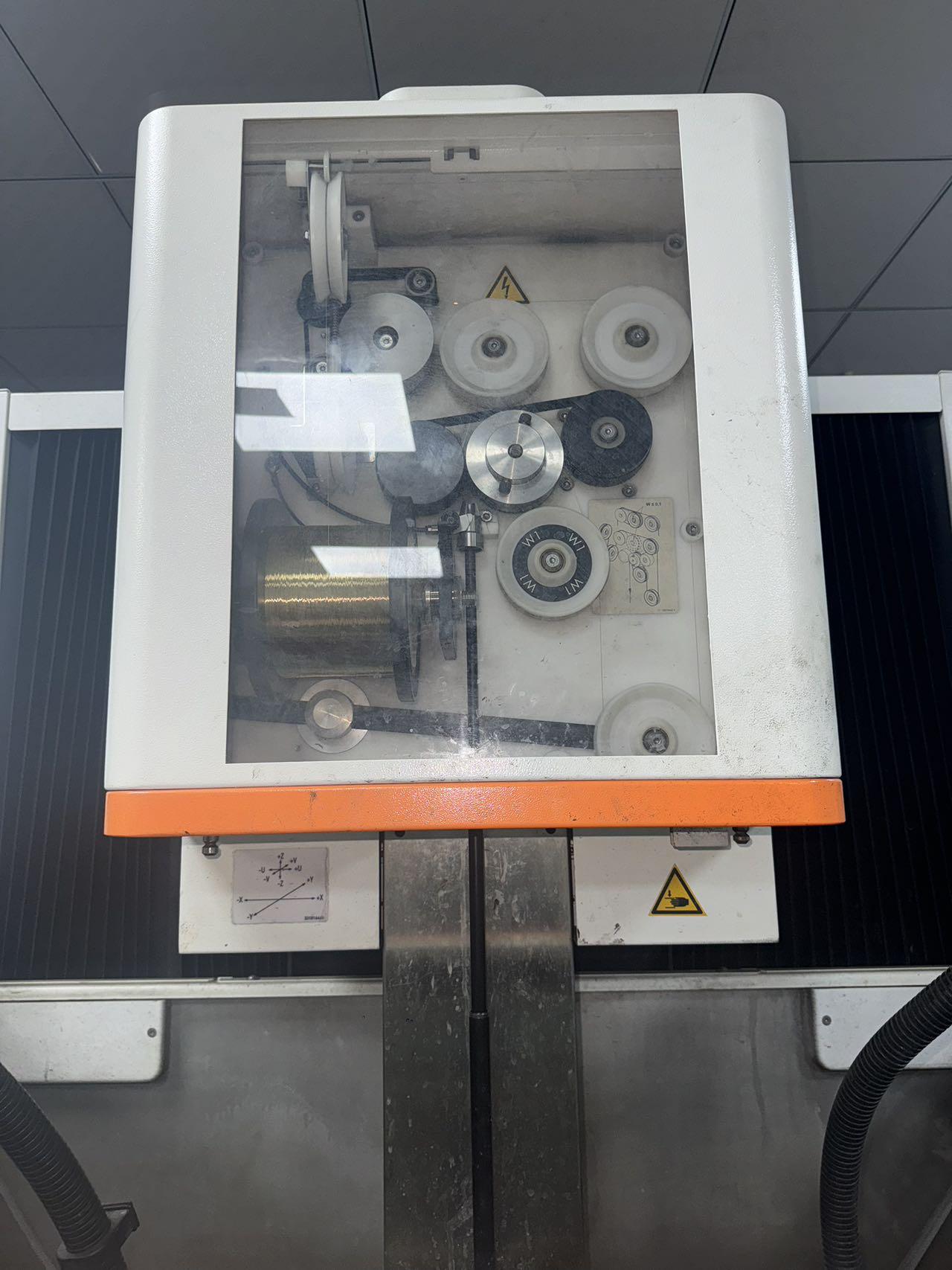

Electrode wire compatibility: Diameter 0.1 to 0.3mm
Maximum machining efficiency: approximately 300mm²/min
Maximum workpiece size: 600×450×250mm
Maximum workpiece weight: 500kg
Drive CNC System: Linear motor drive
It is equipped with a high-precision glass scale closed-loop control
Cutting fluid CNC System: Intelligent temperature-controlled filtration CNC System to ensure machining stability

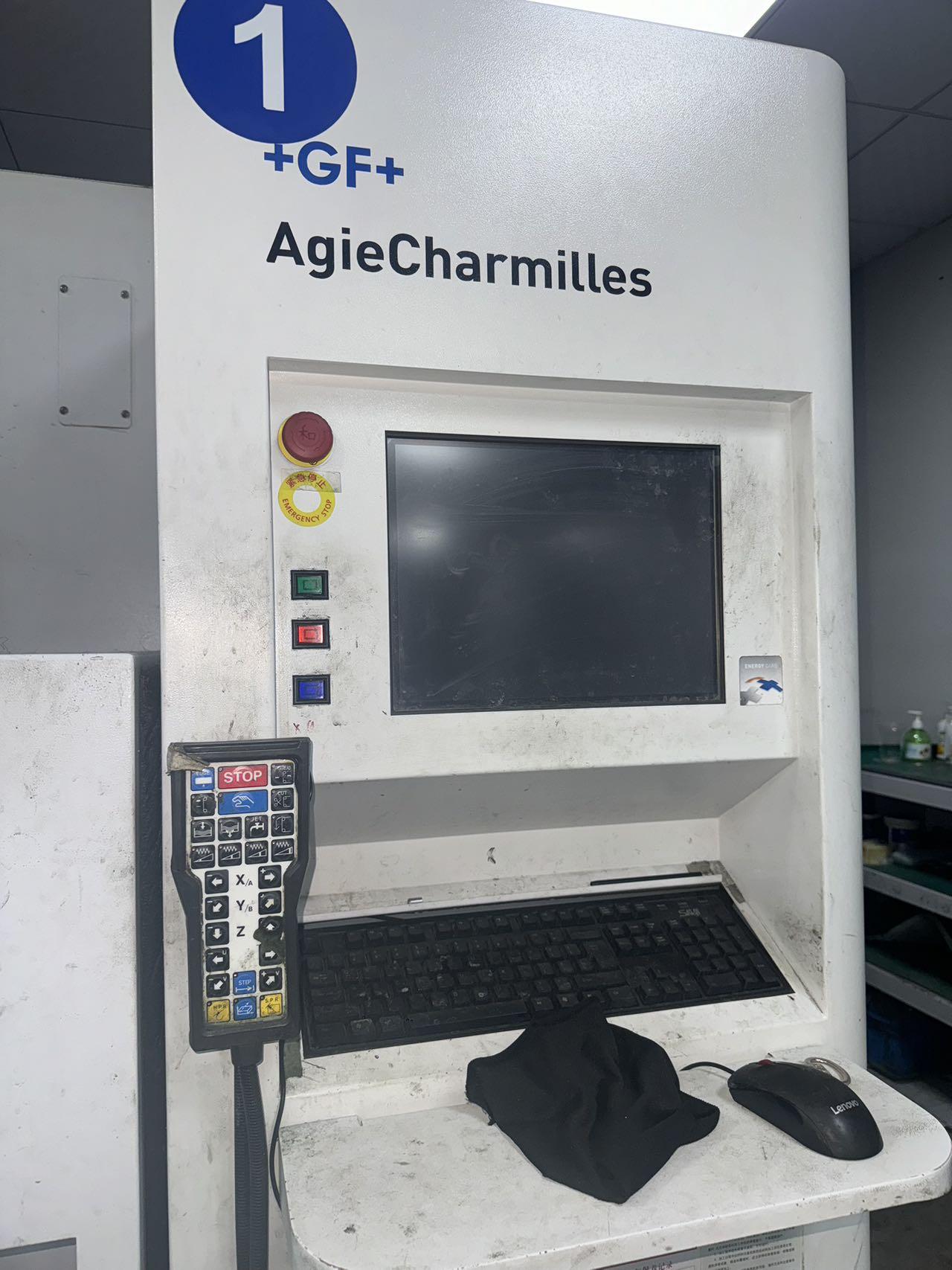

Control functions: Supports automatic threading, broken wire detection and re-cutting
SuiWorktable for unmanned continuous machining
This model is mainly targeted at precision machining scenarios
It is often used in precision molds
Complex wheels with high precision requirements such as aerospace parts
