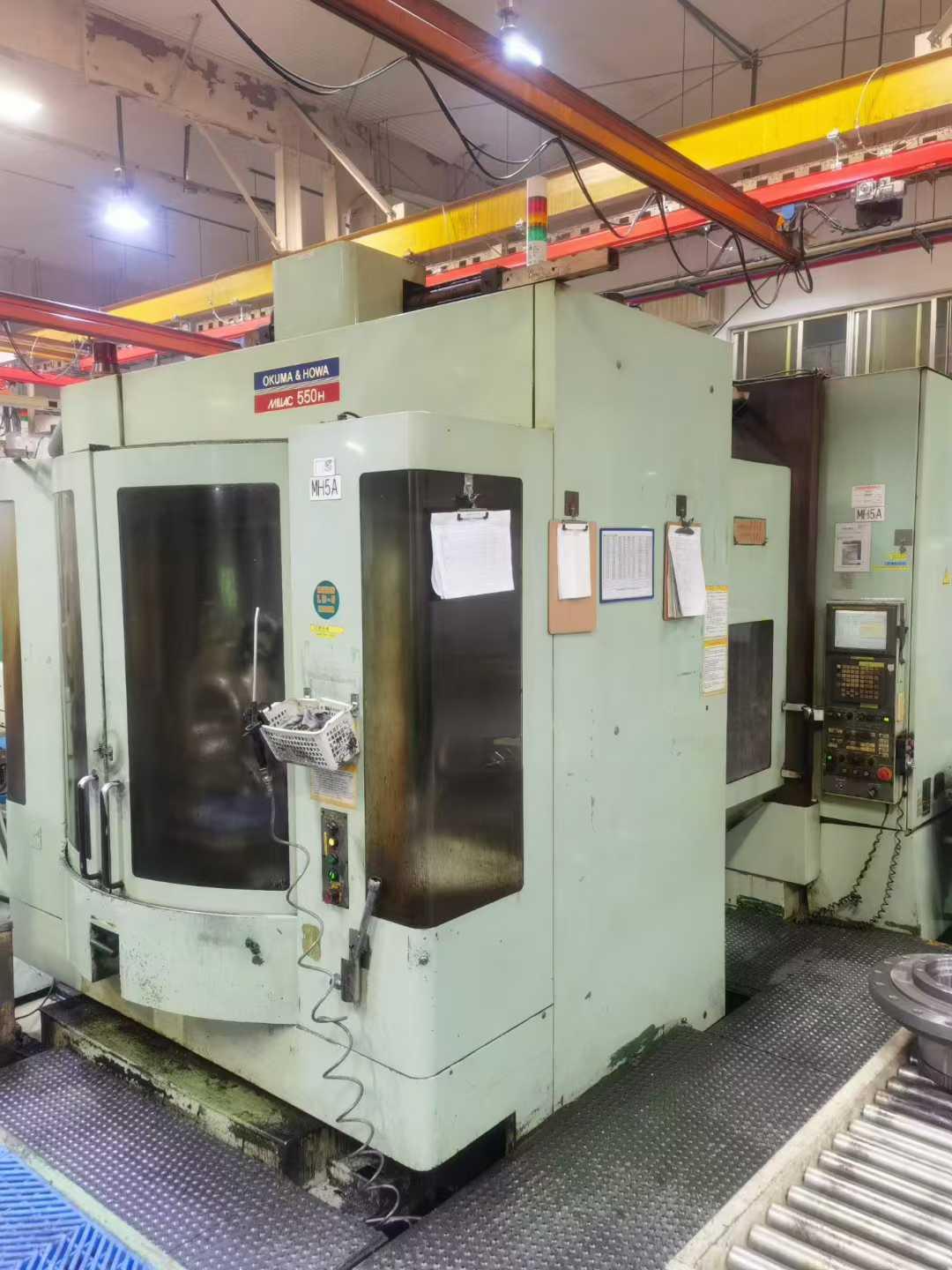

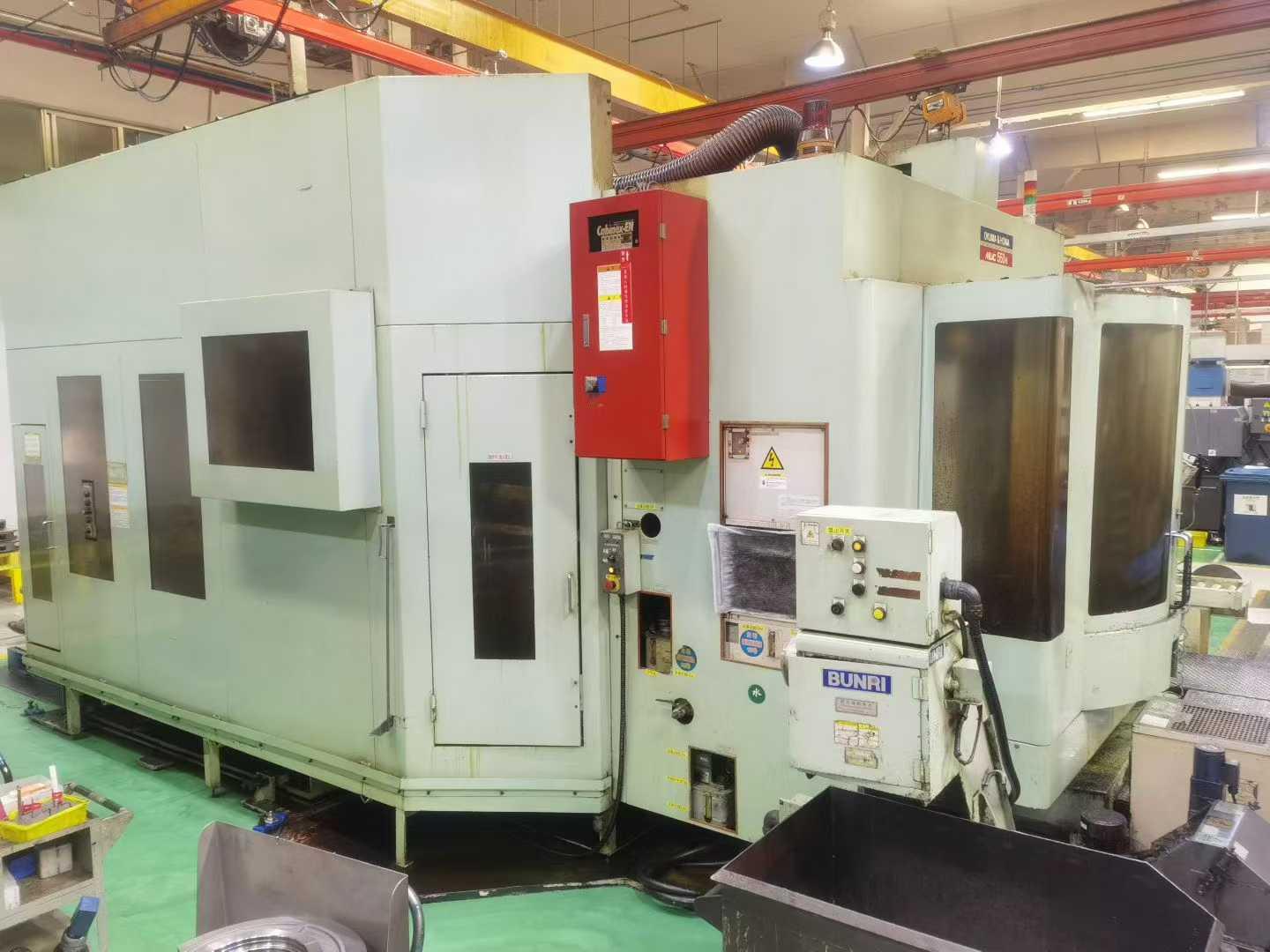

OKUMA&HOWA MILLAC 550H Horizontal Machining centre

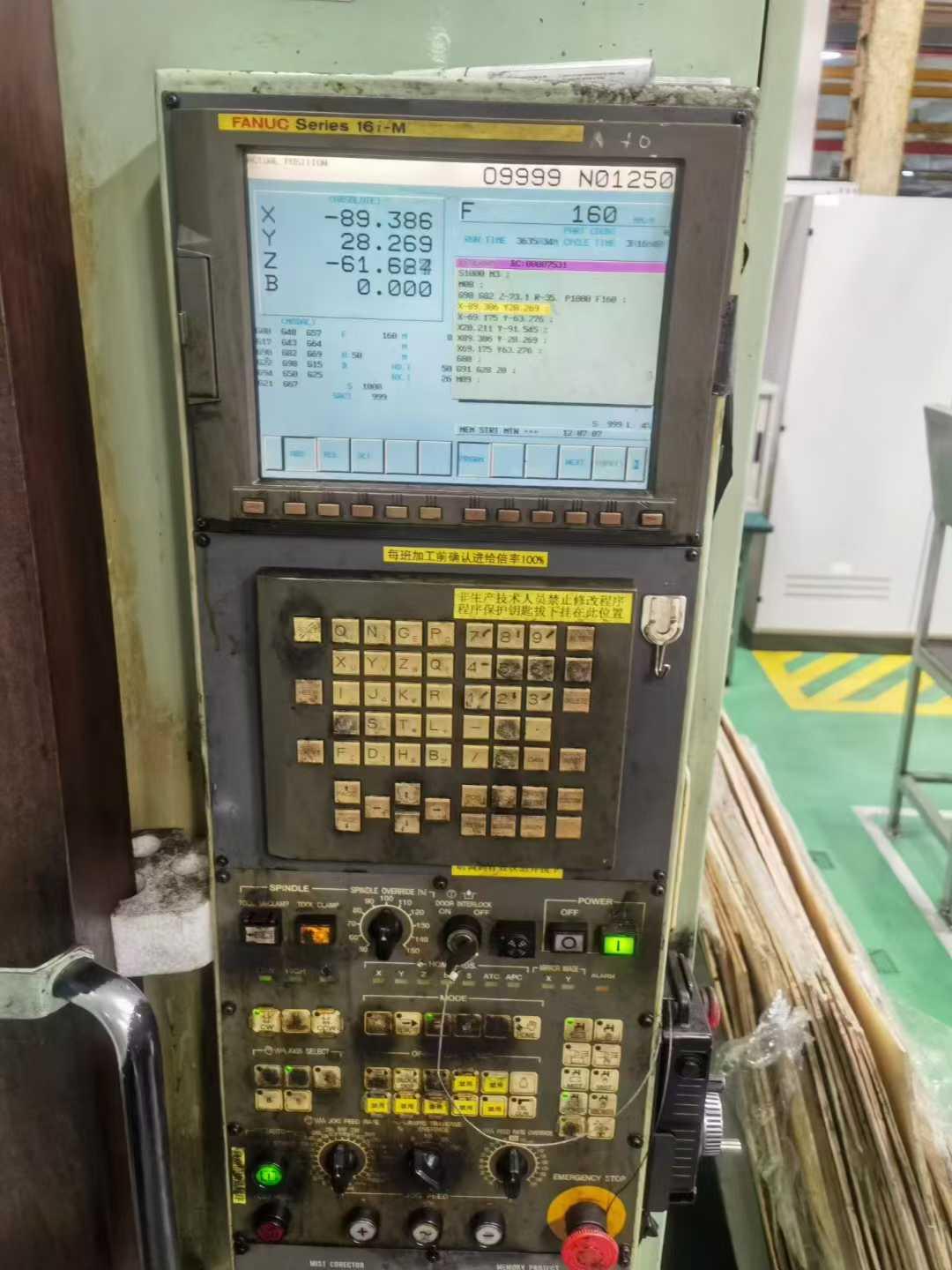

CNC System: FANUC 16iMB, AFA driver
Three-axis Travel: 800*800*700mm
Maximum Workpiece Diameter: 800mm
Maximum Workpiece Height: 900mm

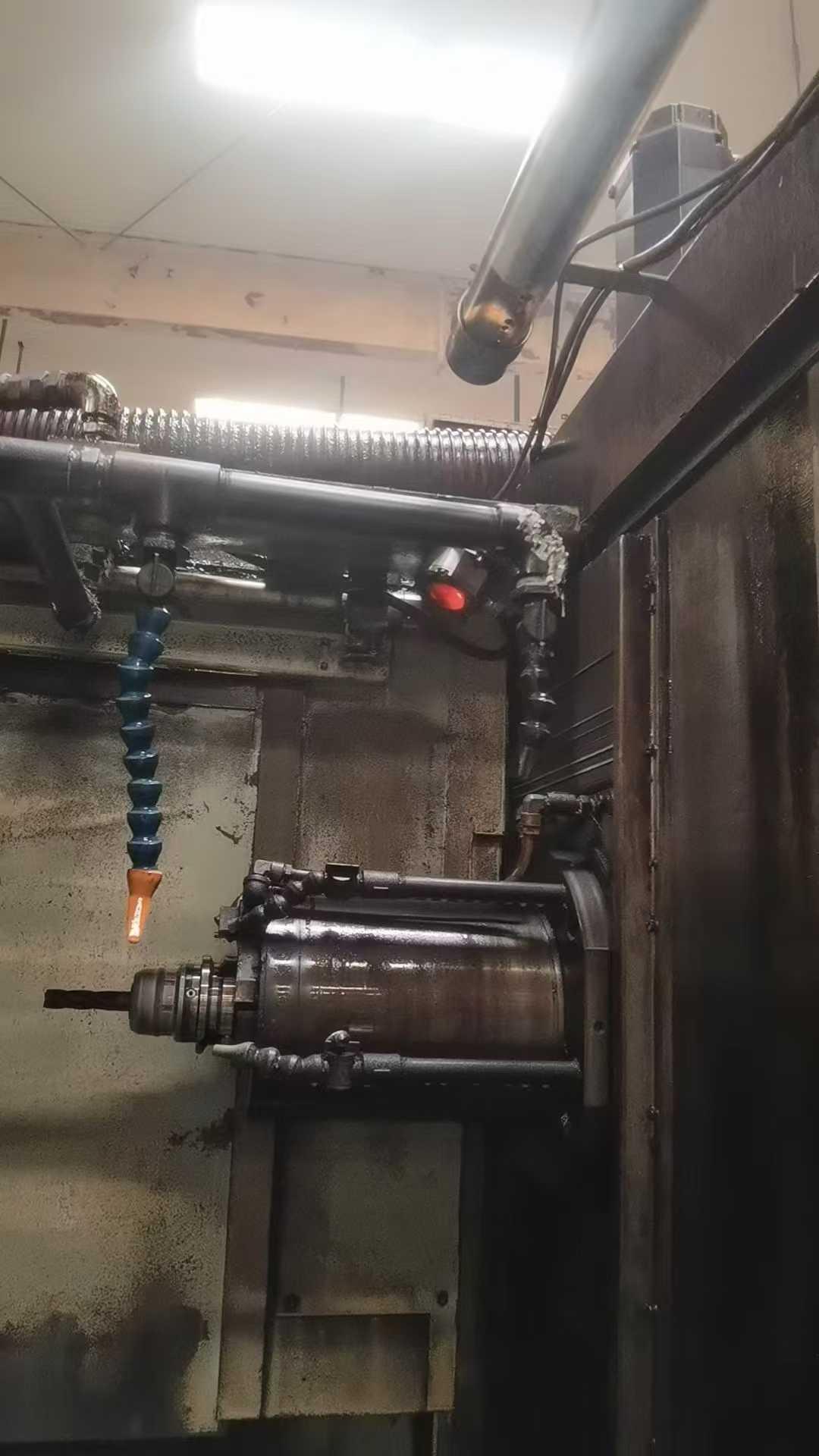

Spindle Speed: 60- 10000 rpm
Tool Holder: BT50
Fast Movement Rate: 40m/min
Matching Feed Rate: 1-32mm/min

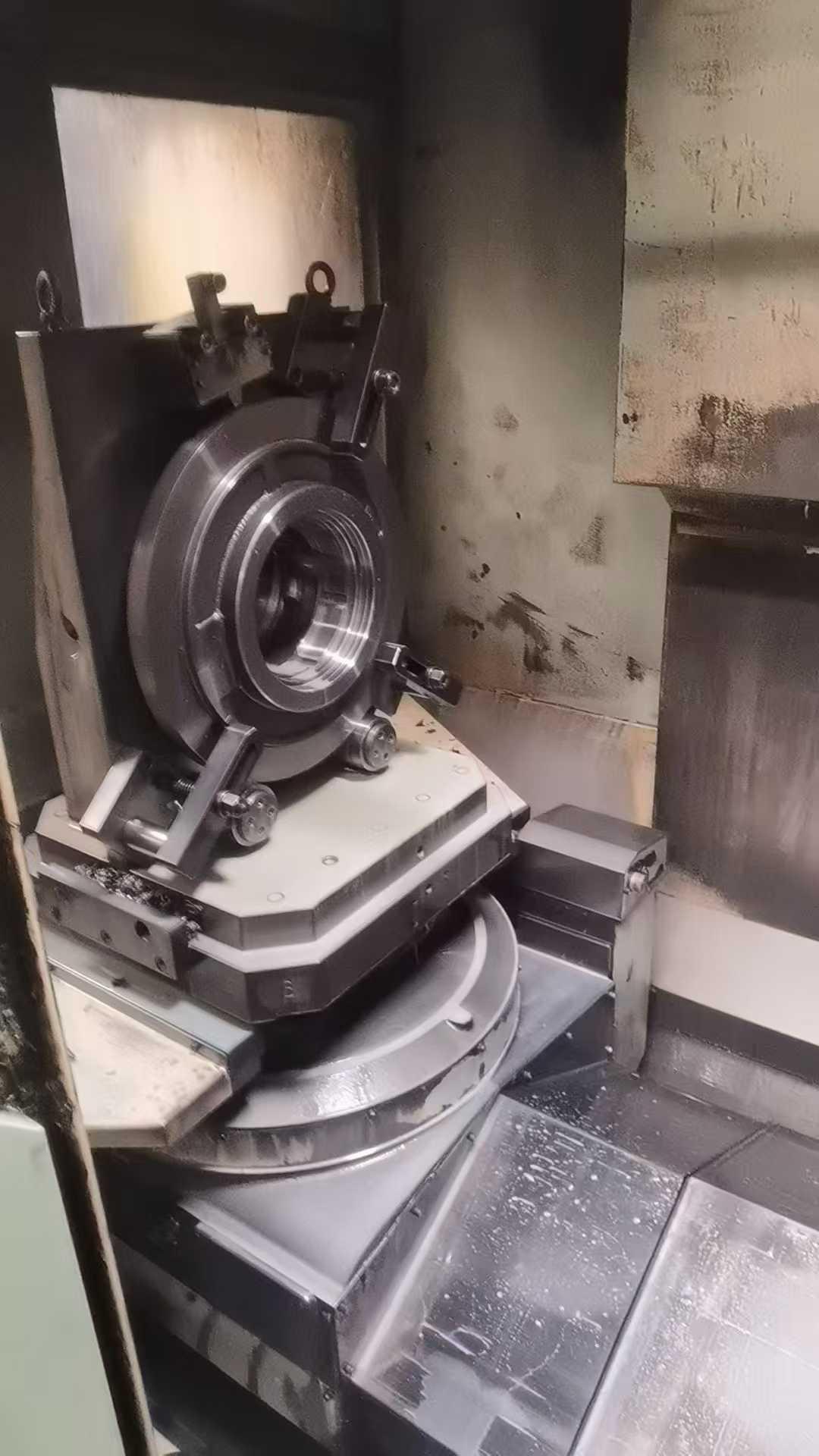

Rotation Angle of B-axis: 360°
B-axis Degree Accuracy: 0.001°
B-axis fast Movement: 3600rpm
Spindle Power: 25/30kW

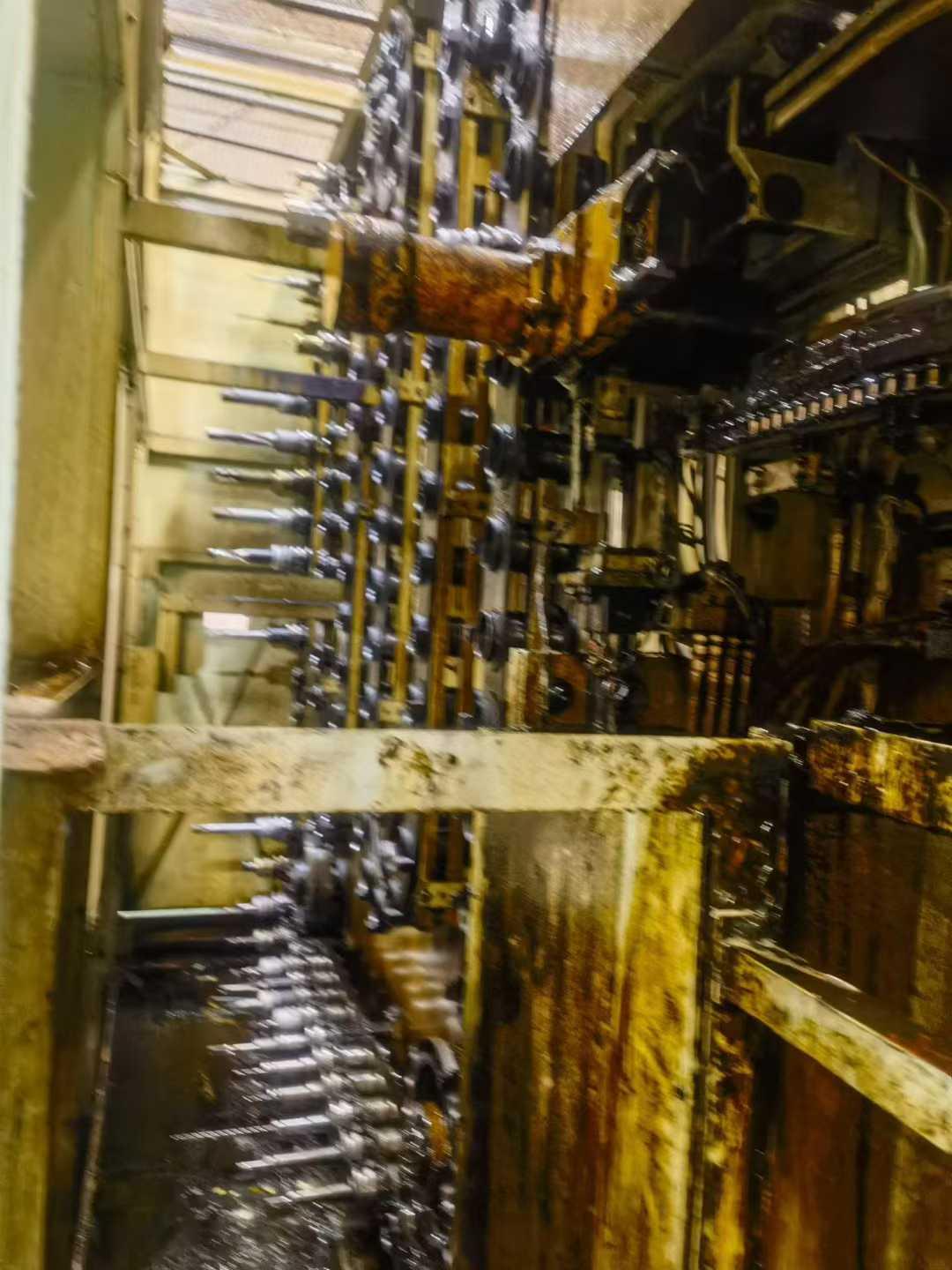

Tools Magazine Capacity: 40
Tool Changing time: 2.6 seconds
Full Close loop With Glass Scale
Distance from Worktable Surface To Spindle Centerline: 100-900mm
Distance from Worktable Center To Spindle Nose: 180-880mm
