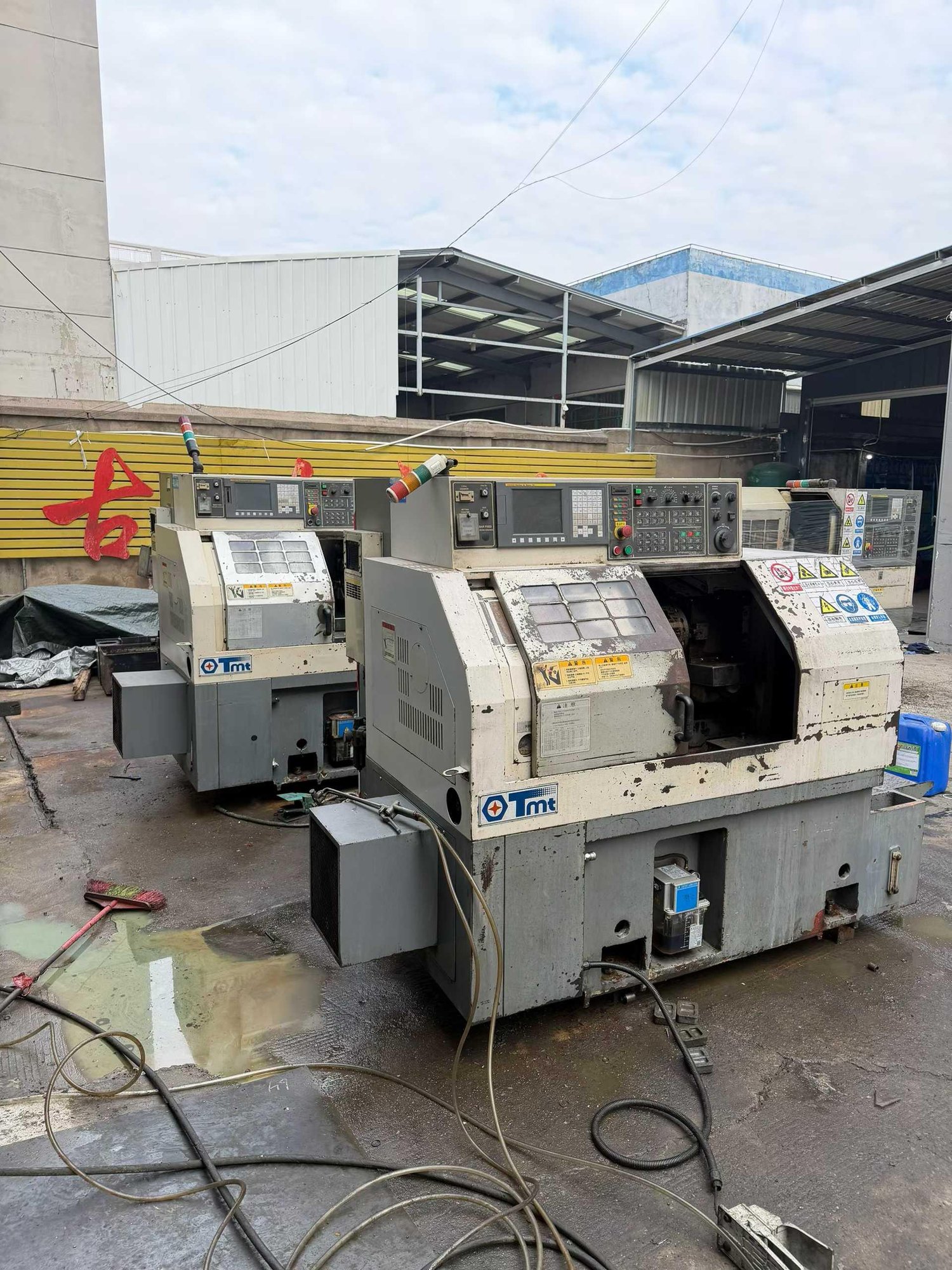

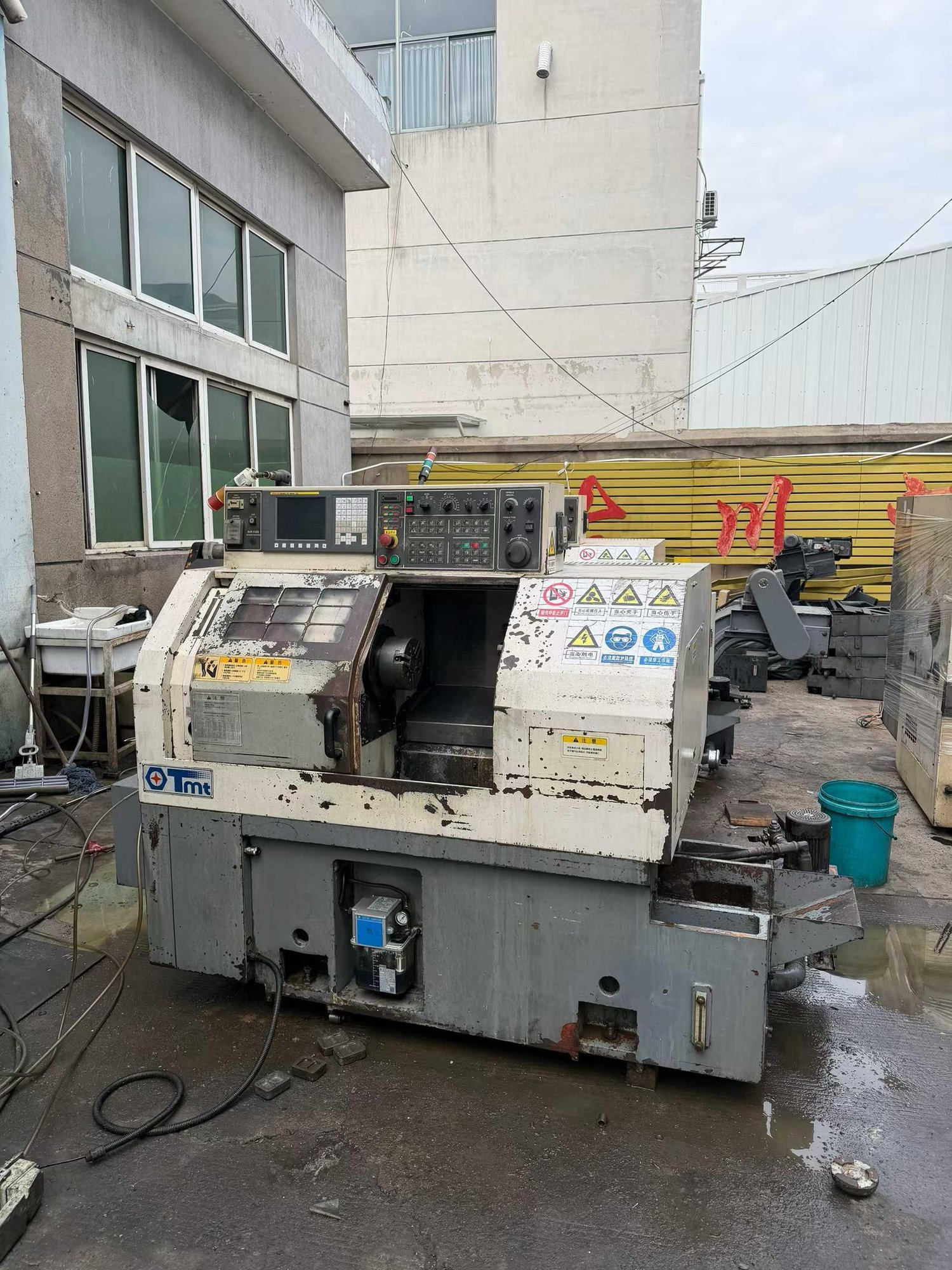

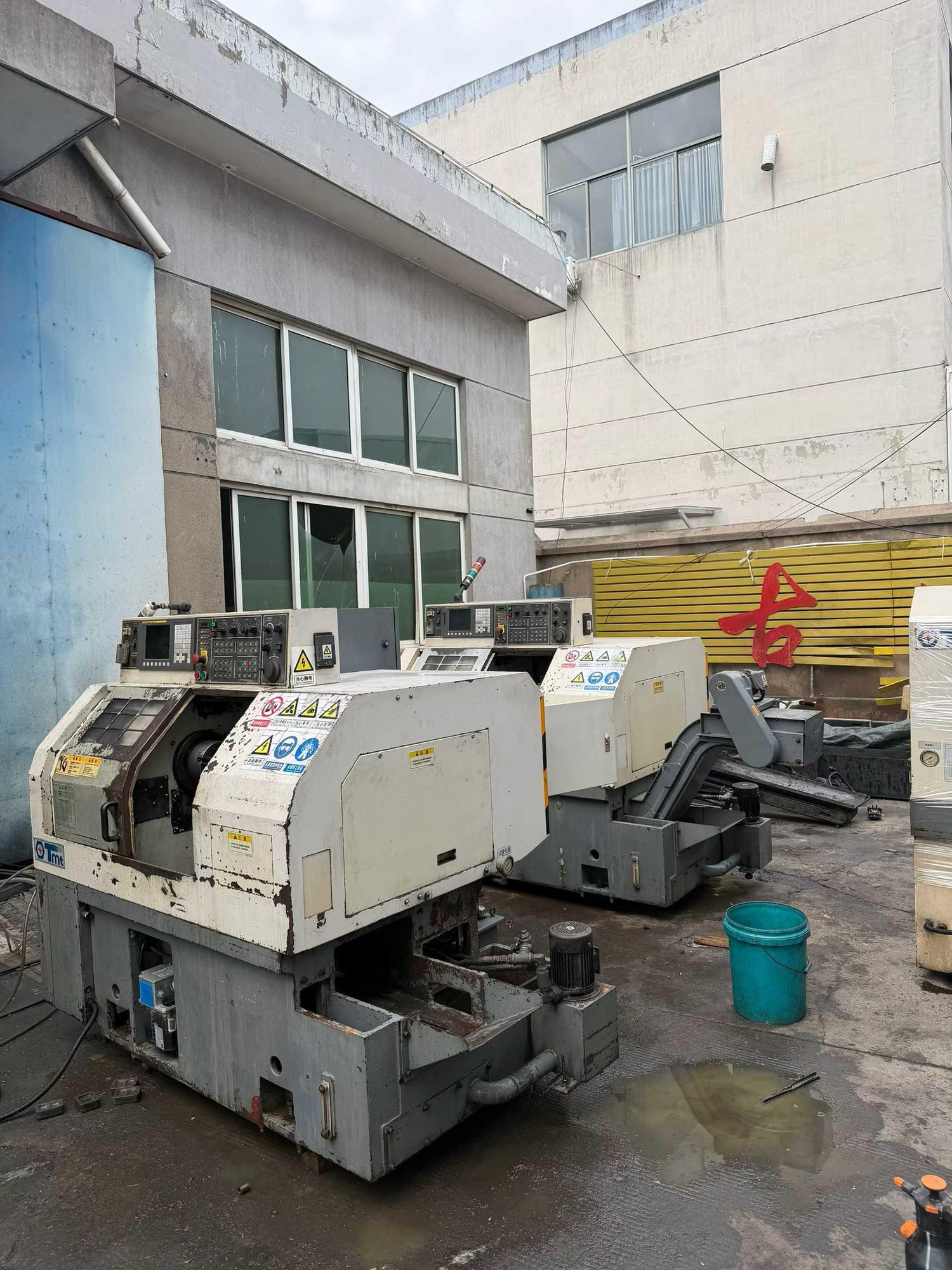

TSUNGLIN TL-160J CNC turning lathe

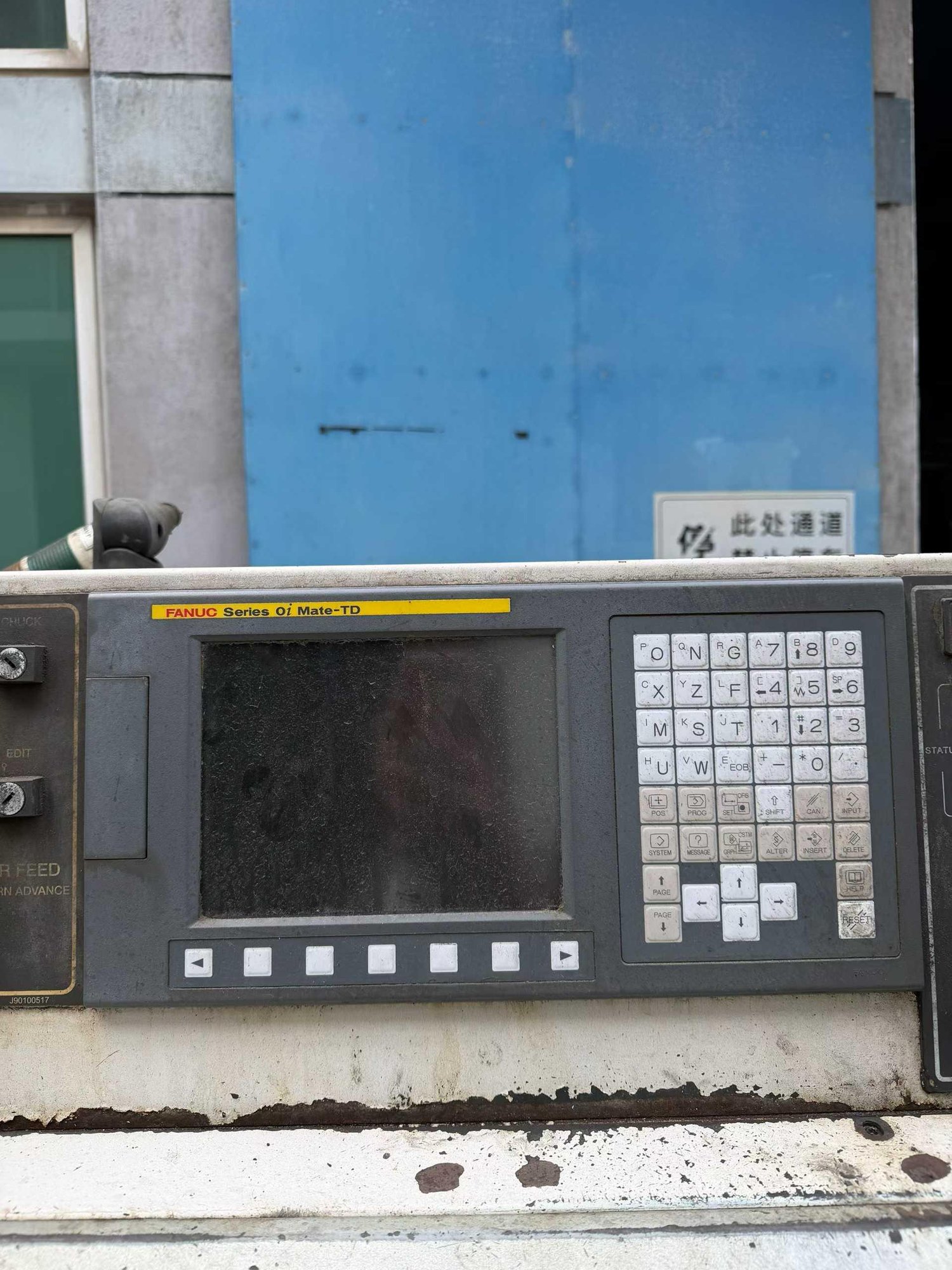

CNC System: FANUC 0i-Mate-TD

Bed surface diameter: Ø560 mm

Saddle rotation diameter: Ø 210mm

Large machining  diameter: Ø 200mm

Maximum machining  length: 275mm

Distance between the two centers: 304 mm

Large bar diameter: Ø 42mm

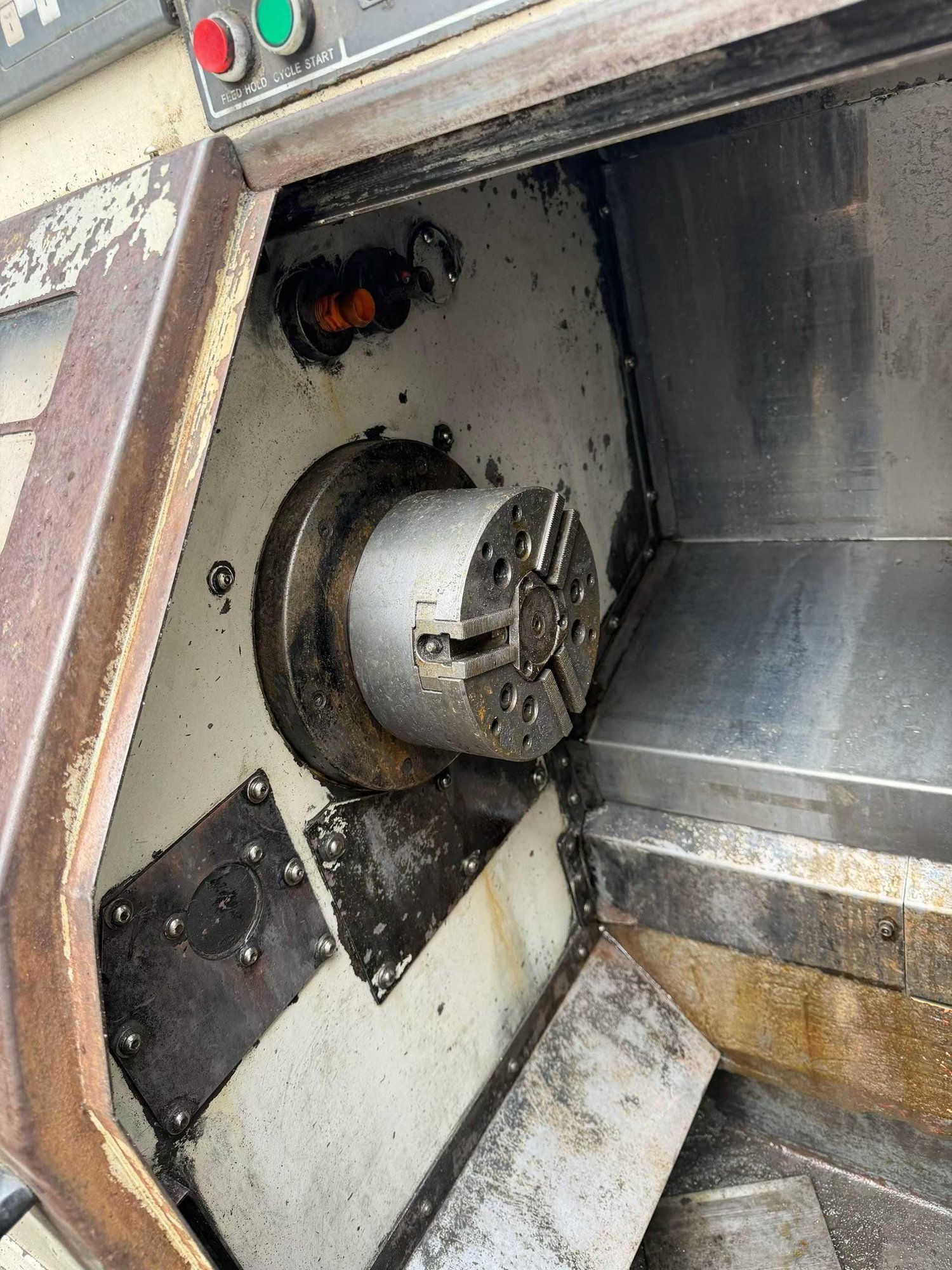

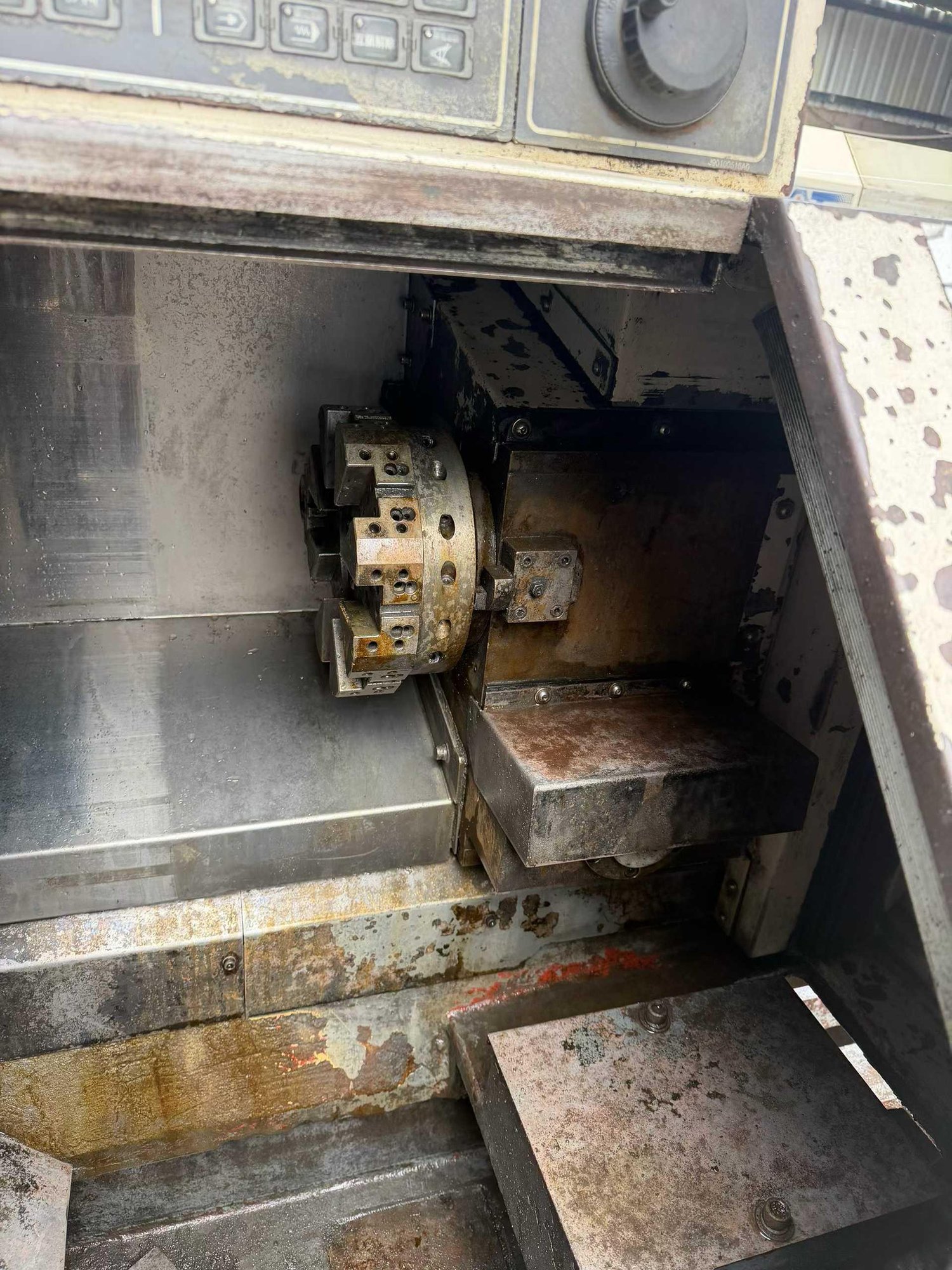

Chuck size: 6 inches

X-axis travel: 115mm (100+15)

Z-axis travel: 246mm

Axial rapid feed: 18 m/min on the X-axis, 20 m/min on the Z-axis

Cutting feed (X/Z) : 10,000 mm/min

Spindle speed: 4500 rpm
