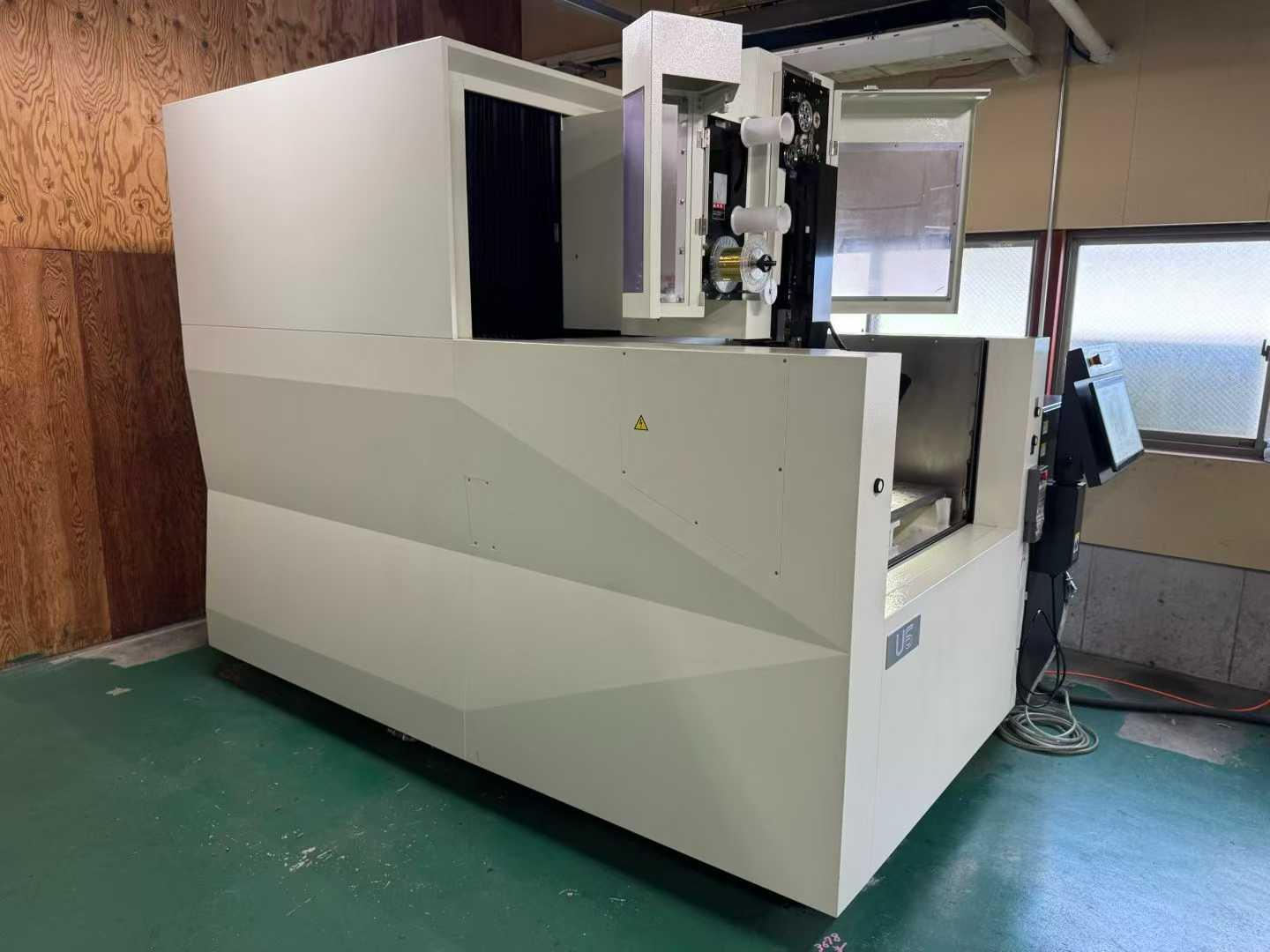

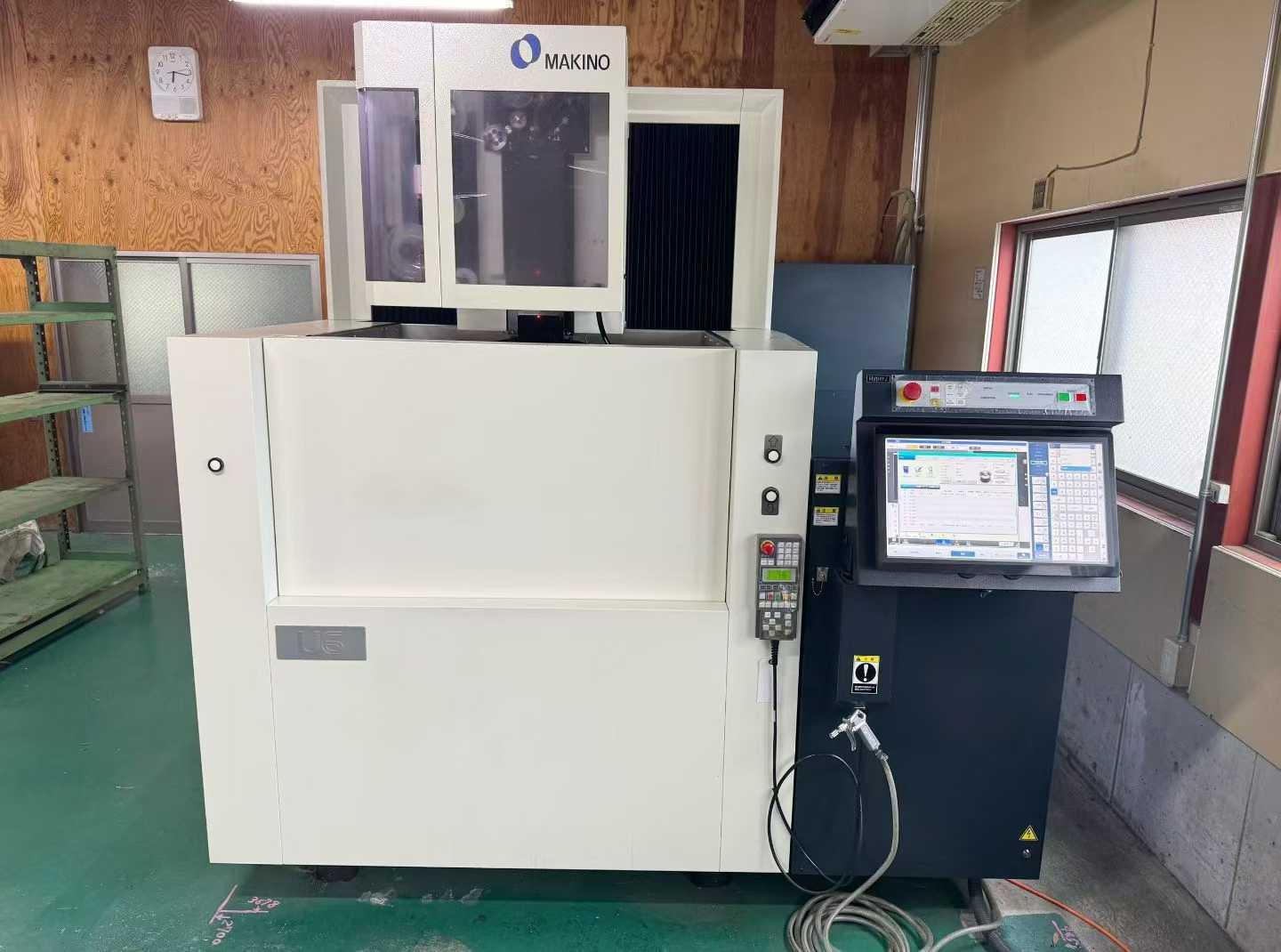

Makino U6 Wire cutting machine

Three-axis travel: 650*450*420mm
U*V axis travel: ±75*±75mm
Worktable size (square) : 910*710mm
Worktable size (U type) : 910*710mm
Maximum workpiece size: 1000*800*400mm
Maximum dielectric level: 455mm
Maximum workpiece weight: 1500kg
Worktable height: 1000mm
Electrode wire diameter: 0.1/0.15/0.2/0.25/0.3mm
Maximum taper: ±15°/100mm
Machining tank capacity: 920L
Lon exchange resin tank: 20L
Machining fluid filter: 2/4
Machine tool size: 2273*2908*2350mm
Dimension: 2700*4310mm
machine tool weight: 5300kg
