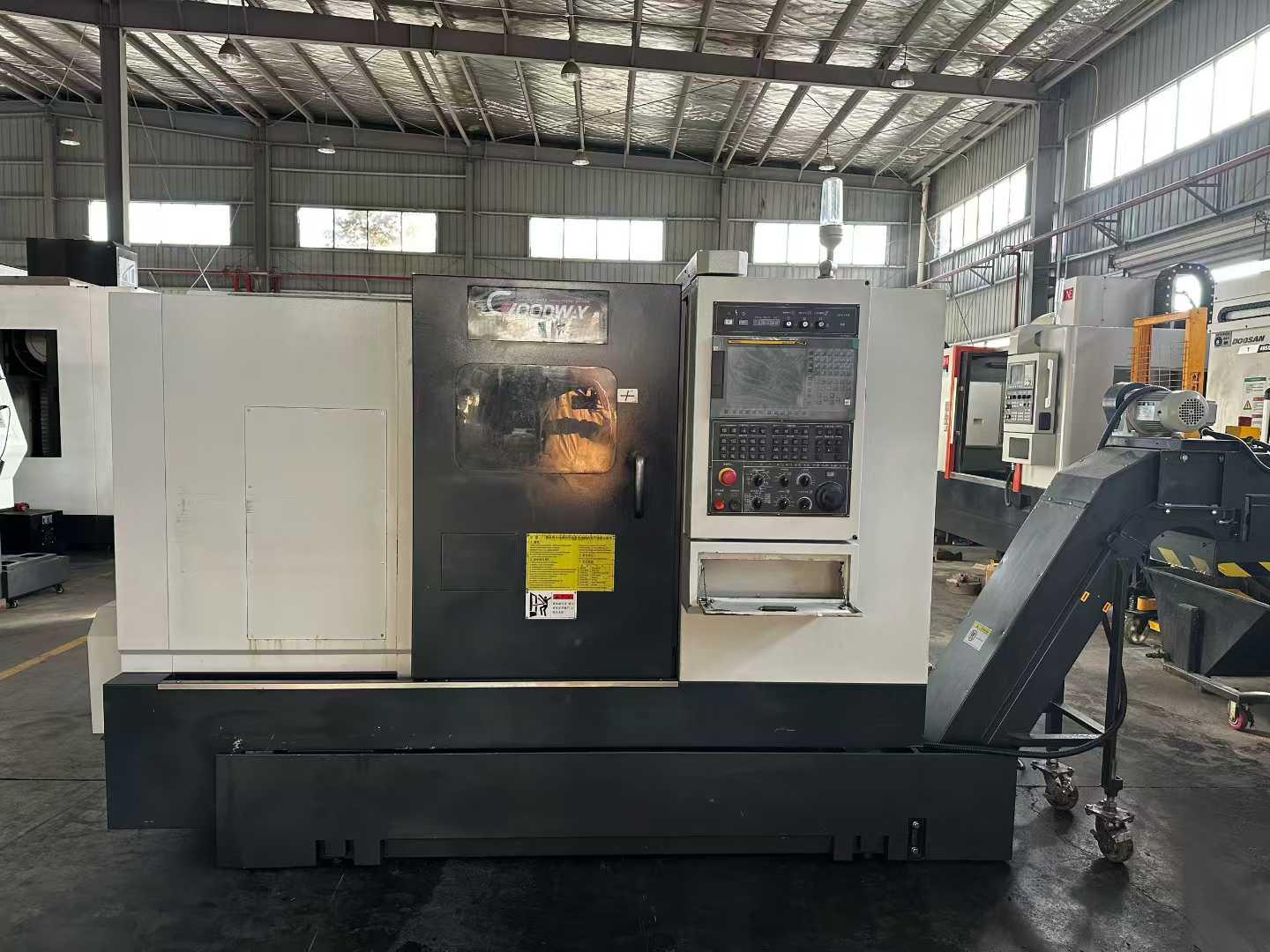

GOODWAY GLS 2000Le CNC turning lathe

[Product Information]:

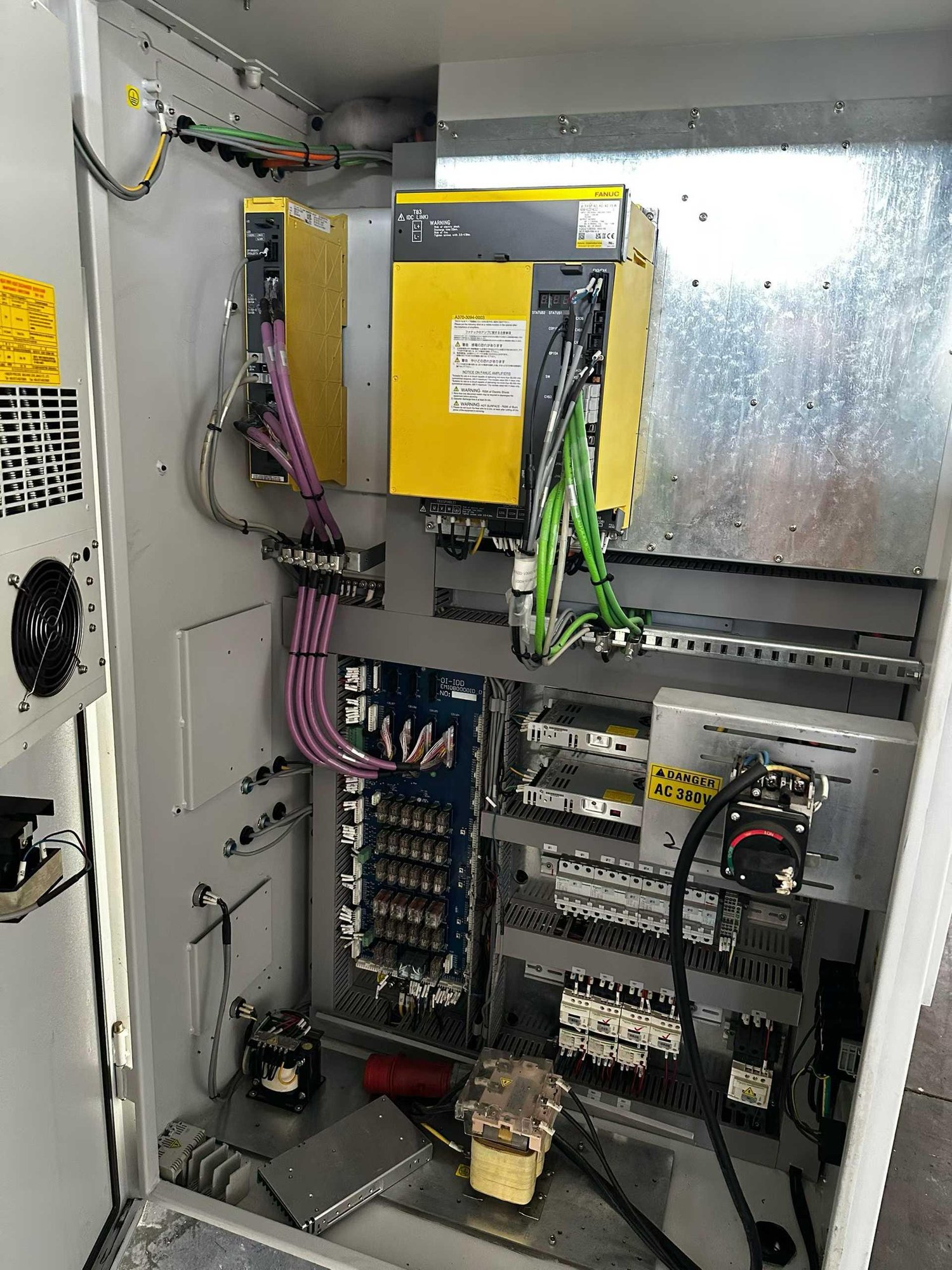

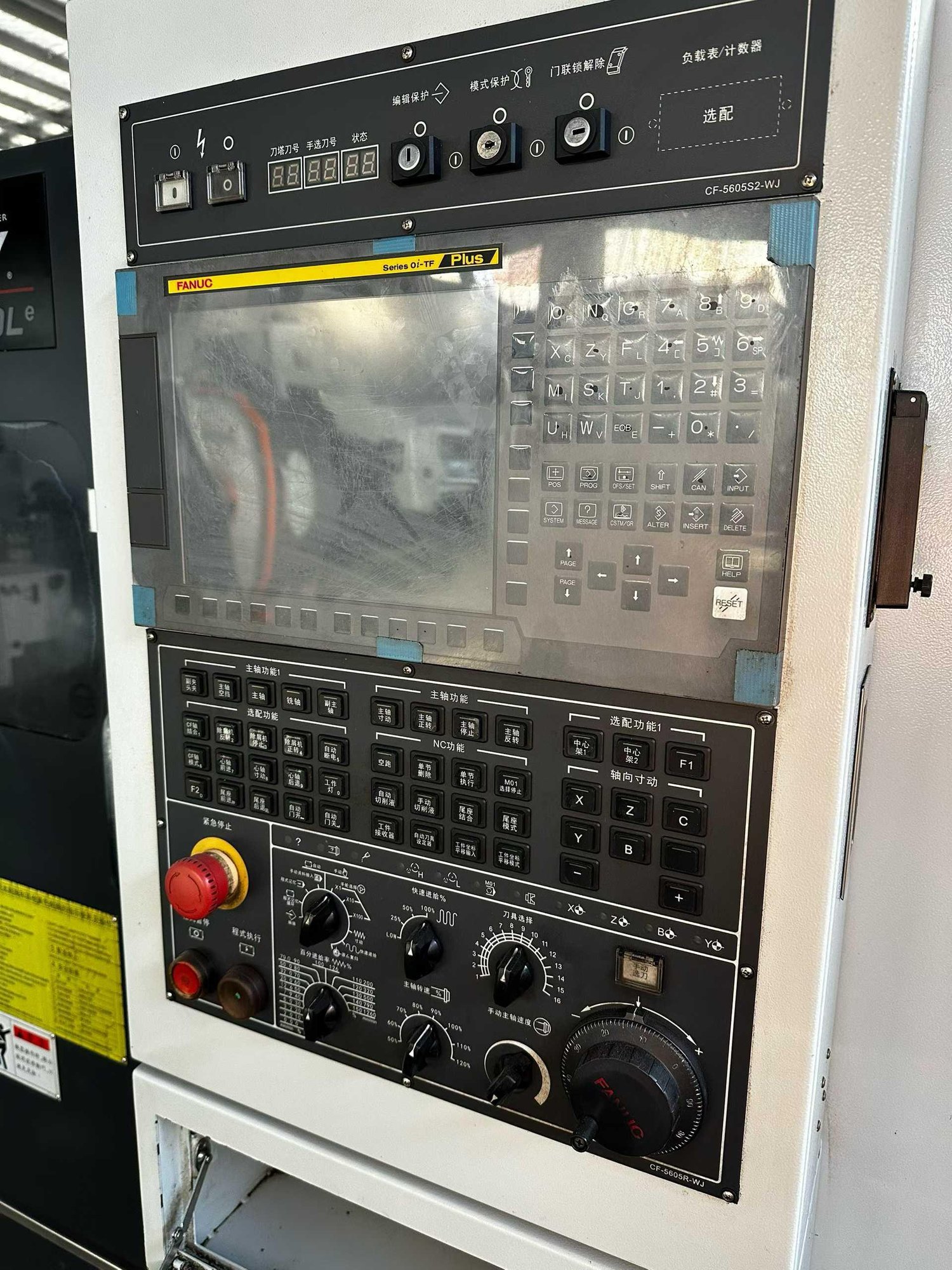

CNC CNC System: FANUC oi-TF

Maximum rotation diameter: φ560mm

Maximum turning diameter: φ420mm

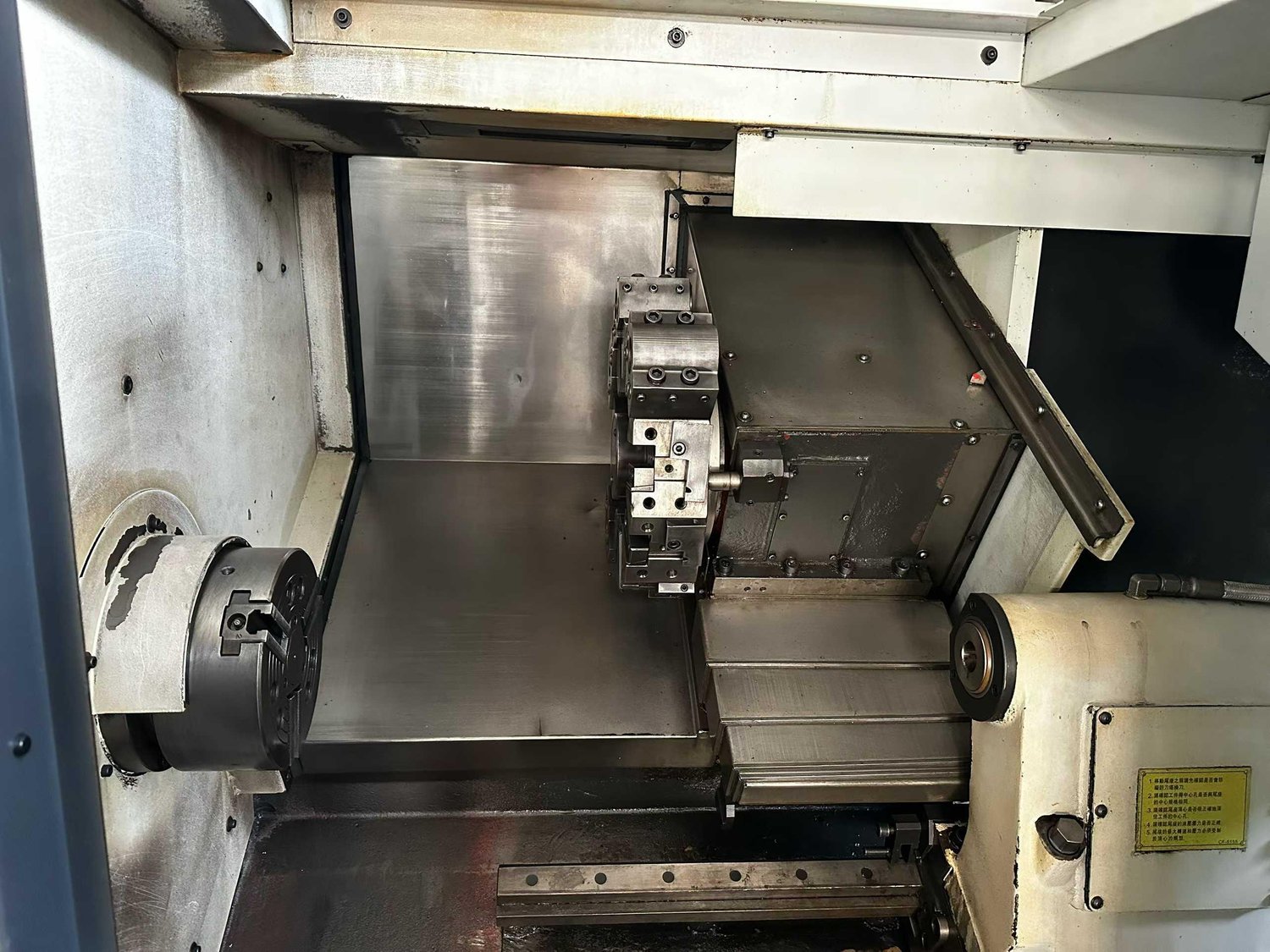

Hydraulic chuck: 8 inches

spindle through hole diameter: φ66mm

Bar stock diameter: 51mm

spindle nose: A2-6

spindle bearing diameter: φ100mm

Spindle speed: 4200rpm

spindle motor power: 11/15 KW

The maximum travel of the X*Z axis: 230*630mm

Maximum feed on the X*Z axis: 30m/min

Turret position: 10

guideway: Linear guide

Machine weight: 3400kg

Machine Footage (length * width * height) : 3612*1780*1716mm
