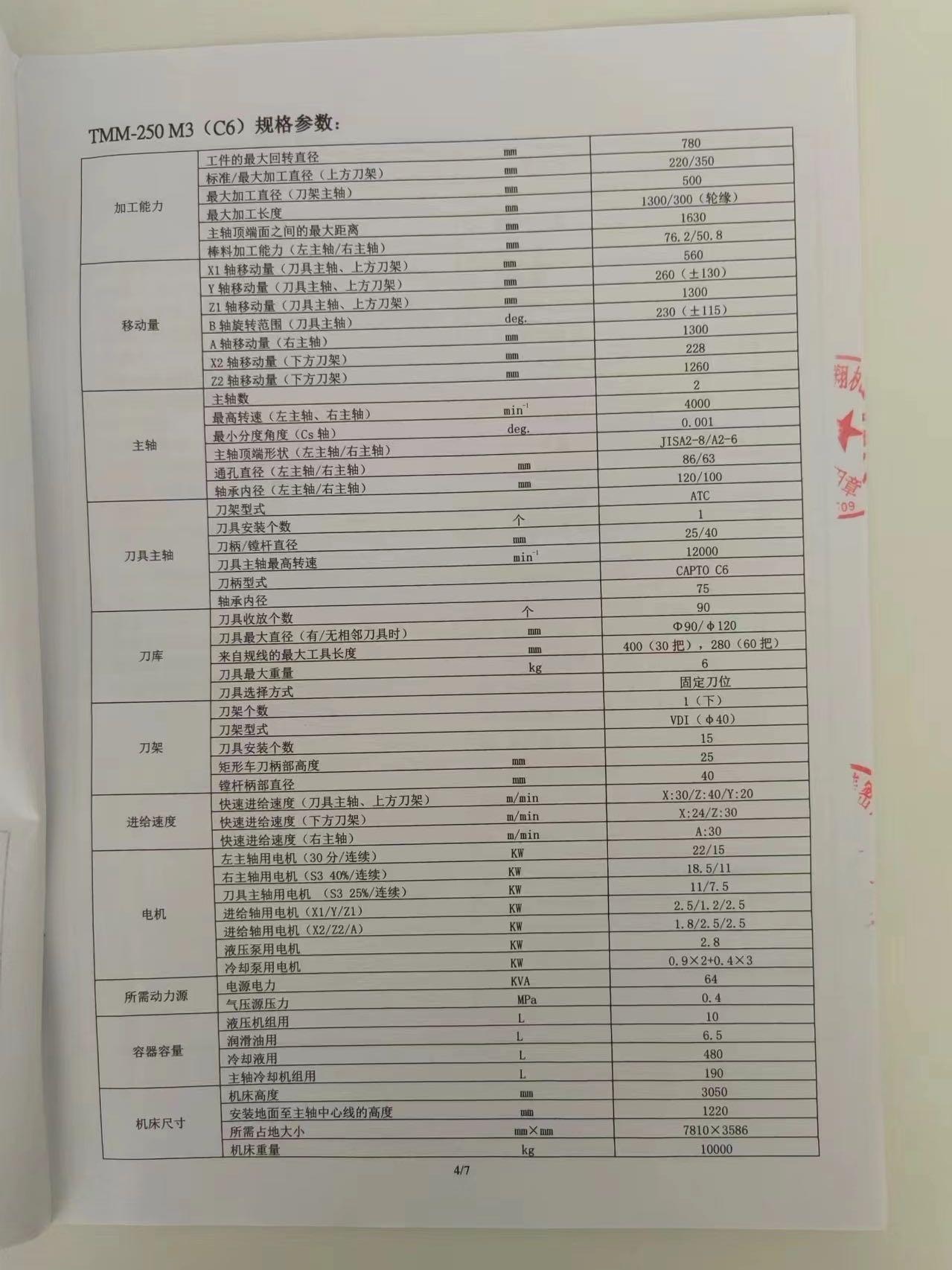

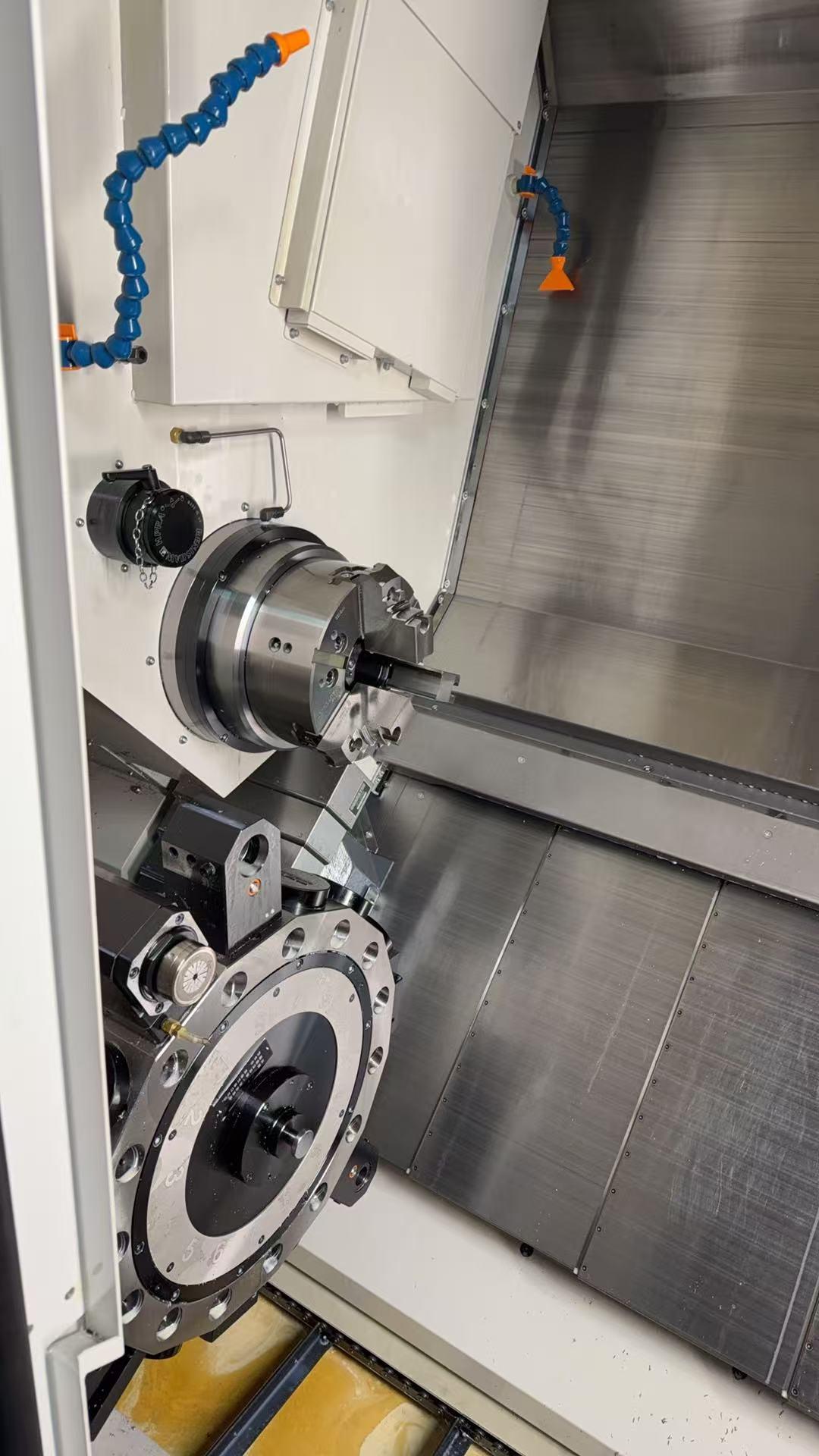

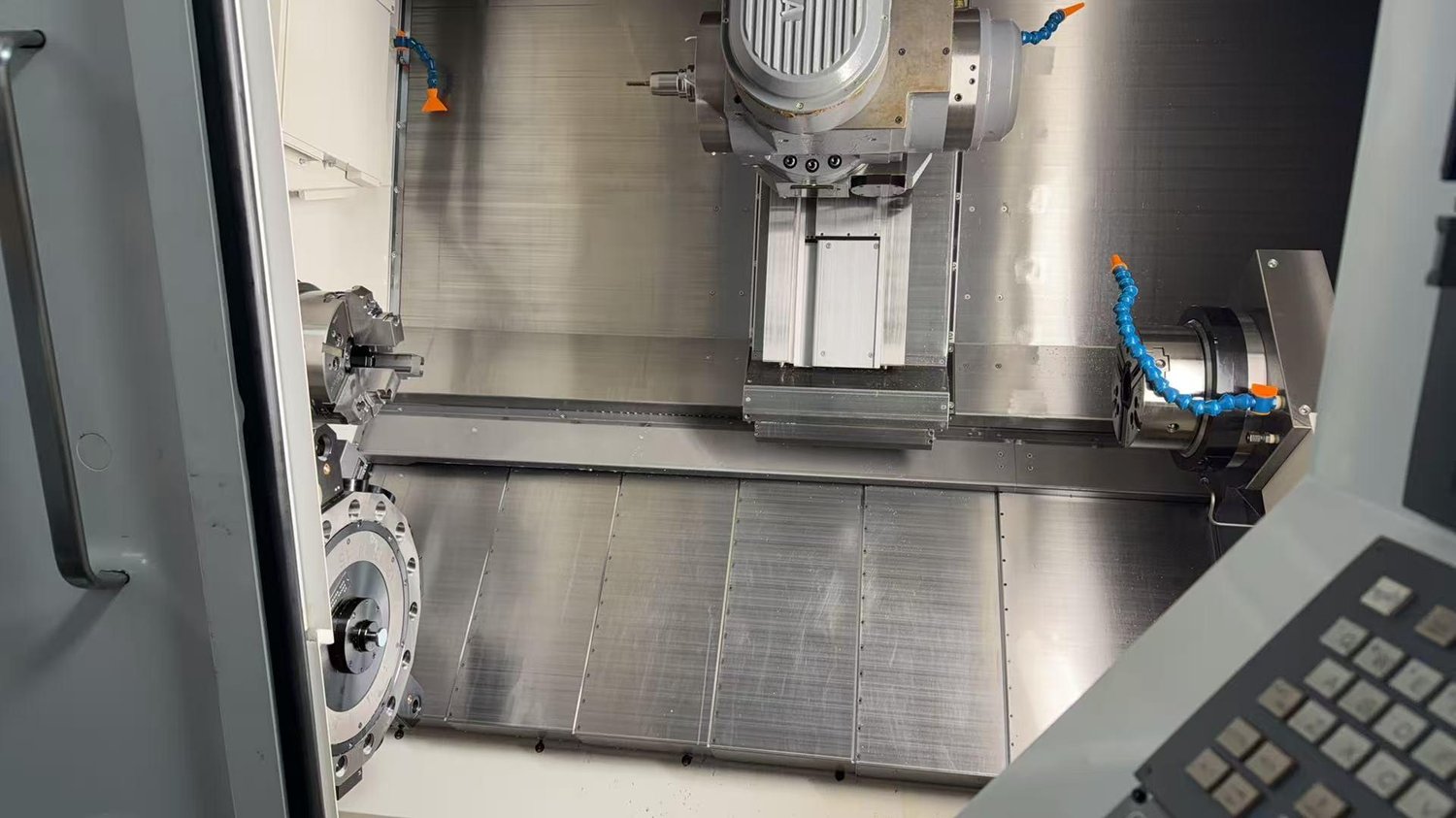

Takisawa TMM-250 M3 Turn Mill Machining Centre

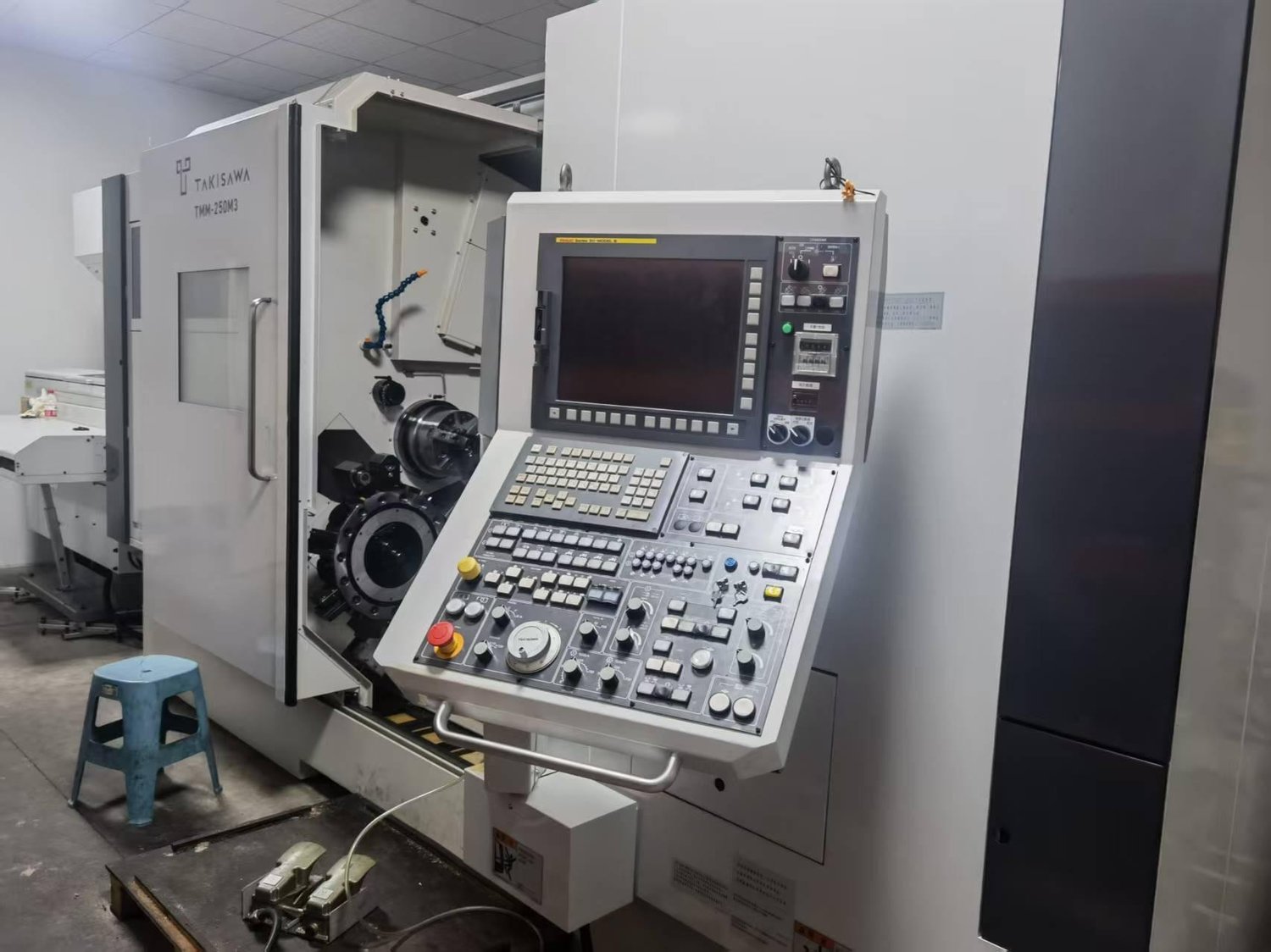

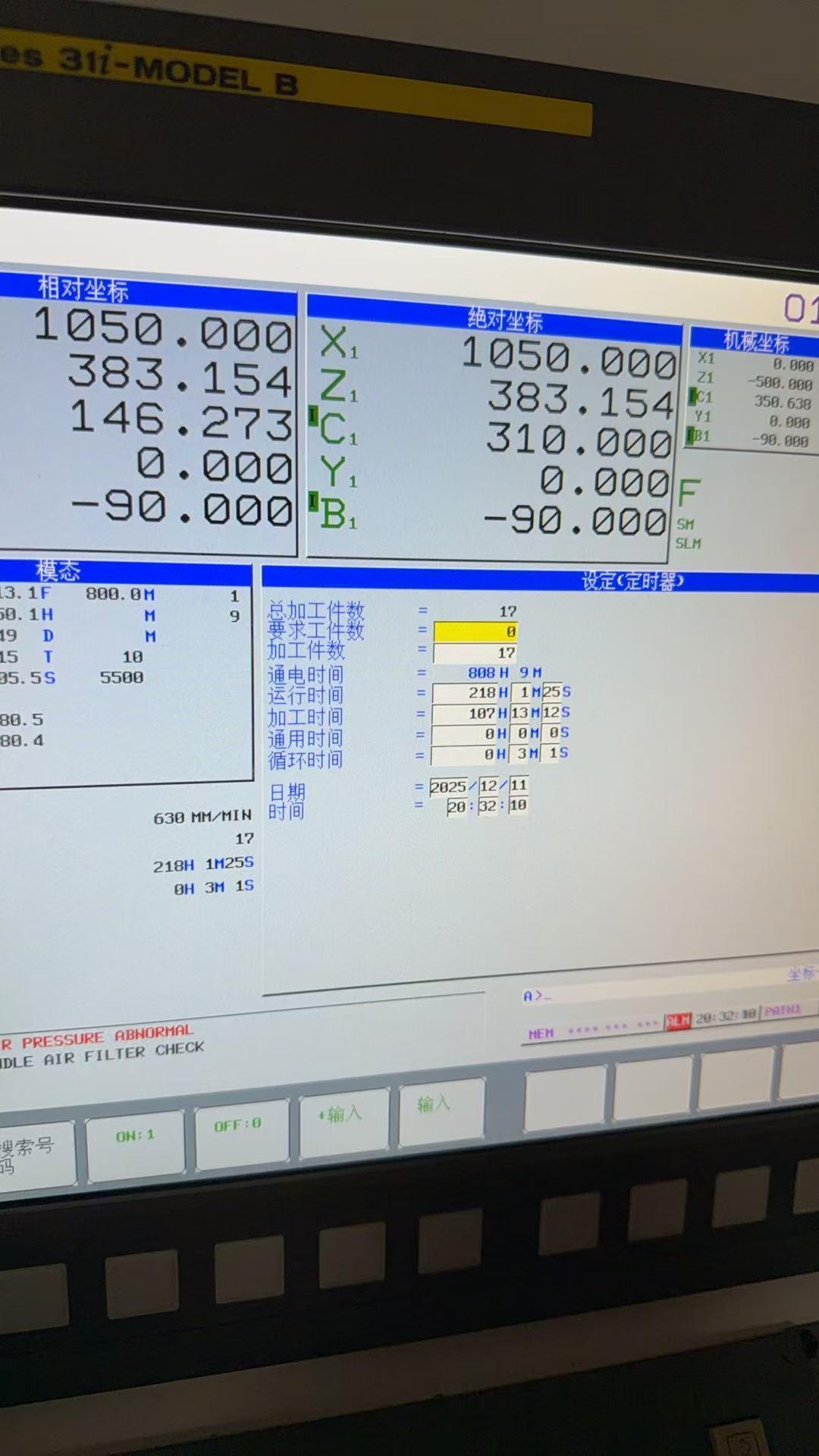

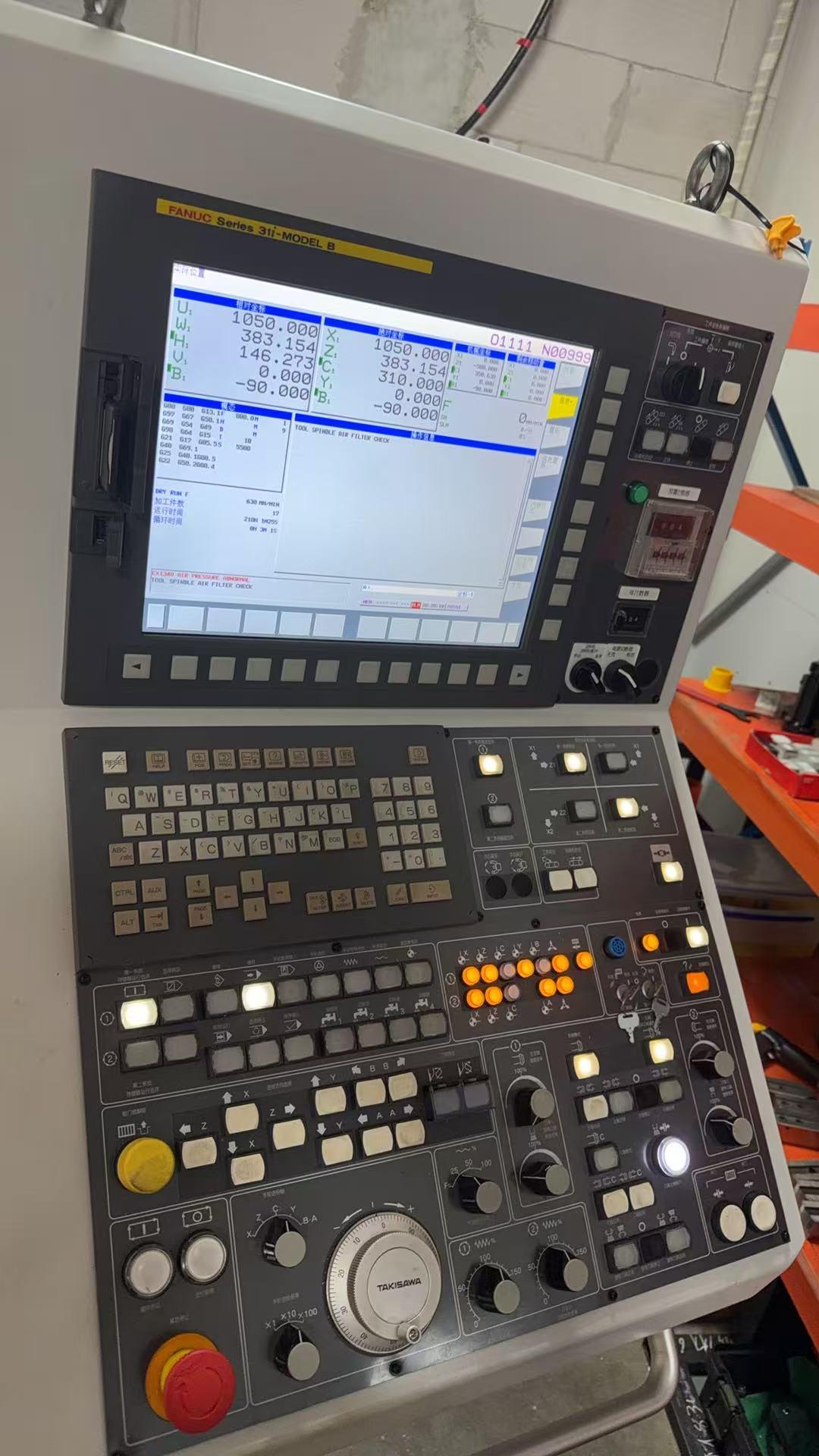

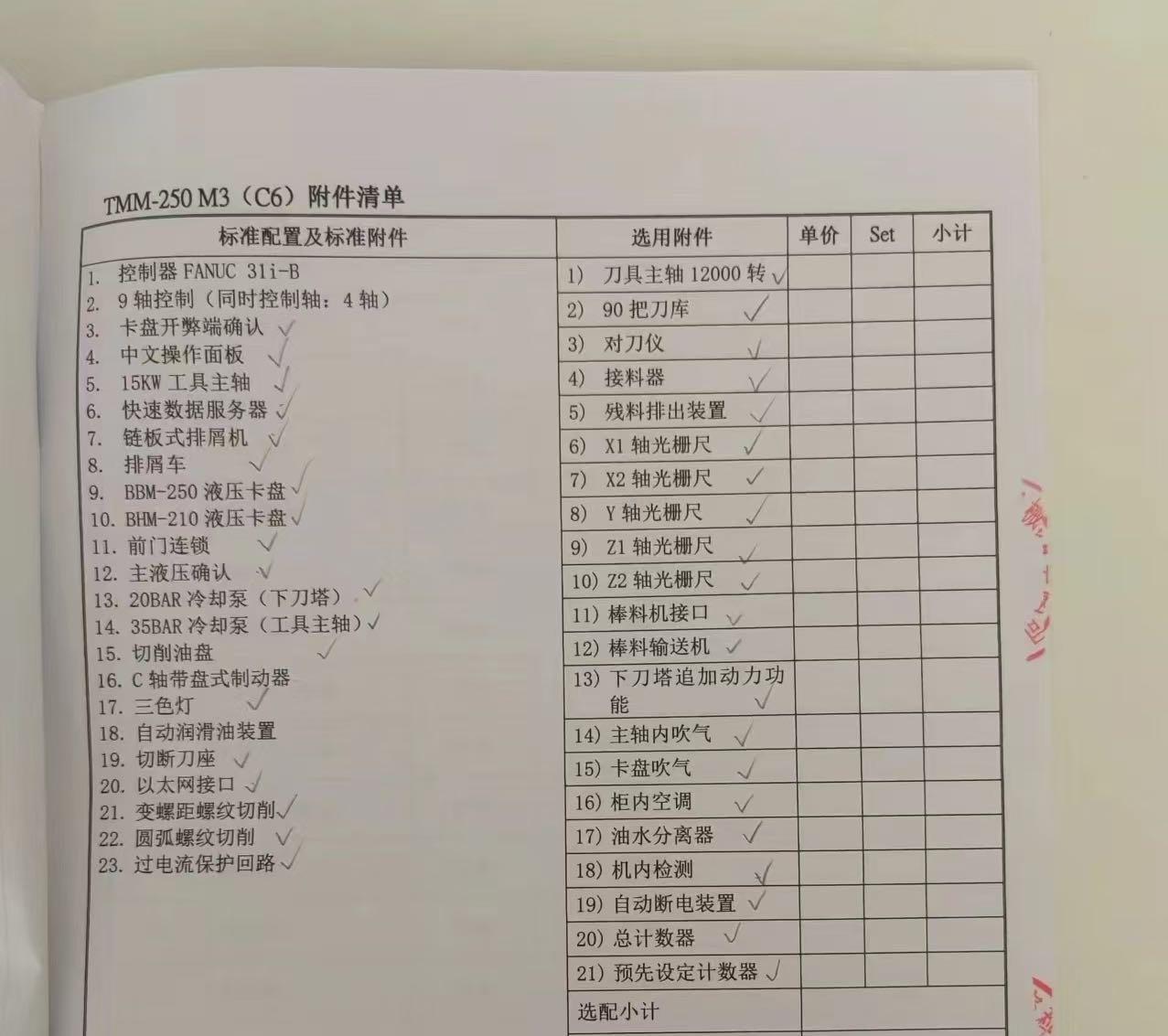

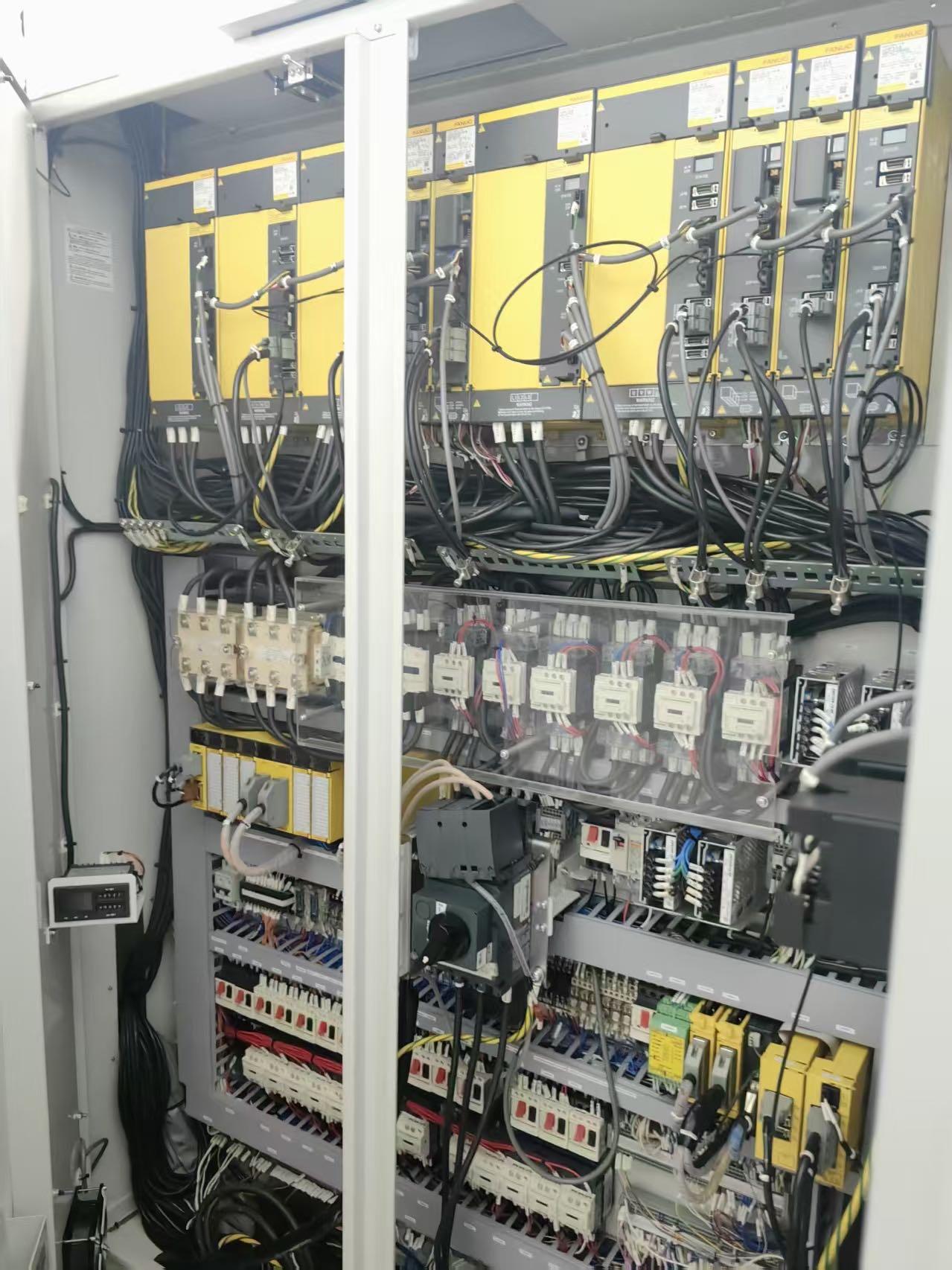

CNC System: FANUC 31i-B
9-axis control, 4-axis simultaneous machining
Spindle power: 15 kW
Maximum spindle speed: 12,000 rpm
The spindle is equipped with an oil chiller
The spindle is equipped with through-spindle coolant
Tool holder type: CAPTO C6

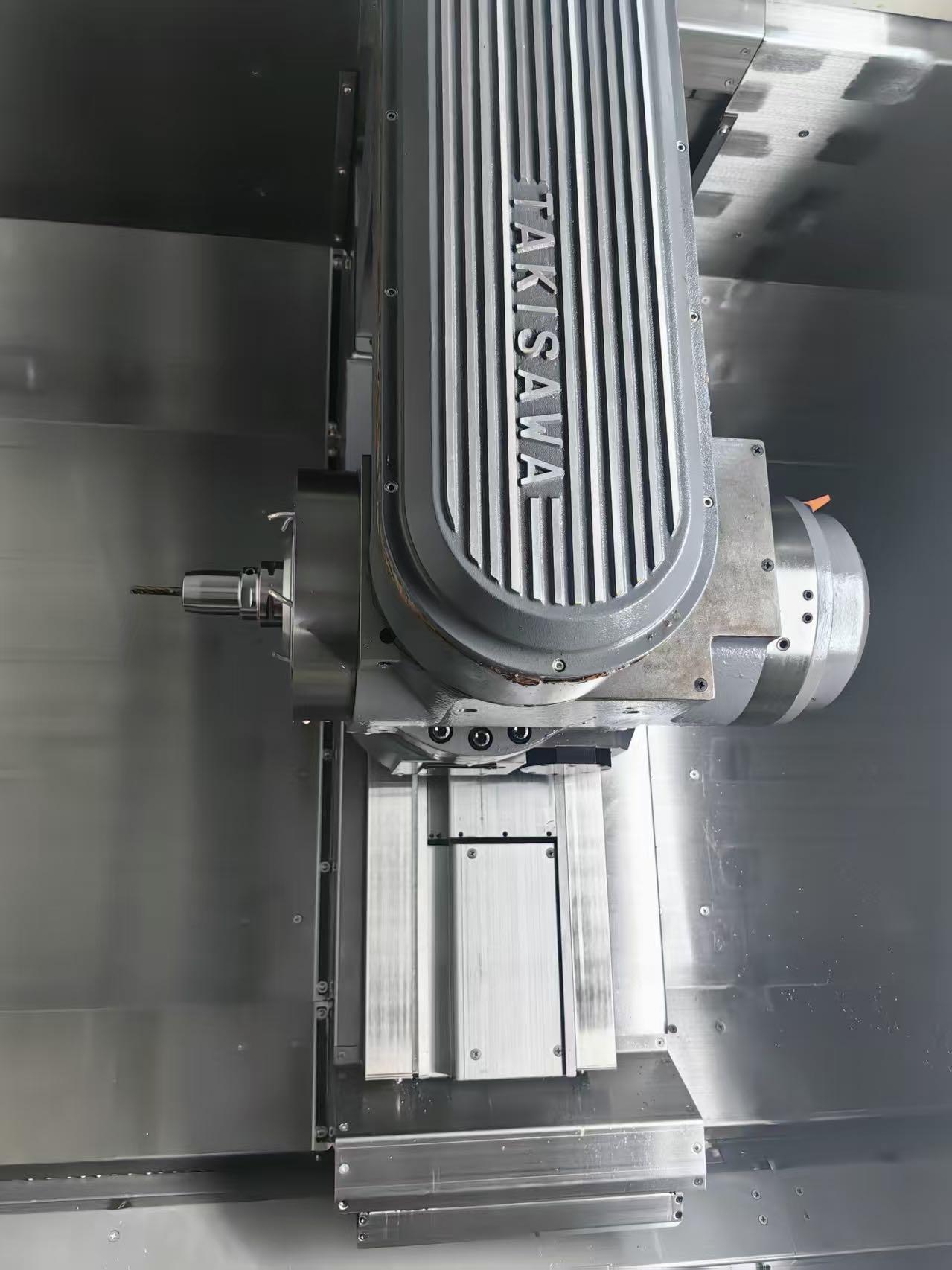

Maximum workpiece swing diameter: Ø780 mm
Standard machining diameter of the upper turret: Ø220 mm
Maximum machining diameter of the upper turret: Ø350 mm
Maximum machining diameter of the turret spindle: Ø500 mm
Maximum machining length:
– Flange machining: 1300 mm
– Conventional machining: 300 mm
Maximum distance between spindle noses: 1630 mm
Maximum bar machining diameter:

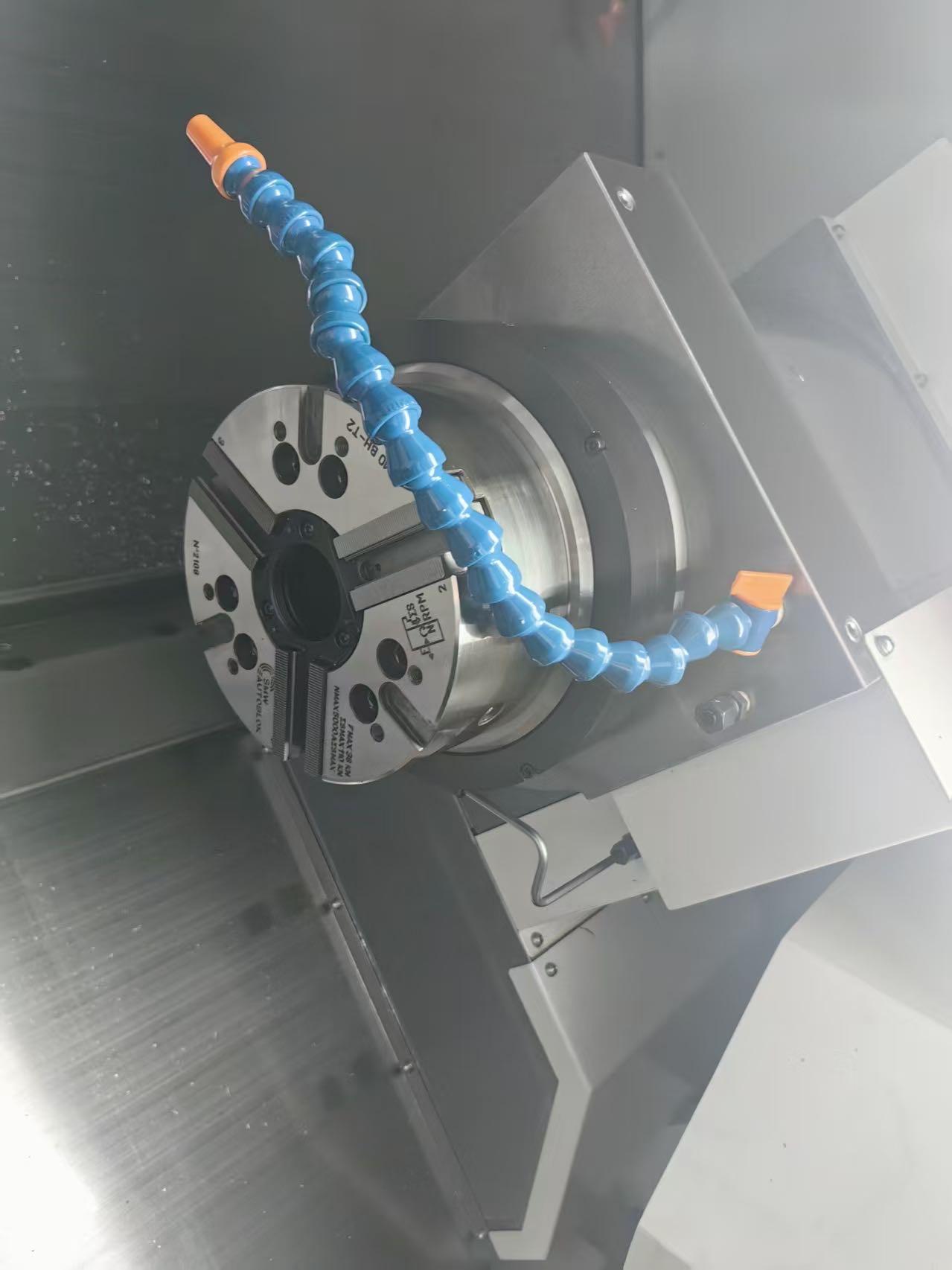

– Left spindle: Ø76.2 mm
– Right spindle: Ø50.8 mm
Minimum indexing of left/right spindle: 0.001°
Maximum speed of left/right spindle: 4000 rpm
C-axis with disc brake
Tool tip following function supported

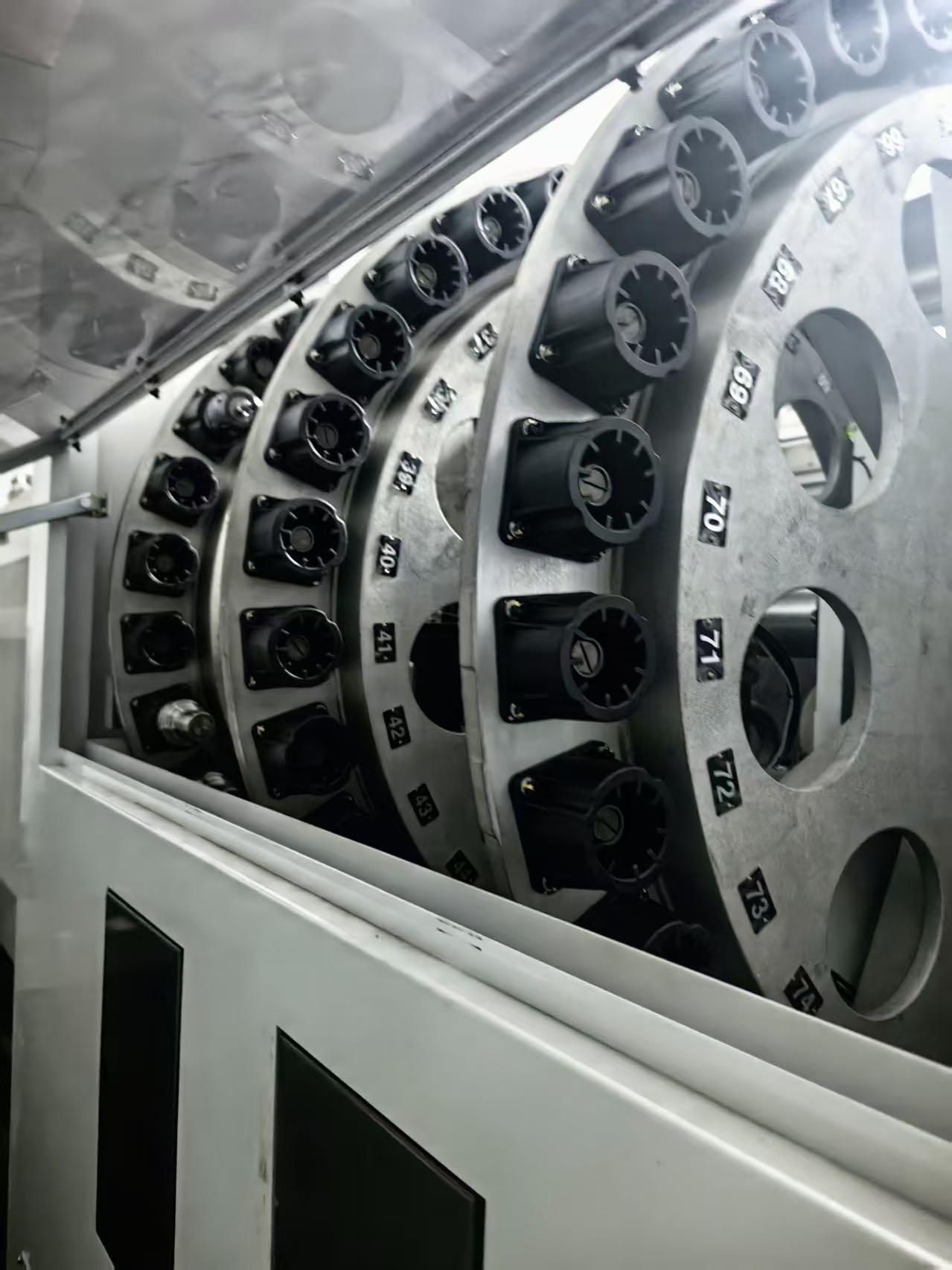

Tool magazine capacity: 90 tools

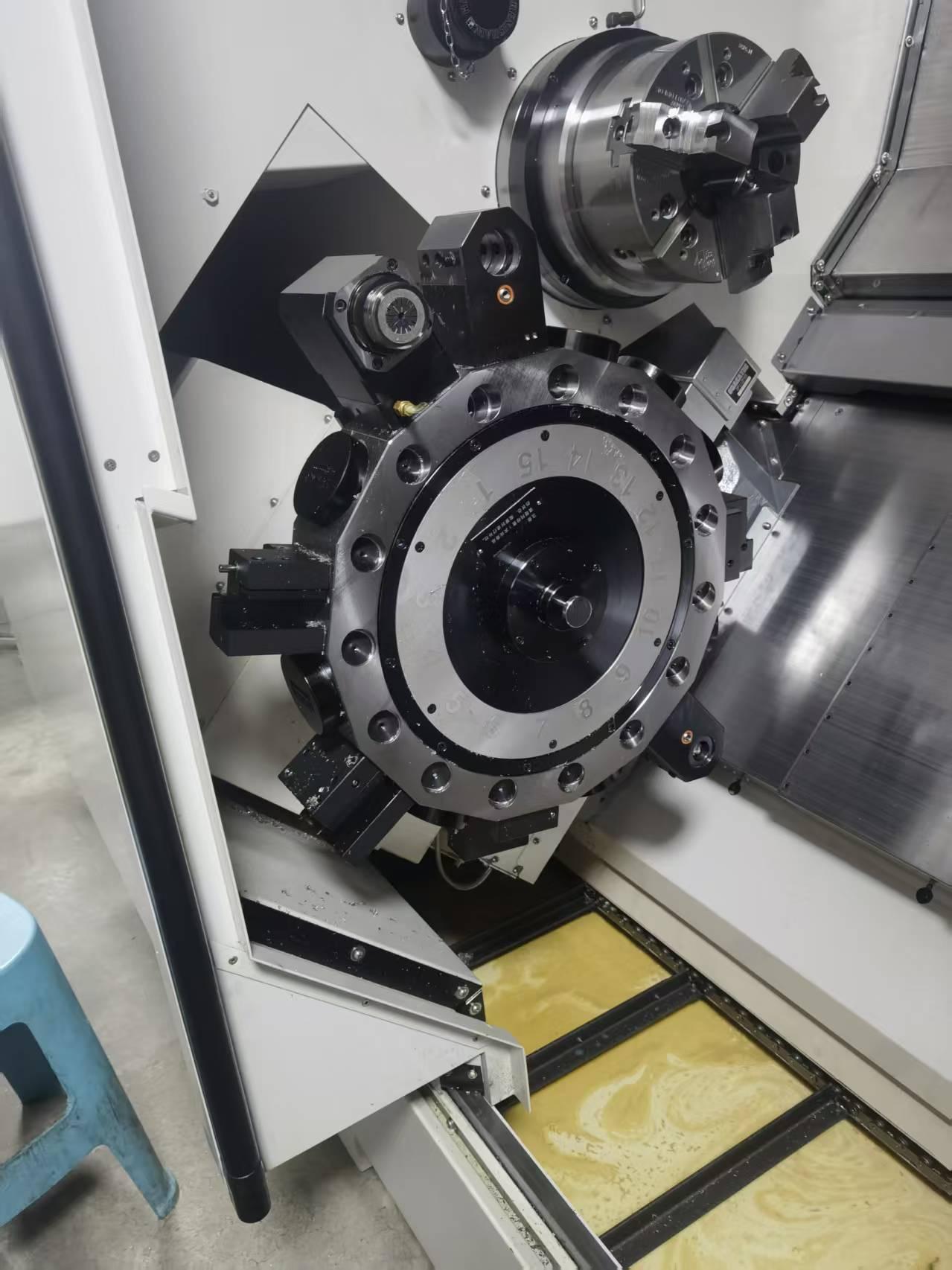

The lower turret is equipped with live tooling and configured with one live tool holder

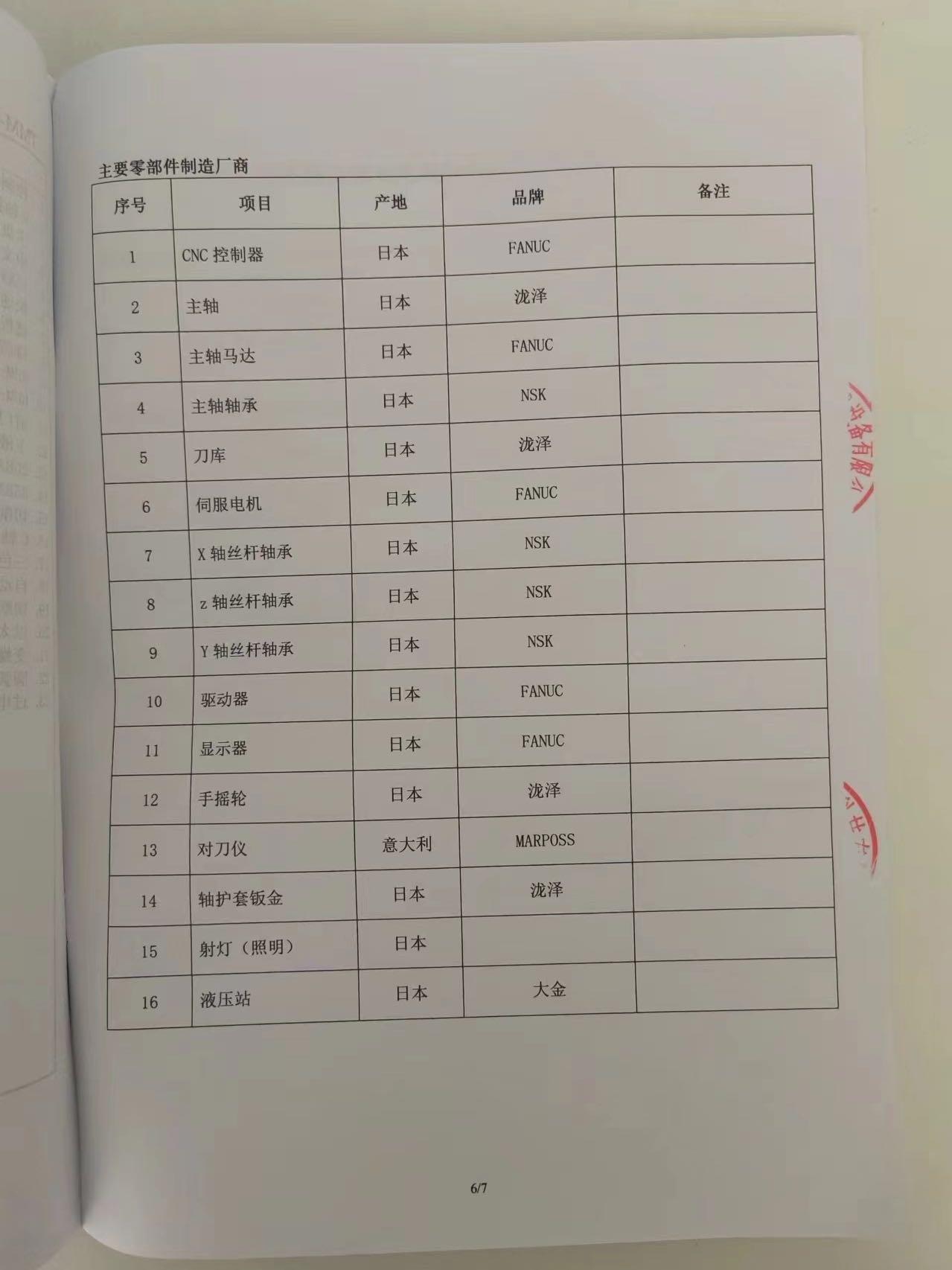

Tool setter: Italian MARPOSS
Glass scale equipped axes: X1 / X2 / Y / Z1 / Z2
Actual operating time: several hundred hours
Machine footprint: 7810 mm × 3586 mm
Machine weight: approximately 10 tons
