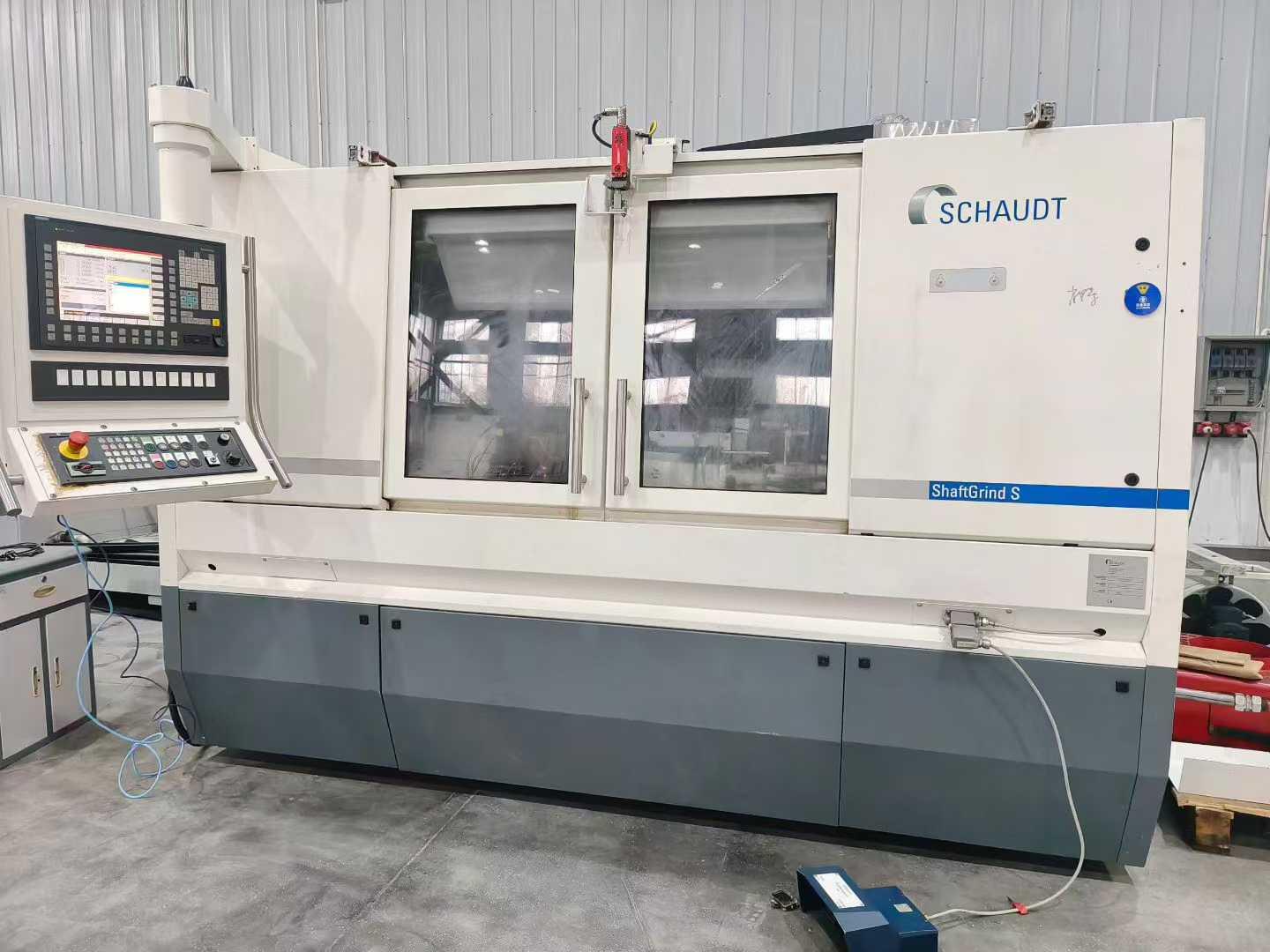

SCHAUDT Shaft ShaftGrind S CNC Cylindrical grinder

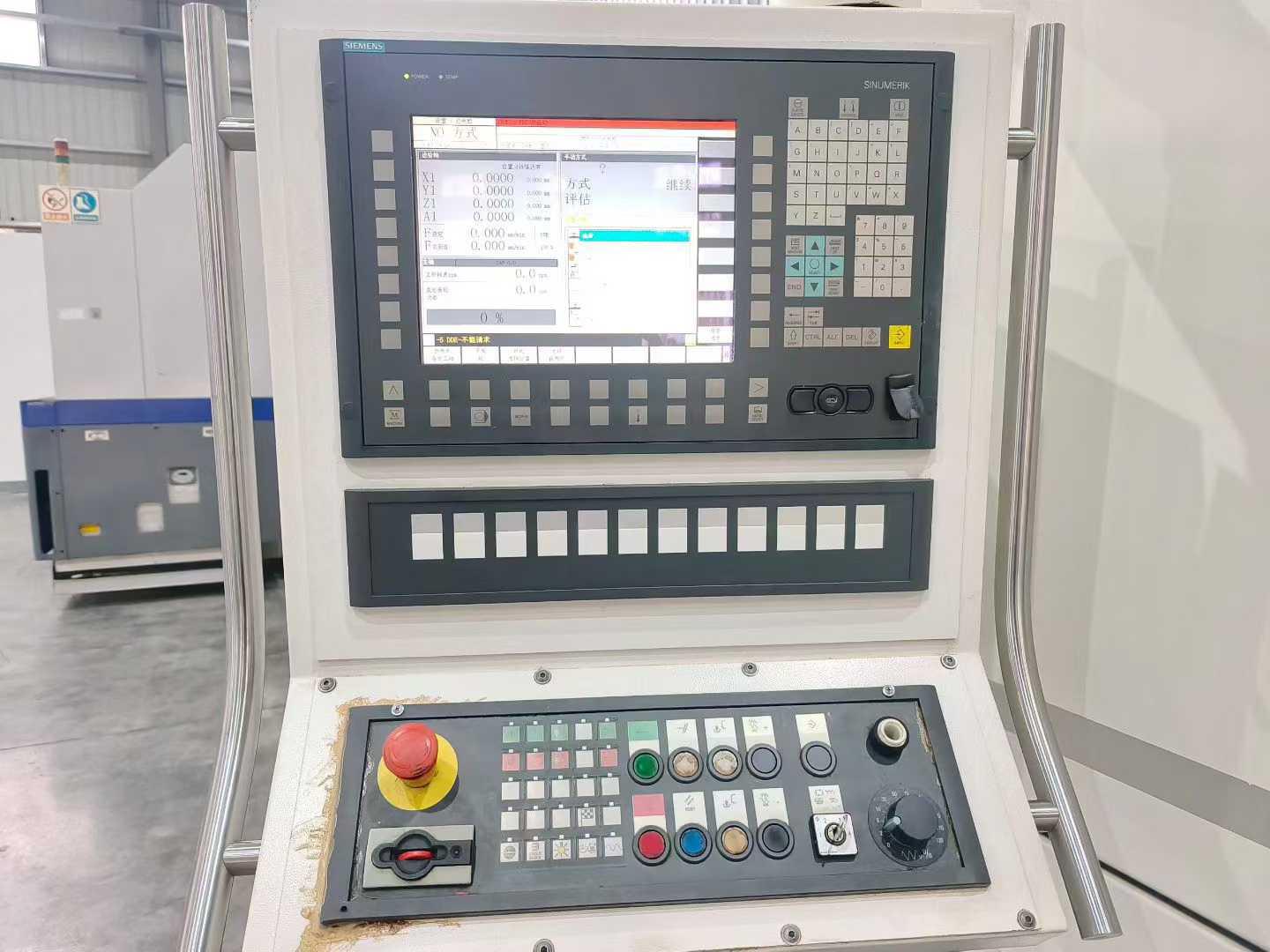

CNC System: Siemens

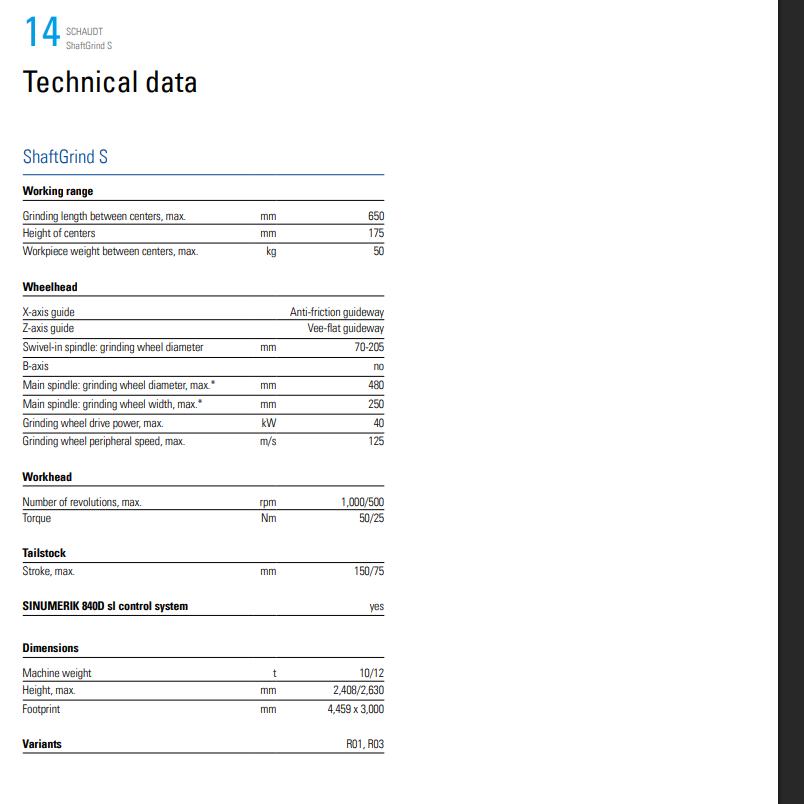

Machining Capacity
Maximum Grinding Length Between Centers: 650 mm
Center Height: 175 mm
Maximum Workpiece Weight (Between Centers): 50 kg

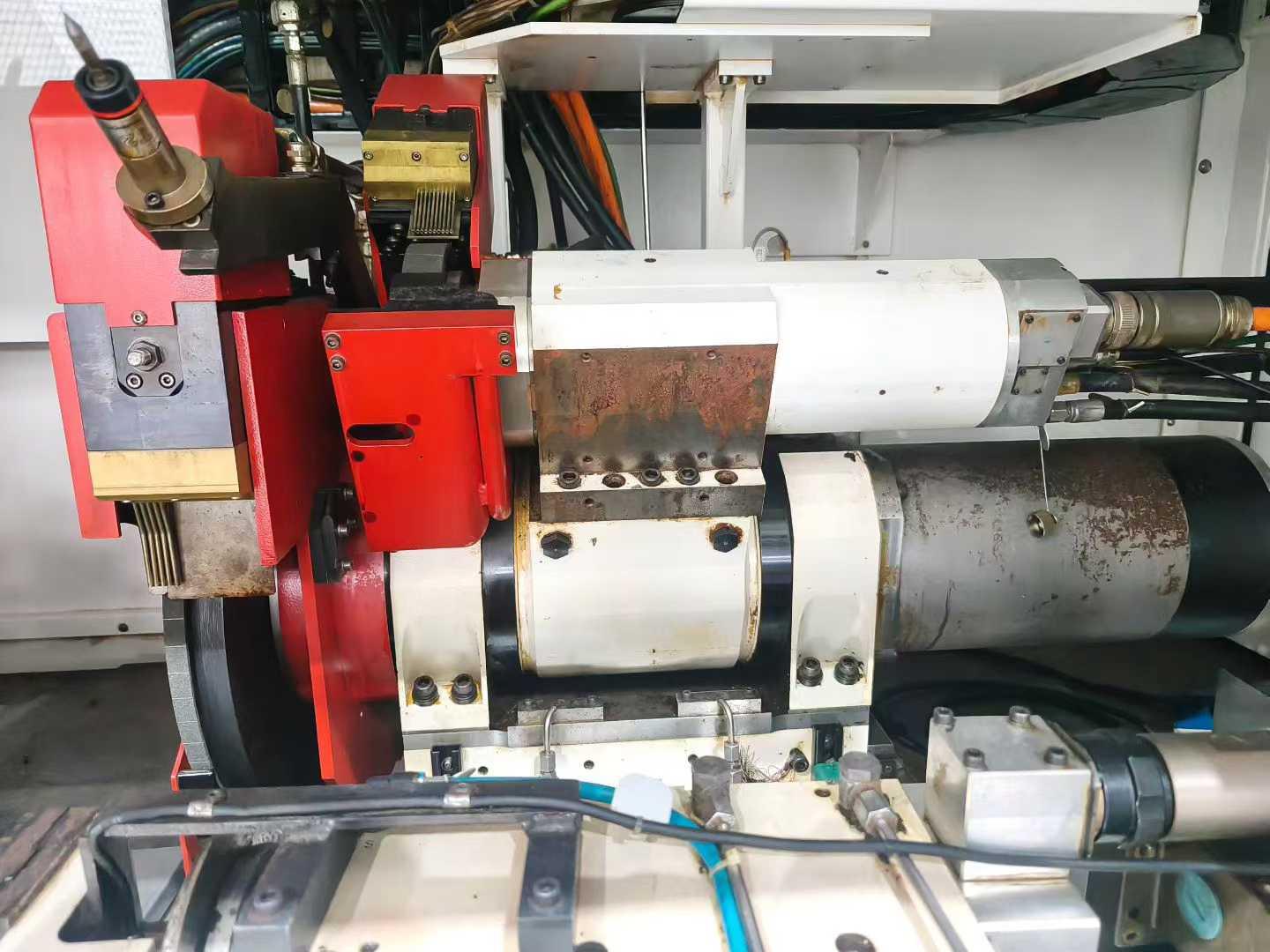

Grinding Wheel Head
X-Axis Guideway: Anti-friction Guideway
Z-Axis Guideway: V-shaped Flat Guideway
Swing Spindle Grinding Wheel Diameter: 70–205 mm
B-Axis: None
Maximum Grinding Wheel Diameter (Main Spindle): 480 mm
Maximum Grinding Wheel Width (Main Spindle): 250 mm
Maximum Grinding Wheel Drive Power: 40 kW
Maximum Grinding Wheel Peripheral Speed: 125 m/s
Workpiece Head
Maximum Rotational Speed: 1,000 / 500 rpm
Maximum Torque: 50 / 25 Nm
