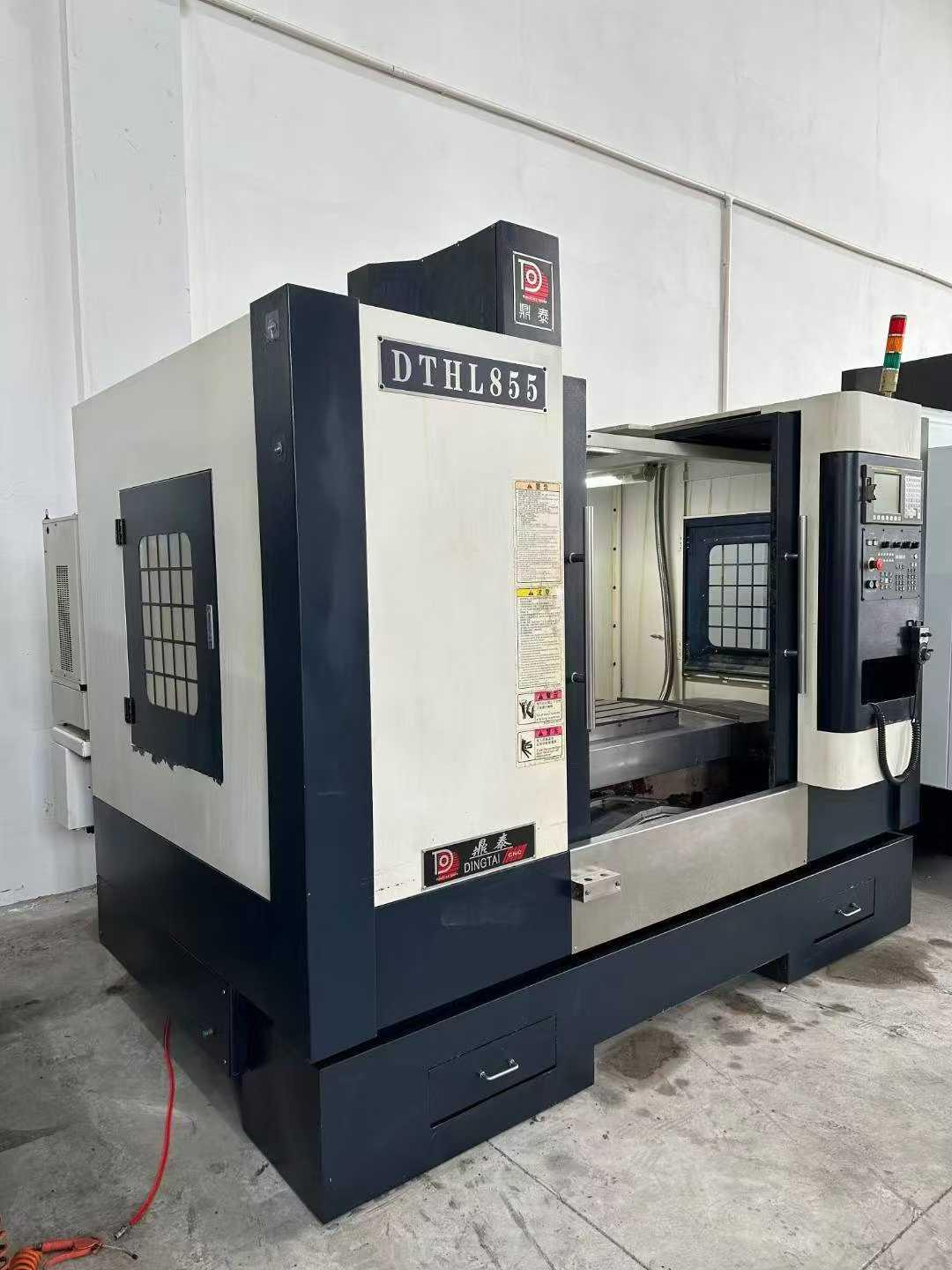

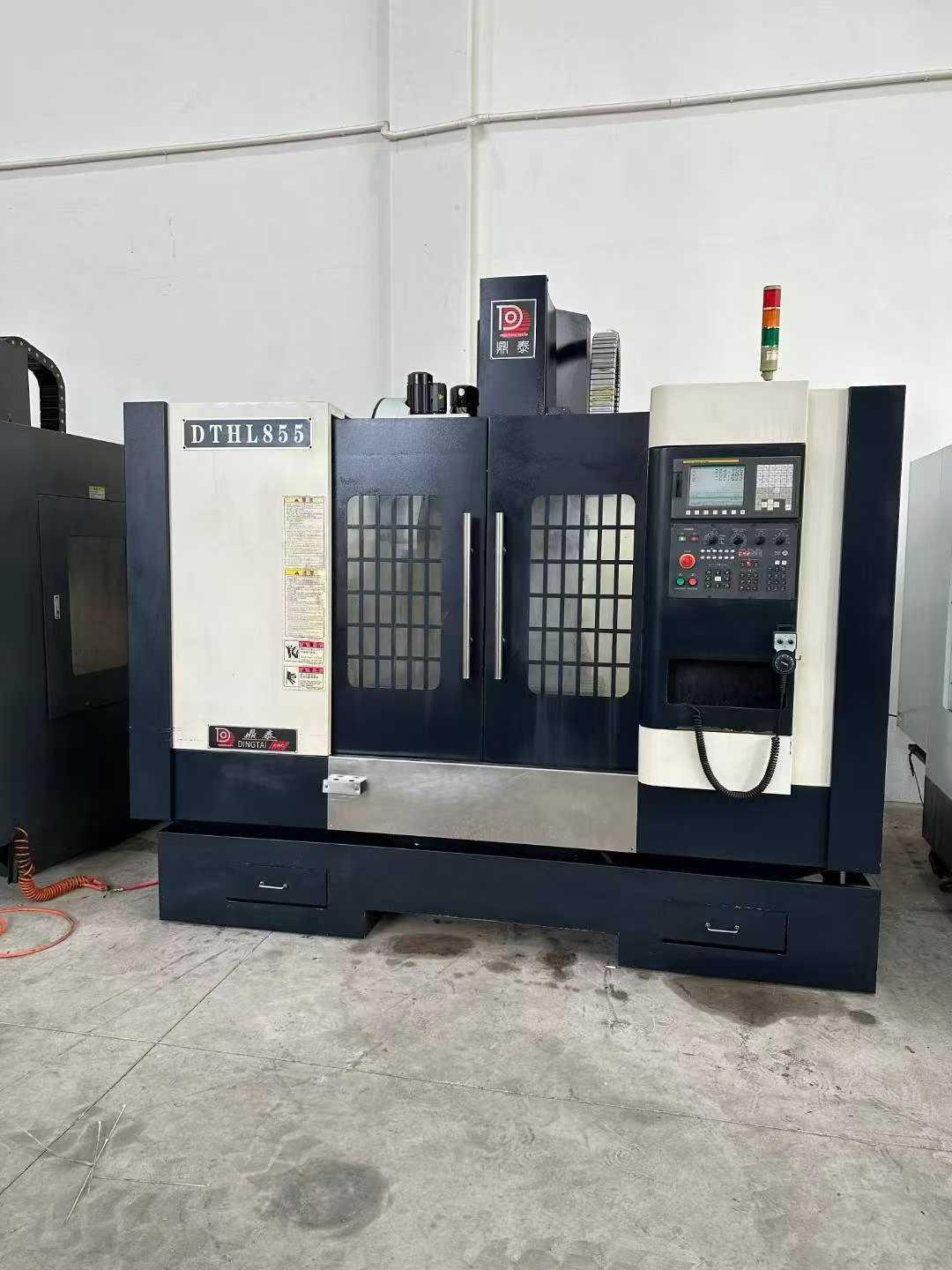

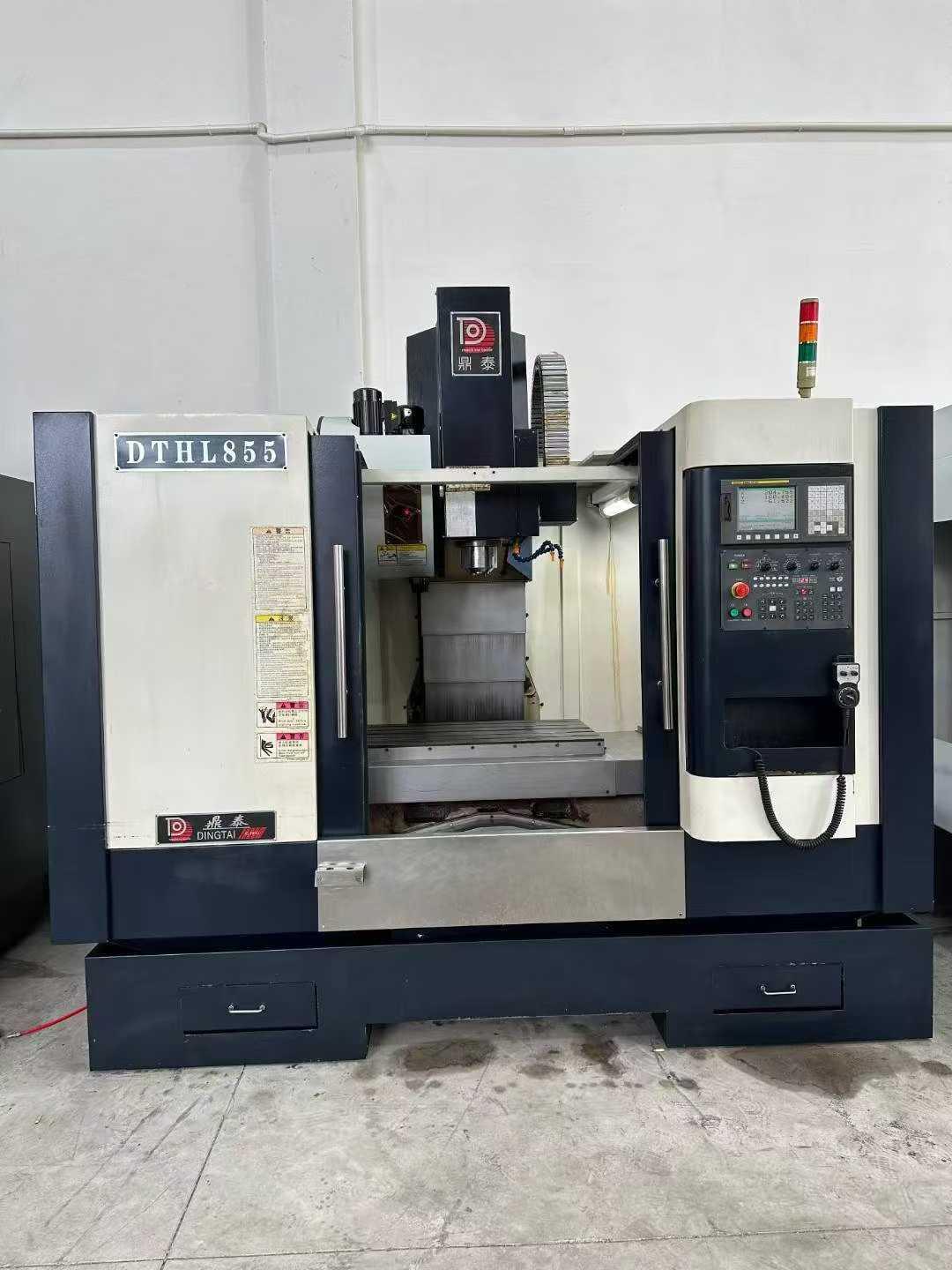

Ding Tai DTHL855 Machining centre

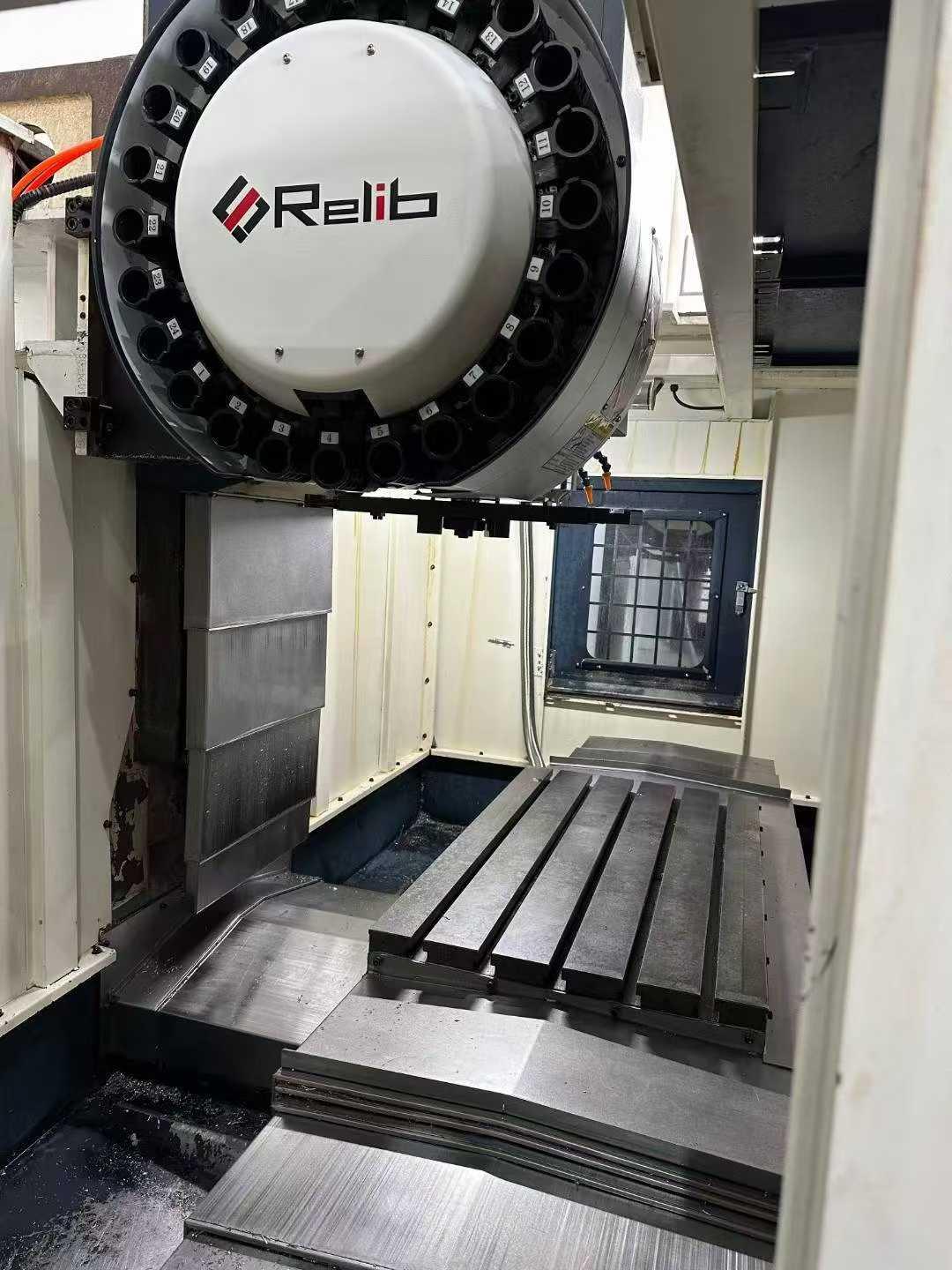

WorkWorktable size: 1000× 550mm

T-slot specification: 5-18×90 mm

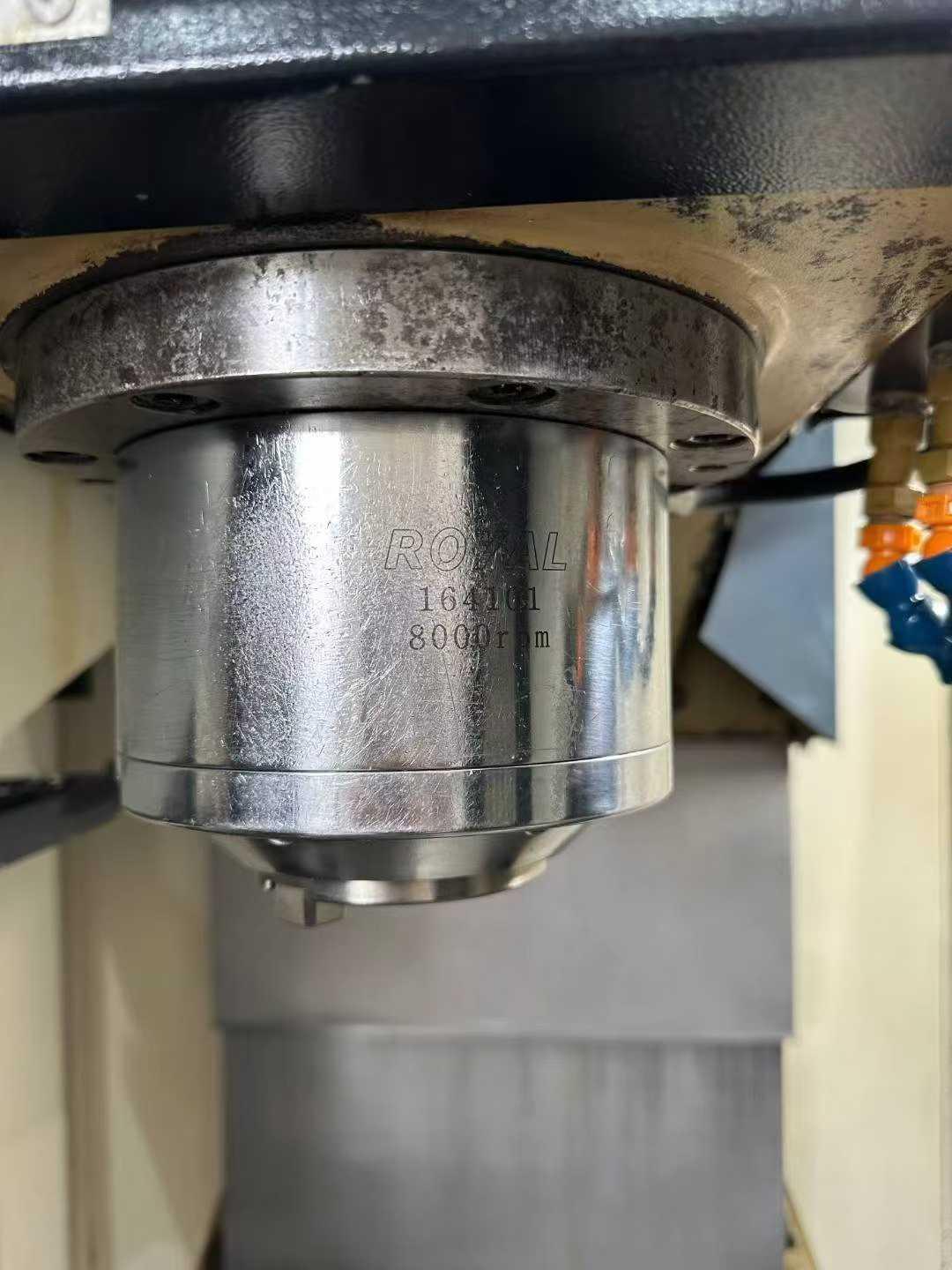

spindle taper: BT40

Spindle speed: 8000 rpm

spindle motor power: 11/15 kW

three-axis travel: 800x550x550mm

Distance from spindle nose to workWorktable surface: 120-670 mm

Distance from spindle center to the column protection surface is 590 mm

Positioning precision: ± 0.0075mm

Repeated Positioning precision: ± 0.005mm
