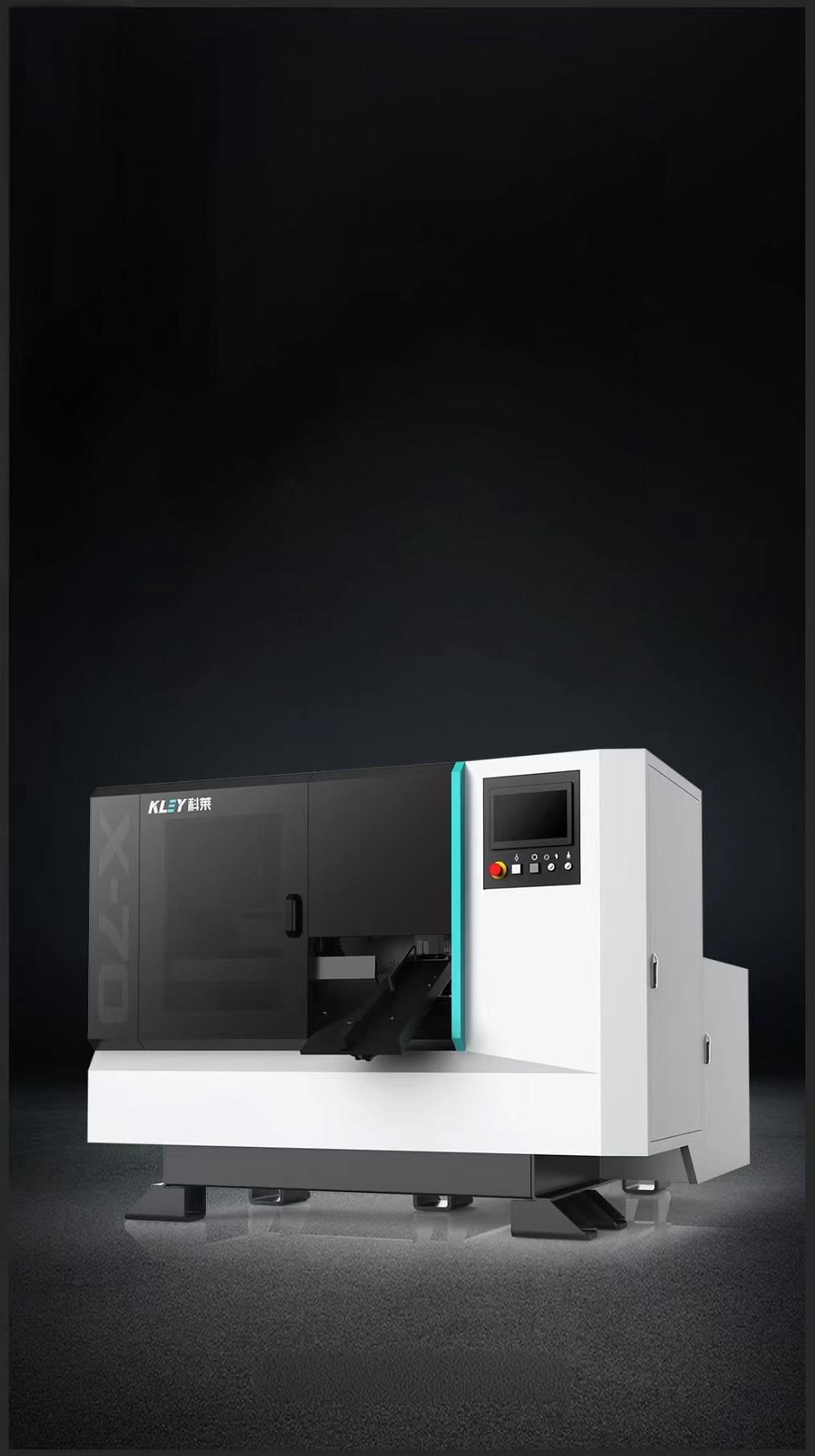

KLIY X-70 Sawing machine

Bending degree of raw materials: ≤3mm/m

Sawing range: Circle ￠10-￠70, square 10-55mm

Feeding length: 5 to 800mm, continuous cyclic action

Lead screw feeding precision: ±0.05mm

The verticality degree of the sawn surface to the axis: ≤ 0.1/100mm

Clamping method: Horizontal, upper clamping

Saw blade specification: 285*2*1.7mm

Saw blade speed: 30-160rpm (variable frequency stepless)

Motor power: 11kw (permanent magnet)

hydraulic CNC System pressure: 6.5mpa

Feeding drive: 0.85kw(actuating motor ball screw)

Sawing drive: 1.3kw(actuating motor ball screw)

The capacity of the hydraulic oil Water tank is 62L

Compressed air: Automatic screw chip conveyor

External Footage: H=1700mm, W=2100mm, L=2300mm

Net weight (main unit + material rack) : 1800+550kg
