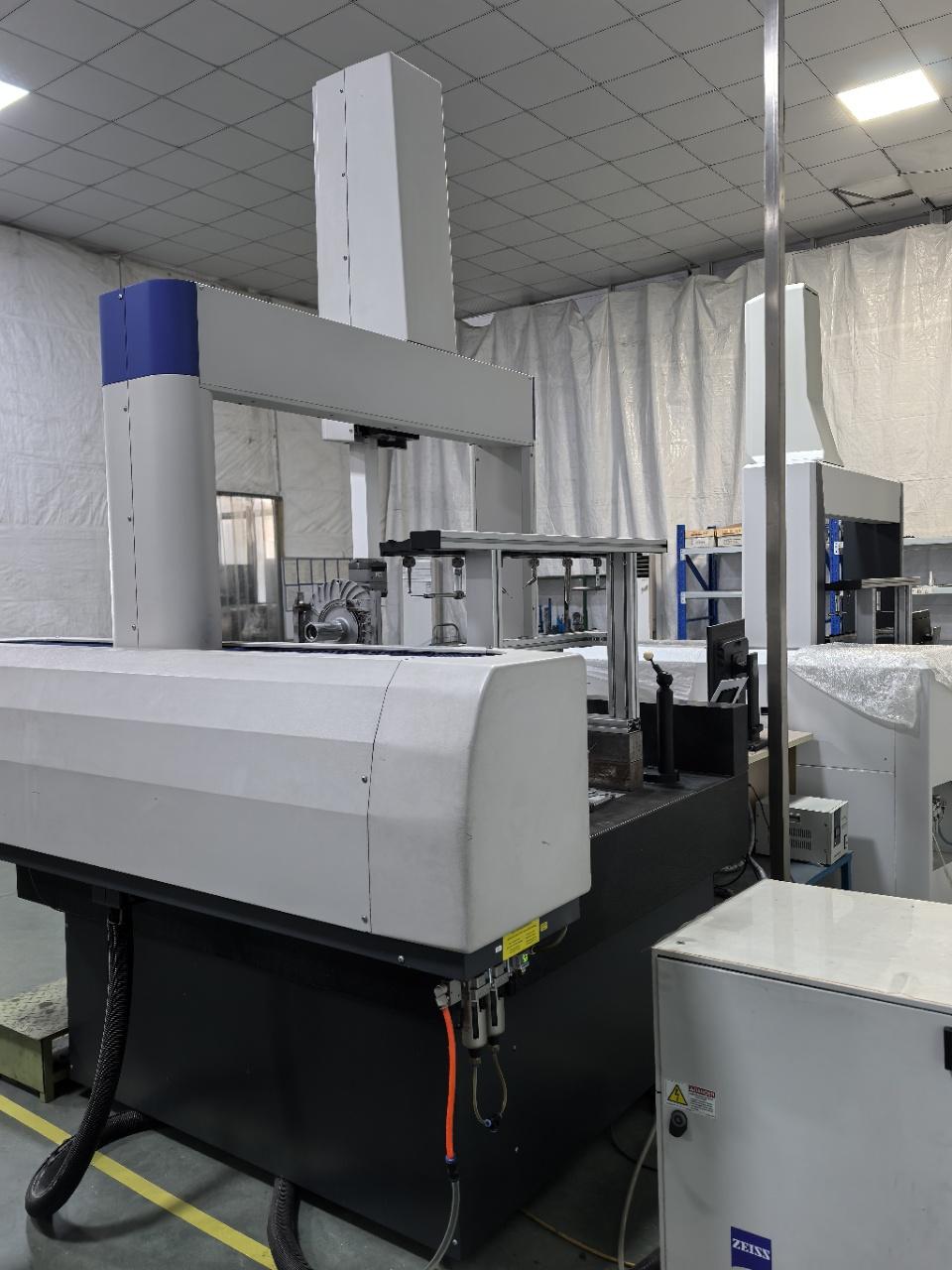

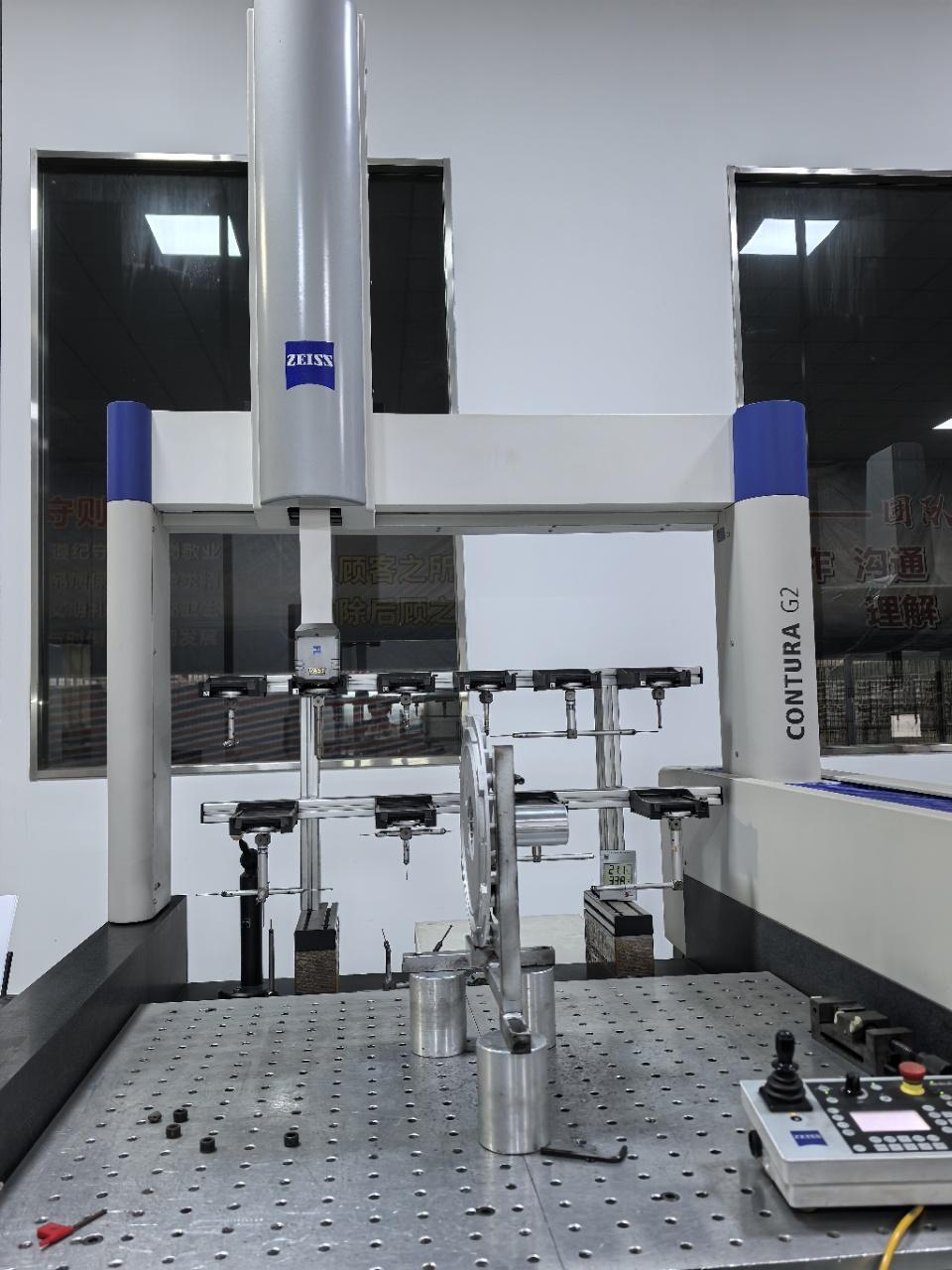

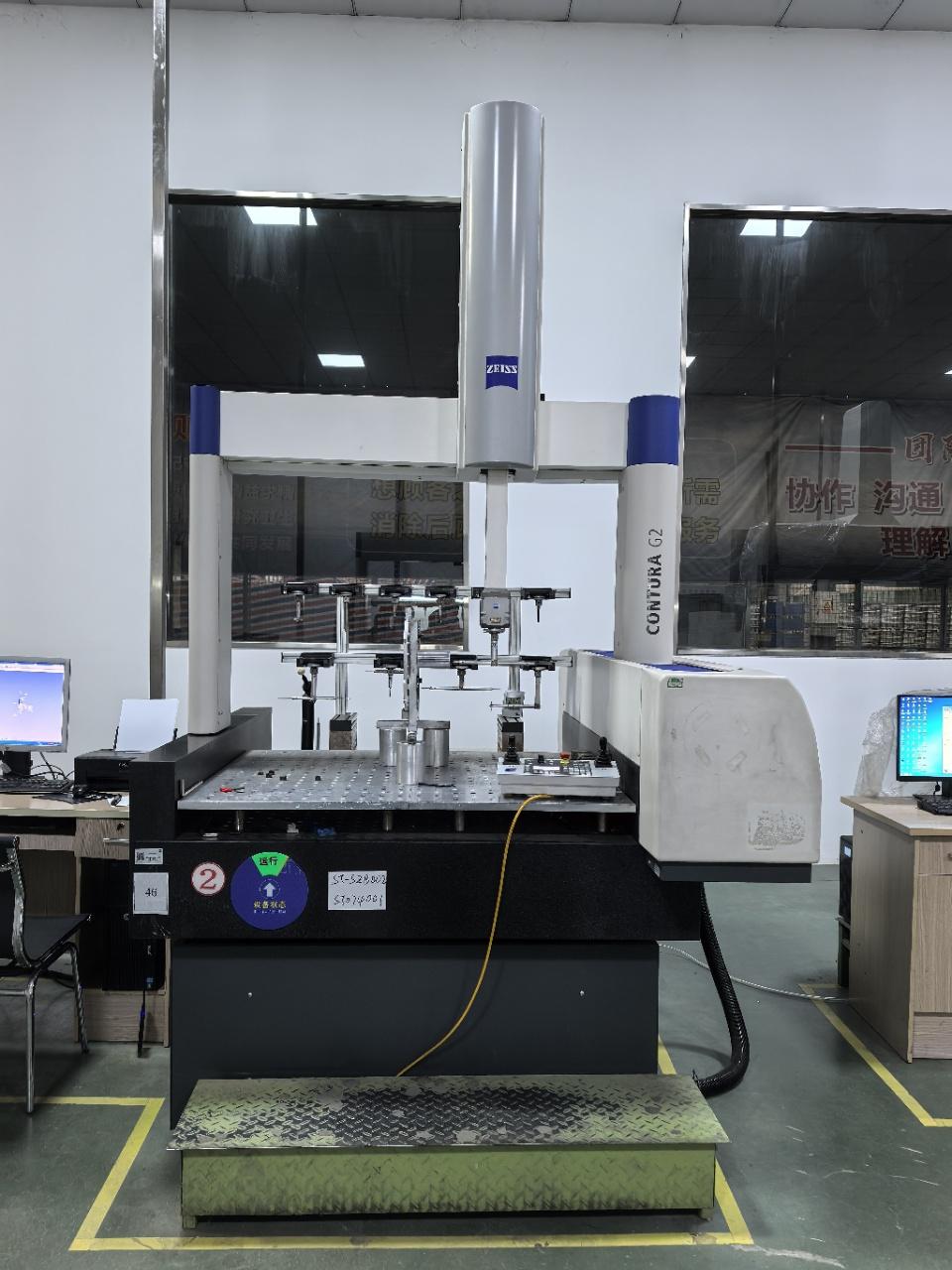

ZEISS CONTURA G2 10/12/6 AKTIV U-STN CMM

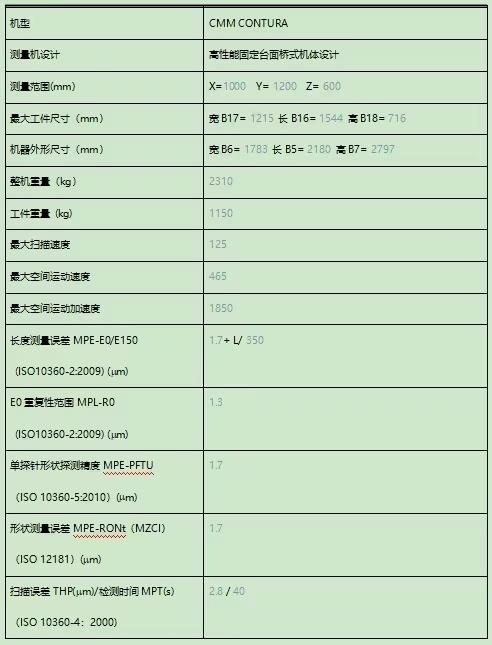

Test Range
X-axis: 1000 mm
Y-axis: 1200 mm
Z-axis: 600 mm
Maximum Working Size
Width (B17): 1215 mm
Length (B16): 1544 mm
Height (B18): 716 mm
Machine External Dimensions
Width (B6): 1783 mm
Length (B5): 2180 mm
Height (B7): 2797 mm
Weight
Overall Weight: 2310 kg
Working Weight: 1150 kg
Performance Specifications
Maximum Scanning Speed: 125 mm/s
Maximum Spatial Movement Speed: 465 mm/s
Maximum Spatial Motion Acceleration: 1850 mm/s²
Precision Index (in accordance with ISO standards)
Length Measurement Error (MPE-E0/E150): 1.7 ± L/350 μm
Repeatability Range (MPI-R0): 1.3 μm
Single-Probe Shape Detection Precision (MPE-PFTU): 1.7 μm
Shape Measurement Error (MPE-ROM/MZCI): 1.7 μm
Scanning Error / Detection Time: 2.8 mm / 40 s
