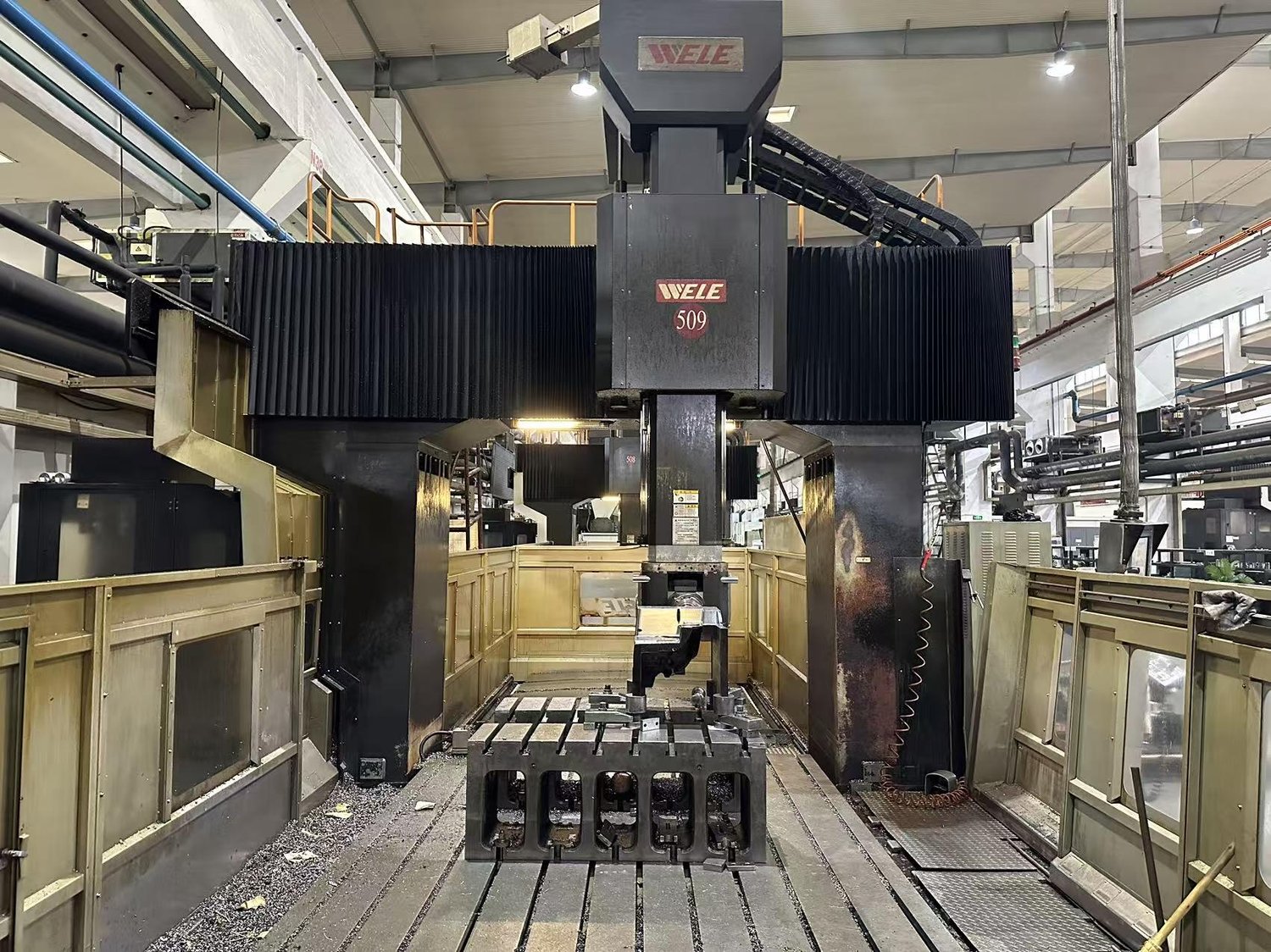

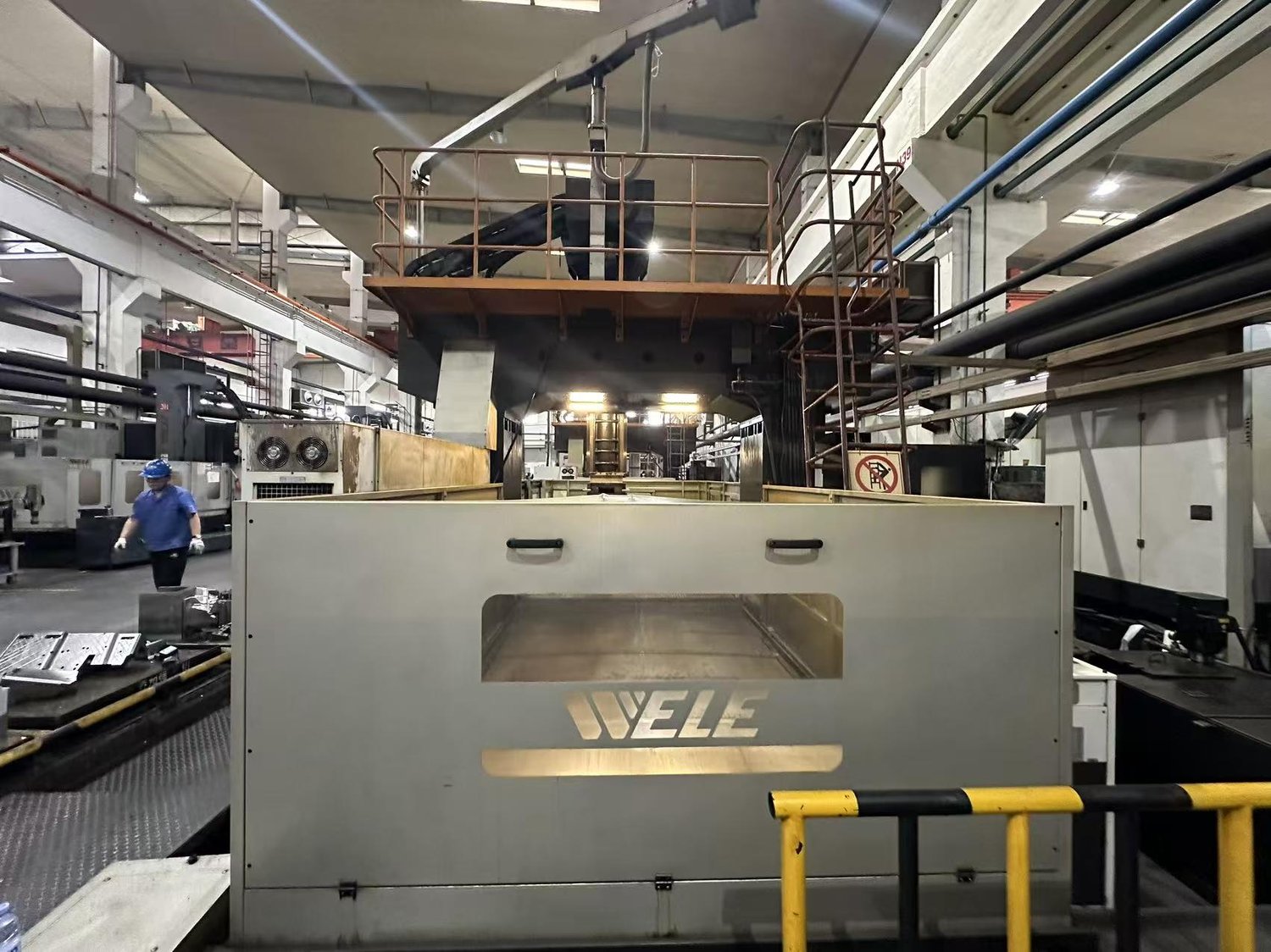

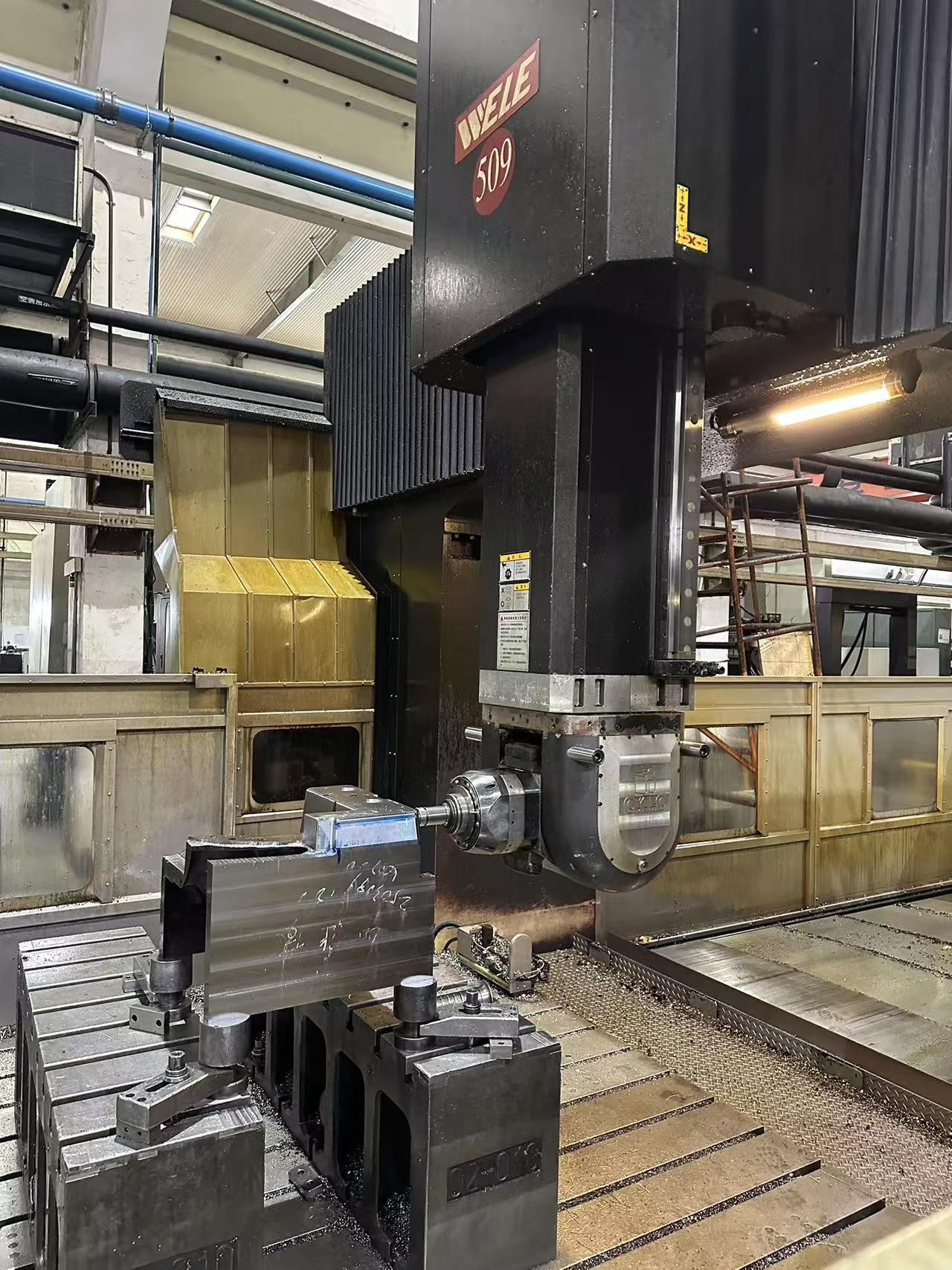

WELE UB-425ZY2 Gantry machining centre
[Product Information]:
- Inventory number：89743
- Brand：WELE
- Model：UB-425ZY2
- Origin：Taiwan, China
- Location：China
- Year：2011
- Create Time：2025-12-08
Specifications:

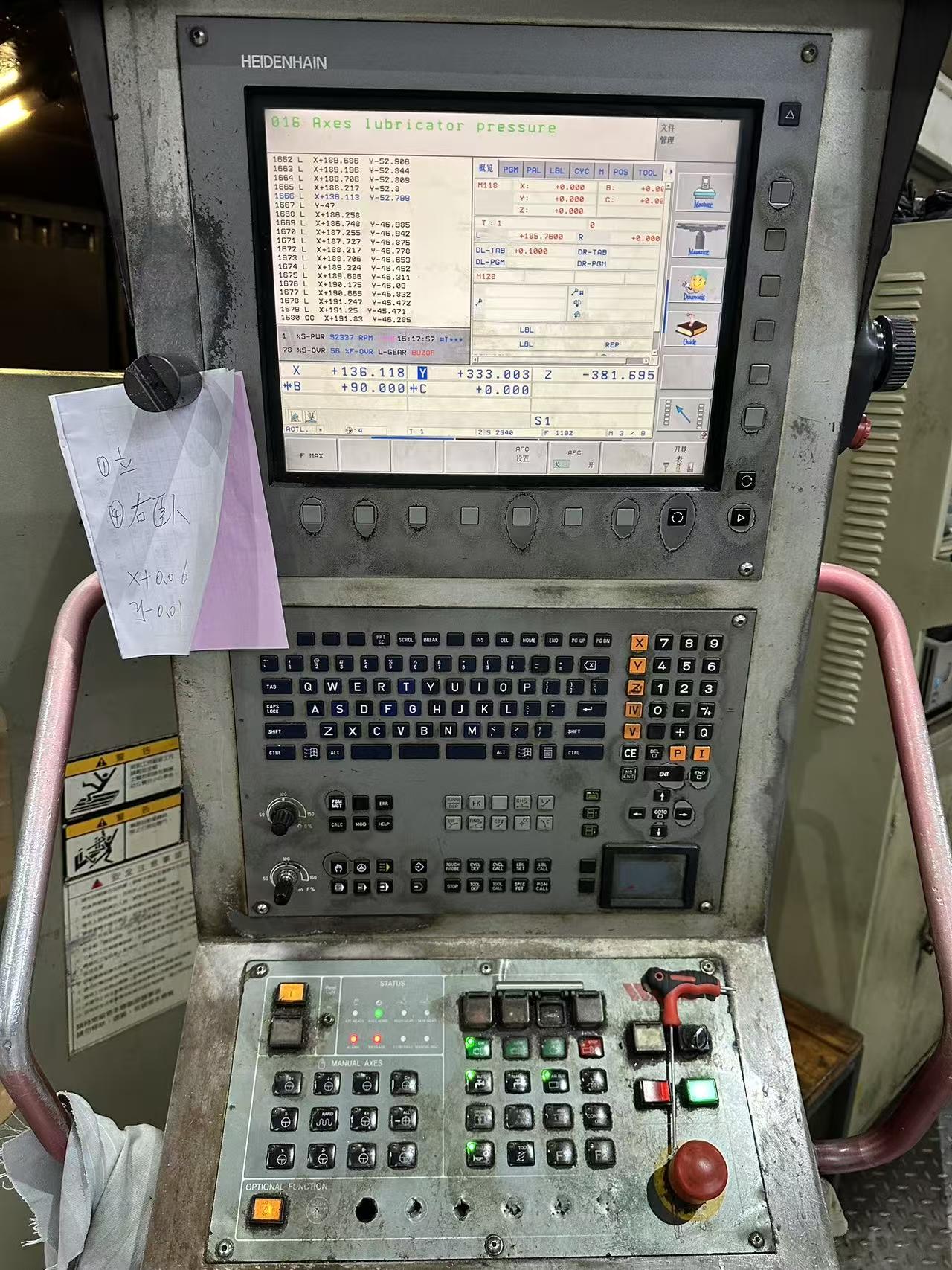

CNC System: Heidenhain 530
three-axis travel: 4060*2550*1000mm
Worktable size: 4000*2400mm
Gantry width: 2800mm
B-axis Rotation Angle: ±110°
C-axis Rotation Angle: ±360°
Spindle speed: 12,000 RPM
Taper: HSK A100
spindle power: 34kw
Torque: 200N.m
tools magazine capacity: 32
full close-loop optical glass scale
