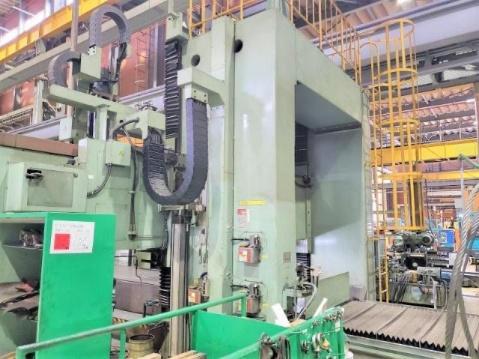

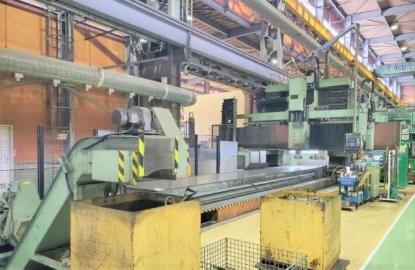

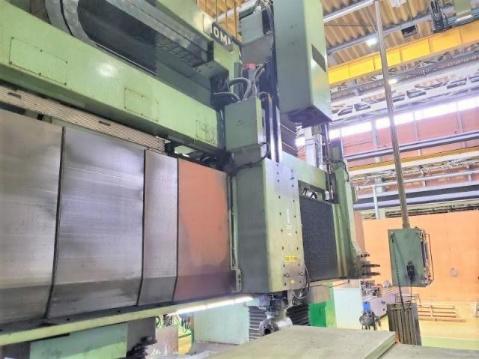

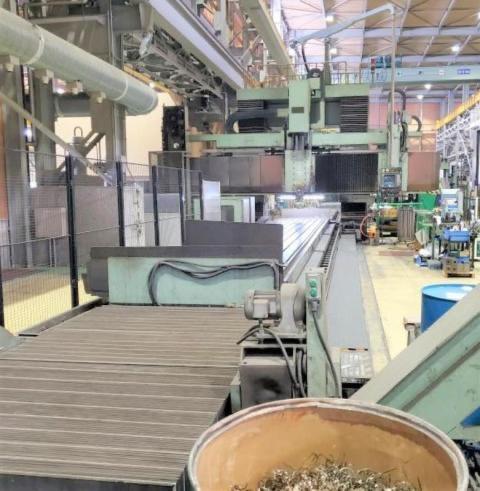

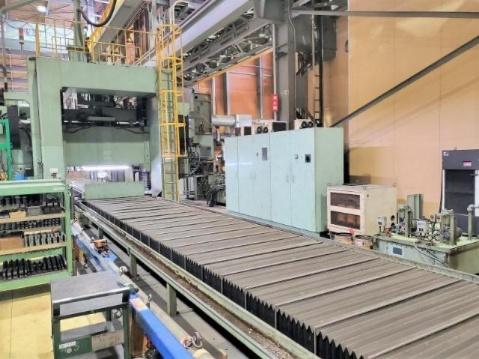

HOMMA HNS-10GS Gantry machining centre

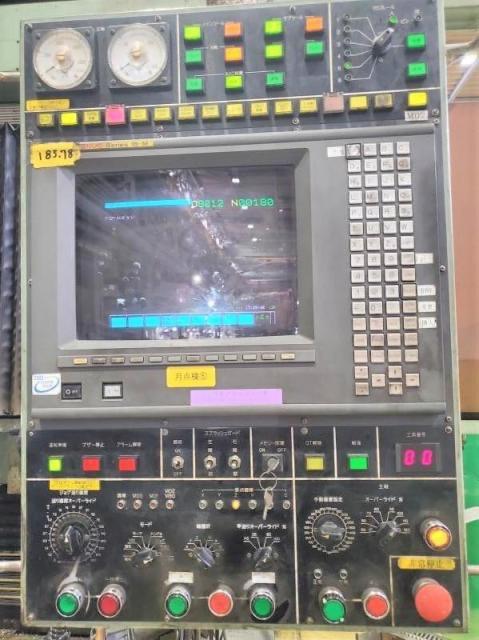

CNC System: F-15MB

X-axis travel: 10,500mm

Y-axis travel: 3,800mm

Z-axis travel: 800mm

W-axis travel: 1400mm

tools magazine: 60 ATC tools

spindle: BT50

Spindle speed: 2,250RPM

AAC:4 heads

Gantry Width: 2,250mm

Distance from workWorktable surface to spindle nose: 1930mm

Countertop: 1,650*10,500 mm

The maximum machining  size of the Angle milling head when in use is 2100X10500mm

load: 20,000kg
