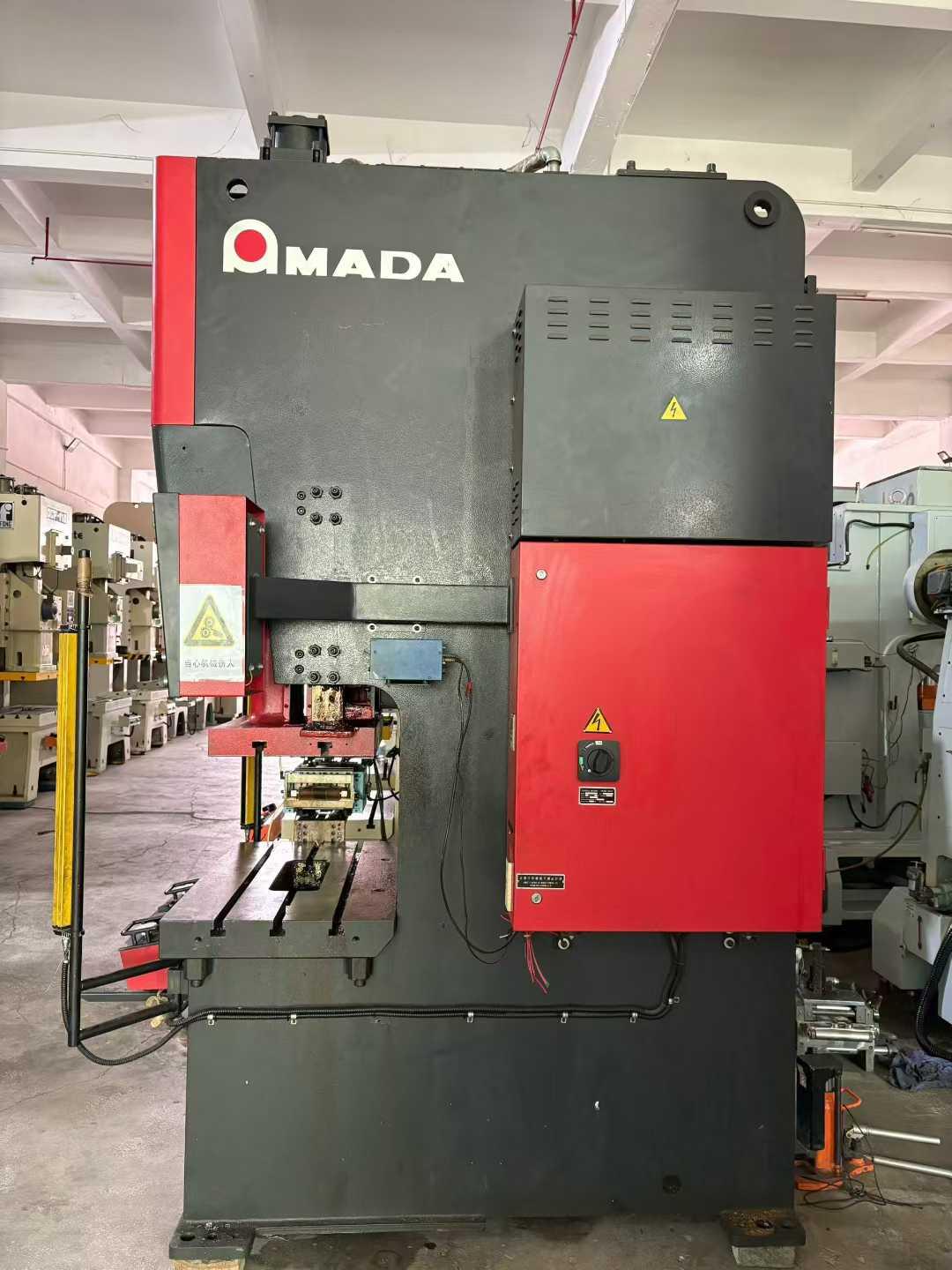

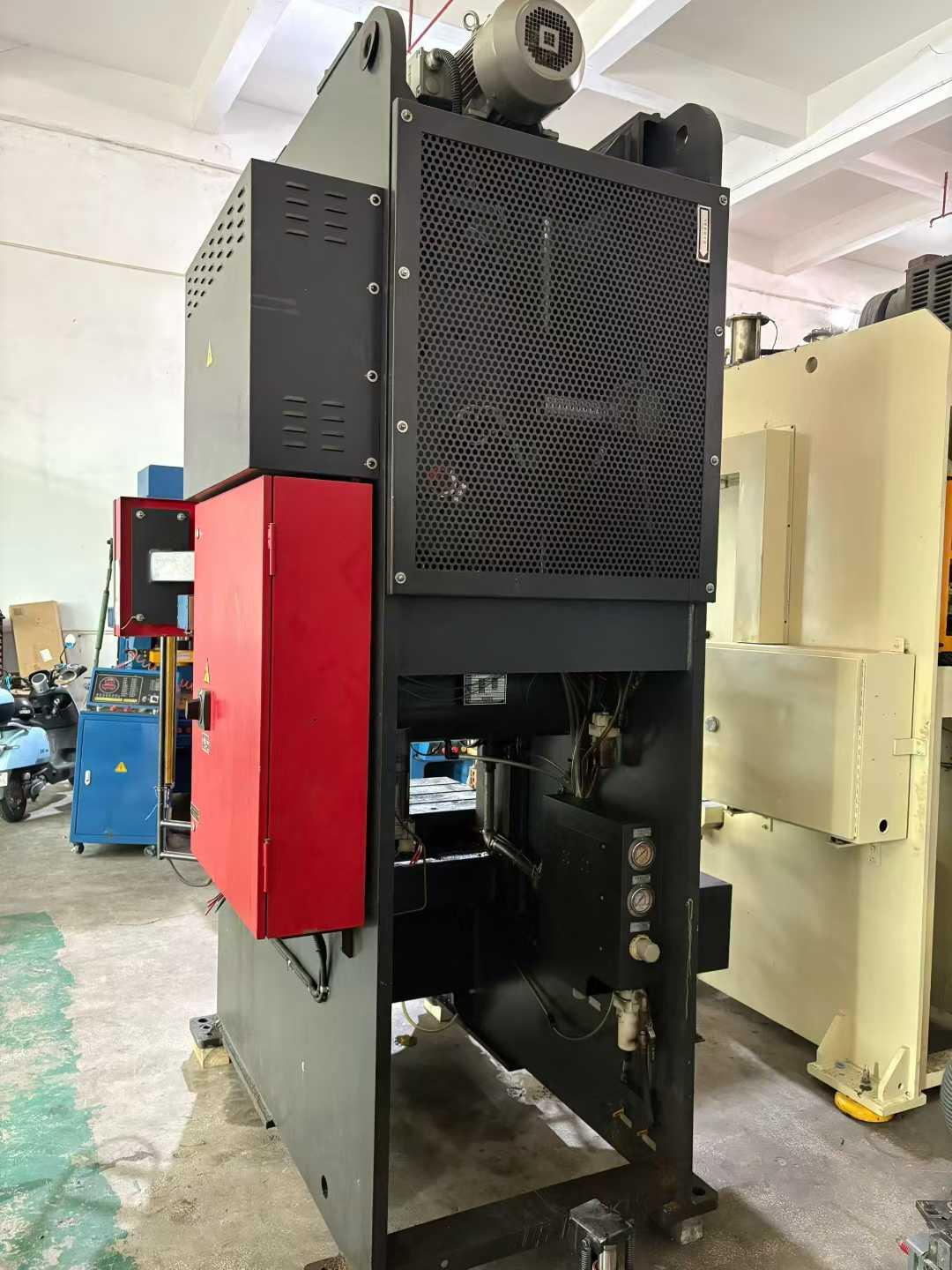

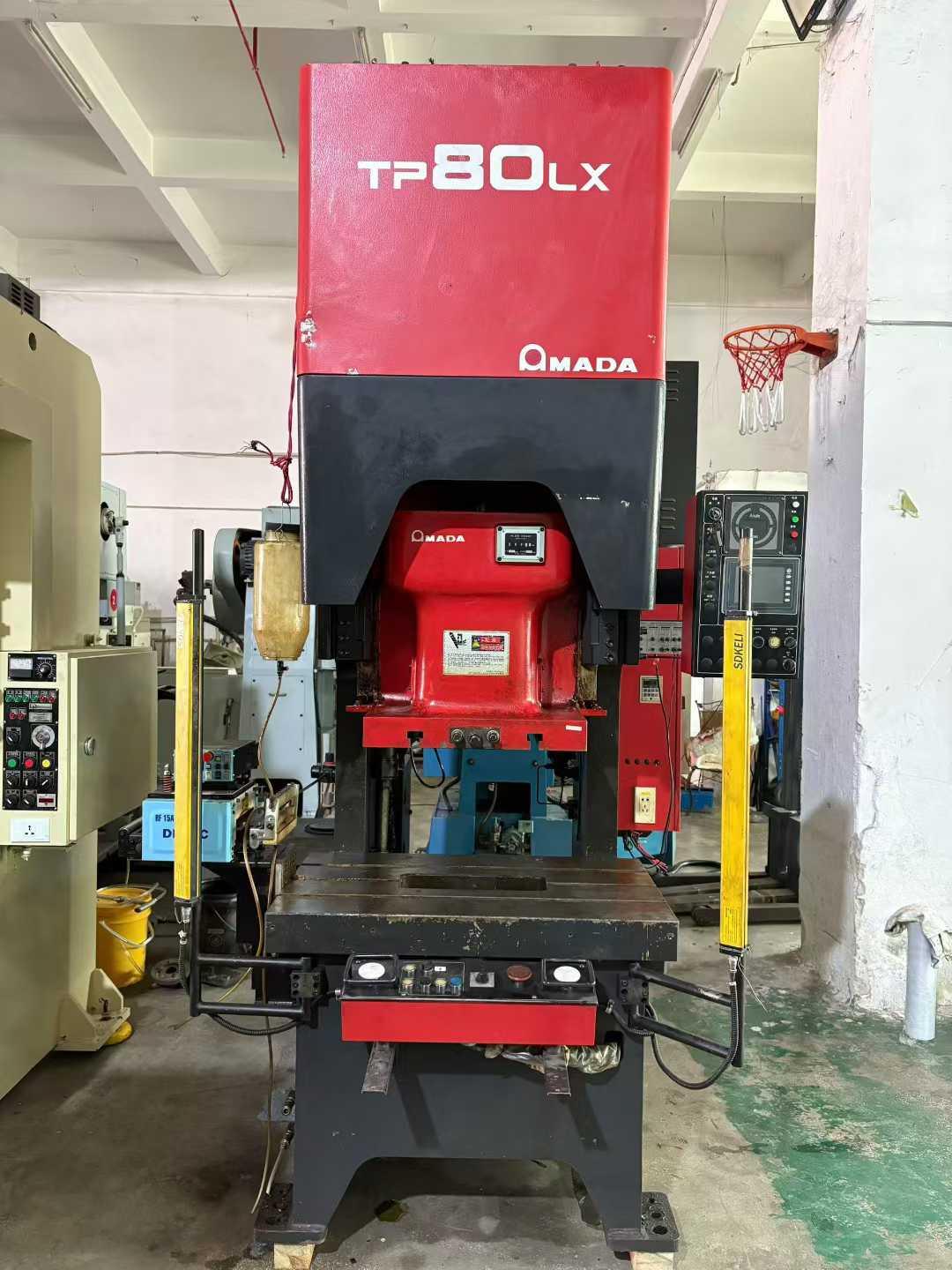

AMADA TP8OLX Punch / press

Maximum pressurization capacity: 800 kN

Ability occurrence point (above the bottom dead center) : 5.0mm

Continuous travel number: 80-130 spm

travel length: 100mm

Maximum closed mold height: 330 mm

Slider adjustment amount: 80mm

Stop sliding time: 180 ms

Slider area (left-right * front and back) : 560 * 460 mm

WorkWorktable size (left-right * front and back) : 1000 * 600 mm
