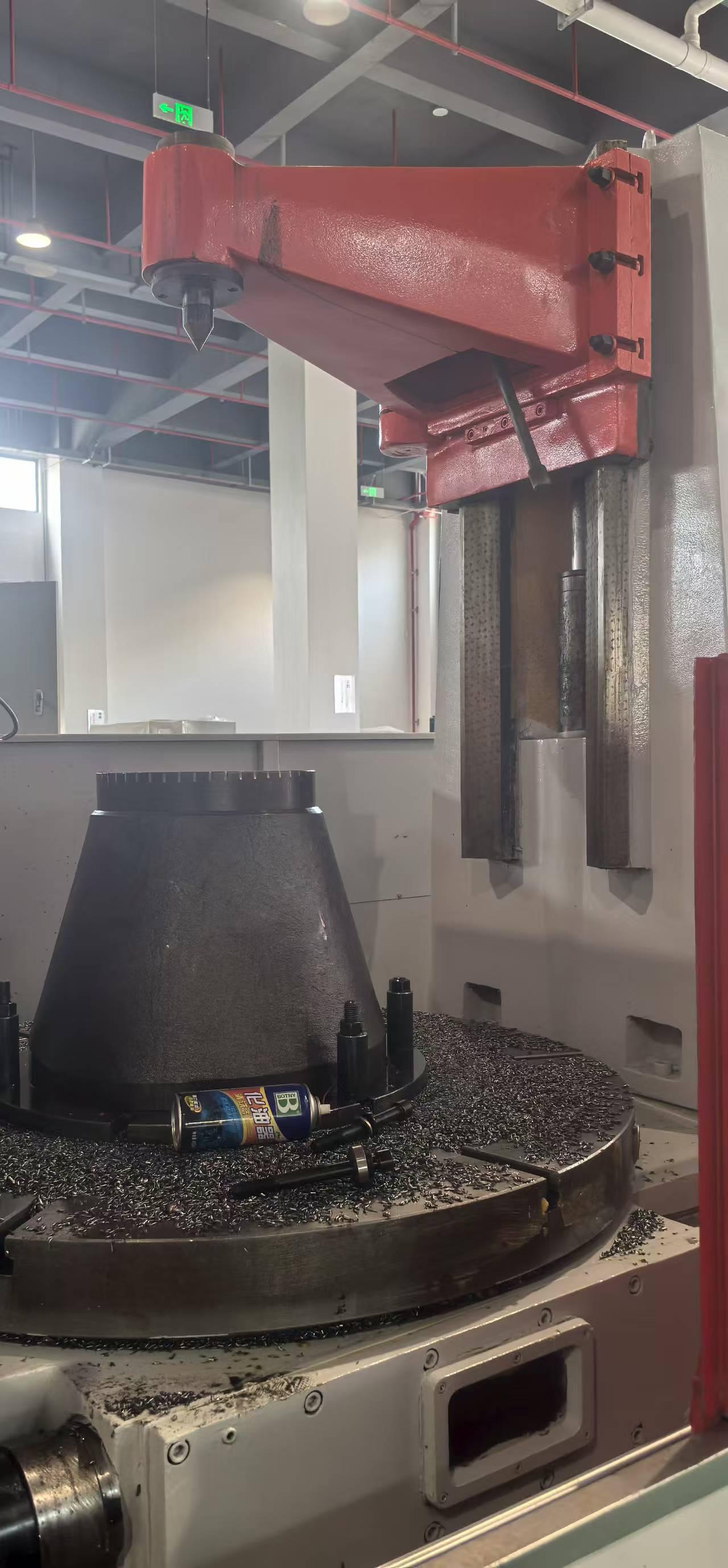

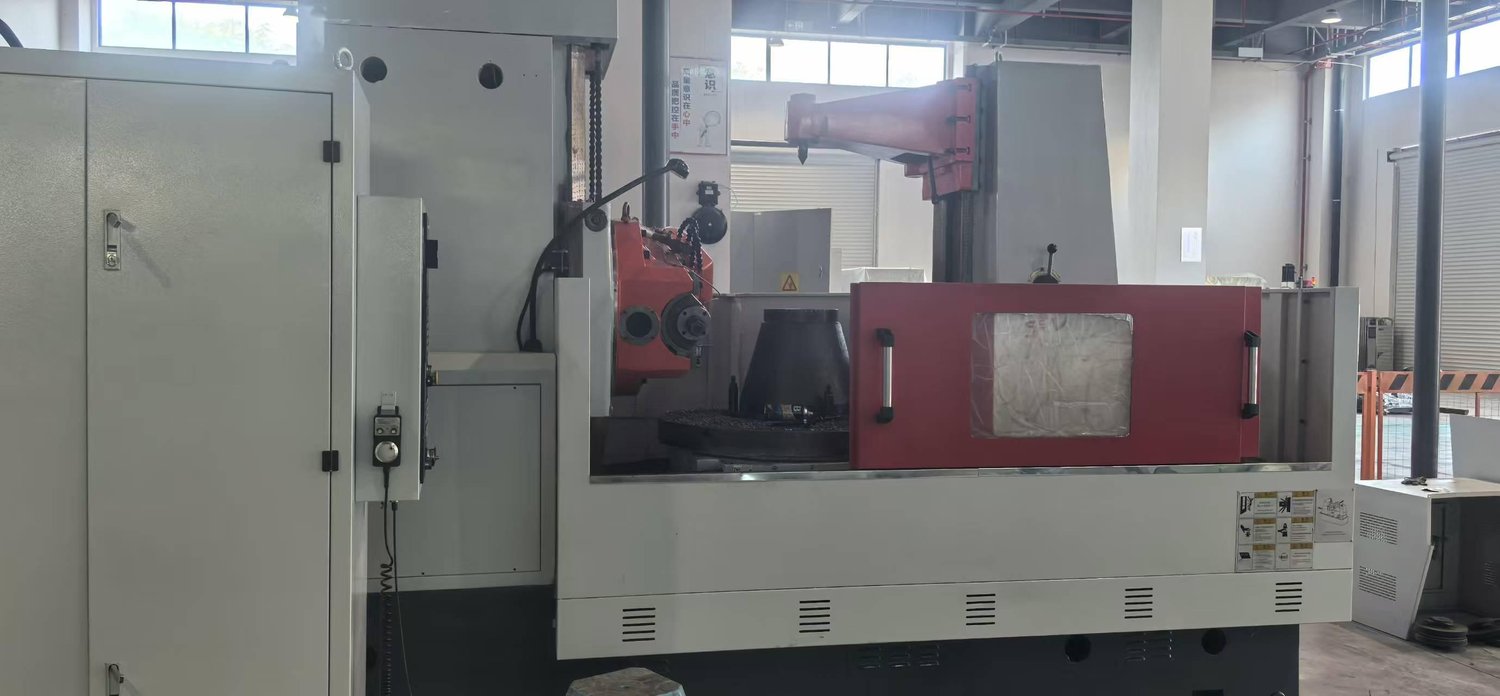

Chongqing YX31160CNC Hobbing machine

Maximum machining  diameter: 1600mm

Maximum machining  module: 20mm

slide plate travel: 650mm

tool holder rotation Angle: ±60°

The maximum installation size of the gear Tool (diameter × length) : φ260×230mm

Maximum axial travel of the gear Tool: 100mm

The horizontal distance from the center of the hob to the center of workWorktable: 180-940mm

Distance from the center of the gear Tool to workWorktable surface: 280-930mm

Distance from workWorktable surface to the lower end face of the rear column support: 580-1000mm

WorkWorktable diameter: 1200mm

The maximum speed of the hob spindle (B-axis) : 200r/min

The maximum rotational speed (C-axis) of workWorktable after running-in: 6r/min

Main motor power: 30kw

Net weight of the main unit: 18,000 kg
