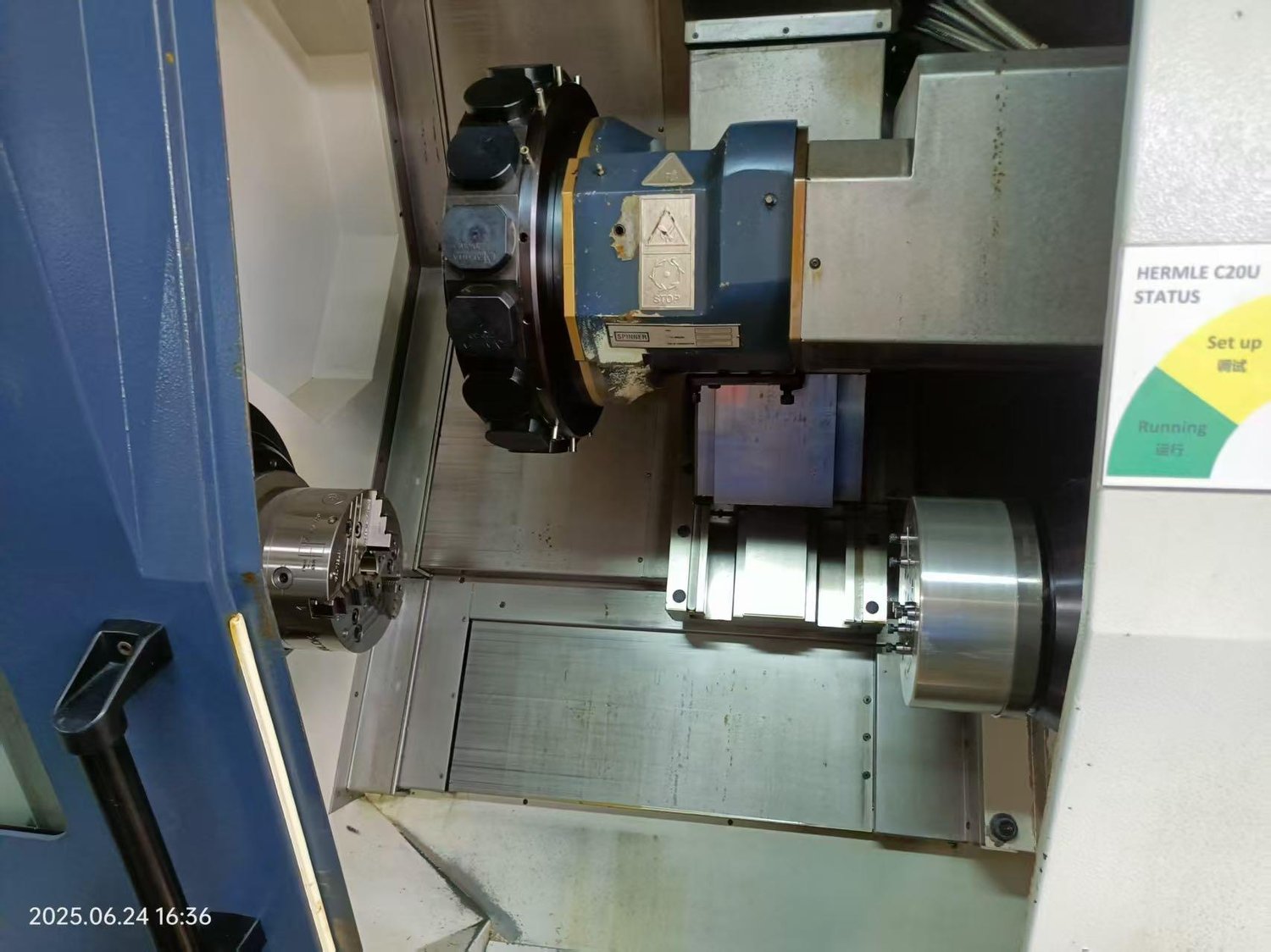

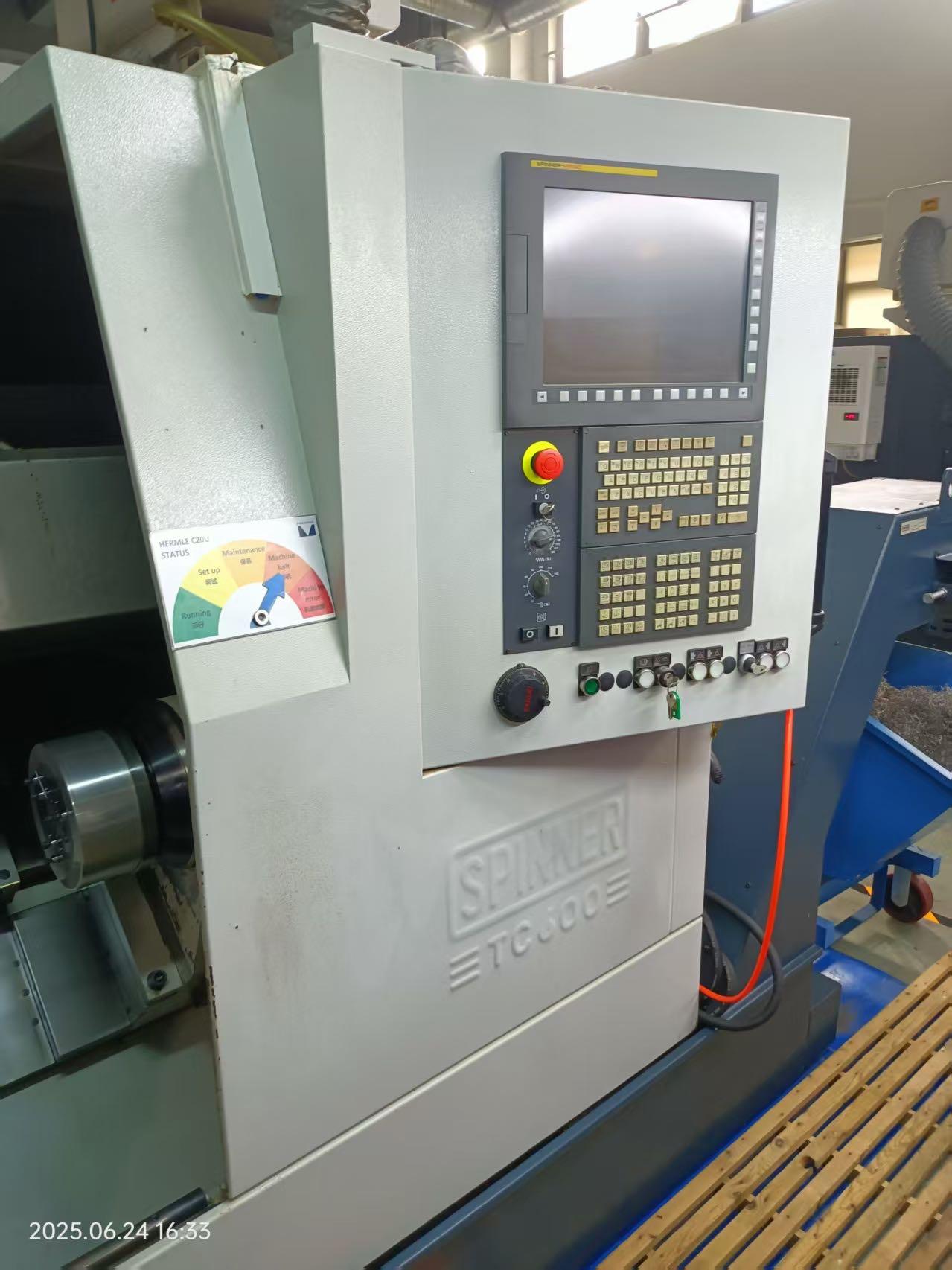

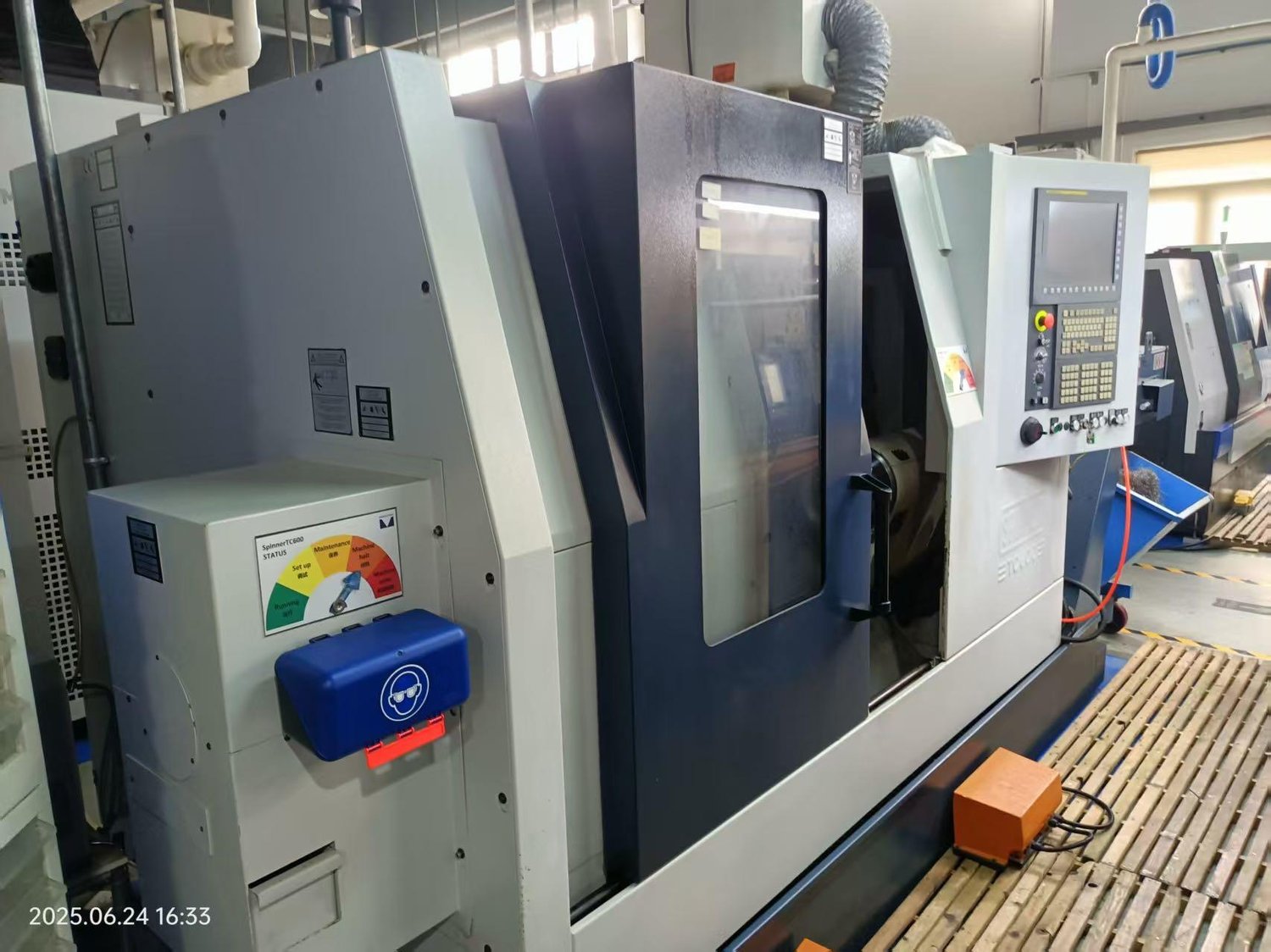

SPINNER TC600 65 SMCY CNC turning lathe

three-axis travel: 275*90*700mm

The maximum diameter of the bar stock that can pass through: 65mm

Maximum Machining length: 650. mm

Maximum turning diameter: 400 mm

Configuration

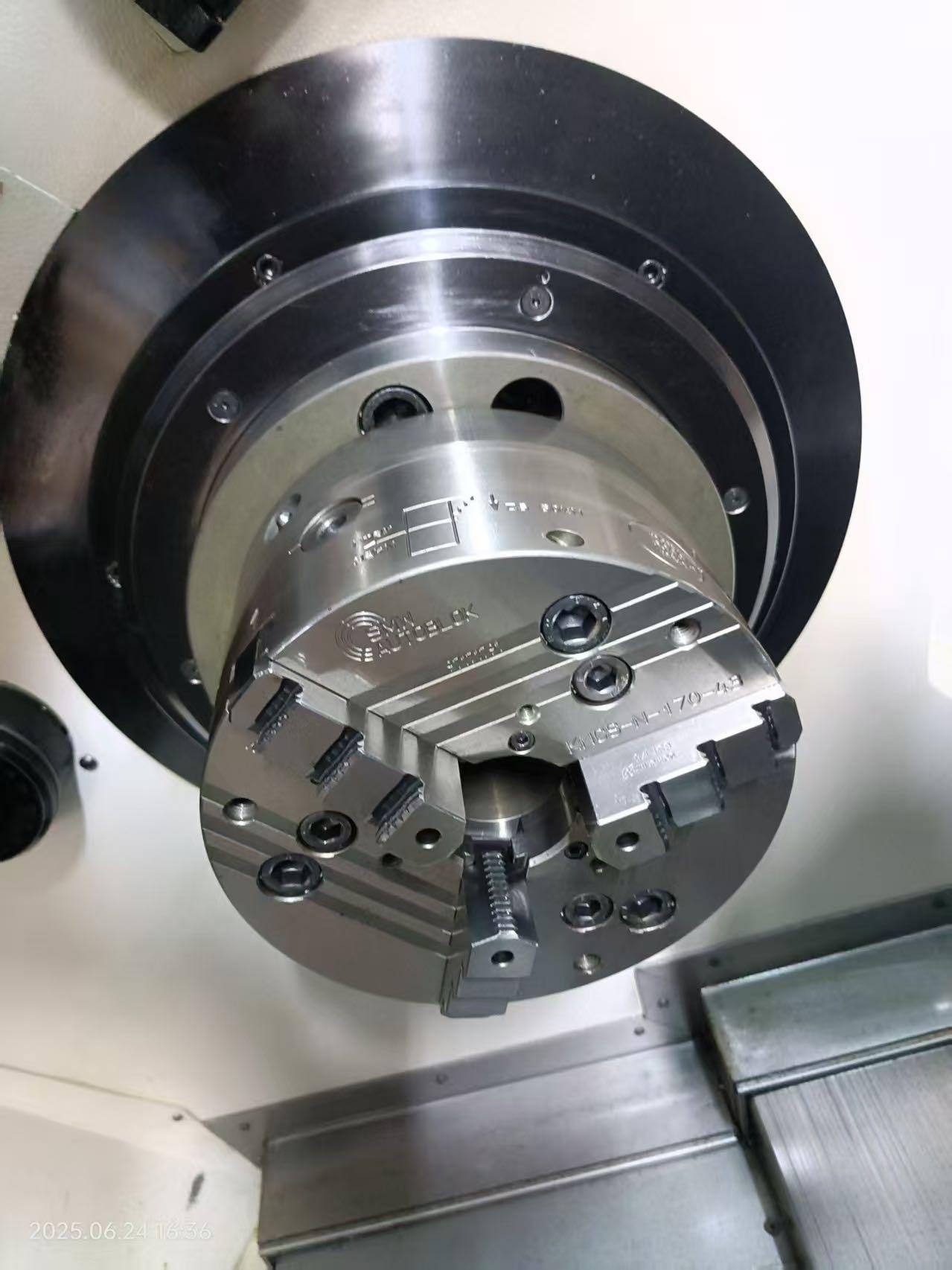

spindle: German SMW-AUTOBLOK chuck

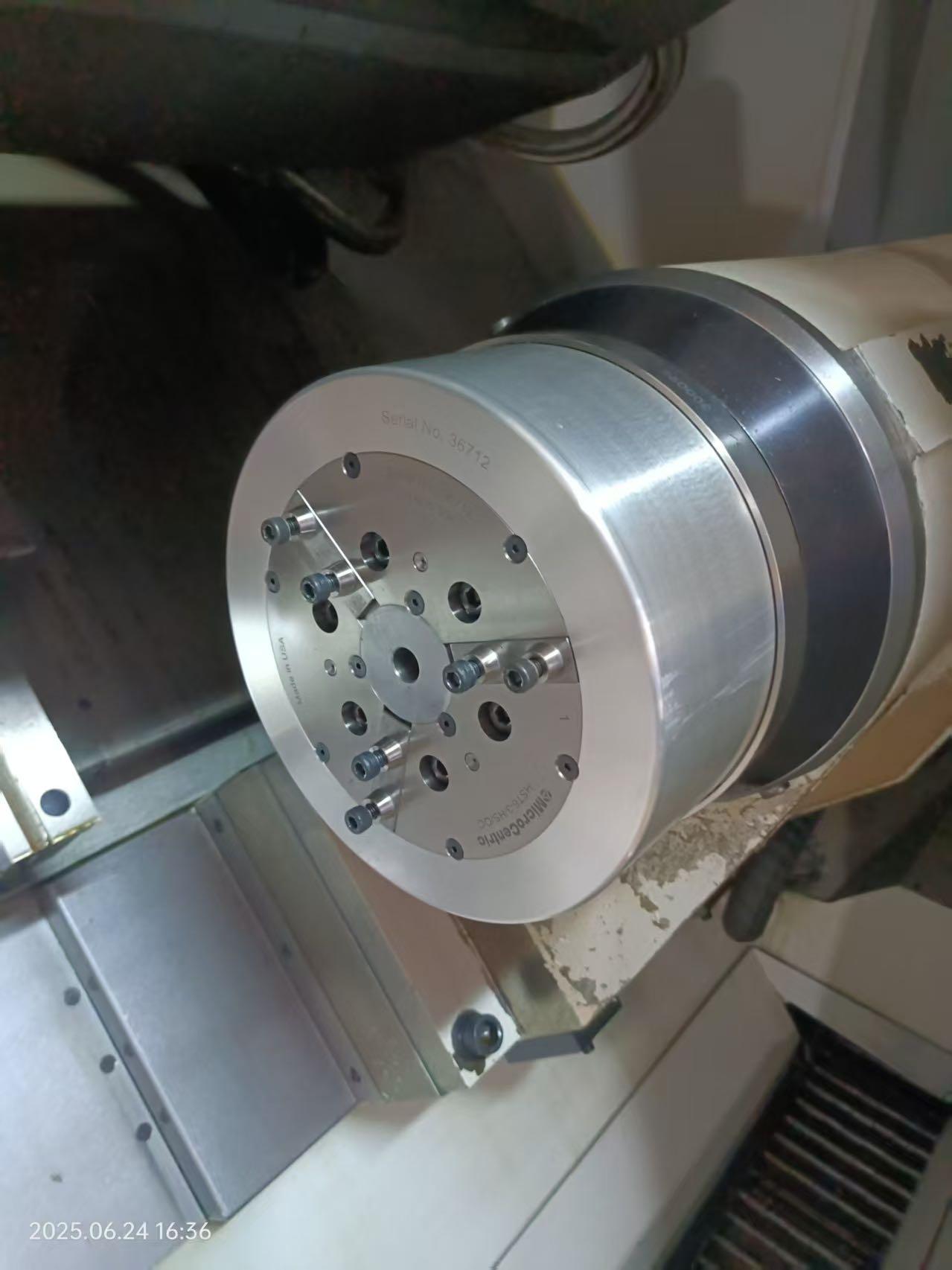

Secondary spindle: American Microcentric chuck

lathe tool seats/boring tool seats *8 pieces

6 shaft/radial power seats

Tool Aligner

Chip conveyor

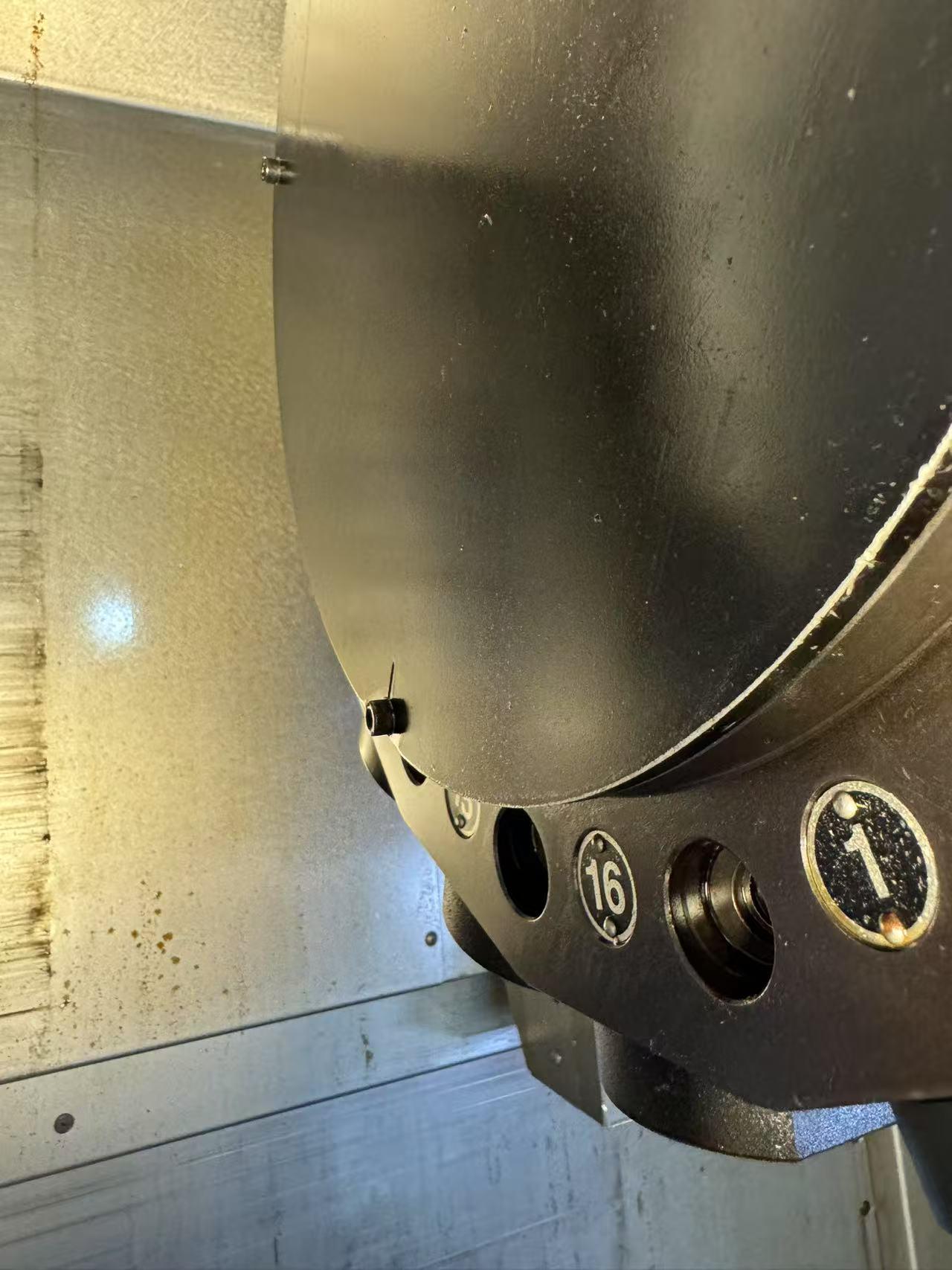

VDI  30-Turret positions: 16 workstations
