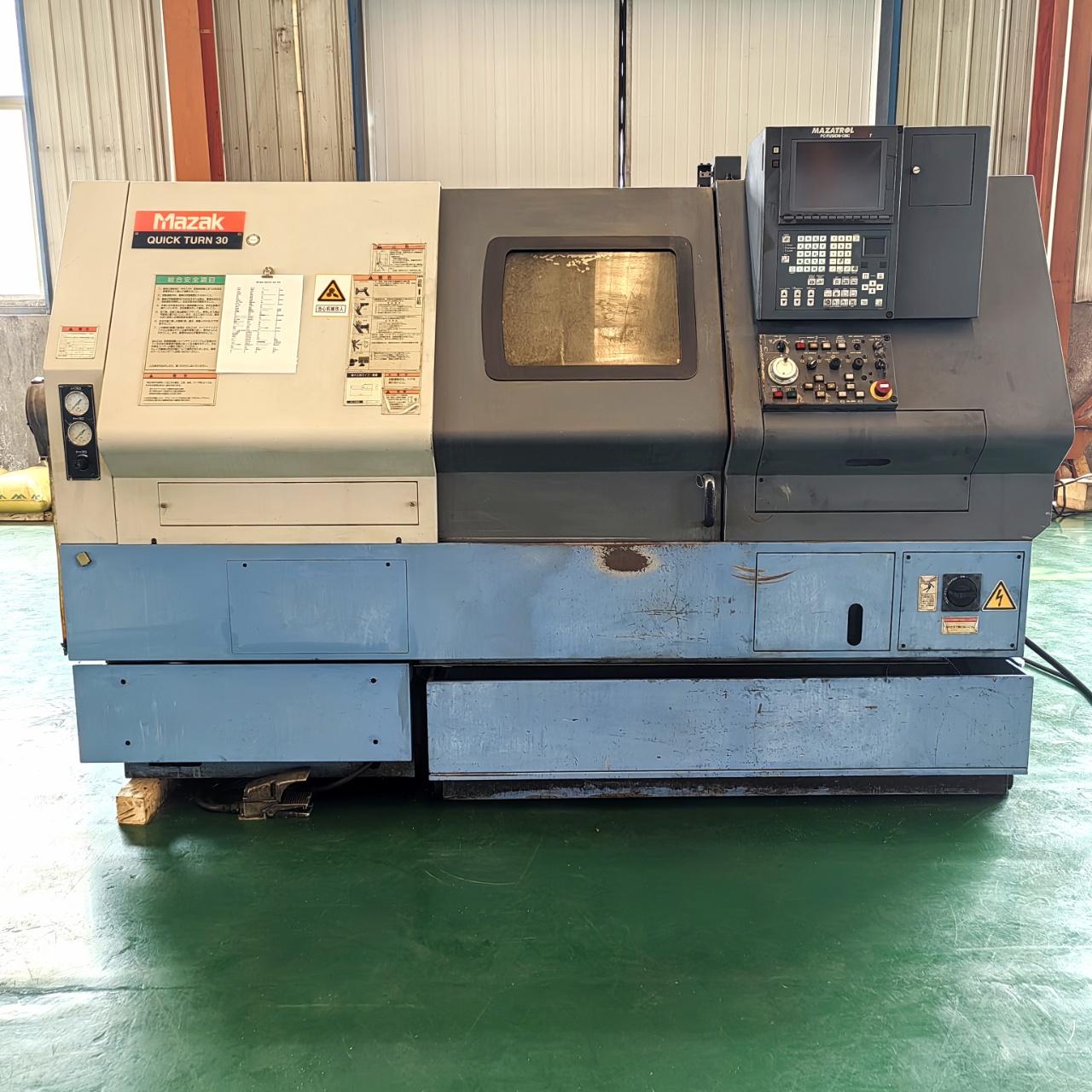

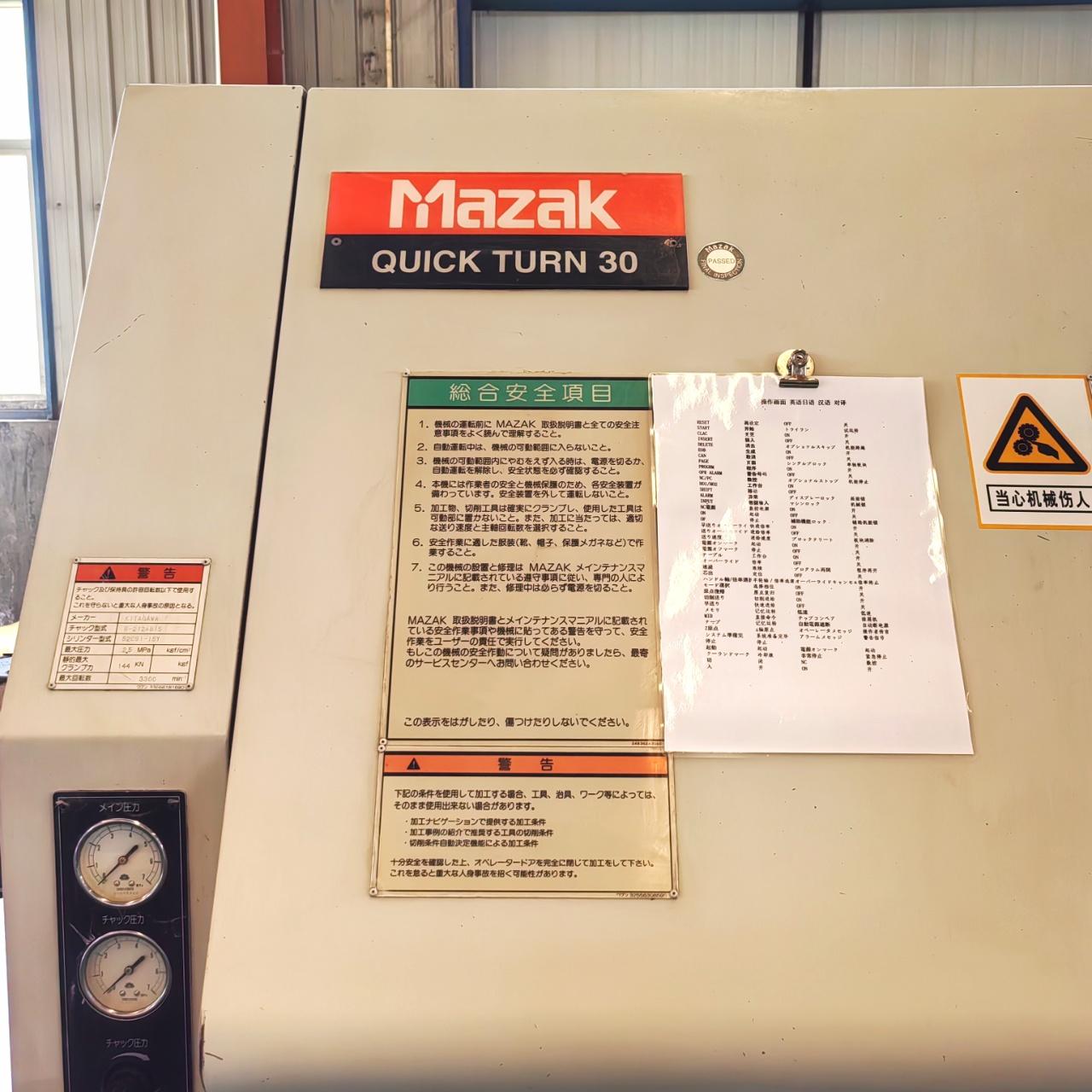

MAZAK QT30 CNC turning lathe

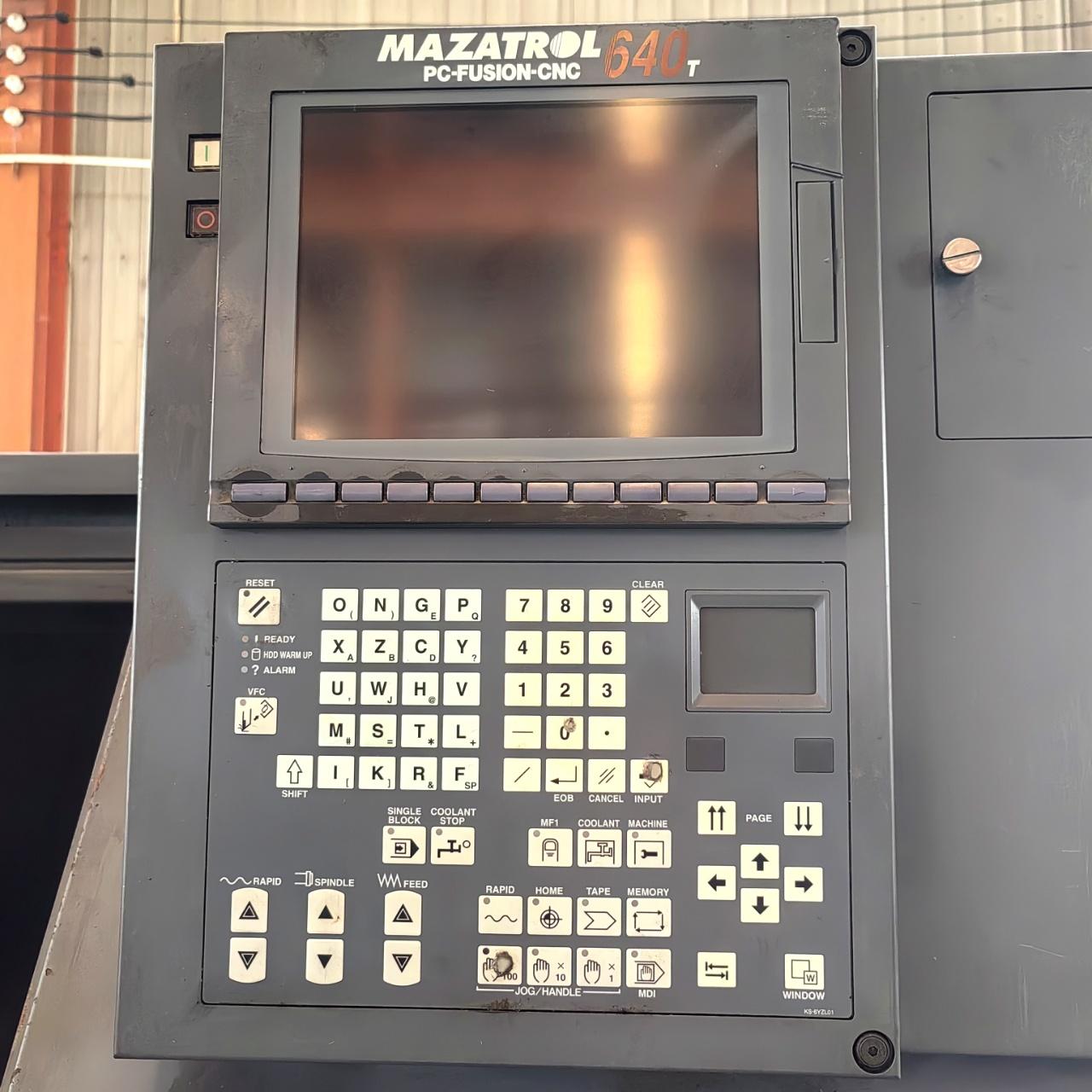

CNC CNC System: Mazatrol 640T

travel of X* Z-axis: 203*1020mm

Rotary diameter: 510mm

Standard machining  diameter: 290mm

Maximum machining  diameter: 320mm

Maximum machining  length: 1010mm

Bar machining capacity: 70mm

Distance from spindle nose to workWorktable end face: 142-1152mm

Spindle speed: 3000 RPM

The diameter of spindle through hole: 80mm

spindle motor: 22KW

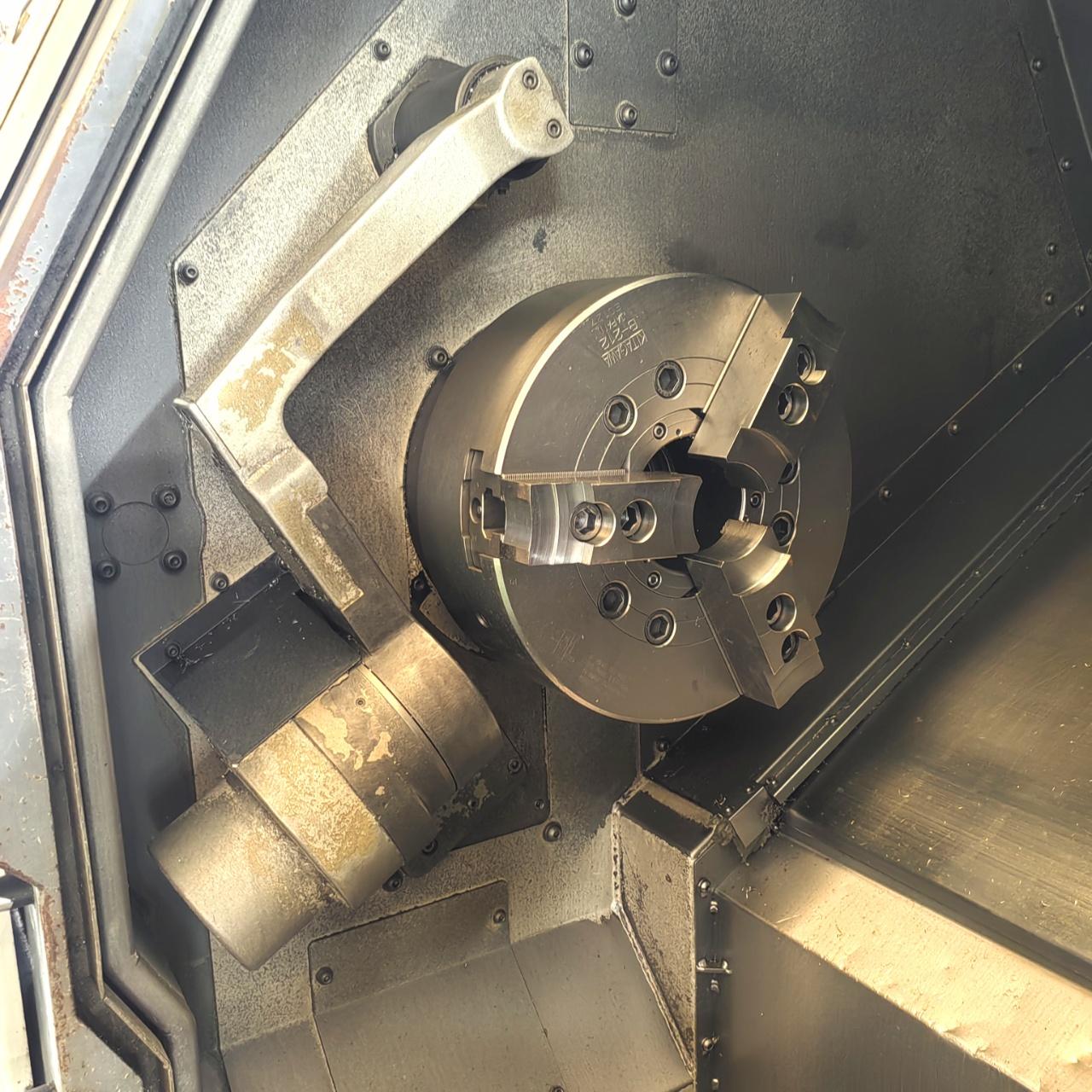

chuck : 12 inches

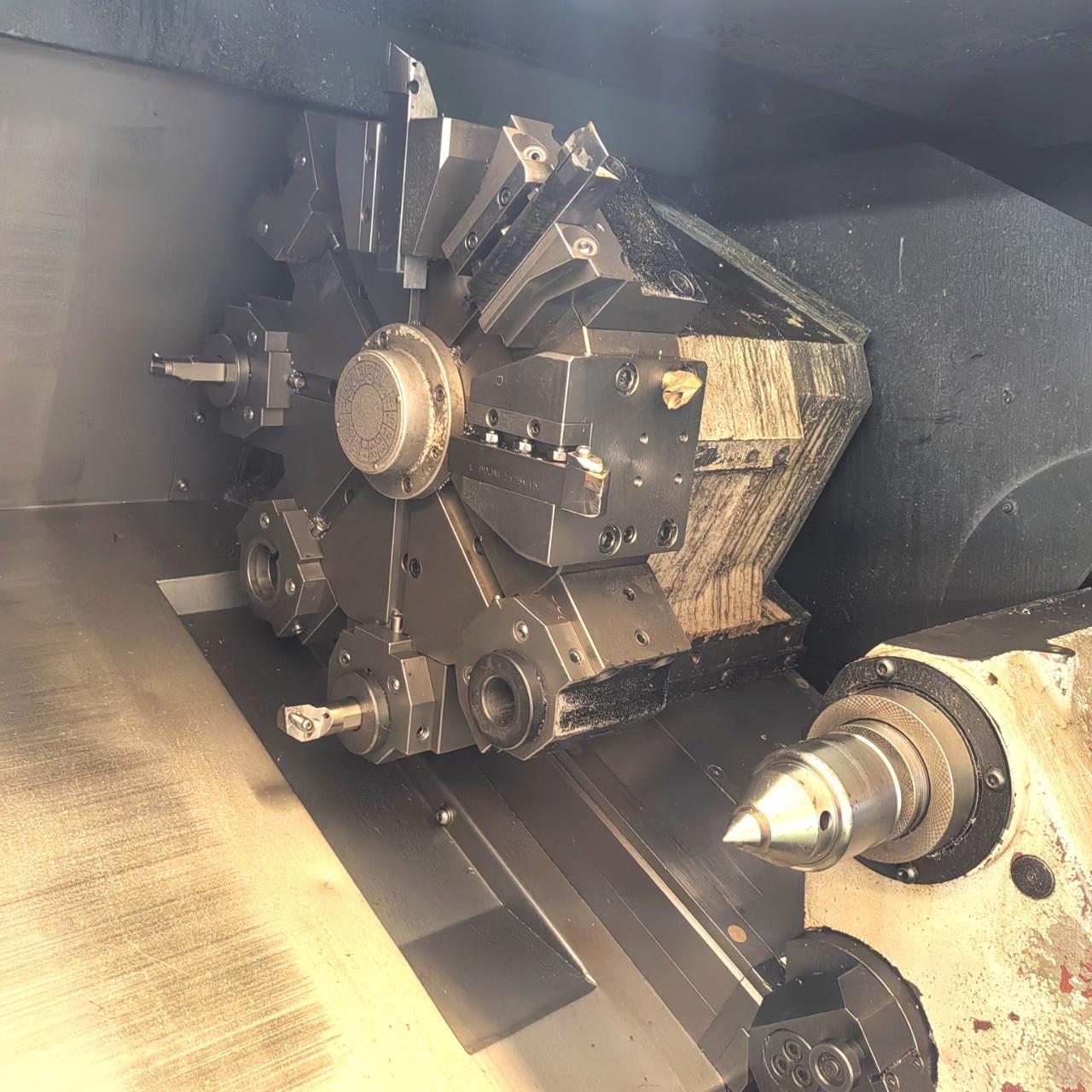

Turret positions: 16 workstations

With tailstock

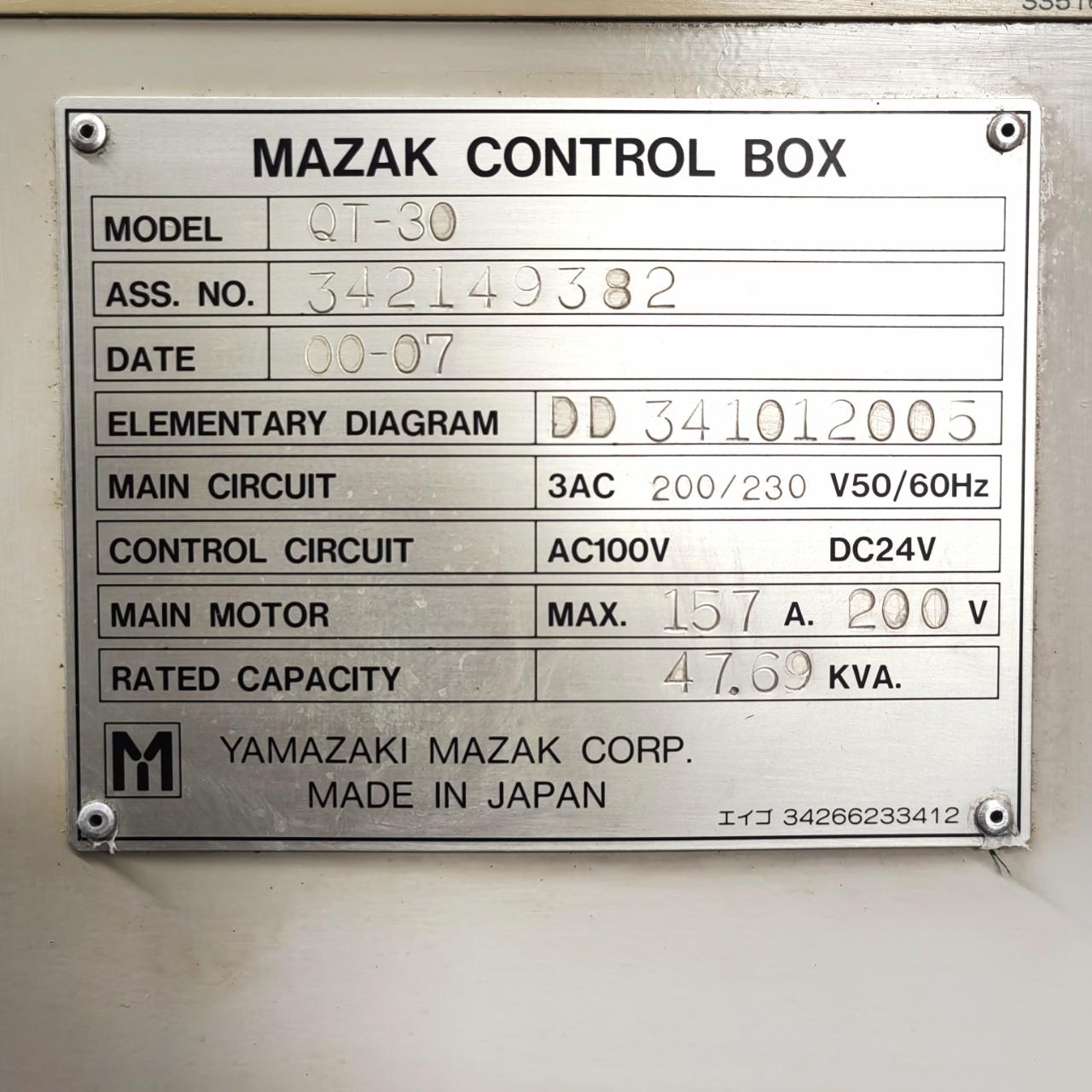

Electrical capacity: 47.69kVA

Mechanical mass: 5000kg
