Specifications:
X axis travel: 1,400mm

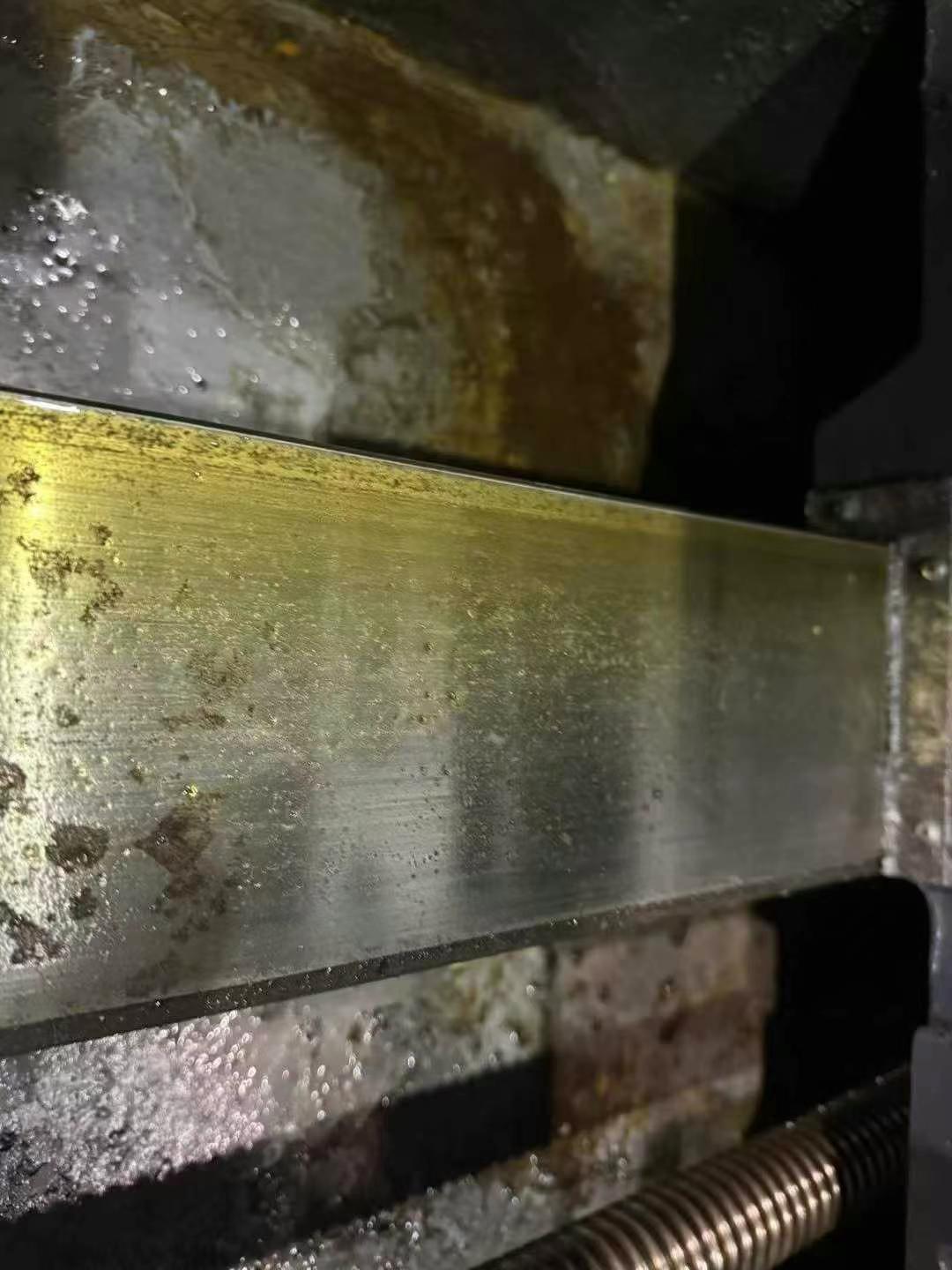

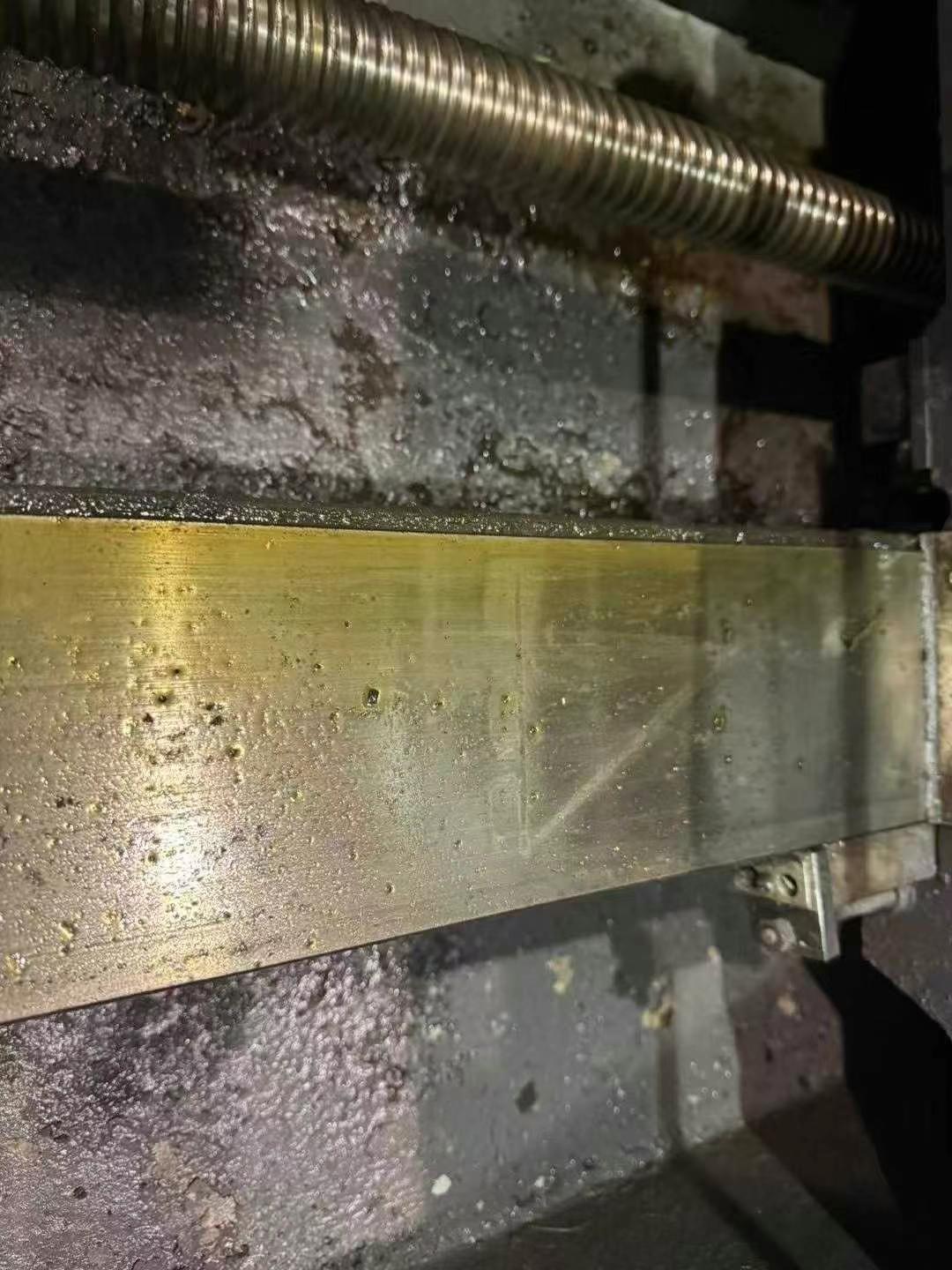

Y-axis travel: 715mm (4 rails)
Z-axis travel: 700mm
Distance from nose of spindle to WorkWorktable: 145-845mm
Distance from Distance from spindle center to column rail: 750mm
WorkWorktable size: 1,650x700mm
Working platform load: 1,500kgf
T-slot: 22x5x125mm
Spindle speed: 4000rpm
Taper of Spindle through hole: 7/24tape rNO.50
spindle motor: 11/15kw
Fast feed (X/Y/Z axes) : 15/15/12m/min
Cutting feed rate: 1-5,000mm/min

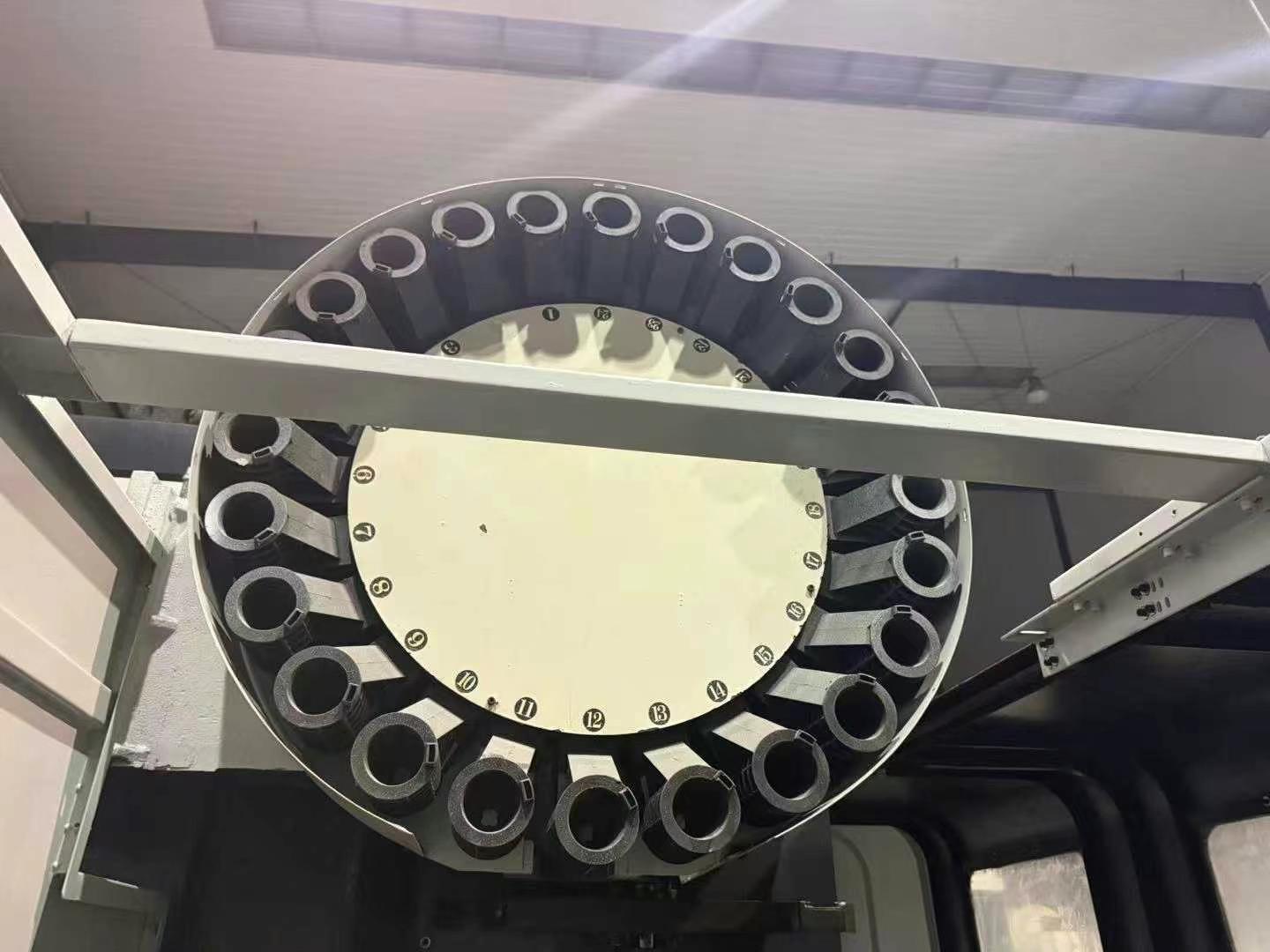

Large Tool holder bolt P-50T
Large Tool weight: 15kg
Large Tool length: 300mm
Tool diameter: 100mm
Large Tool diameter: 200mm
Floor area: 4,300x3,100mm
Machine weight: 12,000kg
Large machine height: 3,300mm
