Specifications:
three-axis travel: 6200*3200*1250mm
Distance from spindle nose to WorkWorktable: 1200mm
Gantry width: 3300mm
Gantry height: 1750mm
Square ram size: 400*400mm
Distance between two columns: 2800mm

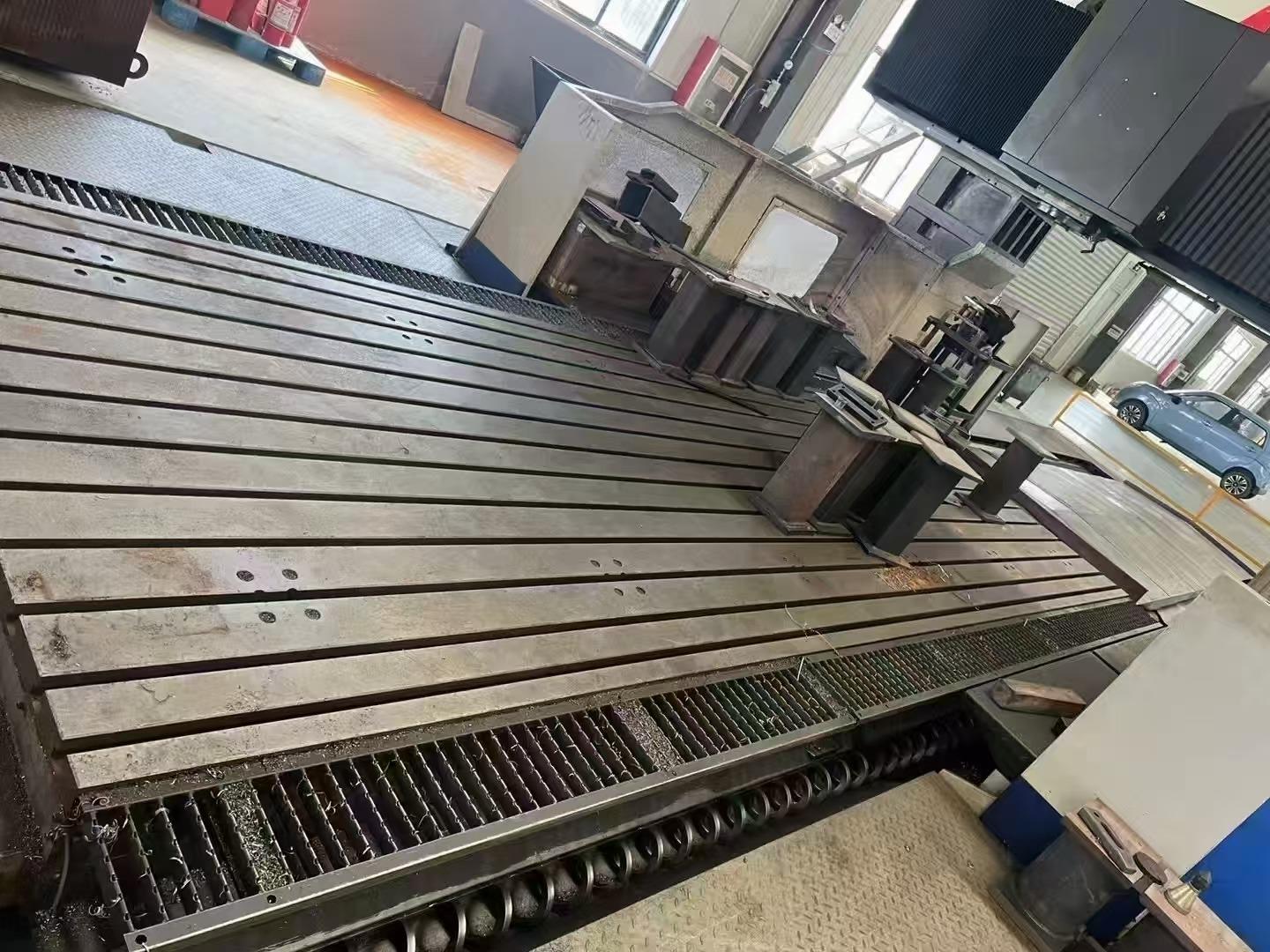

WorkWorktable size: 2500*6000mm
WorkWorktable load: 26000kg
Tool holder specification: BT50
Spindle speed: 6000rpm
spindle power: 22/26kw
Footage: 15000*6000*5400mm
Weight: 55000kg

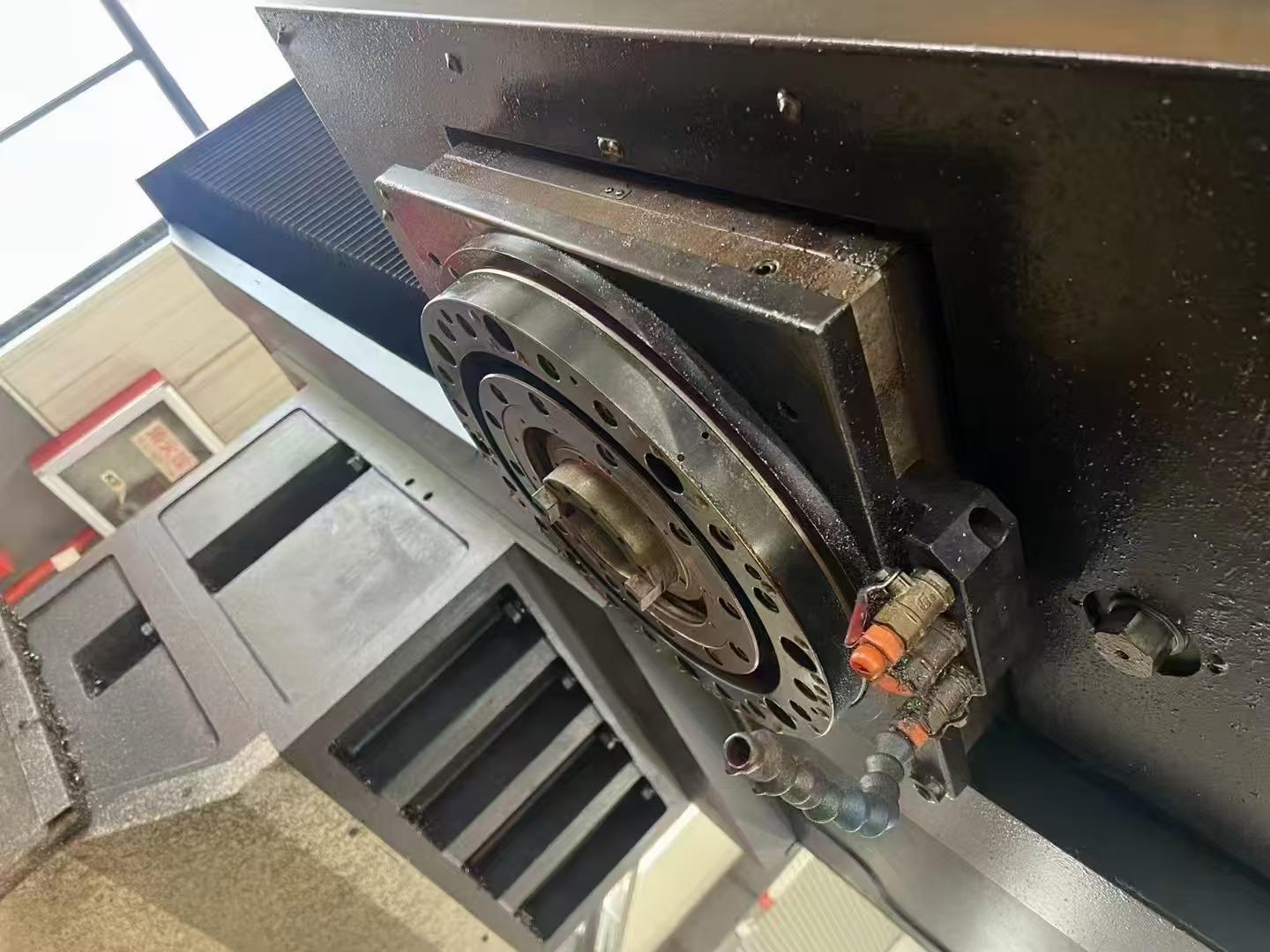

With fully automatic milling head
