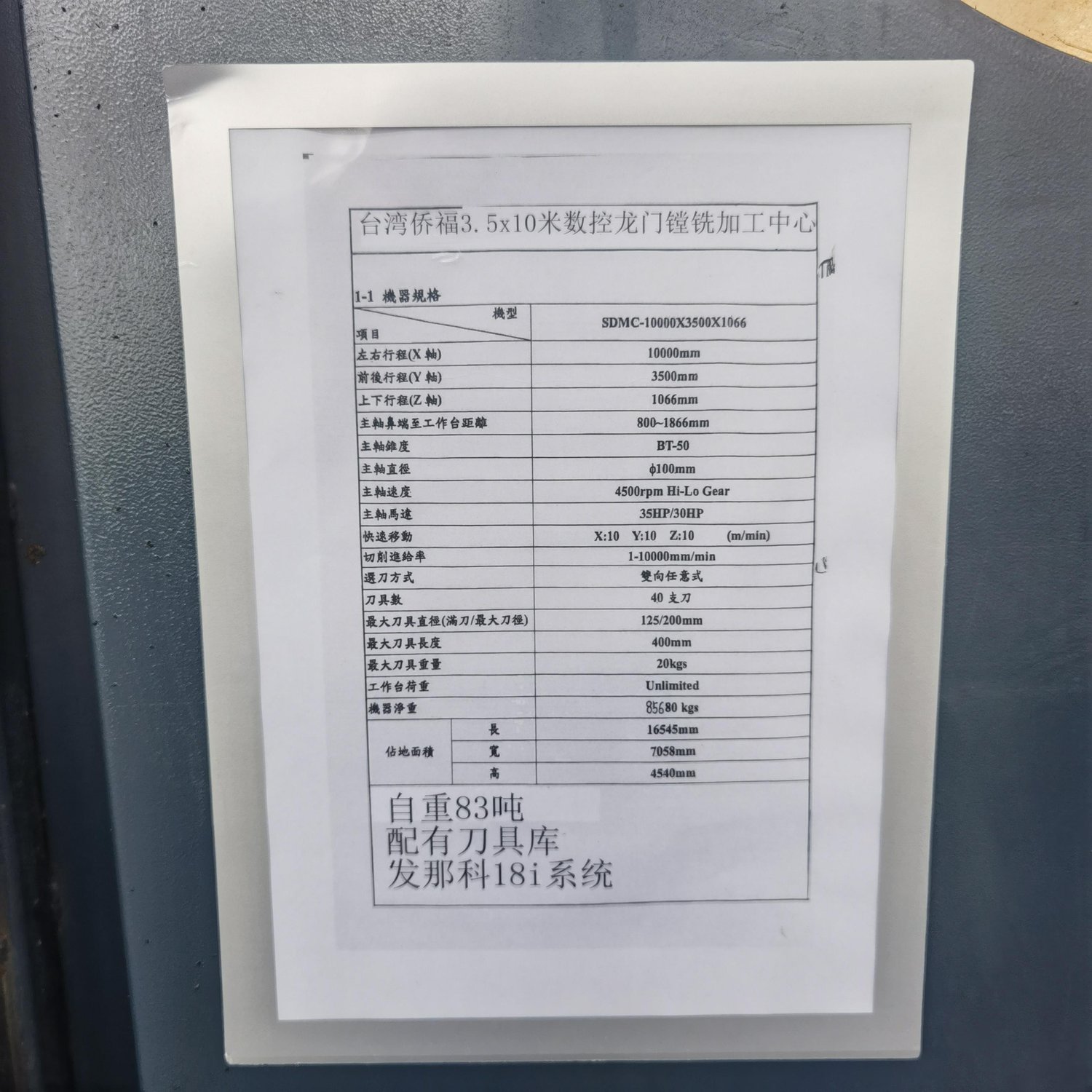

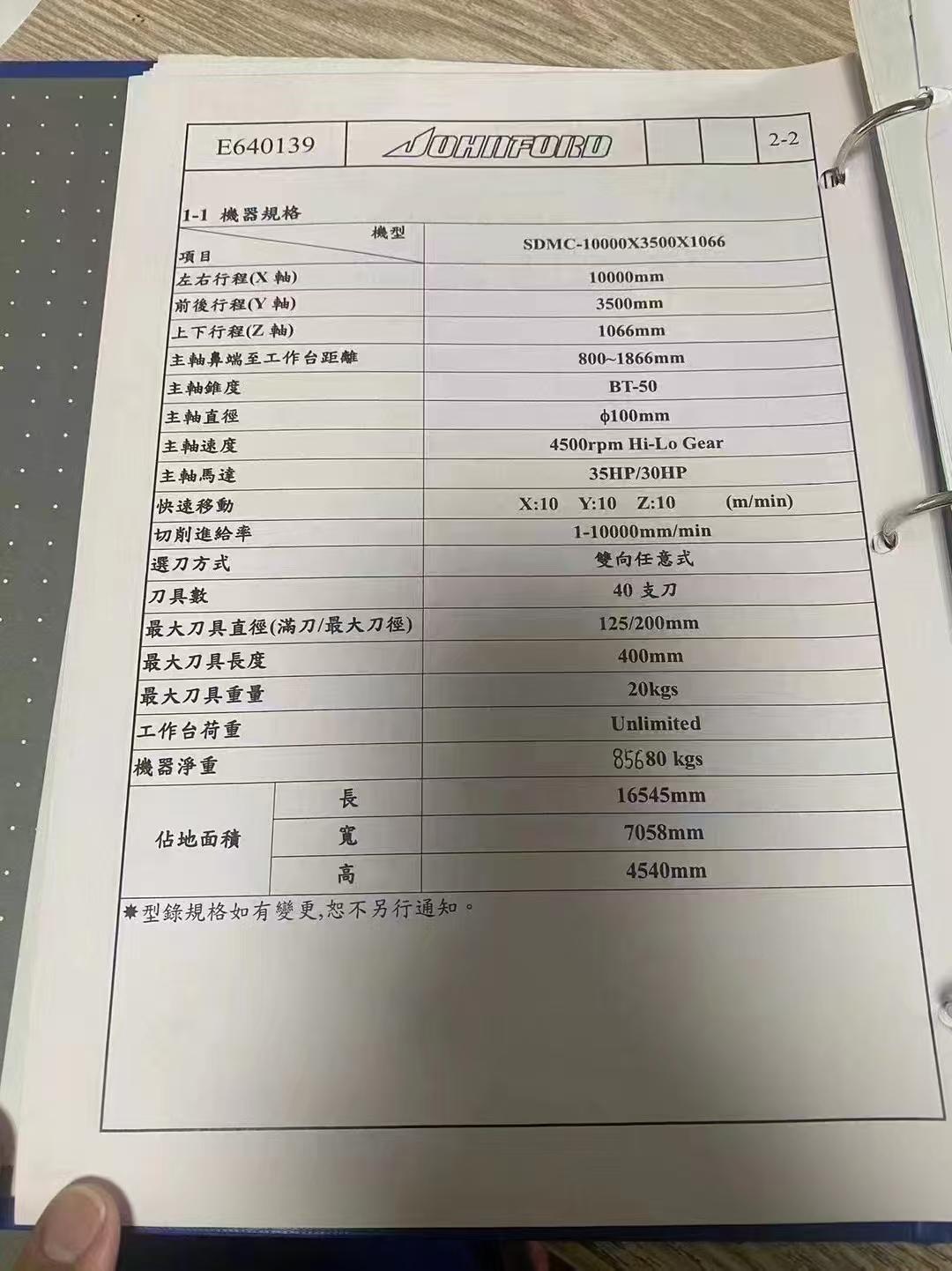

Specifications:
CNC CNC System: FANUC 18i
three-axis travel: 10000*3500*1066mm
Distance from nose of spindle to WorkWorktable: 800-1866mm
spindle taper: BT-50
Spindle diameter: Phi 100mm
Spindle speed: 4500rpm
spindle motor: 35HP/30HP
3 axes fast movement: 10*10*10m/min
Cutting feed rate: 1-10000mm/min
tools selection method: two-way arbitrary type
tools magazine: 40
Maximum Tool diameter (full tool/maximum tool diameter) : 125/200mm
Maximum Tool length: 400mm
Maximum Tool weight: 20kgs
Machine weight: 85680 kg
Footage: 16545*7058*4540mm
Moving column
