Specifications:
X axis travel: 560mm
Y-axis travel: 430mm
Z-axis travel: 570mm
Distance from Distance from spindle nose to workWorktable: 150-720mm
Distance from Distance from spindle center to column guideway: 480mm

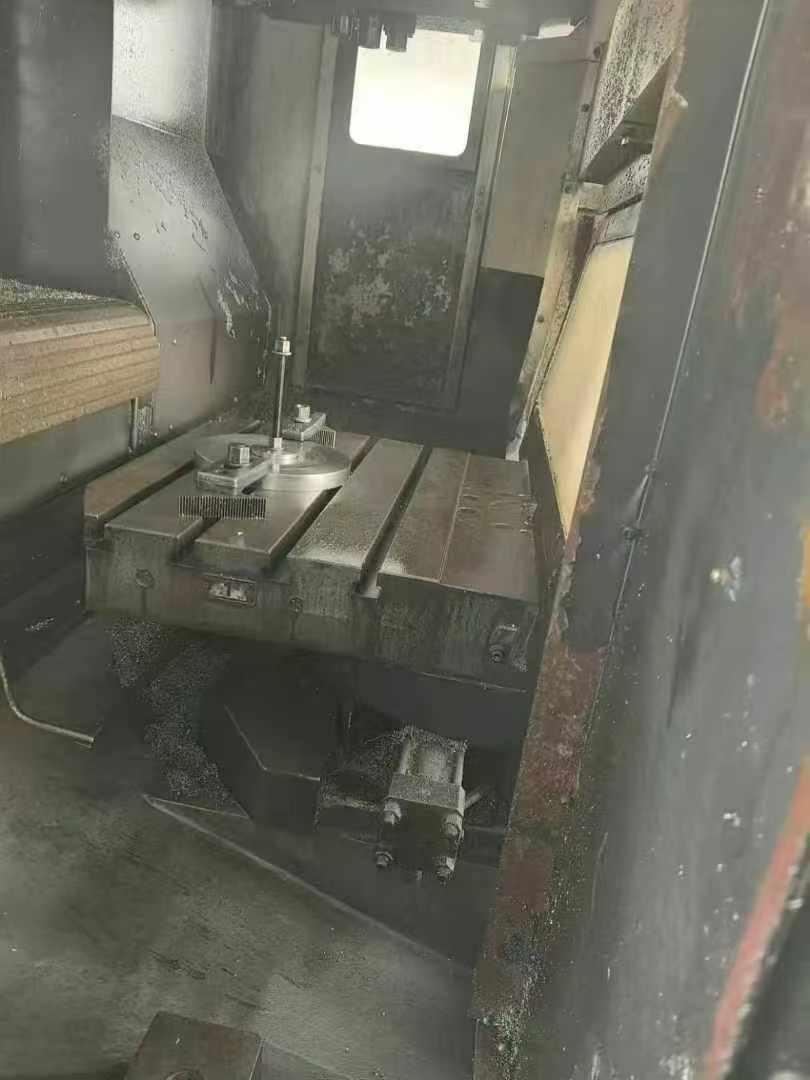

WorkWorktable size: 650*450mm
WorkWorktable load: 2-300kg
spindle maximum speed: 8000rpm
spindle maximum torque: 117.1NM
X*Y*Z axis Fast moving rate: 40/40/30m/min
Tool holder form: BT40

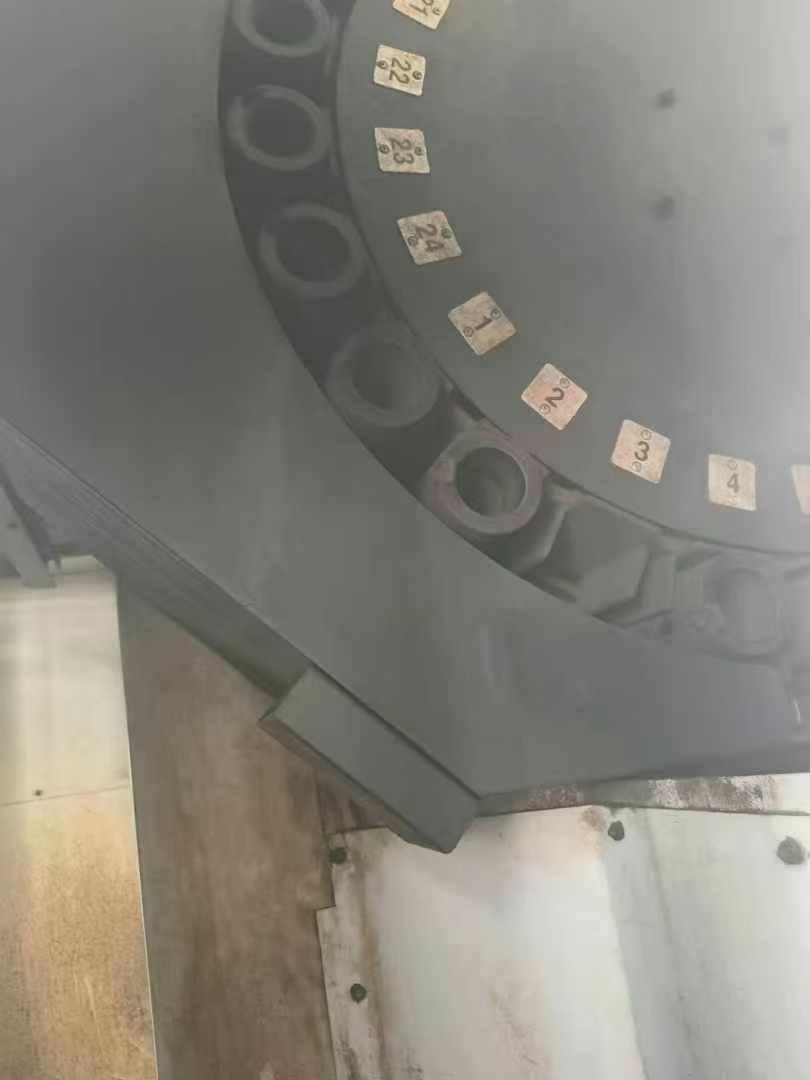

tools magazine: 24
Maximum Tool diameter: φ87mm
The biggest Tool diameter: 150 mm
Maximum Tool length: 300mm
Maximum Tool weight: 8kg
spindle motor power: 18.5kw
Footage: 2960*2370*3030mm
Machine weight: 7600kg
