Specifications:

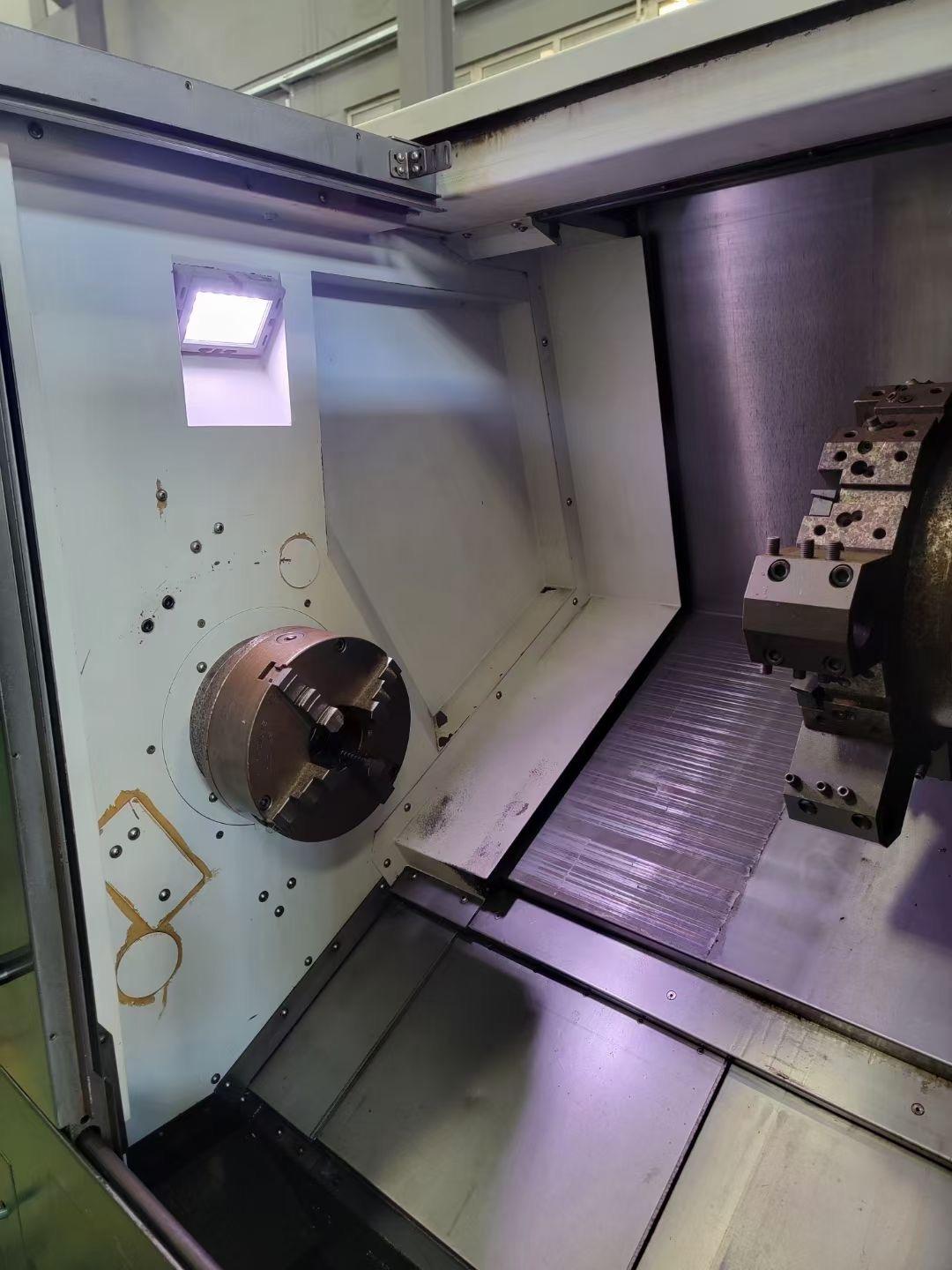

Chuck size: 10

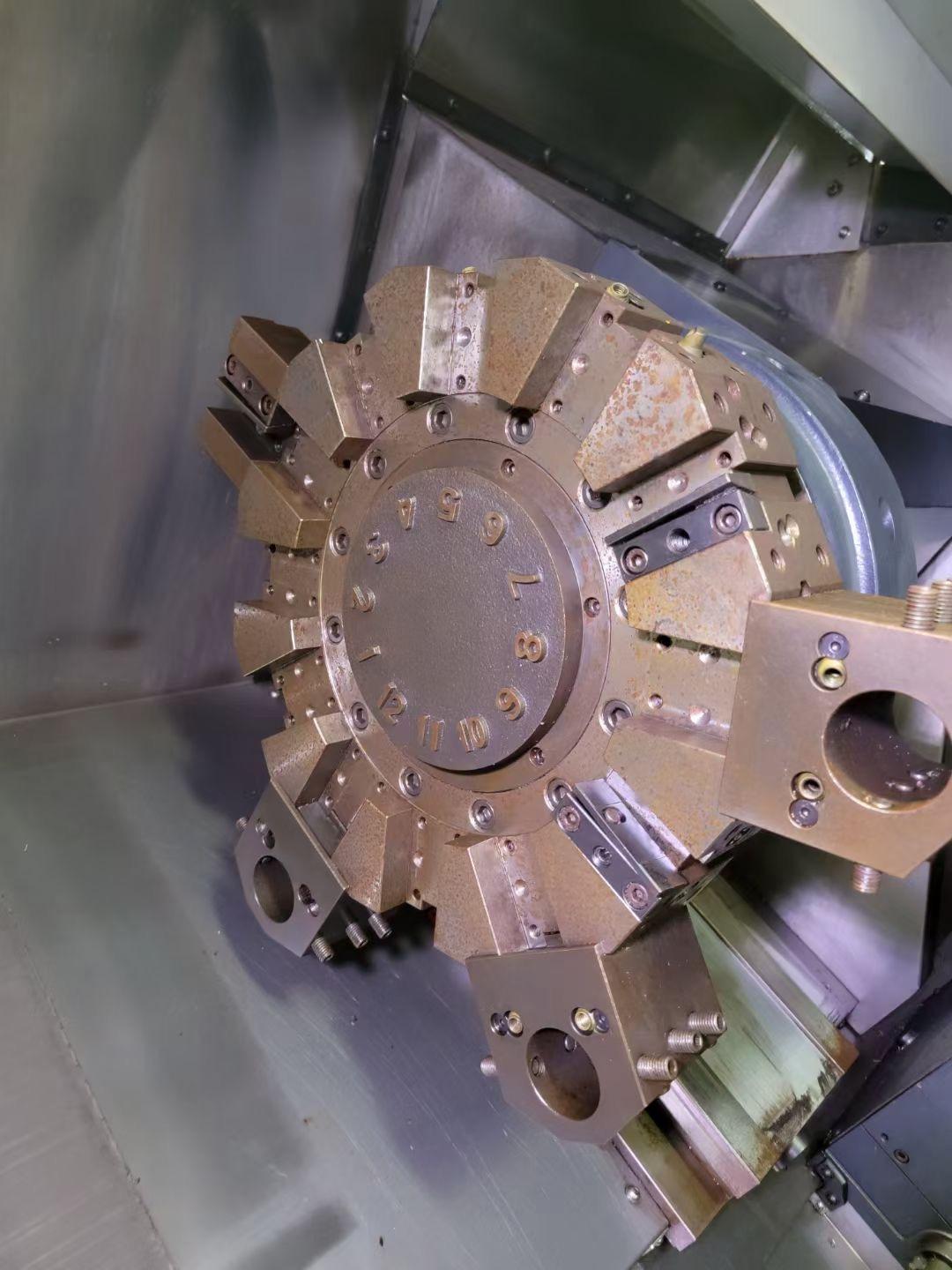

Turret position: 12
machining diameter: 481mm
machining length: 785mm
spindle motor power: 18.5/15kw
Spindle speed: 4500rpm
X*Y*Z axis travel: 260*105*560-830mm
X*Z axis fast feed rate: 30m/min
With Chip conveyor
