• Inventory number：92500
• Brand：GOODWAY
• Model：GLS-2000L
• Origin：Taiwan of China
• Location：China
• Year：2019
• Create Time：2024-11-18

Specifications:

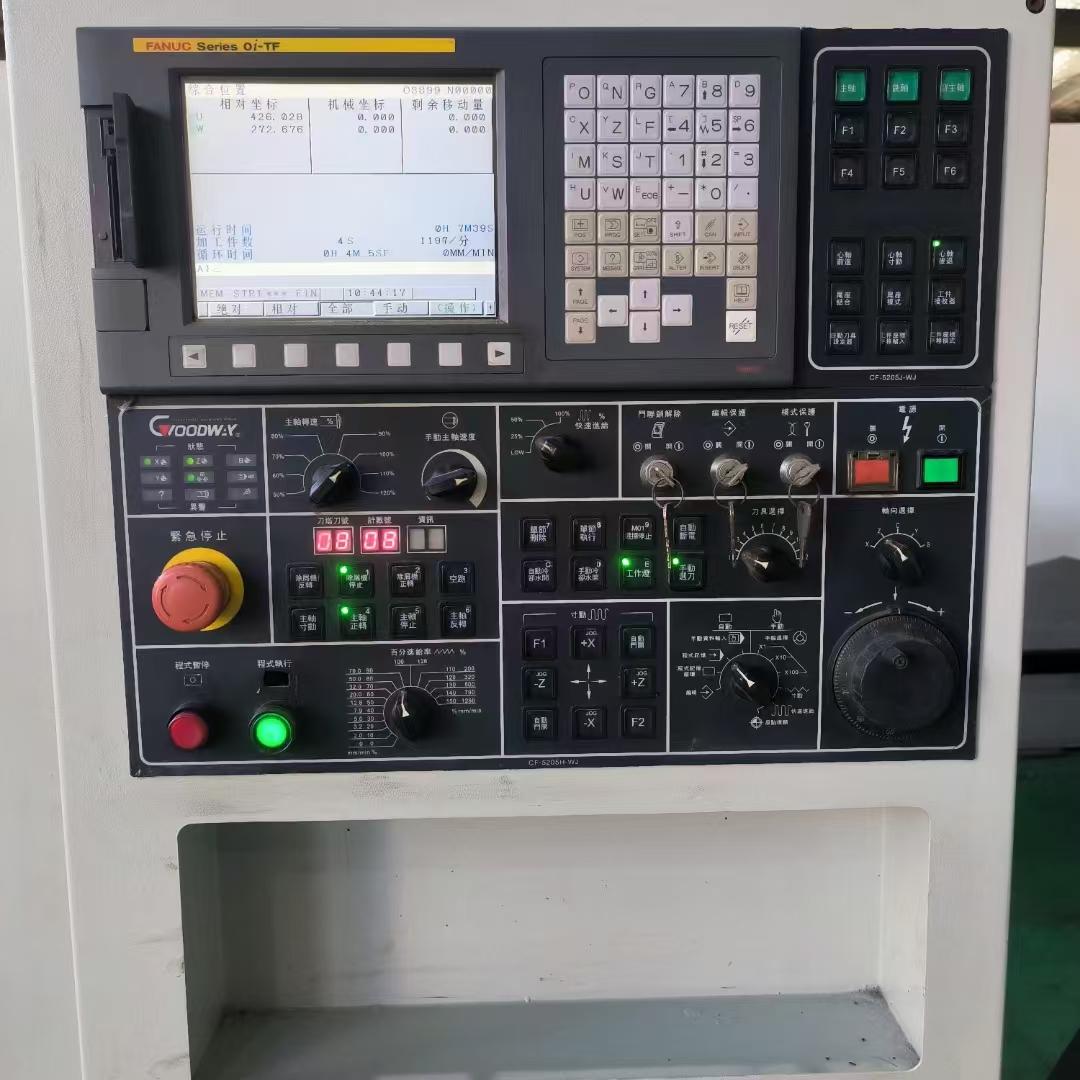

• CNC CNC System: FANUC oi-TF

  Maximum diameter: φ560mm

  Maximum turning diameter: φ420mm

  Oil pressure chuck: 8 inches

  spindle through hole diameter: φ66mm

  Bar capacity: 51mm

  spindle nose: A2-6

  spindle bearing diameter: φ100mm

  Spindle speed: 4200rpm

  spindle motor power: 11/15kw

  X*Z axis maximum travel: 230*630mm

  X*Z axis maximum feed: 30m/min

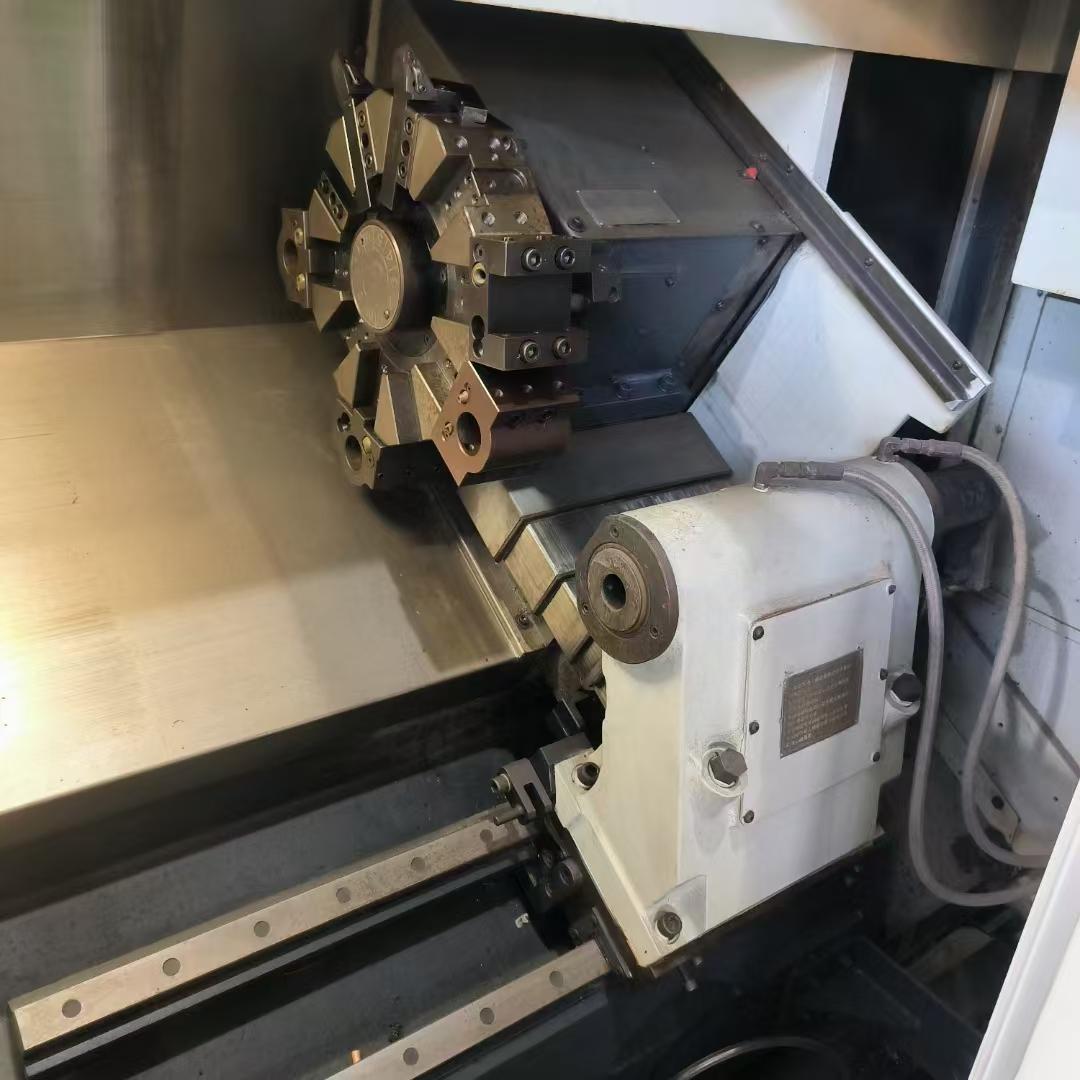

  Turret position: 10

  guideway: Linear guideway

  Machine weight: 3400kg

  Machine Footage (length * width * height) : 3612*1780*1716mm
