• Inventory number：92477
• Brand：Haitian

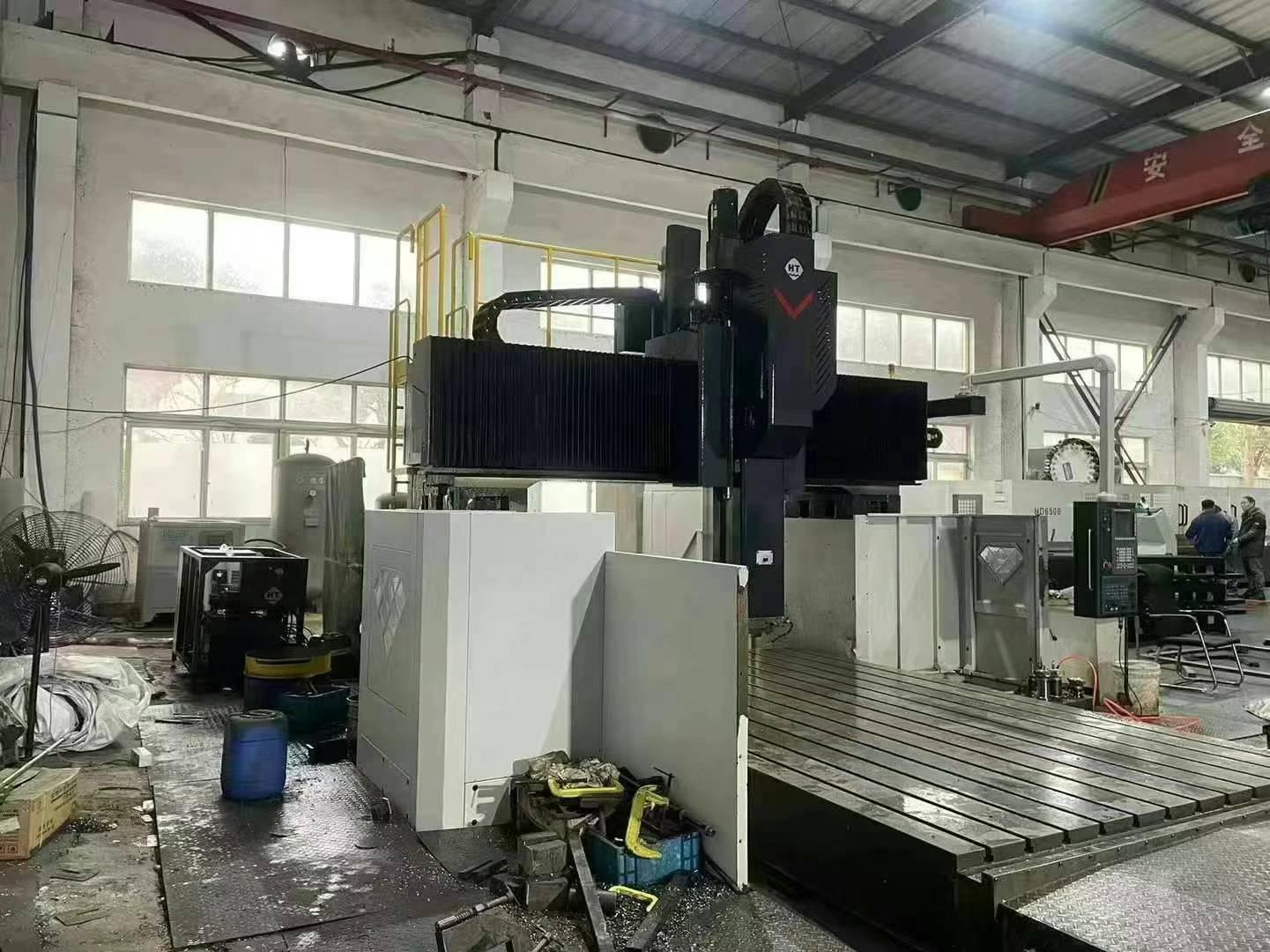

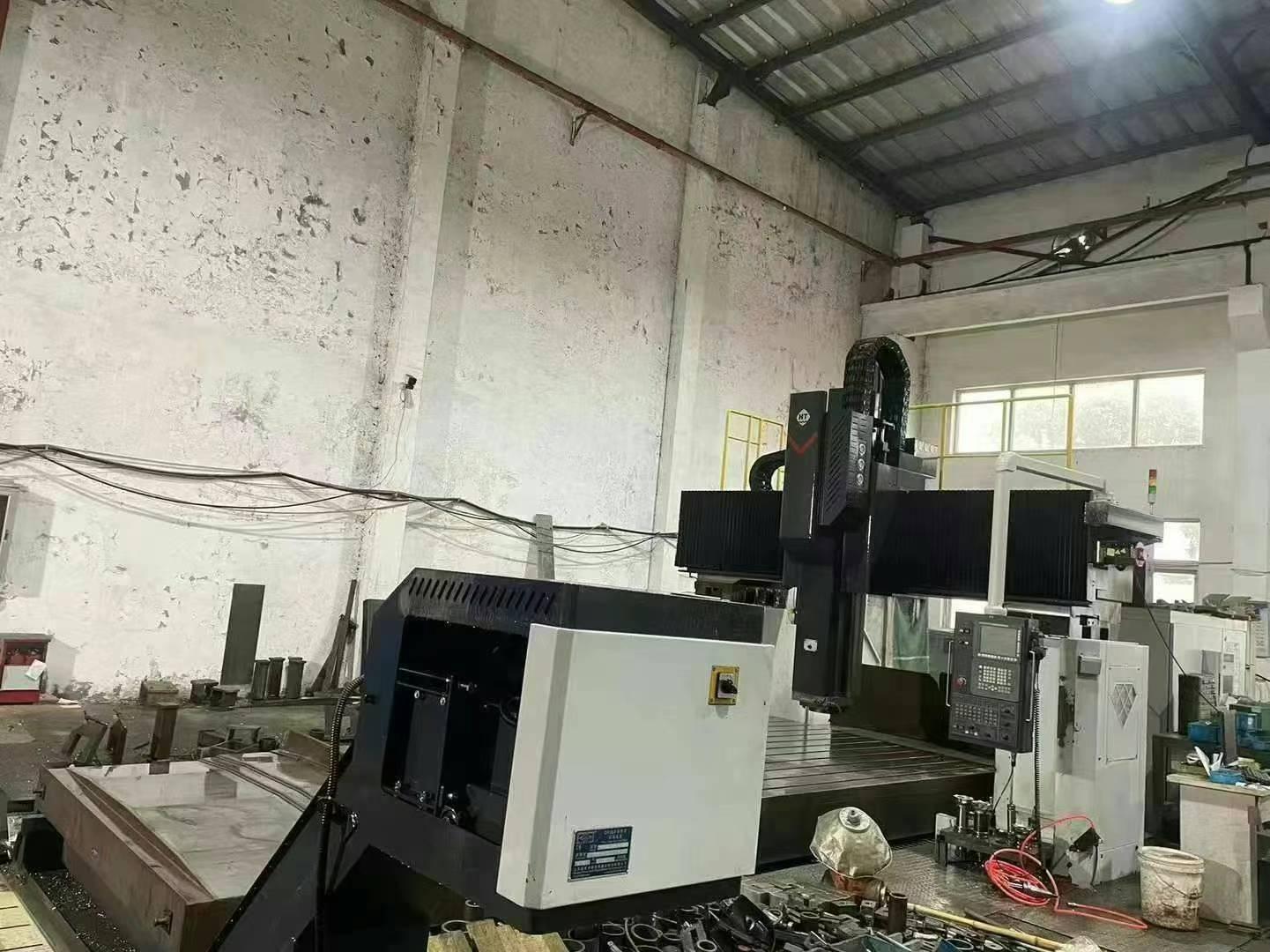

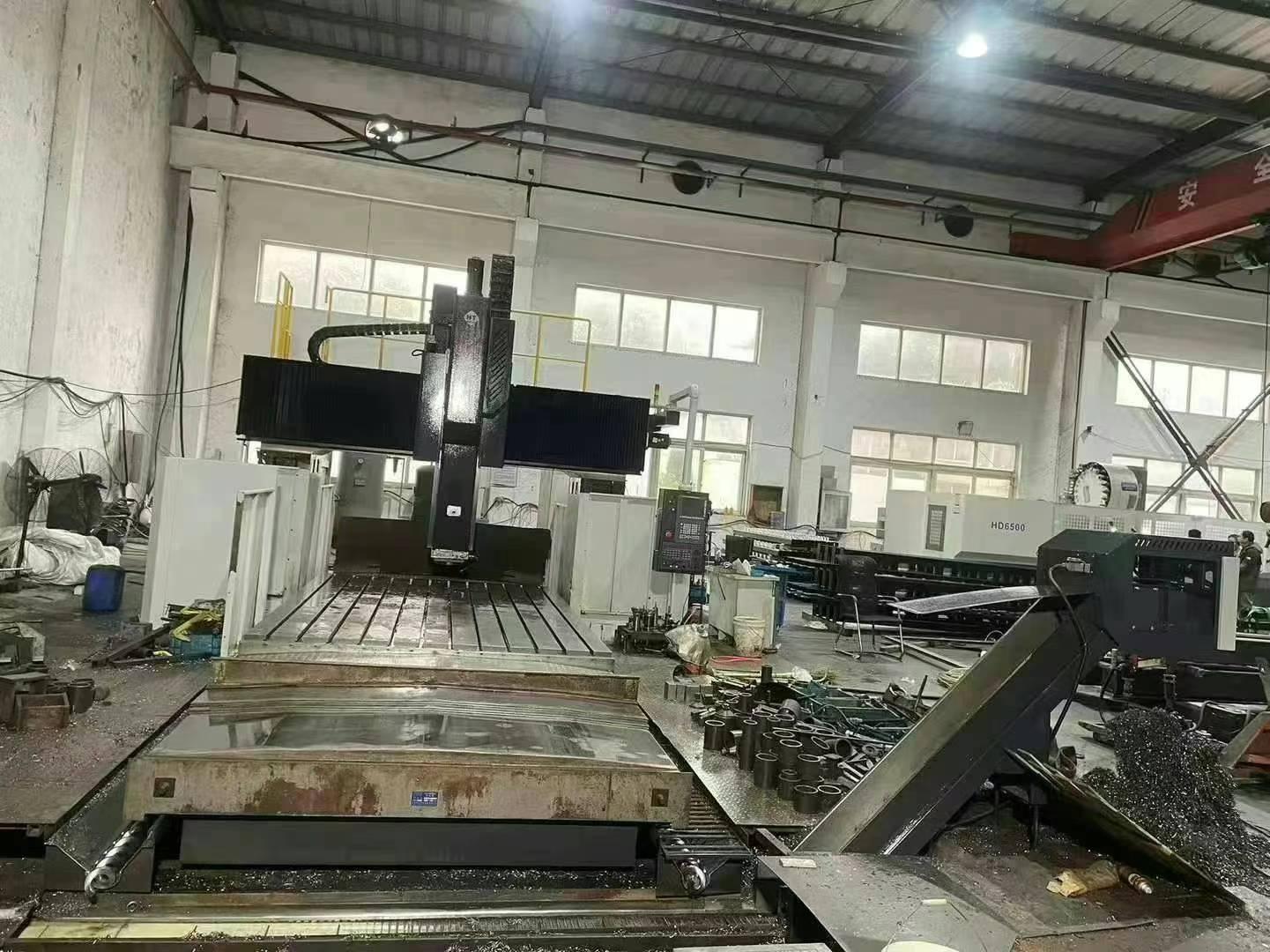

• Model：GLU28X40
• Origin：China
• Location：China
• Year：2017
• Create Time：2024-11-15

Specifications:

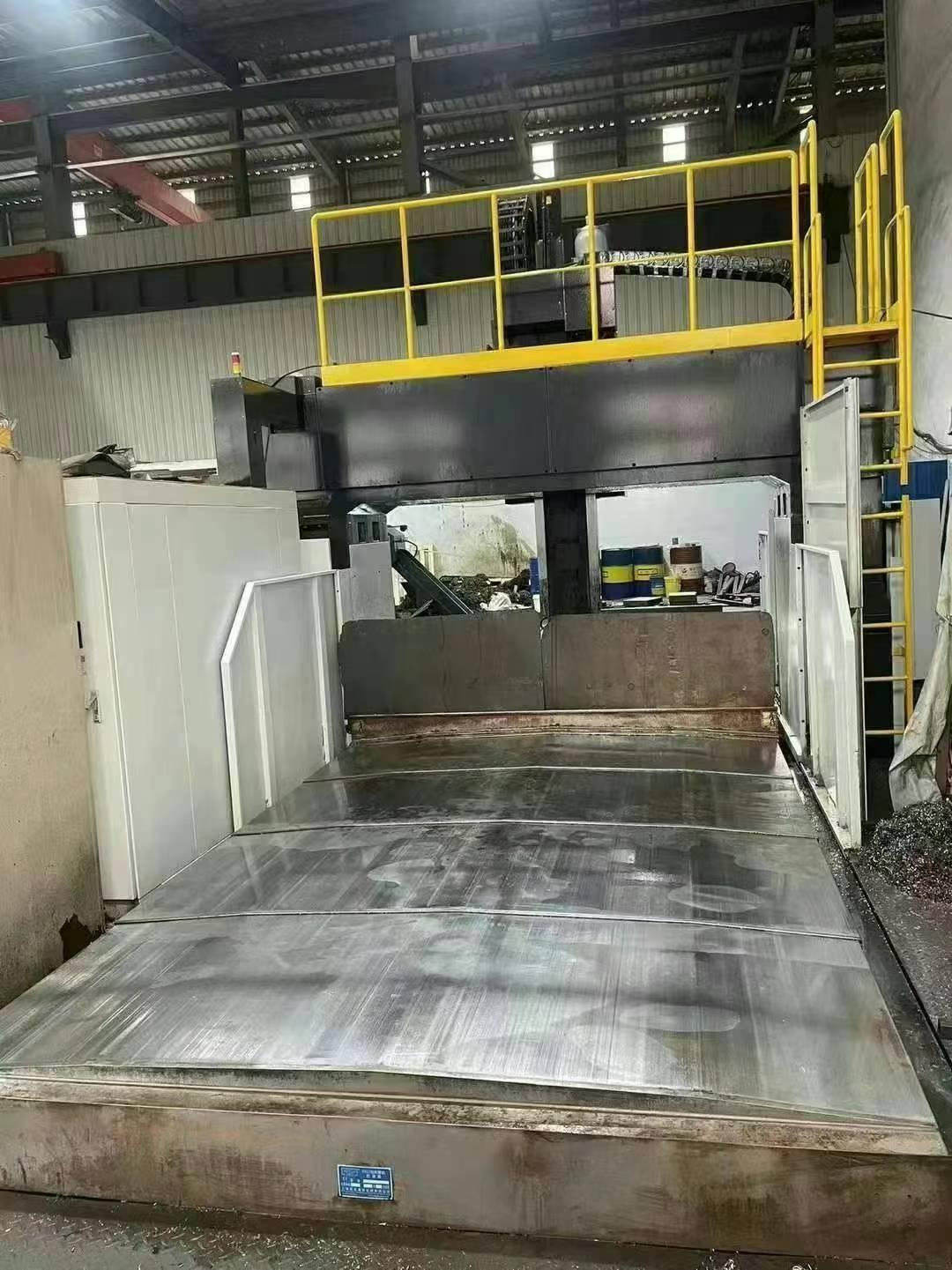

• WorkWorktable size: 4000×2500mm

  Gantry width: 2800mm

  WorkWorktable load: 20 tons

  T-slot specification: 28×200×12mm

  three-axis travel: 4200*2750*1000mm

  spindle power: 22/26kw

  Spindle speed: 10-6000rpm

  Distance from shaft end face to Worktable surface: 160-1160mm

  machine tool weight: 62 tons

  Floor area: 1120×500×415cm
