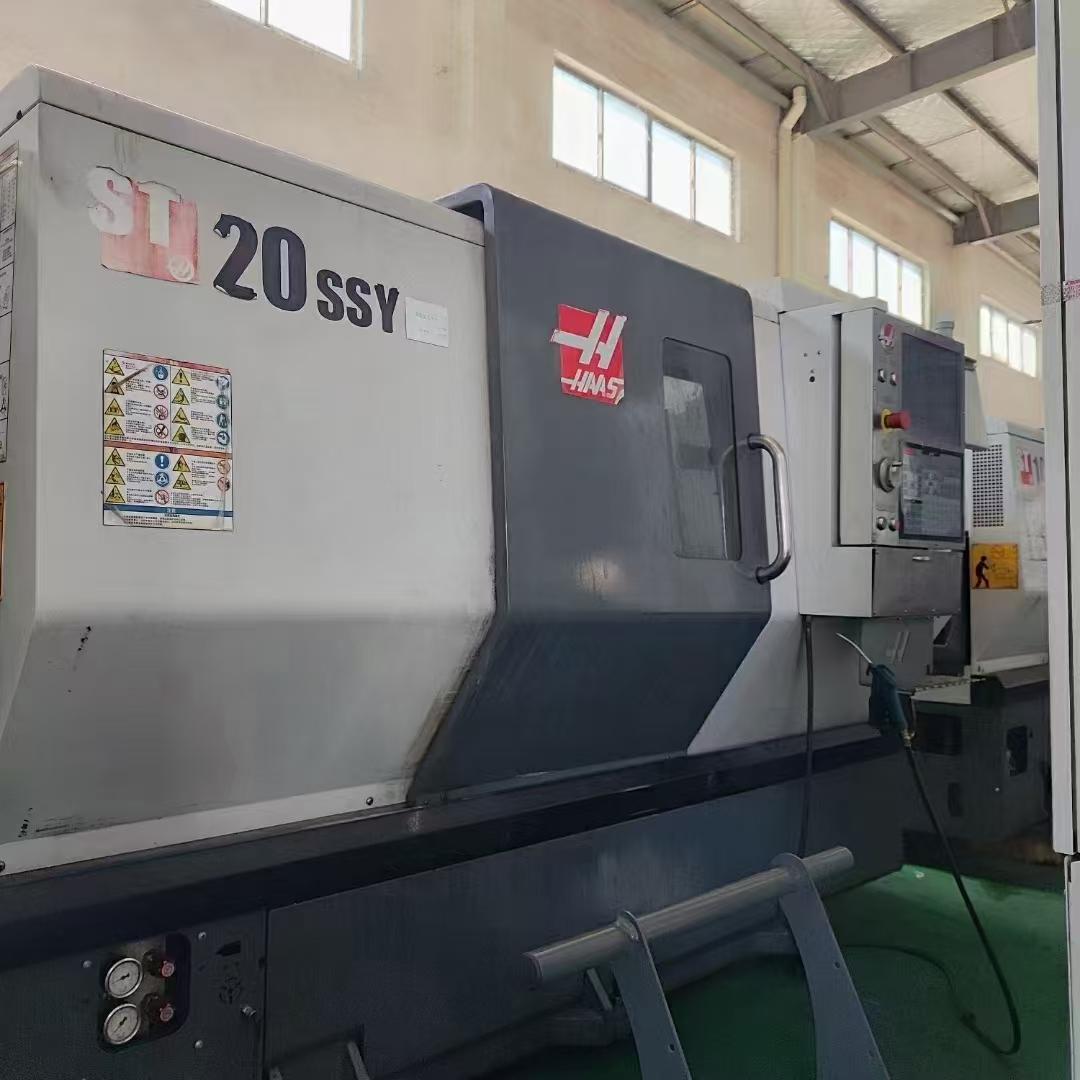

HAAS   ST-20SSY
Turn Mill Machining Centre
[Product Information:]
  • Inventory number：484447
  • Brand：HAAS
  • Model：ST-20SSY
  • Origin：America
  • Location：China
  • Year：290000
  • Create Time：2024-11-09

Specifications:

  • Chuck size: 210mm
    Maximum turning diameter: 254mm
    Maximum turning length: 533mm
    Bar capacity: 51mm
    spindle maximum speed: 5000rpm
    Maximum motor power: 22.4kw
    Maximum torque: 190NM
    spindle nose end: A2-6
    Maximum rotating diameter of the bed: 806mm
    Maximum rotating diameter on the slider: 527mm
    Maximum rotating diameter on tailstock: 584mm
    X axis travel: 236mm
    Y-axis travel: ±51mm
    Z-axis travel: 533mm
    X-axis fast moving speed: 12*12*30m/min
