• Inventory number：85235
• Brand：Tsugami
• Model：M06JC-II
• Origin：Japan
• Location：China
• Year：2022
• Create Time：2024-10-28

Specifications:

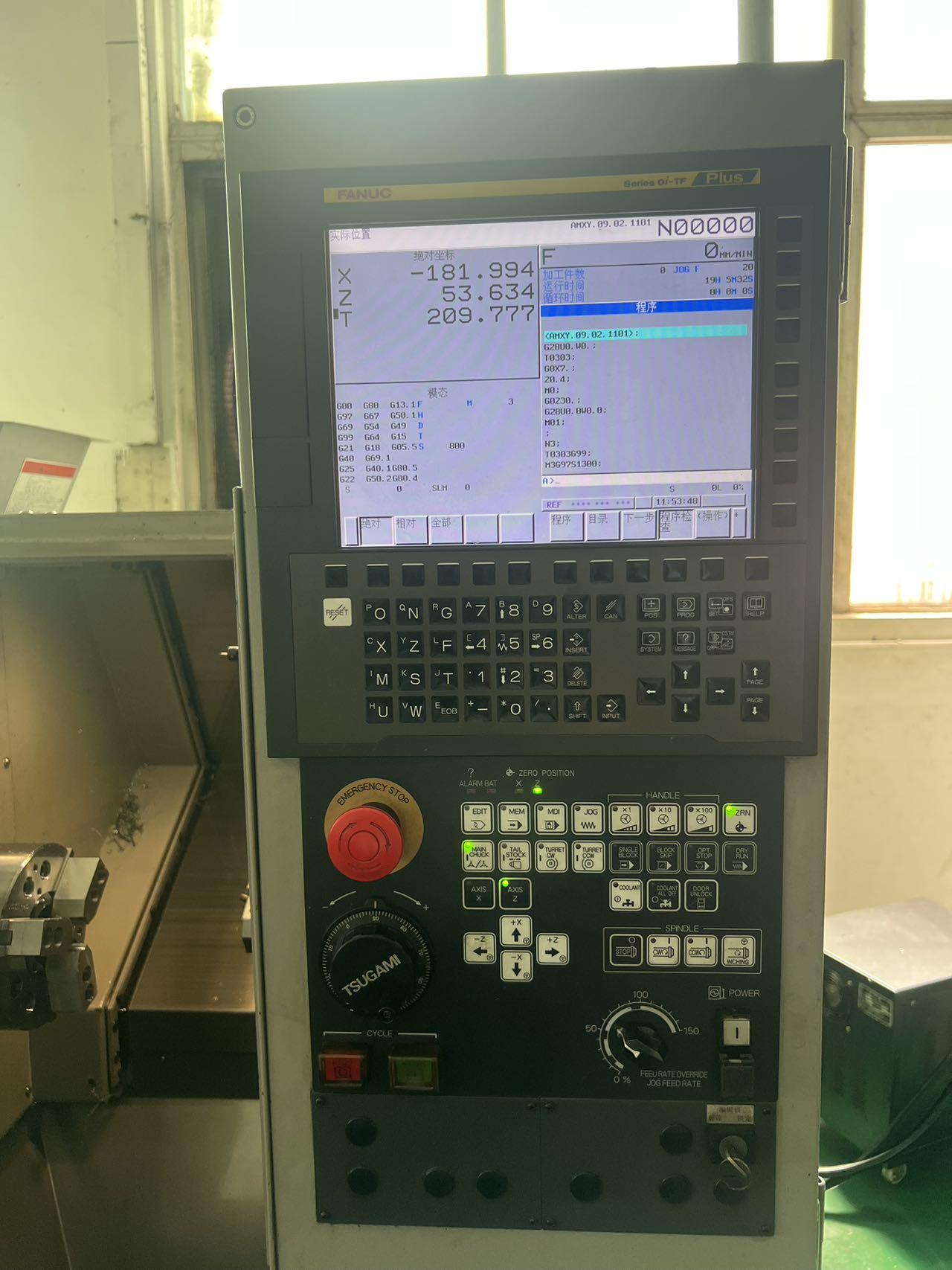

• CNC CNC System: FANUC

  Maximum machining  diameter: φ220/42mm

  Maximum machining  length: 190mm

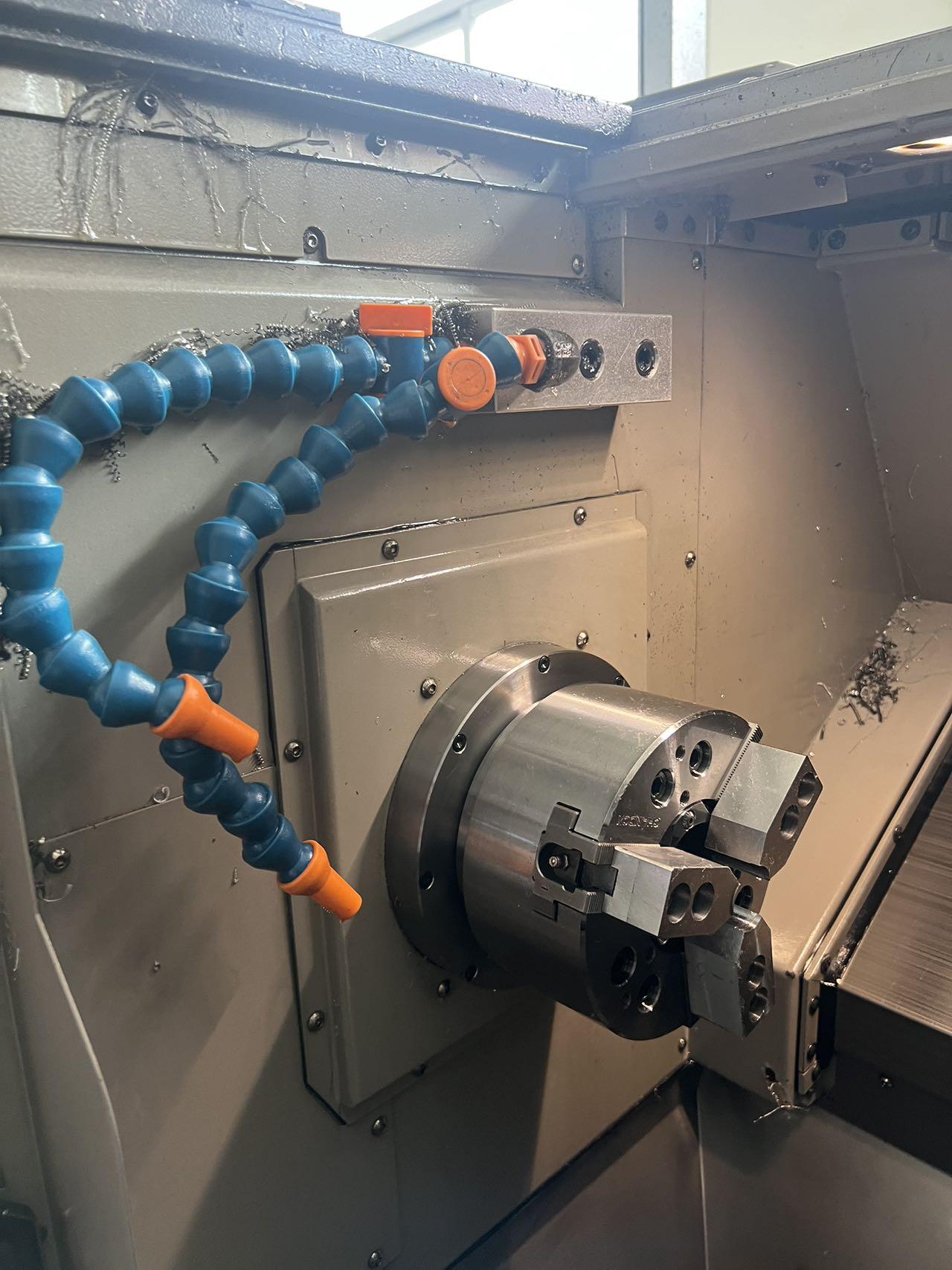

  Chuck size: 6inches

  spindle maximum speed: 5000rpm

  spindle through through hole: φ52mm

  spindle bearing diameter: φ80mm

  External diameter Tool Tool holder: 20mm

  Hole diameter: φ25mm

  spindle motor: 5.5/7.5kw

  X/Z motor: 1.2kw

  X/Z axis travel: 130/230mm

  X/Z axis fast speed: 24m/min

  Machine Footage: 1165*1560*1650mm

  Machine weight: 2580kg
