Specifications:

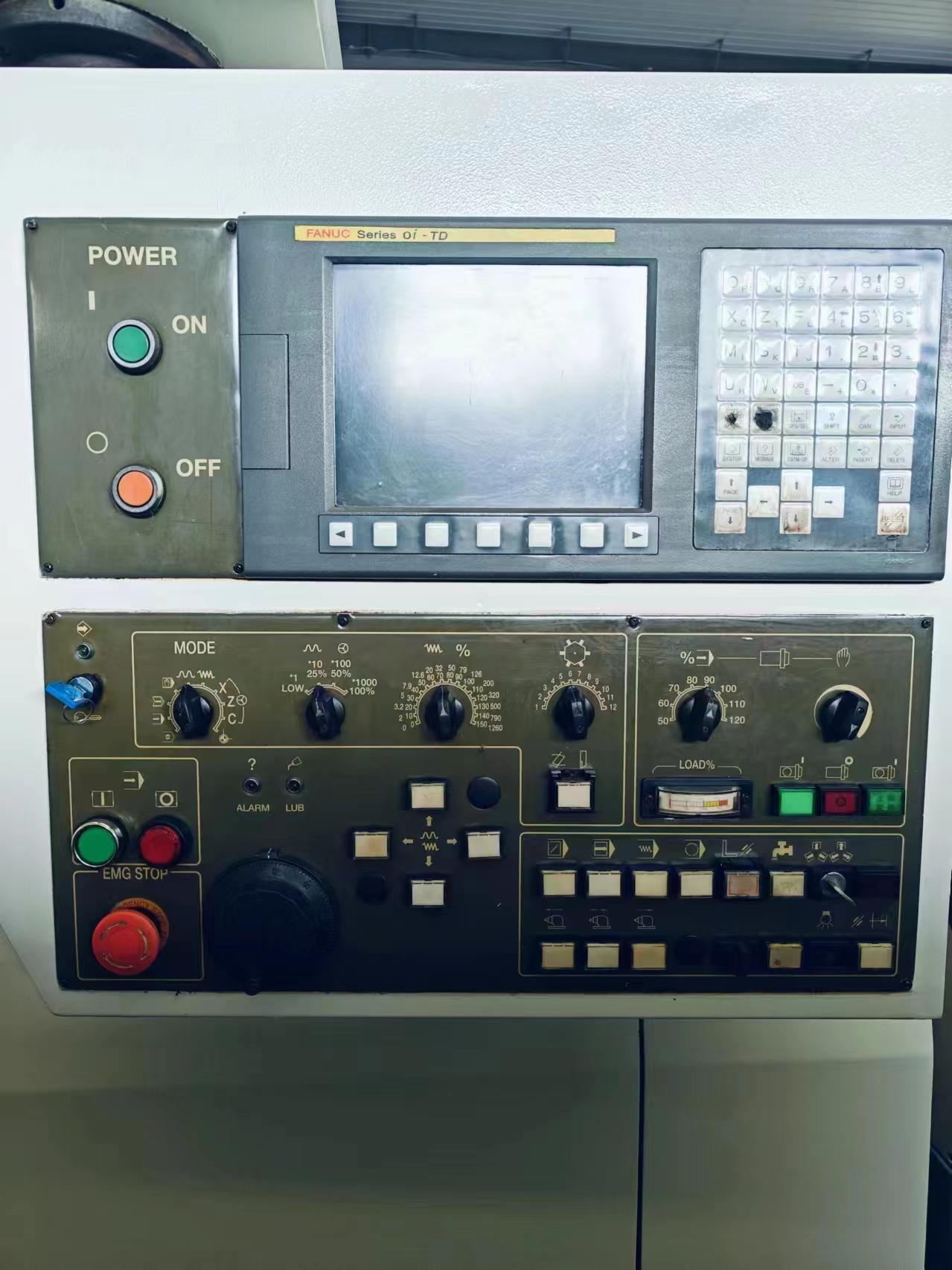

CNC CNC System: FANUC TD
machining length: 500mm
Diameter: 300mm
turning diameter: 200mm
Machining length: 450mm

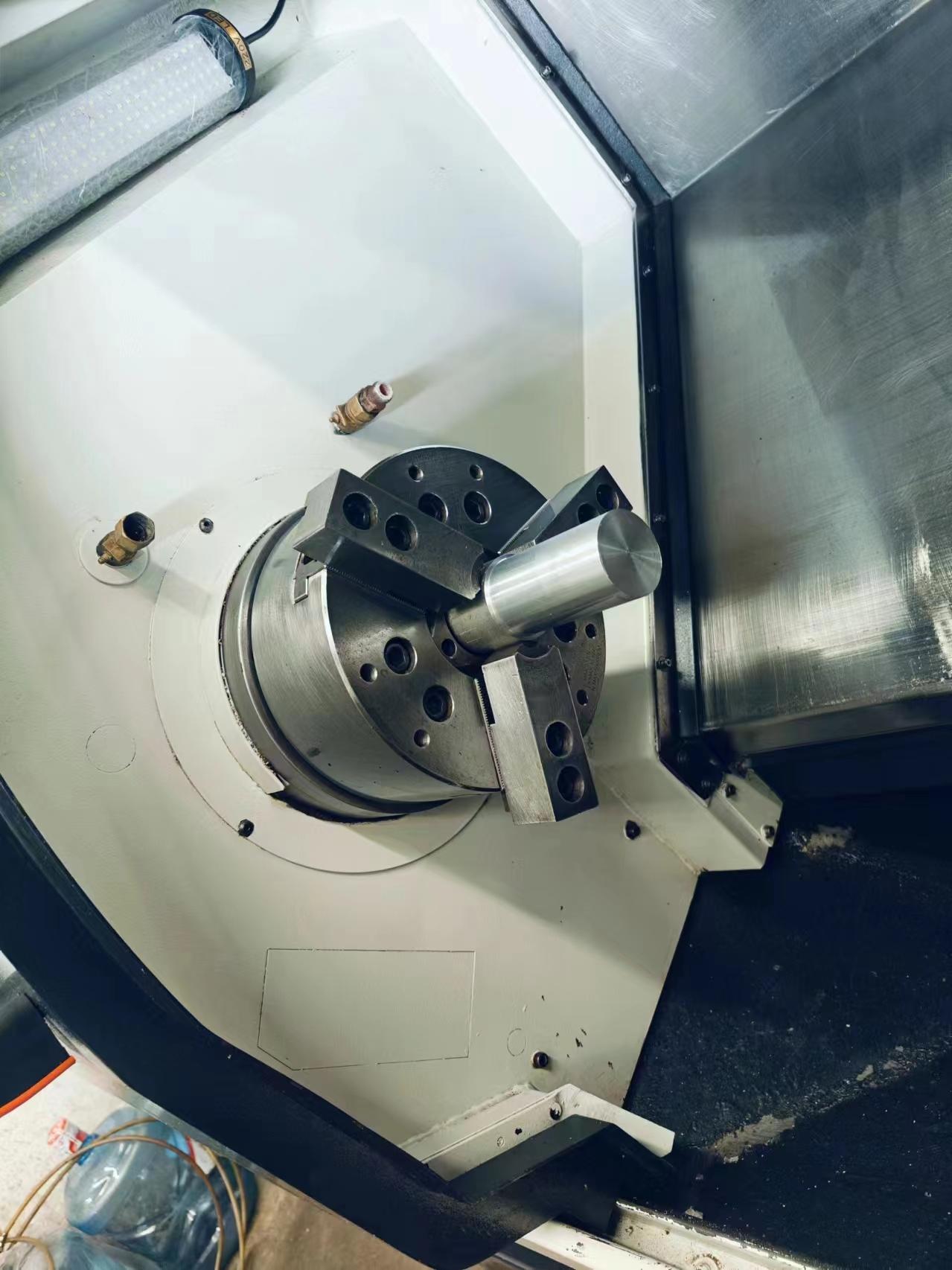

Chuck size: 8
Bar capacity: 51mm
spindle nose: A2-6
spindle motor power: 11kw
Spindle speed: 4500rpm
spindle torque: 35.8N-m
XZ axis travel: 200*480mm
Fast feed rate: 20m/min
Feed rate: 4800mm/min
Machine weight: 3500kg
Footage: 2480*1300*1635mm

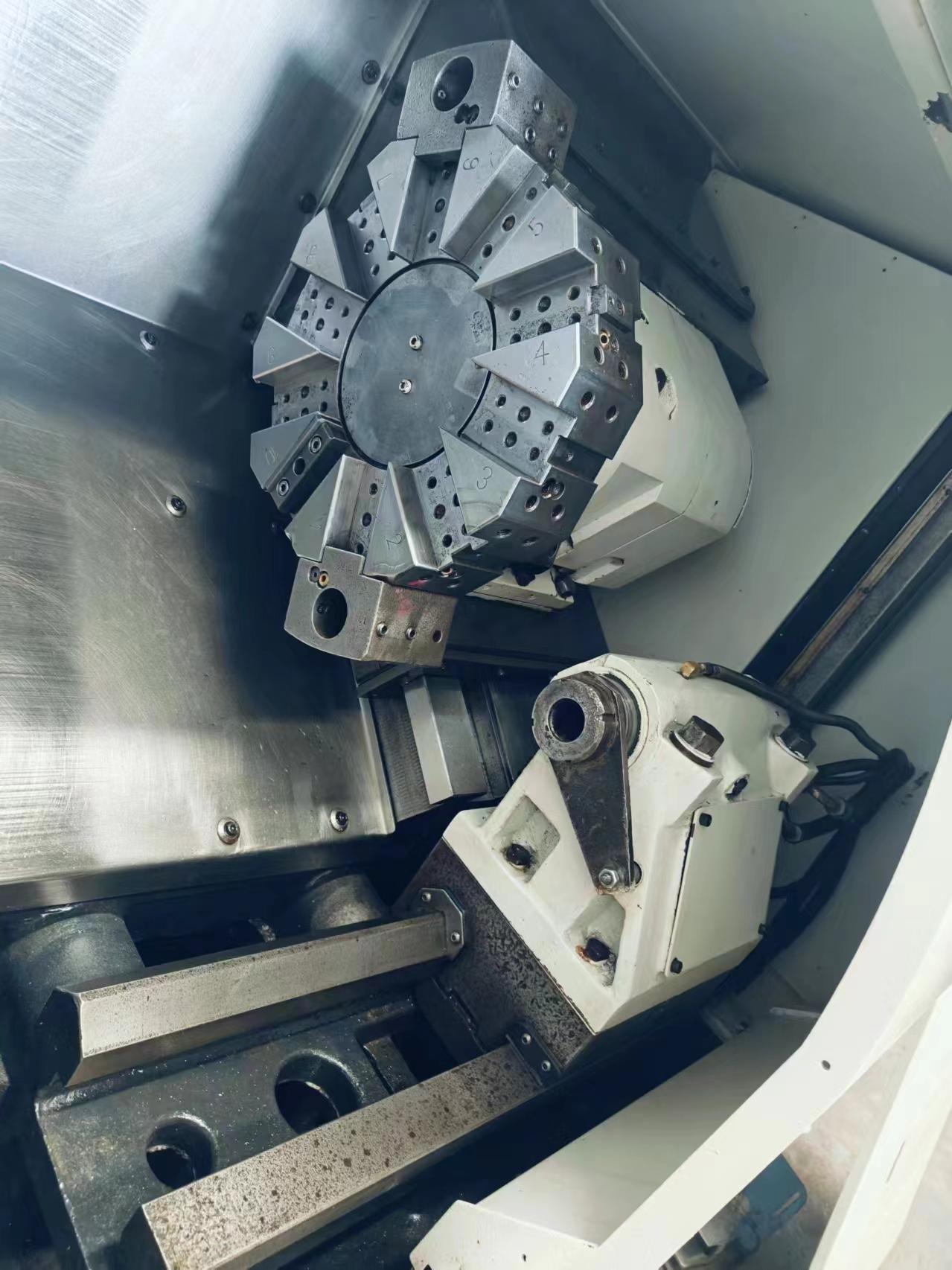

Turret position: 8
