Specifications:

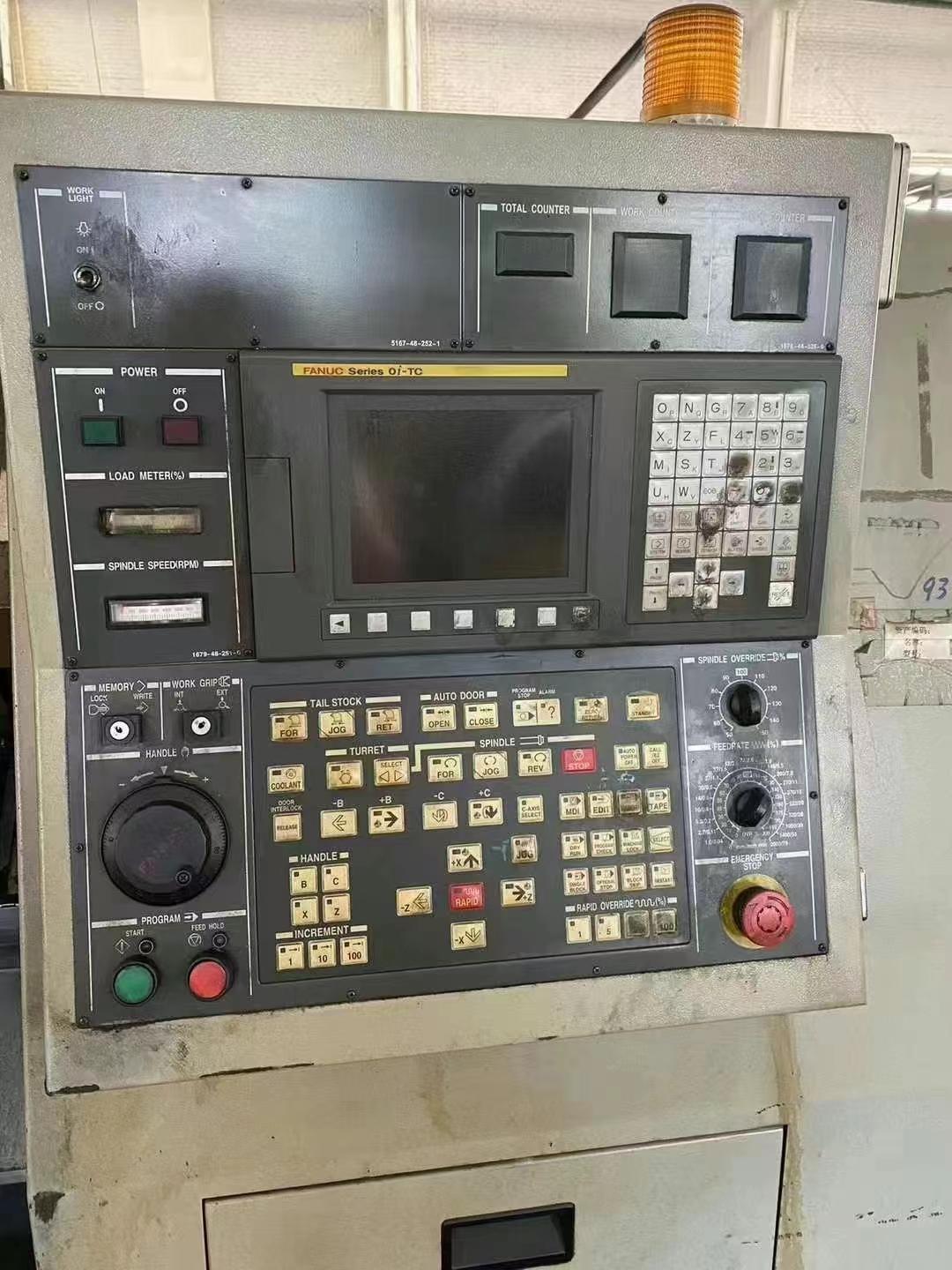

CNC CNC System: FANUC TD
X*Z axis travel :210*430mm
Rotating diameter :550mm
machining diameter :350mm
Slide diameter :350mm
workpiece length :410mm
Bar diameter :45mm
Spindle speed :6000rpm
spindle through hole diameter :53mm
Fast moving rate :36m/min
spindle power :11/7.5kw
Footage :2400*1660*1870mm
Weight :4000kg
Six inch hydraulic chuck

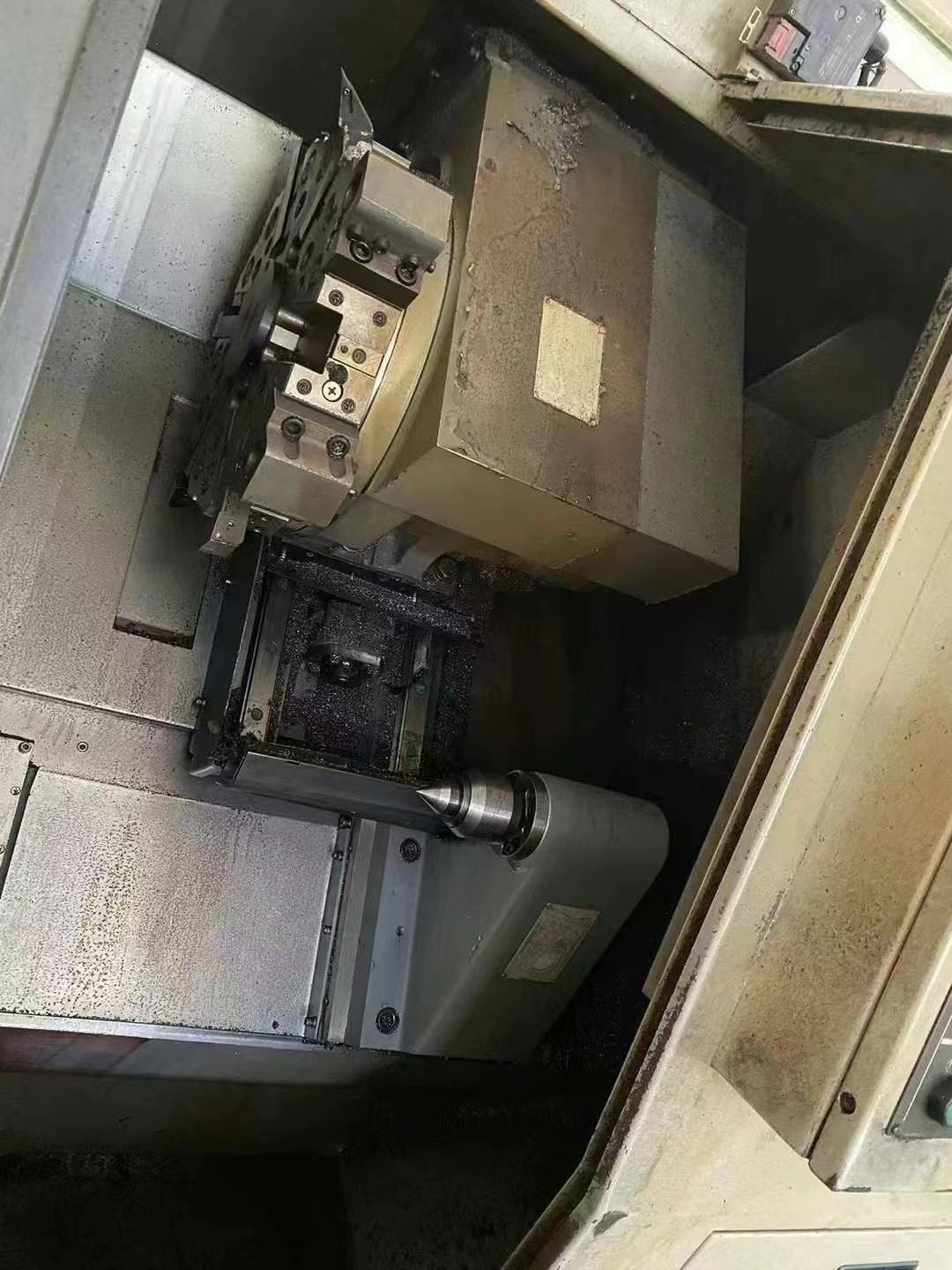

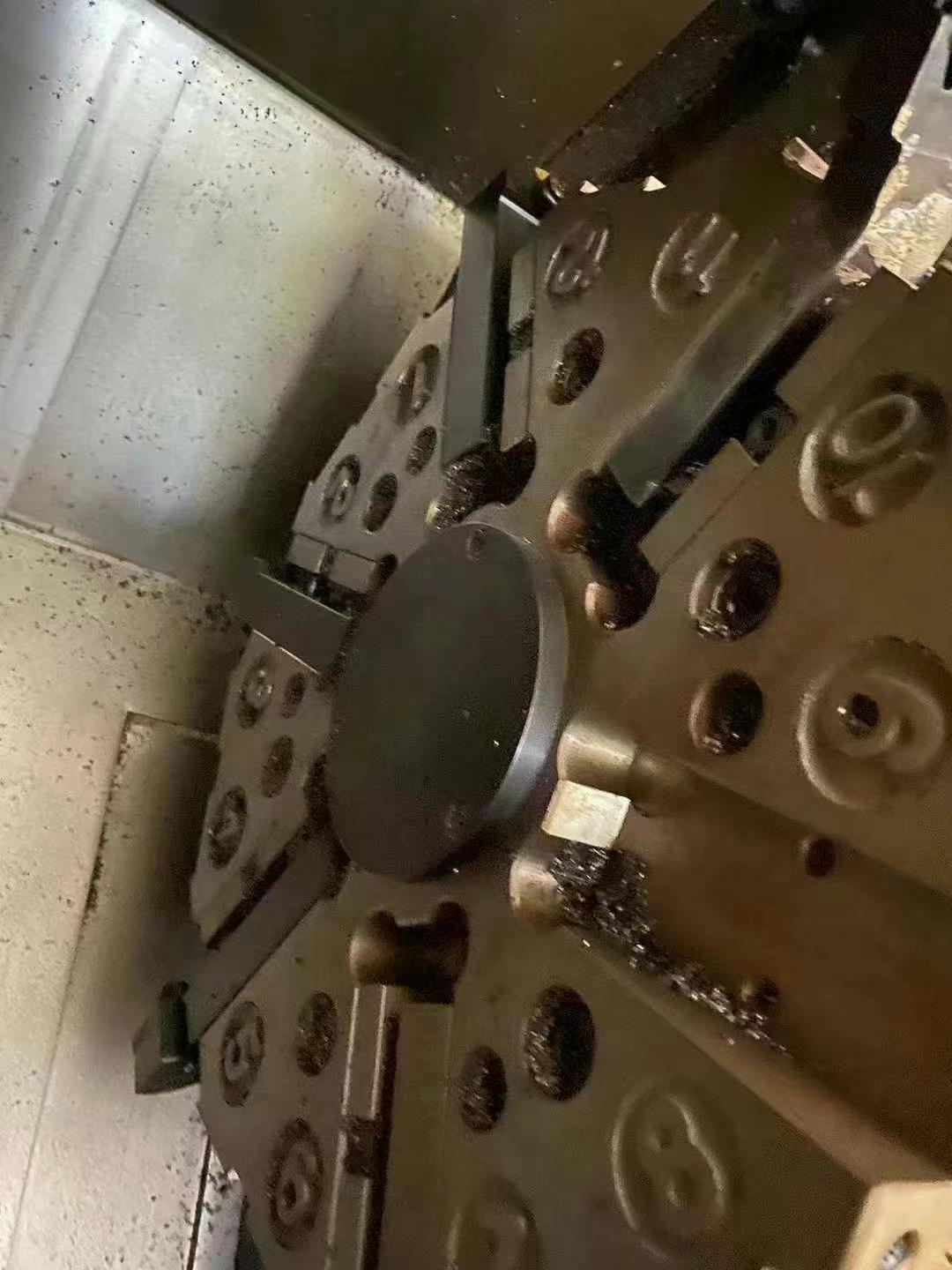

12 positions turret
