• Inventory number：492200
• Brand：OM

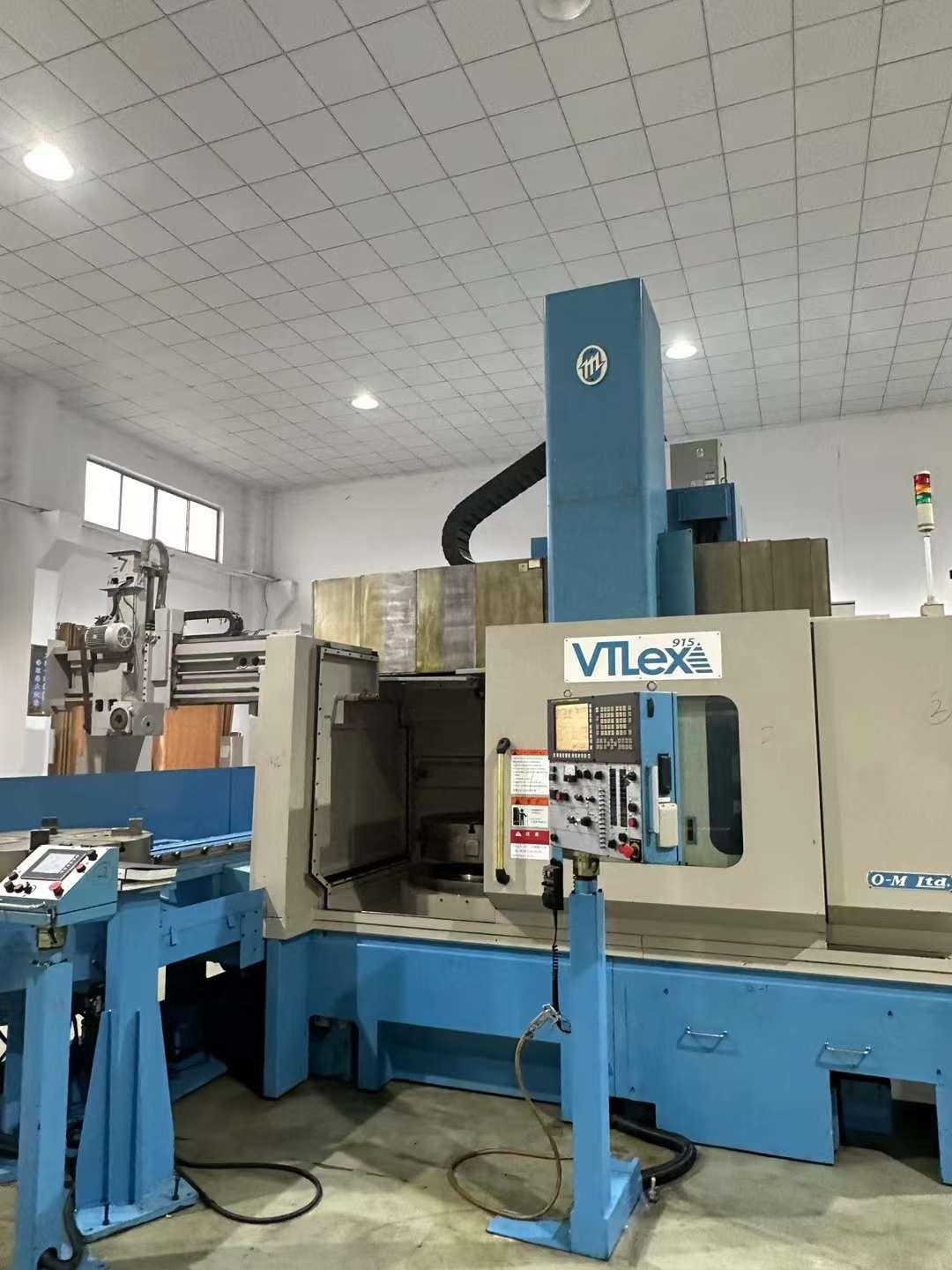

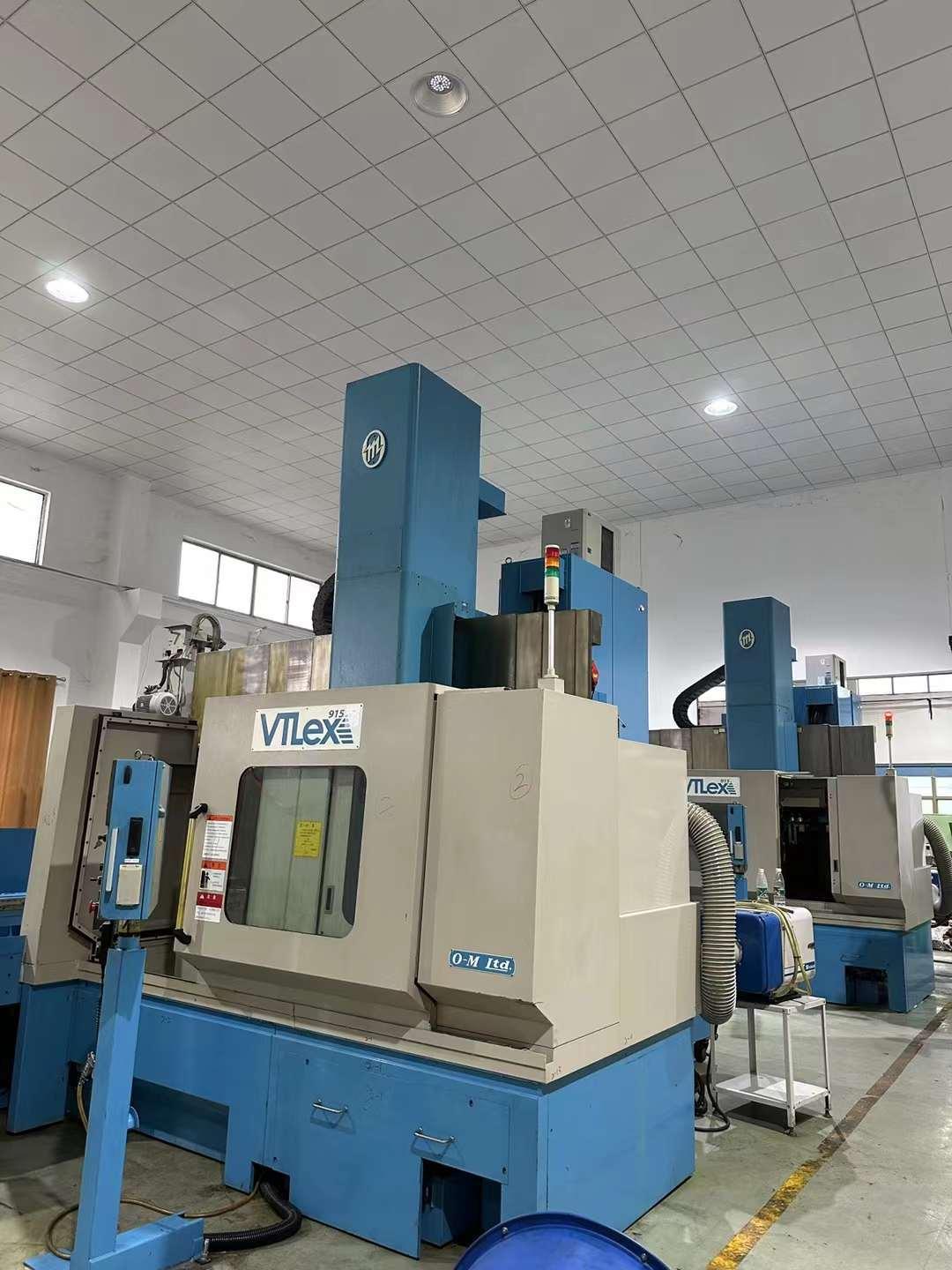

• Model：VTLex915
• Origin：Japan
• Location：China
• Year：
• Create Time：2024-09-27

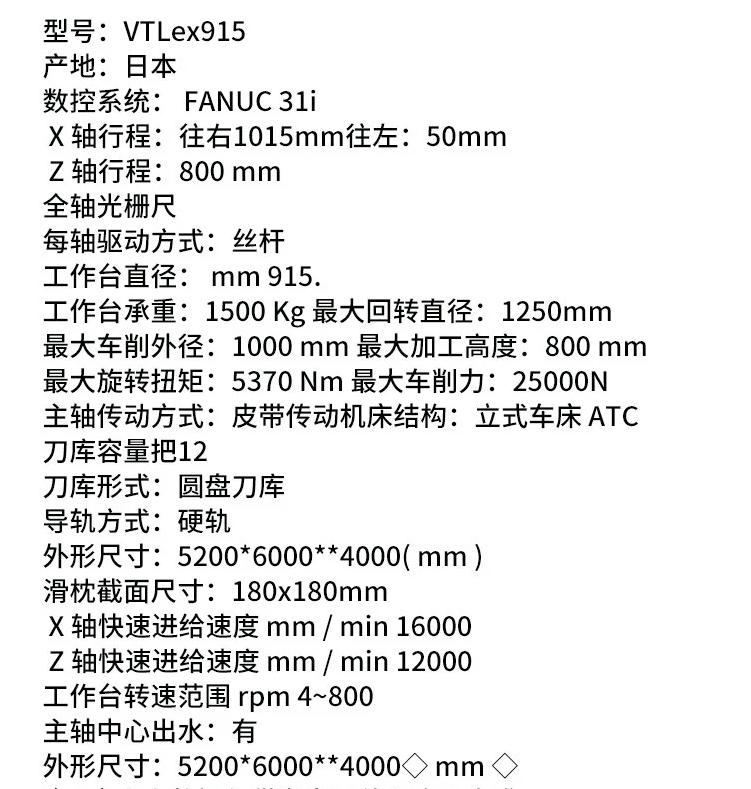

Specifications:

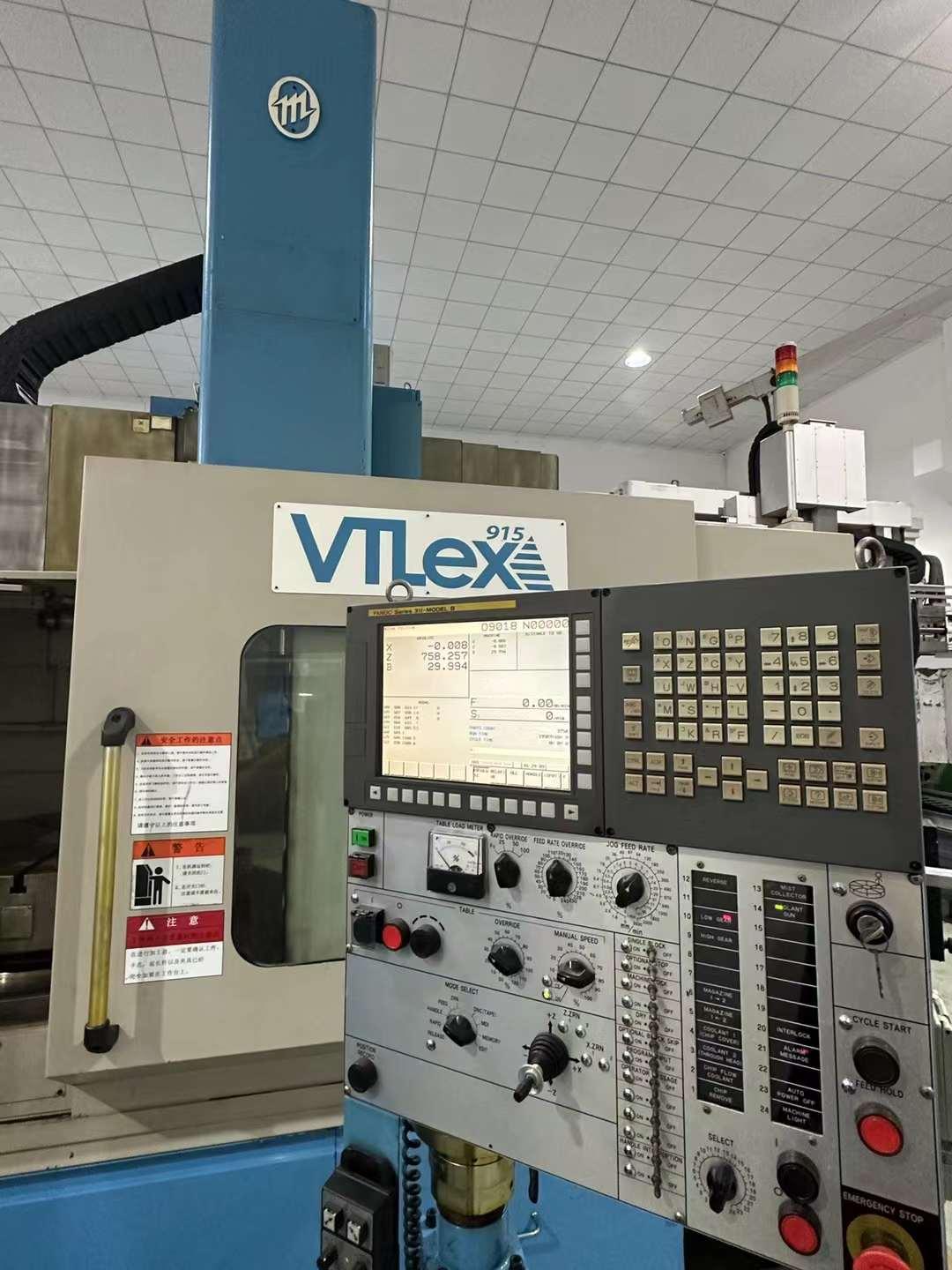

• CNC CNC System: FANUC31i

  X axis travel: right: 1015mm, left: 50mm

  Z-axis travel: 800mm

  Drive mode per shaft: screw

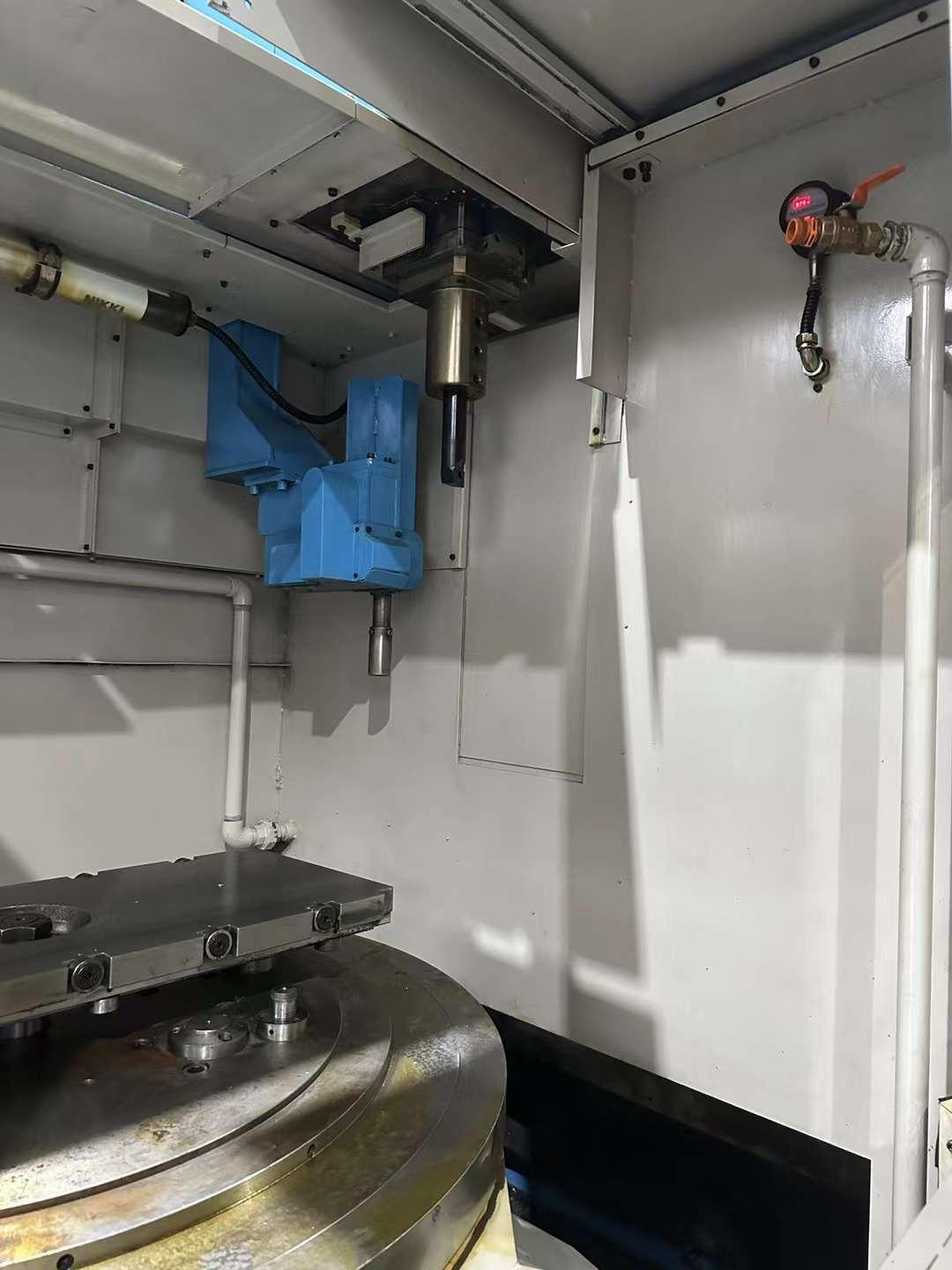

  WorkWorktable diameter: 915mm

  WorkWorktable load: 1500Kg

  Maximum rotating diameter: 1250mm

  Maximum turning external diameter: 1000mm

  Maximum machining  height: 800mm

  Maximum rotating torque: 5370Nm

  Maximum turning force: 25000N

  spindle drive mode: belt drive

  machine tool structure: Vertical lathe

  ATC tools magazine: 12

  tools magazine form: disk tools magazine

  lead rail mode: rigid guideway

  Footage: 5200*6000*4000mm

  Ram cross-sectional area size: 180x180mm

  X-axis fast feed rate: 16000mm/min

  Z-axis fast feed rate: 12000mm/min

  Worktable speed: 4~800rpm

  Footage: 5200*6000*4000mm

  With center flushing

  Full axis glass scale
