Specifications:
Max. cutting diameter: 80mm
Maximum cutting length: 220mm
Maximum cutting modulus: 3.0M
Maximum machining teeth (maximum point degrees) : 3-999Z

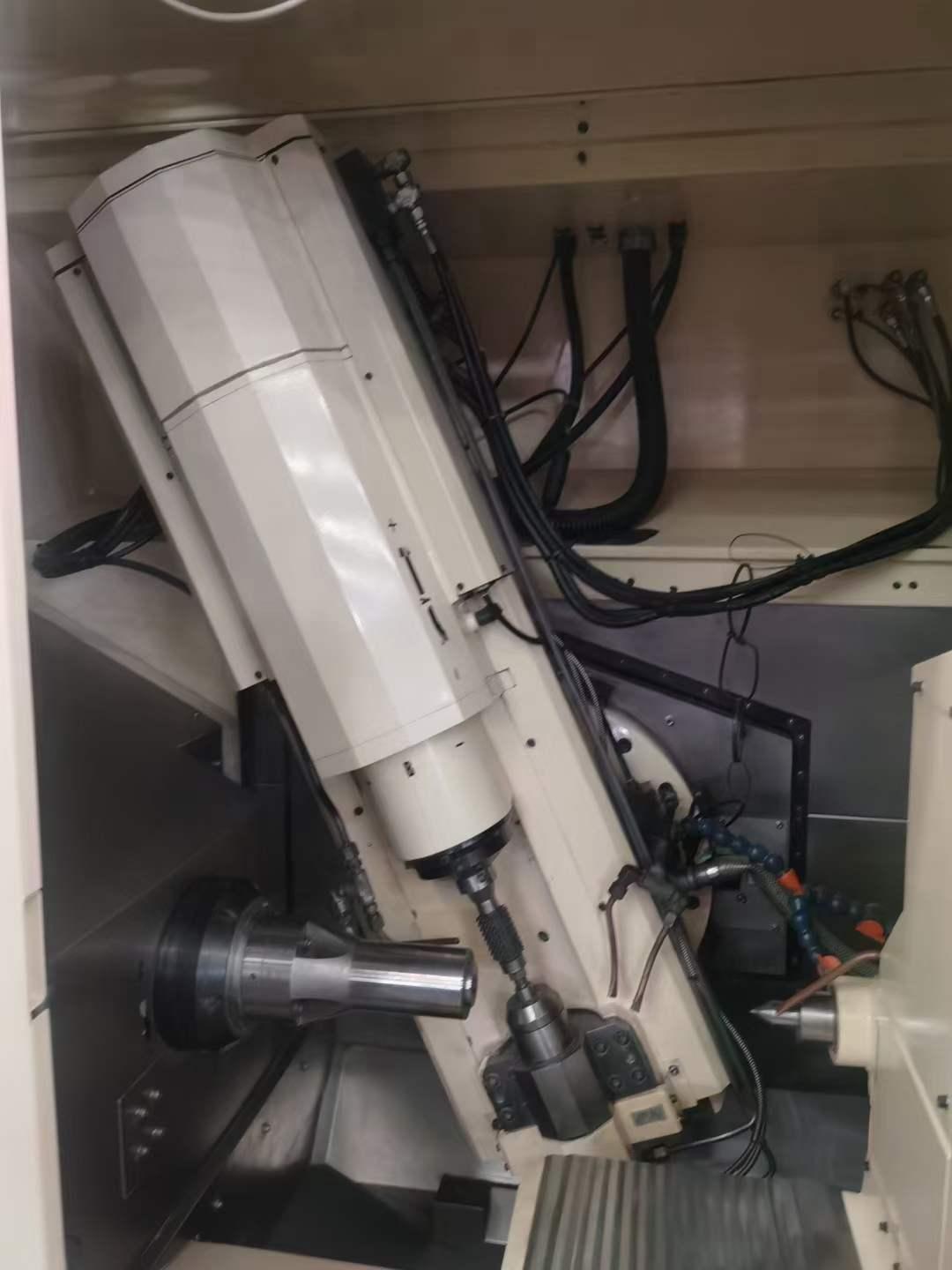

Hob can be installed (diameter * height) : 80*120mm
Standard hob shaft length: 16mm
Maximum resolution of hob shaft (grinding wheel resolution) : 200-5000rpm
Hob channeling travel (roll to shaft taper) : 100mm
Hob holder rotation Angle (machining travel) : +45°
workpiece spindle maximum rotation: 500rpm
Radial fast feed (express) : 6000mm/min
Radial Cutting rate (cutting) : 0.1-500mm/min
Axial fast feed (express) : 6000mm/min
Axial Cutting rate (cutting) : 0.1-500mm/min
Overall capacity: 21kVA(KVA)
Machine height: 2220mm
Machine floor area: 2200mm*2300mm
Machine weight: 5500kg

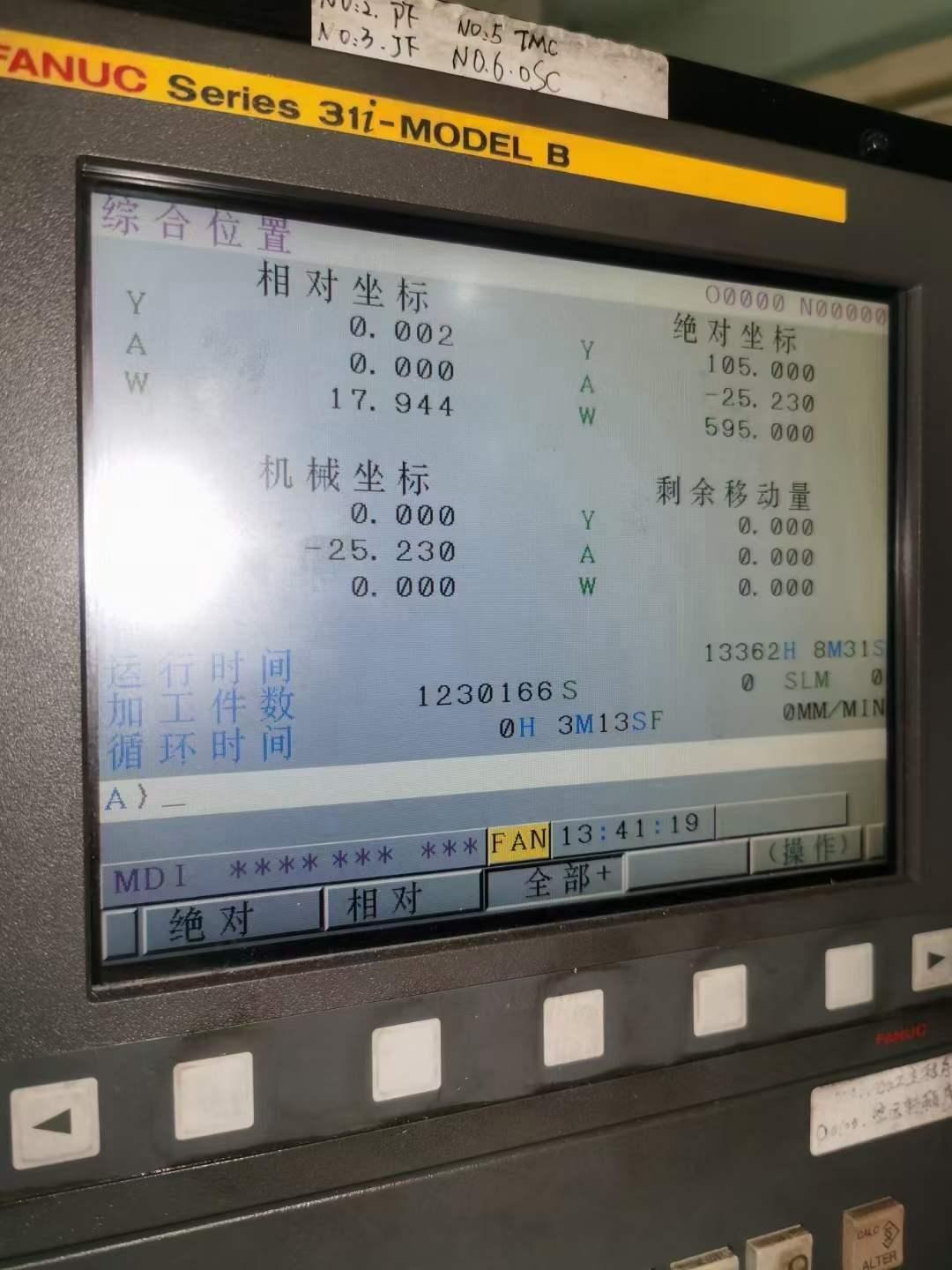

CNC System: Fanuc 31i
