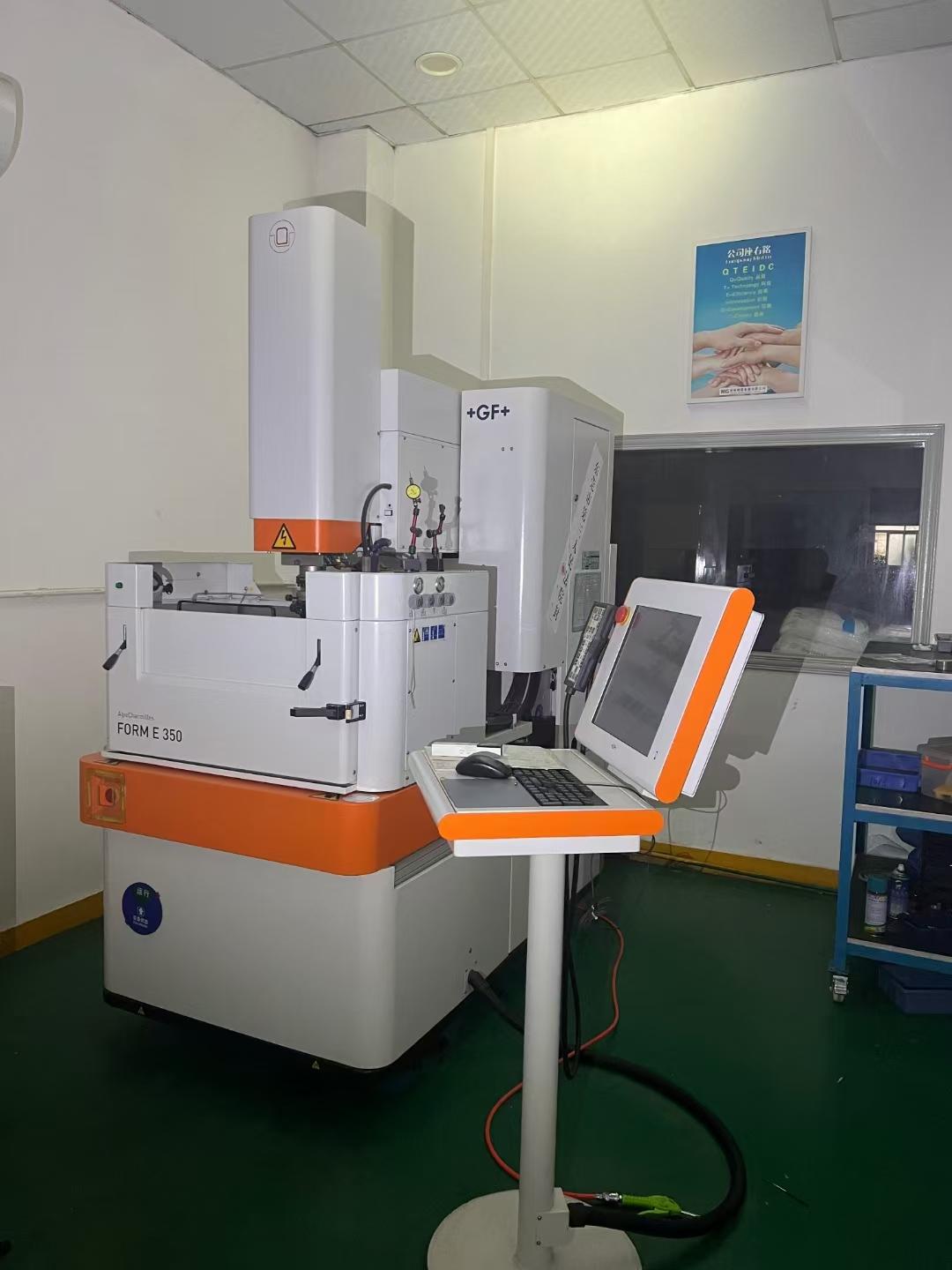

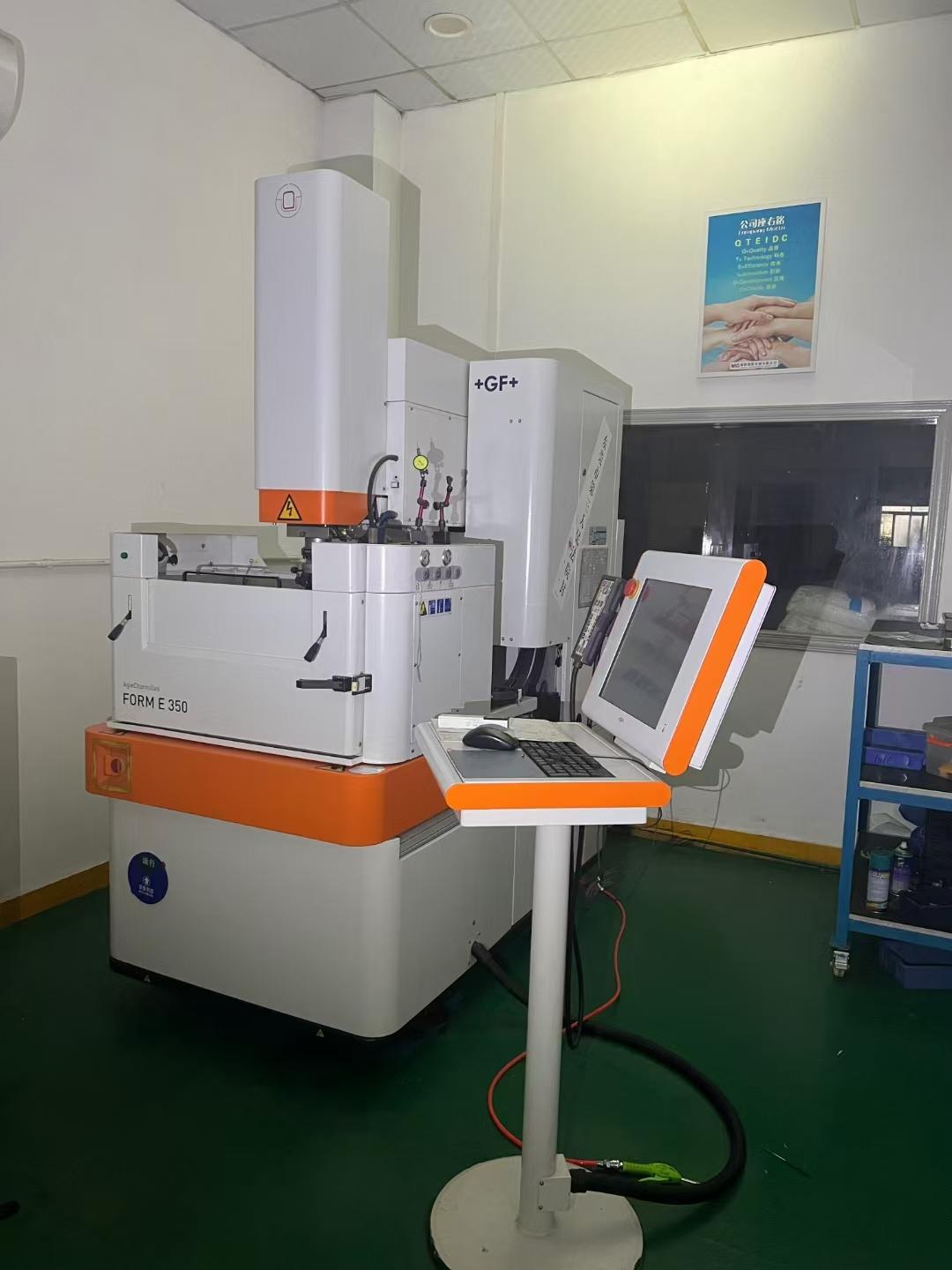

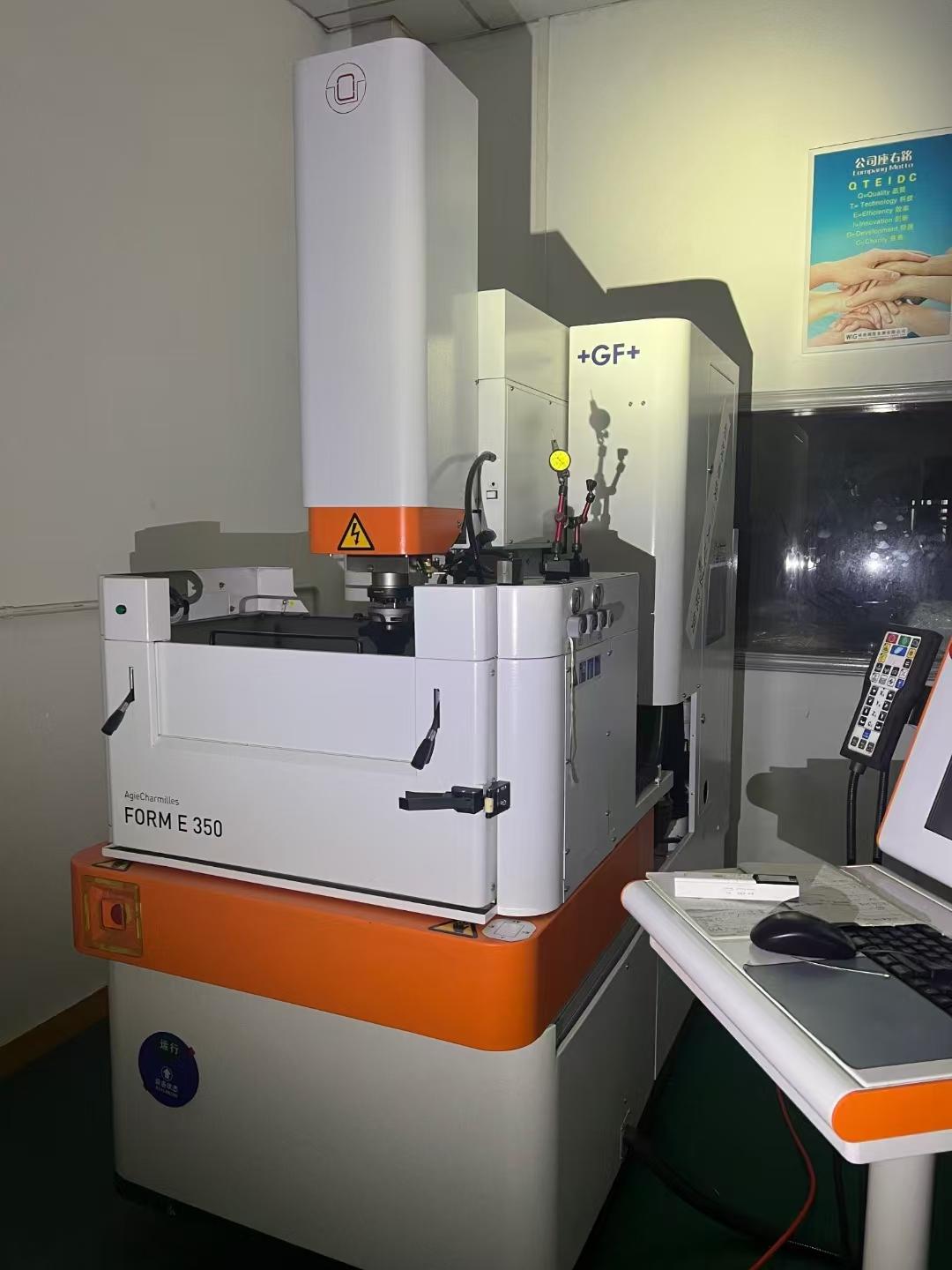

Charmilles   FORME350
Spark eroder
[Product Information:]
  • Inventory number：61701
  • Brand：Charmilles
  • Model：FORME350
  • Origin：Switzerland
  • Location：China
  • Year：2019
  • Create Time：2024-09-03

Specifications:

  • three-axis travel: 350X250X250mm

    Footage: 1000X1731X2372mm

    Floor area: 1420X1731mm

    WorkWorktable size: 630X400mm

    Minimum/maximum distance between Worktable and chuck: 170/420mm

    Maximum electrode weight: 50kg

    Maximum workpiece weight :200kg

    Maximum workpiece size: 800*500*265mm

    Working liquid Water tank capacity: 270L

    Maximum machining  current: 80A
