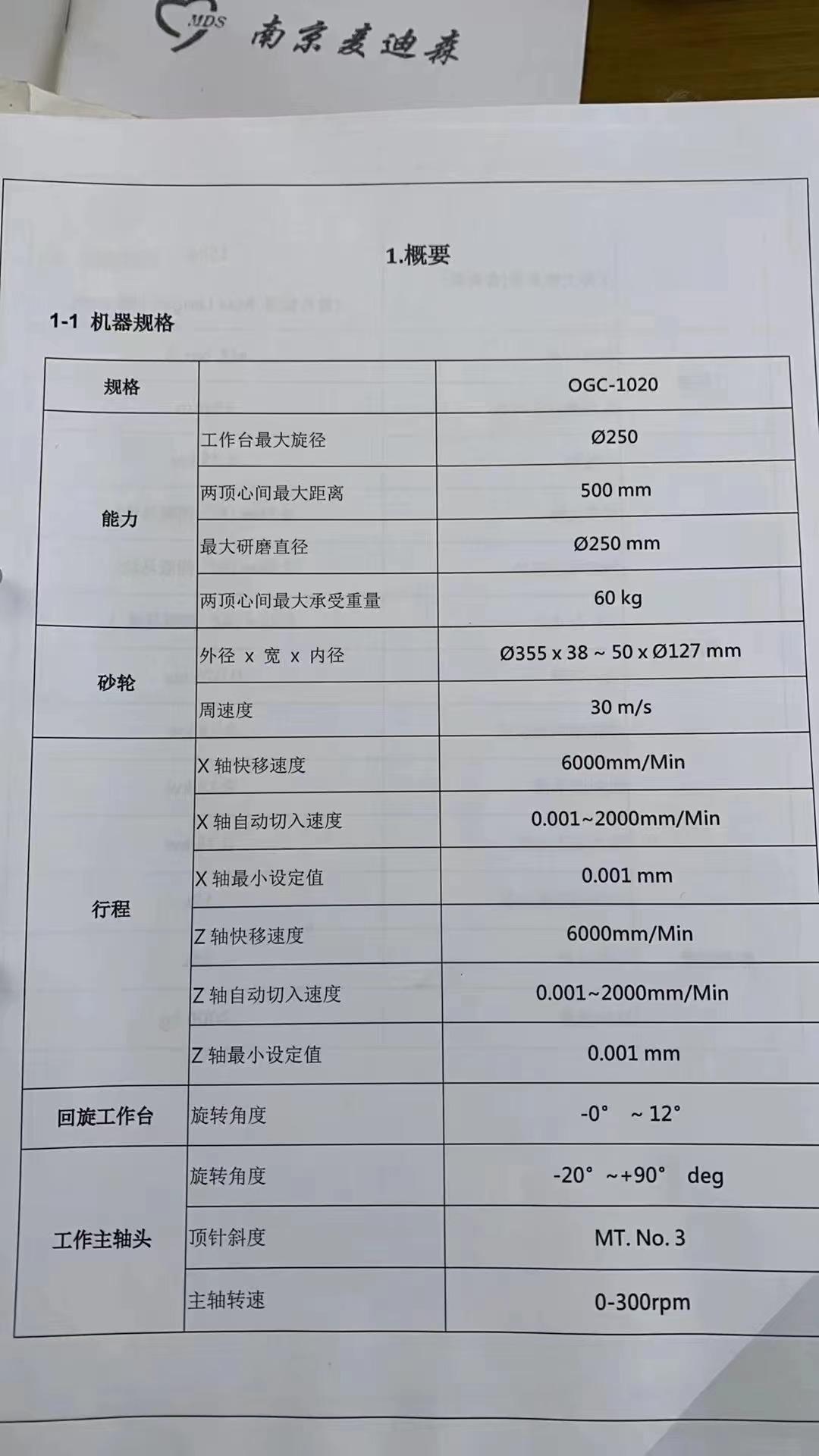

Maximum rotating diameter of Worktable 0250
Maximum distance between the two cores 500 mm Maximum grinding diameter 0250 mm Maximum weight between the two cores 60 kg external diameter x width X Internal diameter 0355x38 ~ 50x0127 mm speed 30 m/sX axis Fast moving rate: 6000mm/MinX axis automatic Cutting rate: 0.001~2000mm/MinX axis minimum set value: 0.001 mmZ axis Fast moving rate: 6000mm/MinZ axis automatic Cutting rate: 0.001~2000mm/MinZ axis minimum set value: 0.001 mm Rotation Angle: -0°~12° Rotation Angle: -20°~+90°deg Thimble inclination: MT.No.3 Spindle speed: 0-300rpm
